Shift Crossover Shaft

T350 - Manual Transmission
SHIFT CROSSOVER SHAFT

REMOVAL
1. Disassemble transaxle.
2. With the transaxle disassembled, remove the crossover shaft seal.

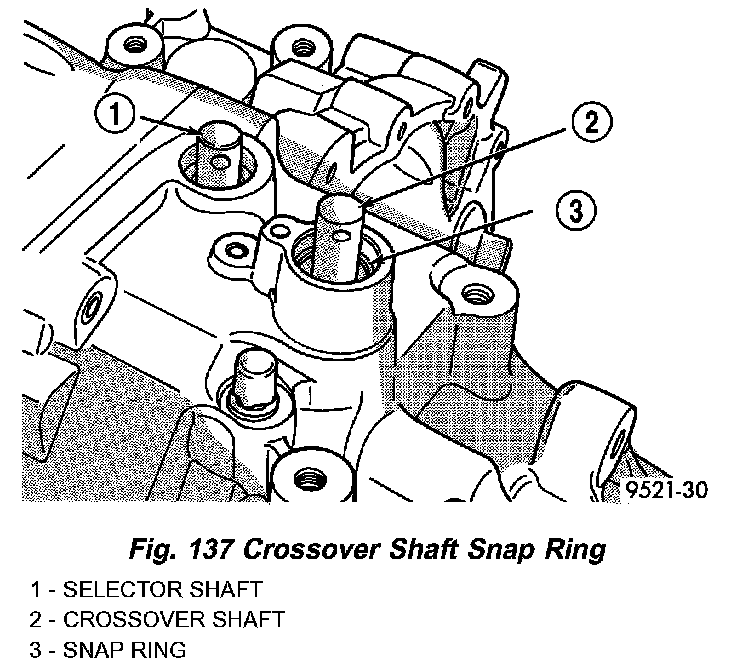

3. Using snap-ring pliers, remove the snap ring at the crossover shaft bore (Fig. 137).
4. Push the crossover shaft in the case and remove the crossover assembly.

INSTALLATION
1. Install crossover shaft to case and install snap ring (Fig. 137).
2. Install the crossover shaft seal.
3. Assemble transaxle.
