Assembly
41TE - Automatic TransmissionASSEMBLY

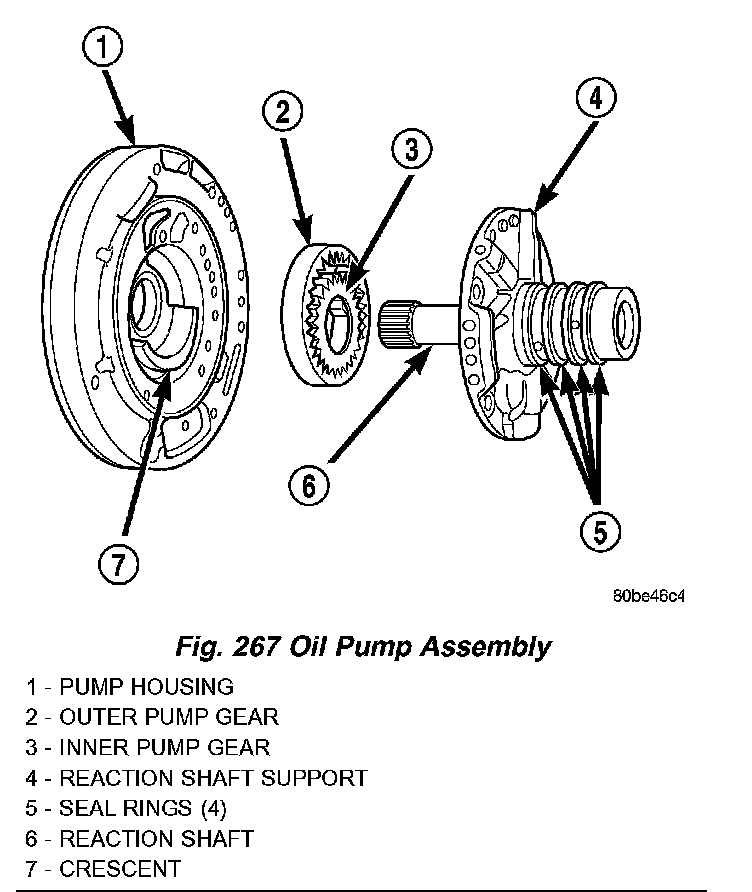

1. Assemble oil pump as shown in (Fig. 267)
2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 Nm (20 ft. lbs.) torque.
ASSEMBLY
1. Assemble oil pump as shown in (Fig. 267)
2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 Nm (20 ft. lbs.) torque.
