Adjustment - ACR Strut

ADJUSTMENT - ACR STRUT

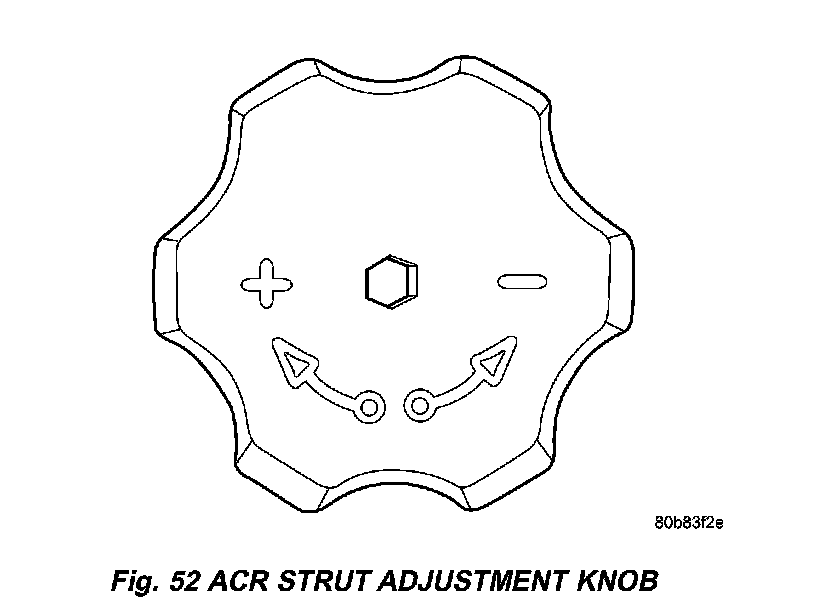

Vehicles equipped with the optional ACR performance package have adjustable struts. A single adjustment knob is located on the bottom of each front and rear strut. The one knob adjusts both bump and rebound characteristics. It adjusts the strut up to 24 different positions (notches or detents), six per revolution. Turn the knob clockwise to increase firmness and counterclockwise to decrease firmness.

There is an internal stop at the "full firm" and "full soft" position.

New struts (and new vehicles equipped with them) come from the factory set at the "full soft" position.
