Strut Adjustment Knob (ACR)

STRUT ADJUSTMENT KNOB (ACR)
REMOVAL


1. Raise vehicle.

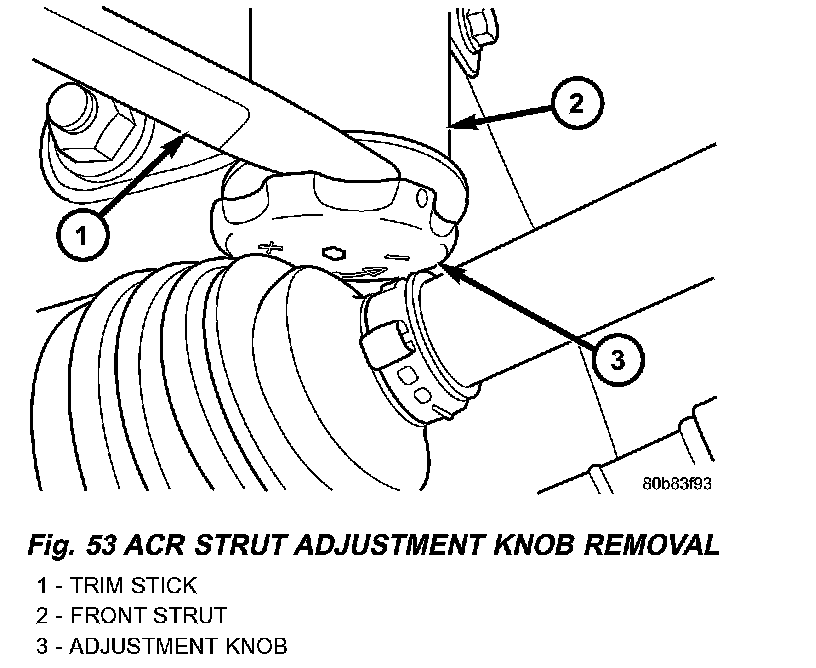

2. Using a trim stick, carefully pry the knob off the bottom of the strut.


INSTALLATION

NOTE: There is no specific installed orientation for the adjustment knob. It can be installed in up to 6 different positions as long as the tabs on the knob are lined up with the flats on the internal nut.

1. Install knob center hex onto strut center hex screw, then line up tabs on knob with flats on strut internal nut and push the knob upward, snapping it into place.
2. Lower vehicle.
3. Adjust the strut if necessary.
