Air Bag: Diagrams

C206:




C208:




C209:




C210 (Built-Up-Export):

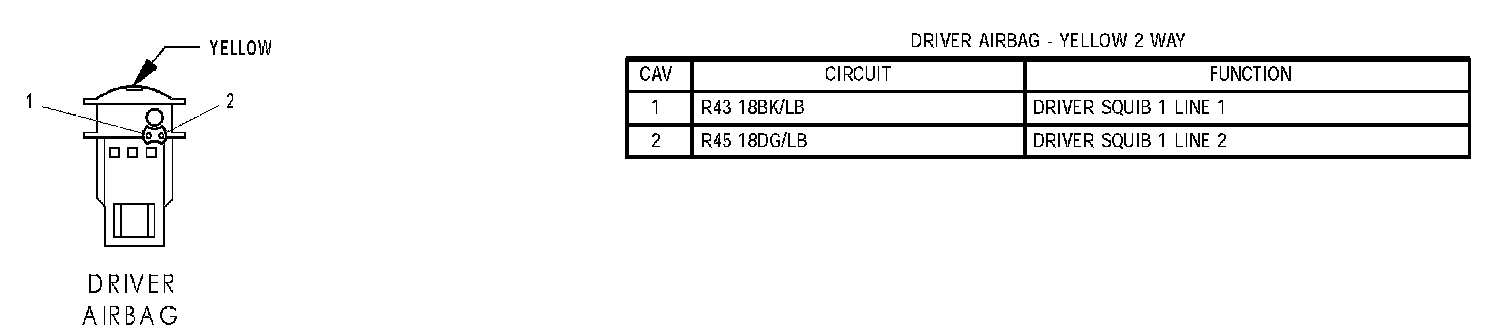

Driver Airbag:

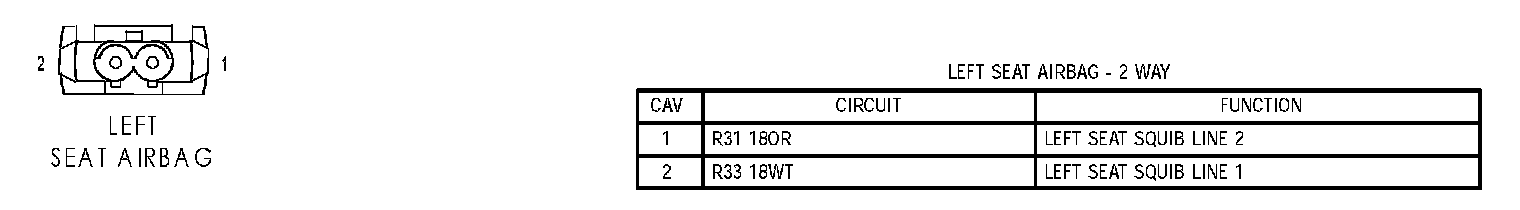

Left Seat Airbag:

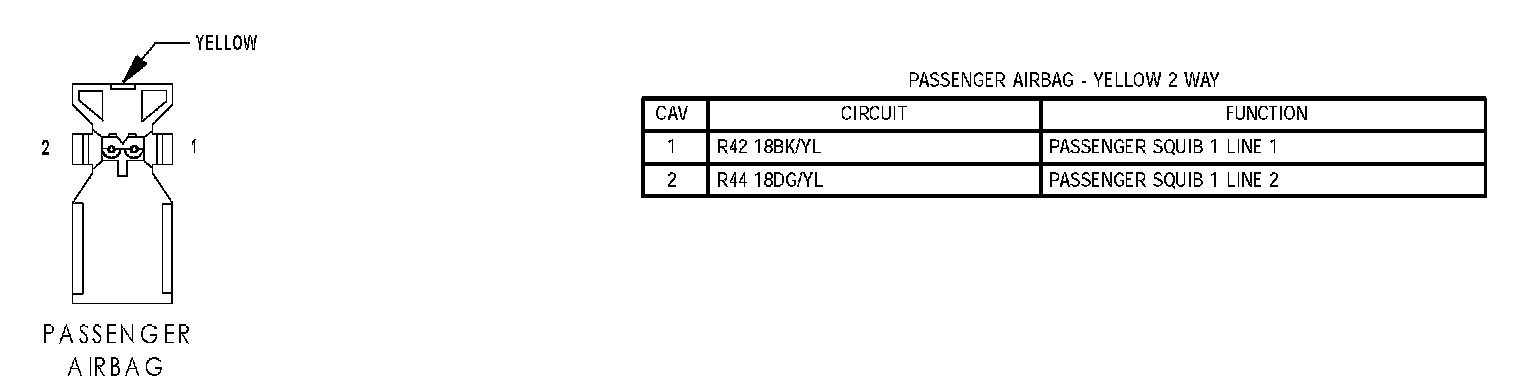

Passenger Airbag:

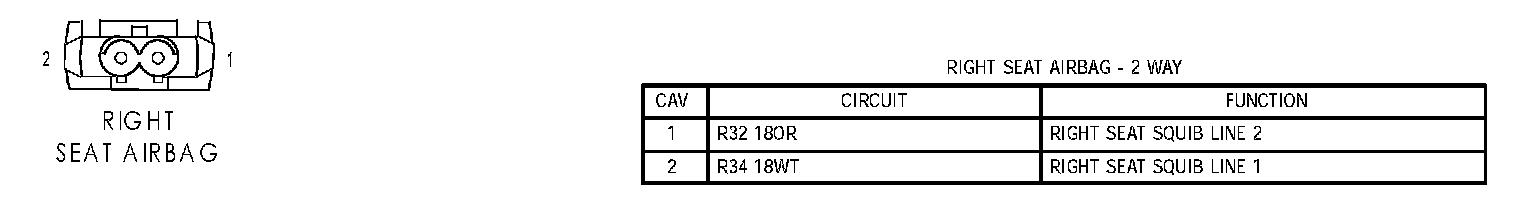

Right Seat Airbag:
