Accelerator Pedal Position Sensor: Service and Repair

REMOVAL
RHD
1. Disconnect the negative battery cable.

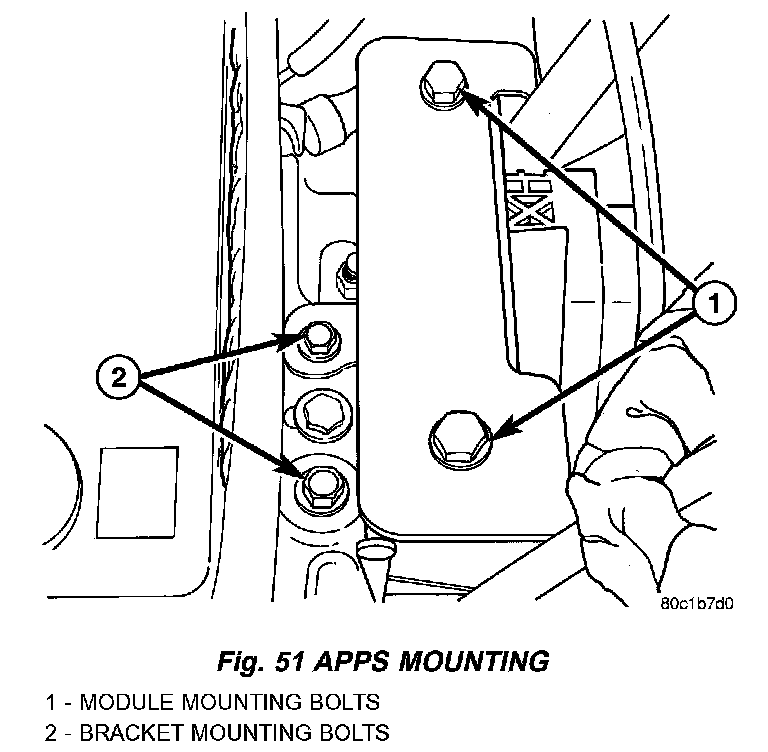

Fig.51 APPS Mounting:

2. Remove the 2 bracket mounting bolts.
3. Remove the 2 bolts holding module to the mounting bracket.

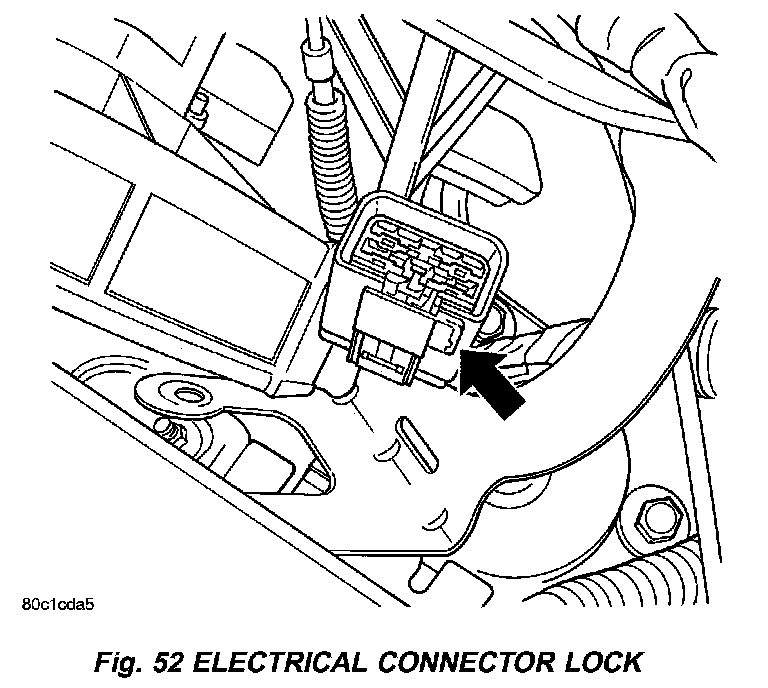

Fig.52 Electrical Connector Lock:

4. Unlock the electrical connector and then disconnect the electrical connector from the module.
5. Open the APPS module cover and disconnect the cable from the cam and module.
6. Remove assembly.

LHD
1. Disconnect the negative battery cable.

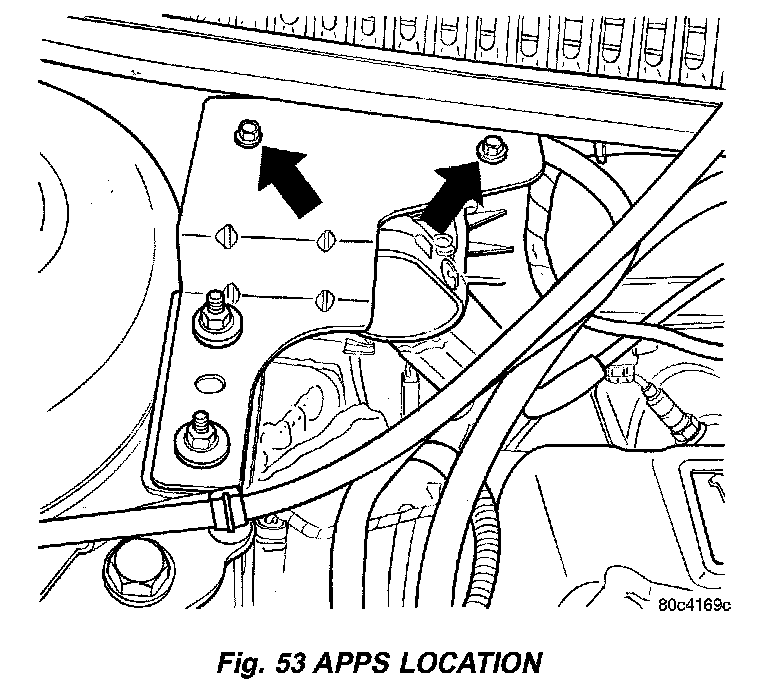

Fig.53 APPS Location:

2. Remove the 2 mounting bolts .

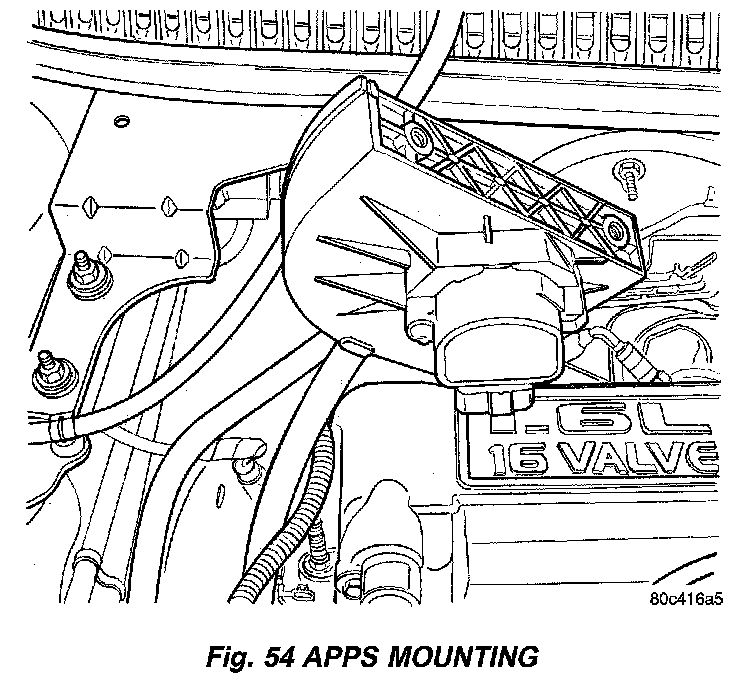

Fig.54 APPS Mounting:

3. Open APPS module and disconnect the cable.
4. Remove APPS module.

INSTALLATION
RHD
1. Open APPS module and connect cable.
2. Route electrical connector though mounting bracket.
3. Install electrical connector and lock.
4. Install the 2 top bolts.
5. Install the 2 mounting bolts.
6. Connect the negative battery cable.

LHD
1. Open APPS module and connect the cable.
2. Install APPS module.
3. Tighten the 2 mounting bolts.
4. Connect the negative battery cable.
