Checking the Throttle Position Sensor

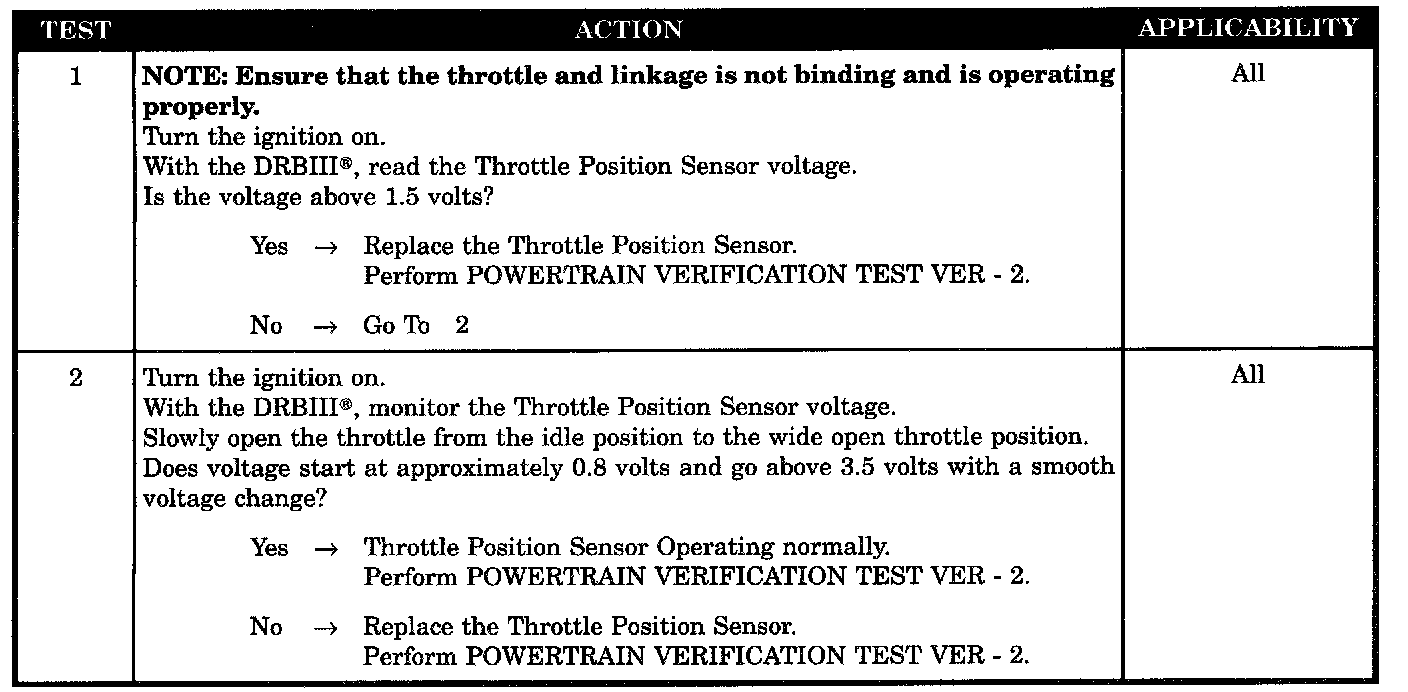

Tests 1 - 2:




SYMPTOM
CHECKING TP SENSOR - 2.0L

POSSIBLE CAUSES
- Throttle position sensor voltage above 1.5 volts
- Throttle position sensor sweep
- TP sensor
