Headlamp: Testing and Inspection

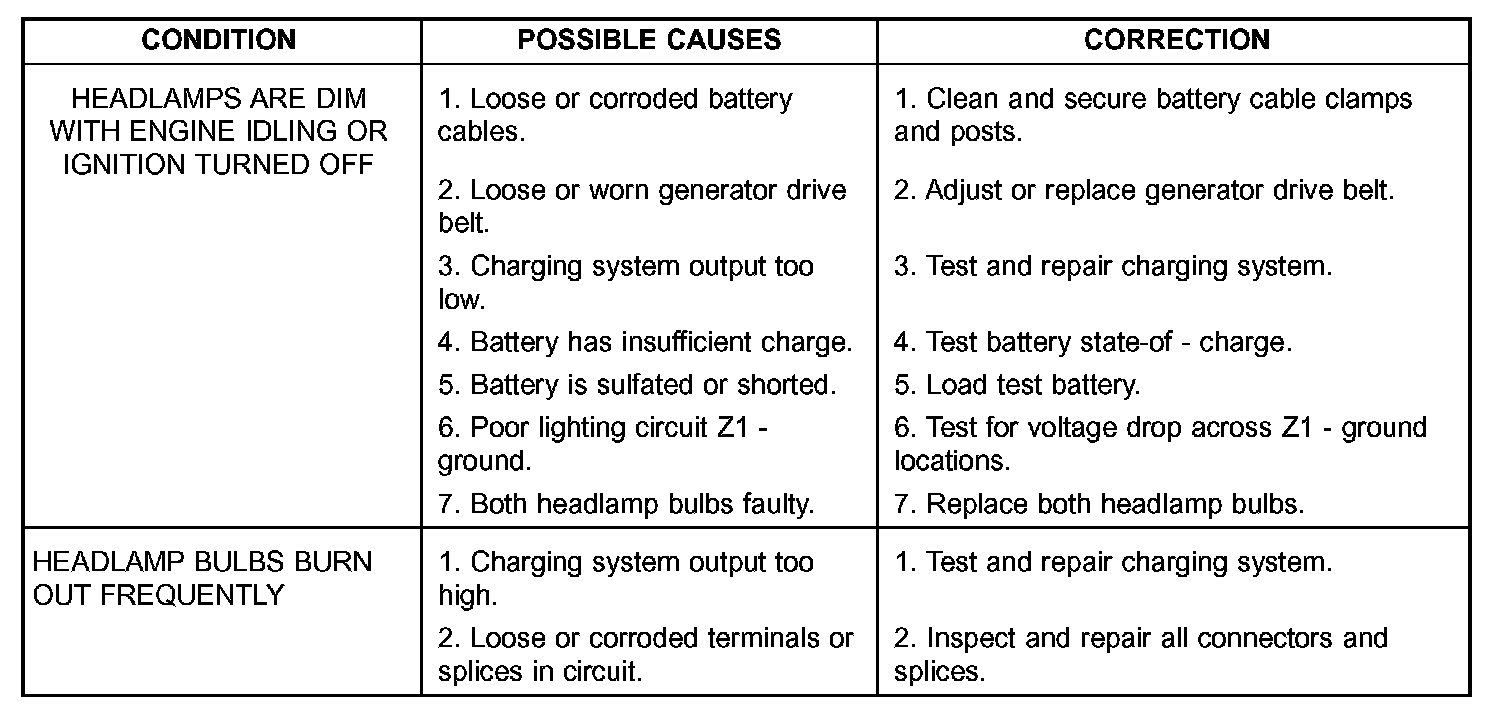

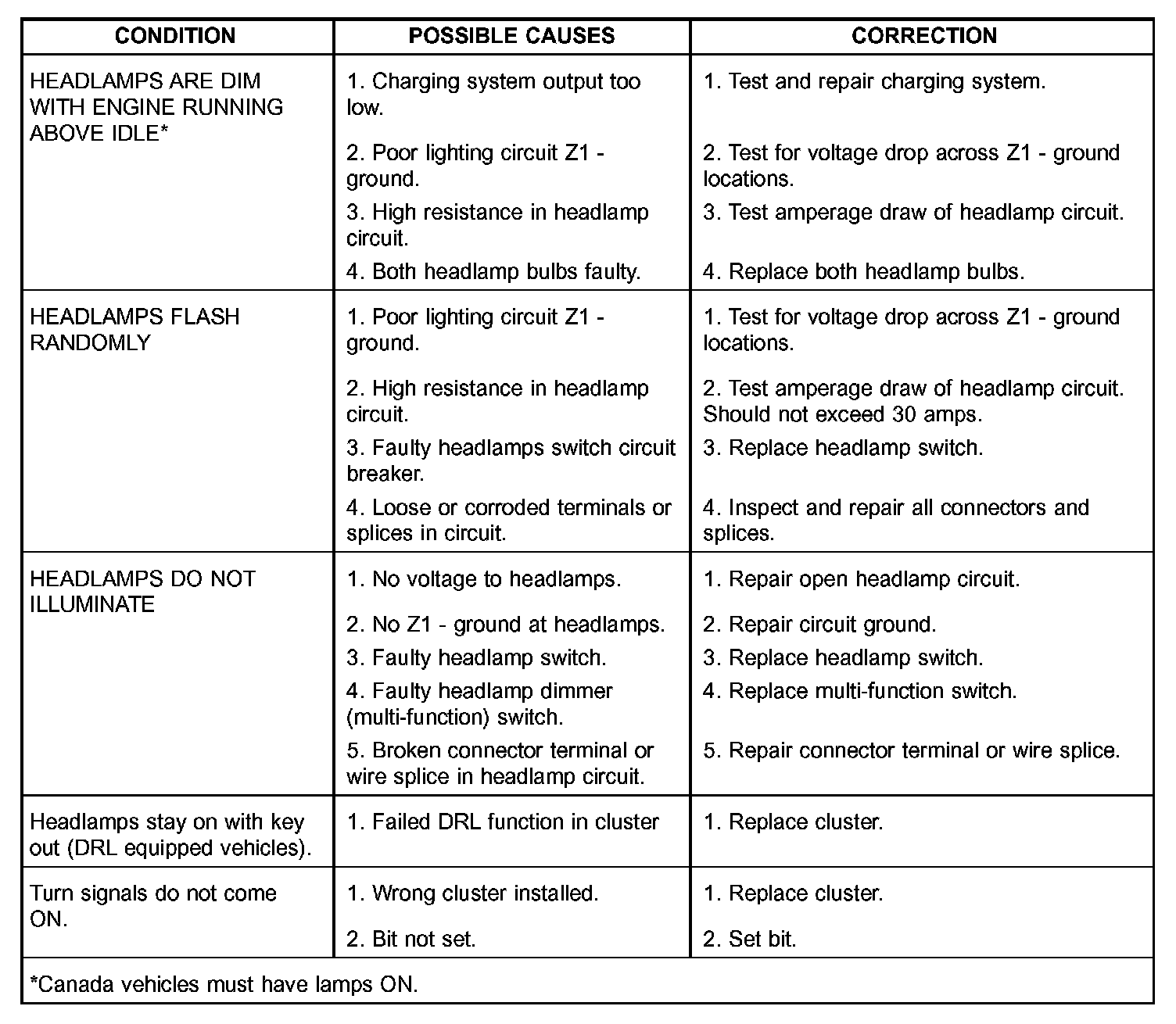

Headlamp Diagnosis ( Part 1 Of 2 ):

Fog Lamp Diagnosis ( Part 2 Of 2 ):

Always begin any diagnosis by testing all of the fuses and circuit breakers in the system.

Conventional and halogen headlamps are interchangeable. It is recommended that they not be intermixed on a given vehicle.
