Fog/Driving Lamp: Diagrams

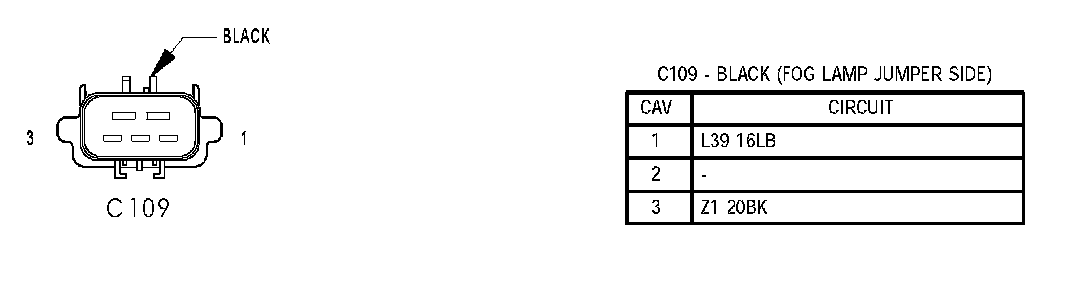

C109:

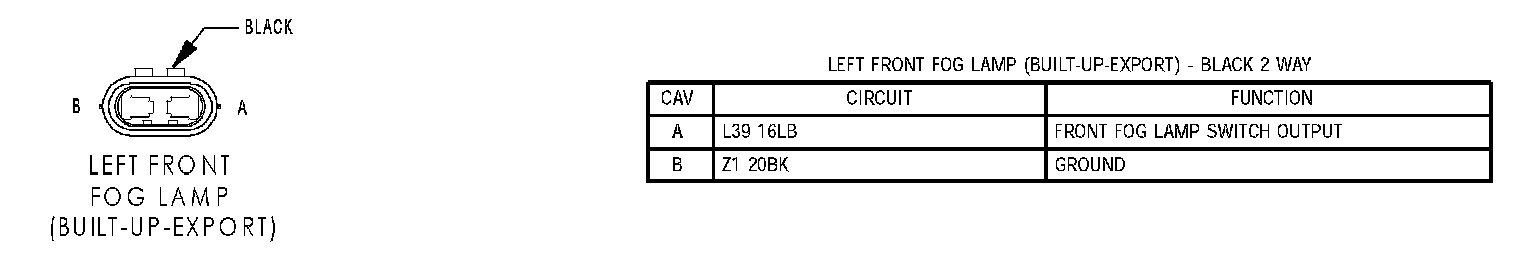

Left Front Fog Lamp (Built-Up-Export):

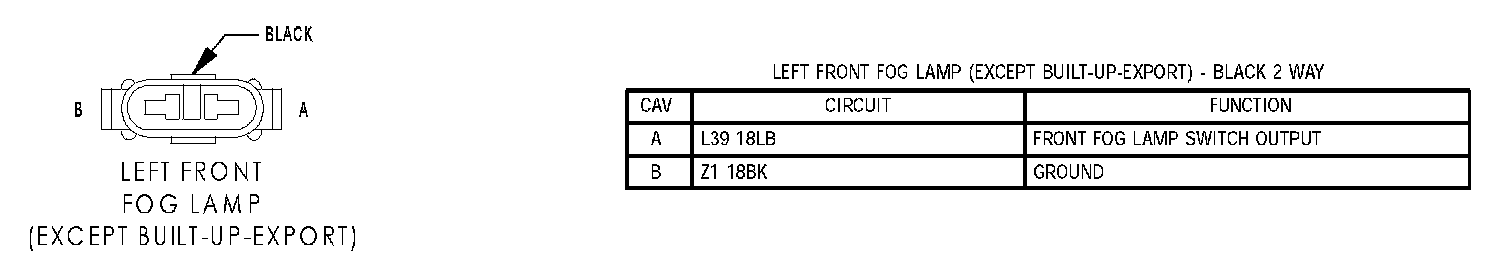

Left Front Fog Lamp (Except Built-Up-Export):

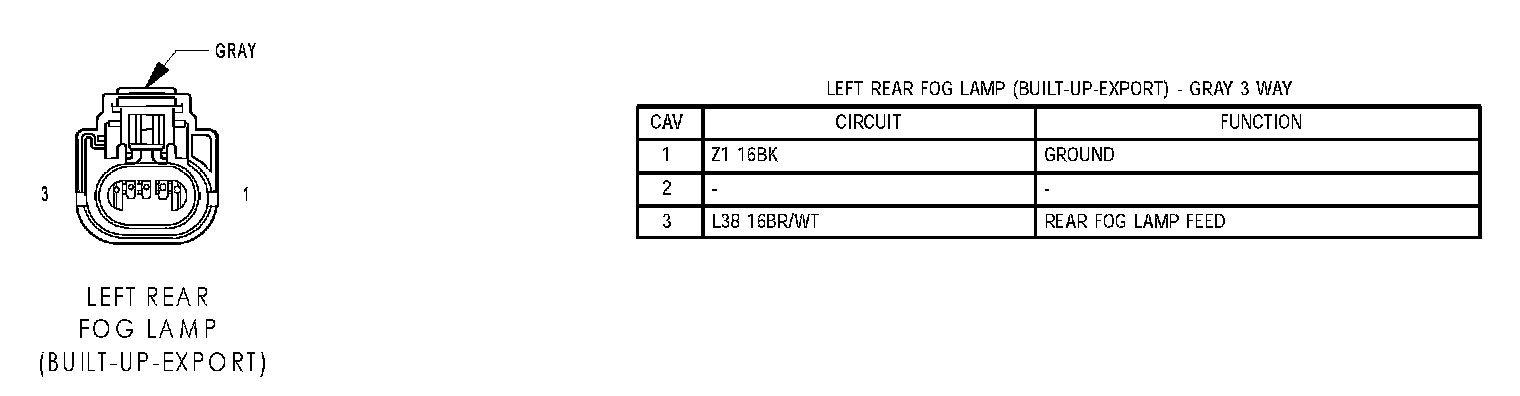

Left Rear Fog Lamp (Built-Up-Export):

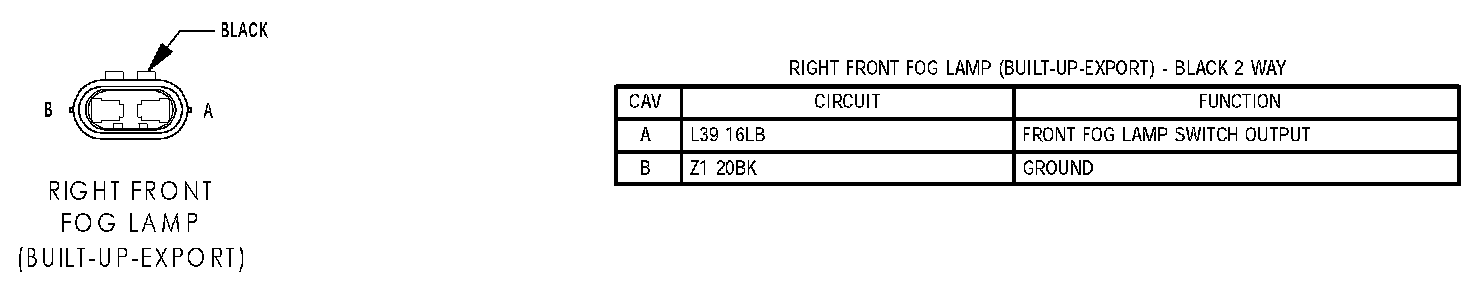

Right Front Fog Lamp (Built-Up-Export):

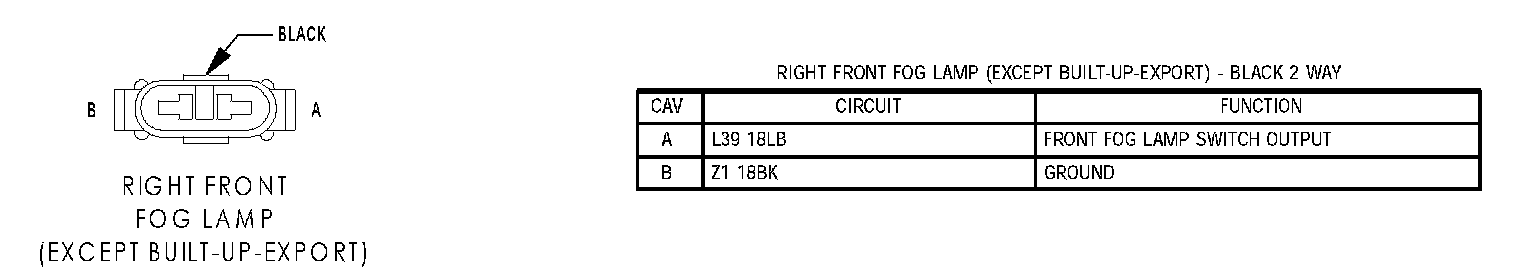

Right Front Fog Lamp (Except Built-Up-Export):

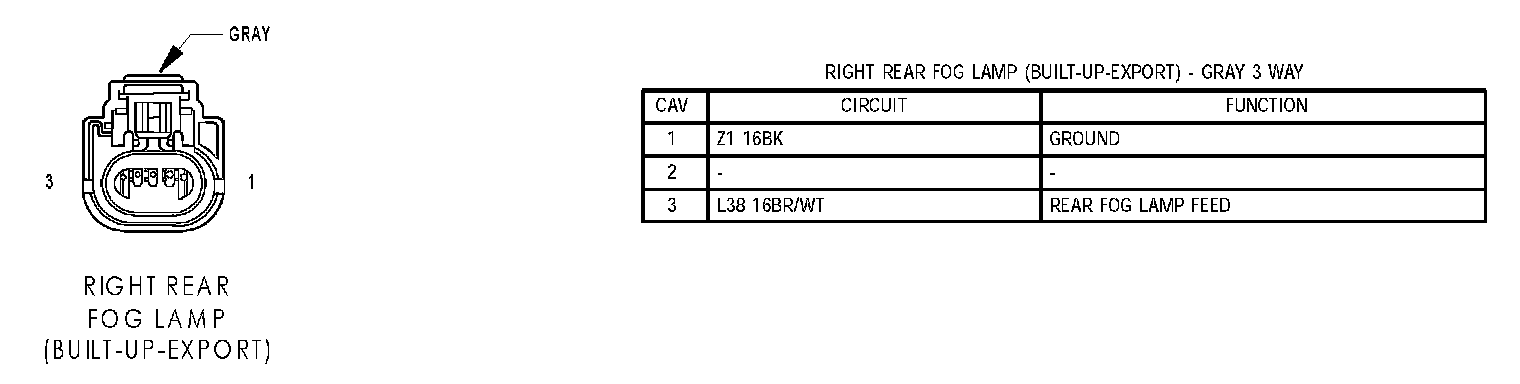

Right Rear Fog Lamp (Built-Up-Export):
