With Air Conditioning

REMOVAL
The blower motor is located on the bottom right side of the unit housing. The blower motor can be removed from the vehicle without having to remove the unit housing assembly.

1. Remove right side scuff plate.
2. Pull back carpet.
3. Disconnect blower motor wiring connector.

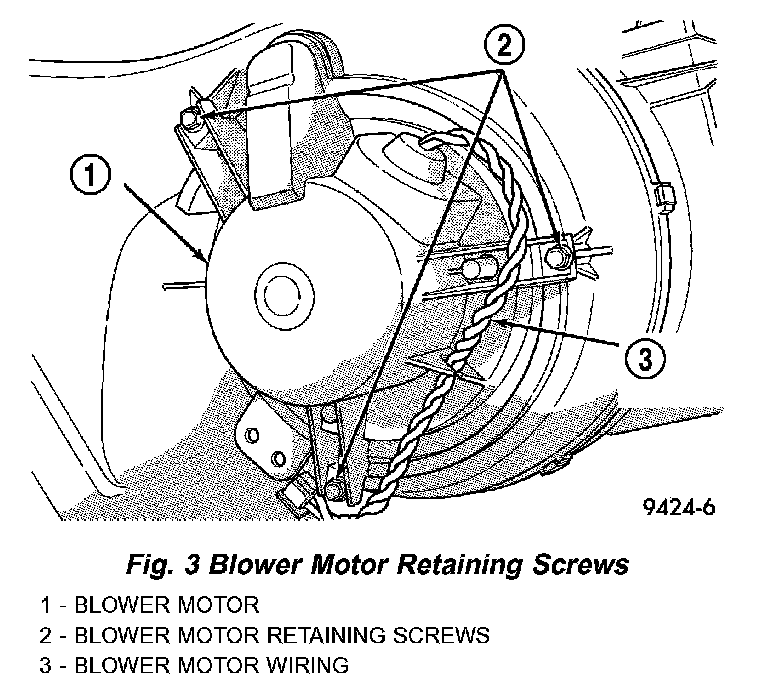

Fig.3 Blower Motor Retaining Screws:

4. Remove blower motor retaining screws, and lower blower motor assembly from unit housing.

INSTALLATION
1. Position the blower motor into the unit housing.
2. Install the blower motor retaining screws.
3. Connect the wire harness to the blower motor.
4. Reposition the right side carpet.
5. Install the right side scuff plate.
