Temperature Door Cable Replacement

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center stack bezel.
3. Remove the center air duct from the instrument panel.
4. Remove heater-A/C control.
5. Reach through the instrument panel center air duct opening to access and remove the screw that secures the temperature control cable housing retainer to the top of the heater-A/C unit housing.
6. Disconnect cable at control panel. Remove control from instrument panel.

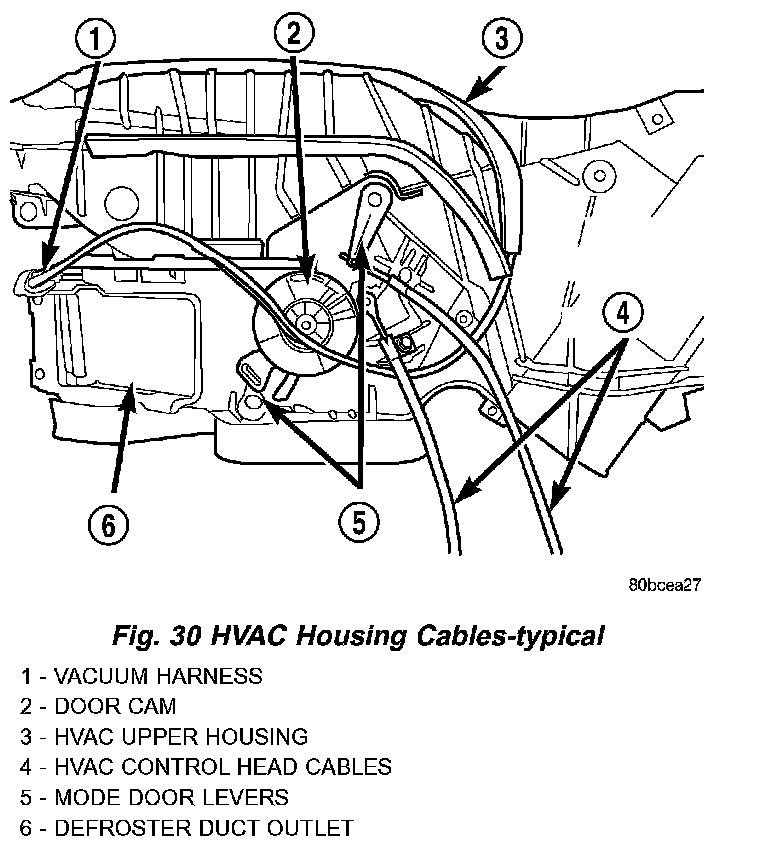

Fig.30 HVAC Housing Cables - Typical:

7. Disconnect the temperature control cable end from the blend-air door lever.
8. Remove the temperature control cable through the instrument panel heater-A/C control opening.

INSTALLATION
1. Position the temperature control cable through the instrument panel heater-A/C control opening.
2. Reach through the instrument panel center air duct opening to access and reconnect the temperature control cable end to the blend-air door lever.
3. Install and tighten the screw that secures the temperature control cable housing retainer to the top of the heater-A/C unit housing. Tighten the screw to 2.3 Nm (20 in. lbs.).
4. Reinstall the heater-A/C control into the instrument panel.
5. Install the instrument panel center stack bezel.
6. Reconnect the battery negative cable.
