Camshaft Oil Seal: Service and Repair
CAMSHAFT OIL SEALREMOVAL
1. Disconnect and isolate negative battery cable.
2. Remove front timing belt cover.
3. Remove the timing belt and tensioner assembly.
CAUTION: Do Not Rotate the camshaft or crankshaft when timing belt is removed damage to the engine may occur.

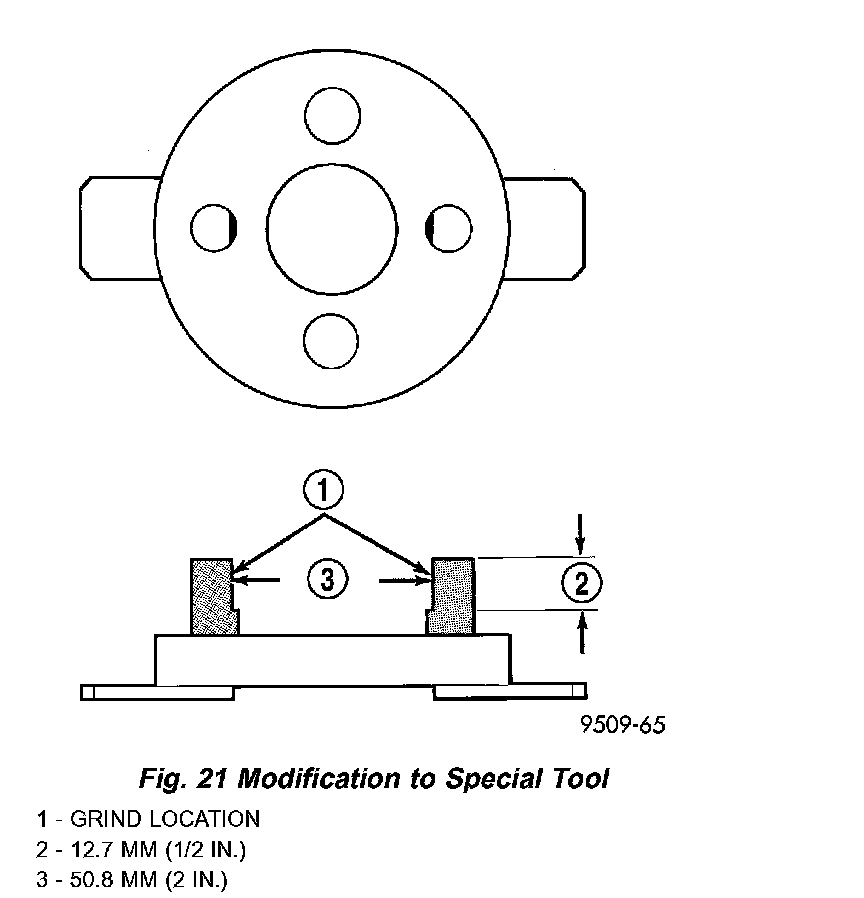

4. Hold camshaft sprocket with Special Tools C-4687 and modified C-4687-1 as shown in (Fig. 21), while removing attaching bolt.
5. Remove sprocket from camshaft.
6. Remove the rear timing belt cover.
7. Remove camshaft seal by carefully using a suitable pry tool. Be careful not to nick or damage the camshaft seal surface or cylinder head seal retaining bore.
CAUTION: Do not nick shaft seal surface or seal bore.
8. Shaft seal lip surface must be free of varnish, dirt or nicks. Polish with 400 grit paper, if necessary.
INSTALLATION

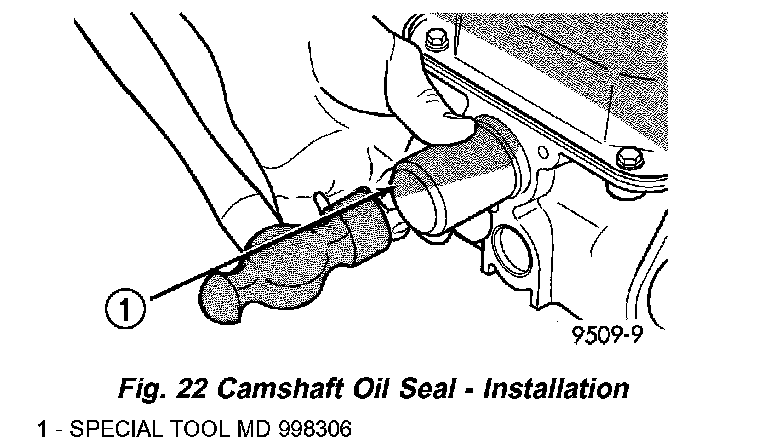

1. Install camshaft seal flush with cylinder head using Special Tool MD998306 (Fig. 22).
2. Install the rear timing belt cover.
3. Install the camshaft sprocket on the camshaft.
CAUTION: DO NOT use an impact wrench (or any other air operated tool) for tightening the camshaft sprocket bolt. Damage to the camshaft timing pin can result. ONLY use a hand wrench while holding camshaft sprocket with Special Tool.
4. Install camshaft sprocket retaining bolt. Hold camshaft sprocket with Special Tools C-4687 and modified C-4687-1 (Fig. 21) and tighten bolt to 115 Nm (85 ft. lbs.).
5. Install timing belt and tensioner assembly.
6. Install front timing belt cover.
7. Connect negative battery cable.
8. Perform camshaft and crankshaft timing relearn procedure as follows:
^ Connect the DRB III scan tool to the data link (diagnostic) connector. This connector is located in the passenger compartment; at the lower edge of instrument panel near the steering column.
^ Turn the ignition switch on.
^ Access "Engine" diagnostics.
^ Select "Miscellaneous" option.
^ Select "ReLearn Cam Crank" option and follow directions on DRB III screen.
