Coolant Reservoir: Service and Repair

COOLANT RECOVERY CONTAINER

REMOVAL

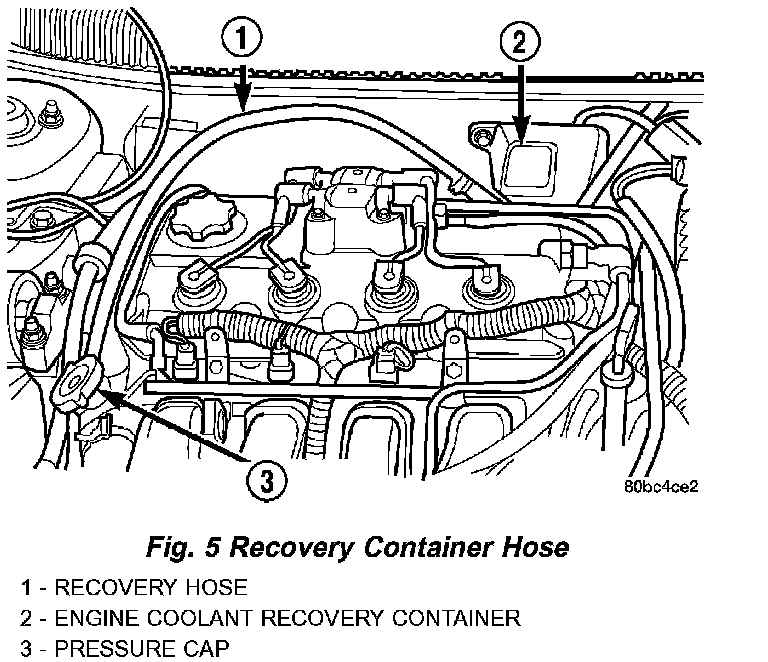

1. Disconnect recovery hose from water outlet connector/thermostat housing .

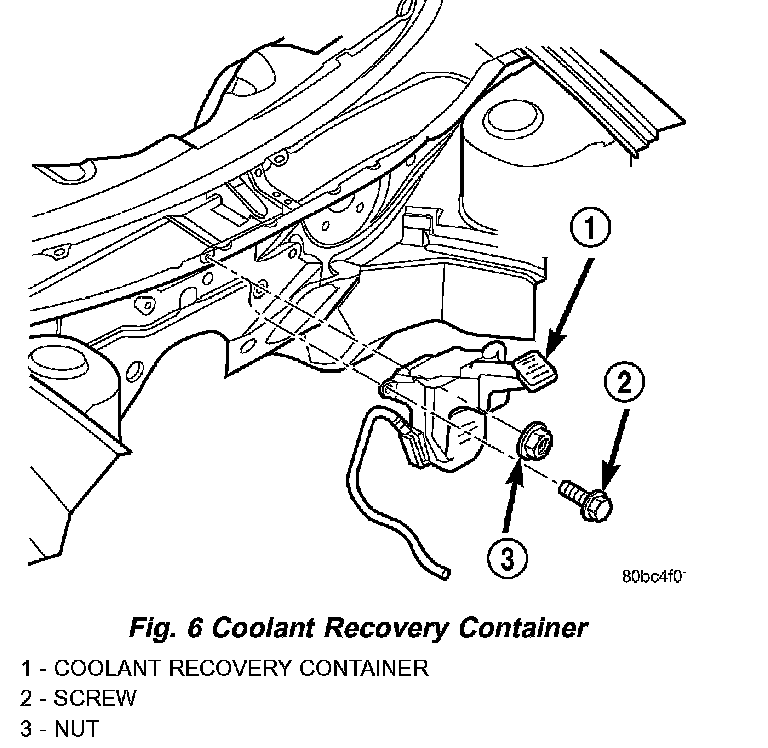

2. Remove container attaching fasteners.
3. Remove coolant recovery container.

INSTALLATION





1. Install coolant recovery container and tighten fasteners to 4 Nm (35 in. lbs.)).





2. Connect recovery hose to water outlet connector/thermostat housing.
3. Fill container to proper level.
