Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Right Hand Drive (Rhd)
>>
Figure 45
Figure 45

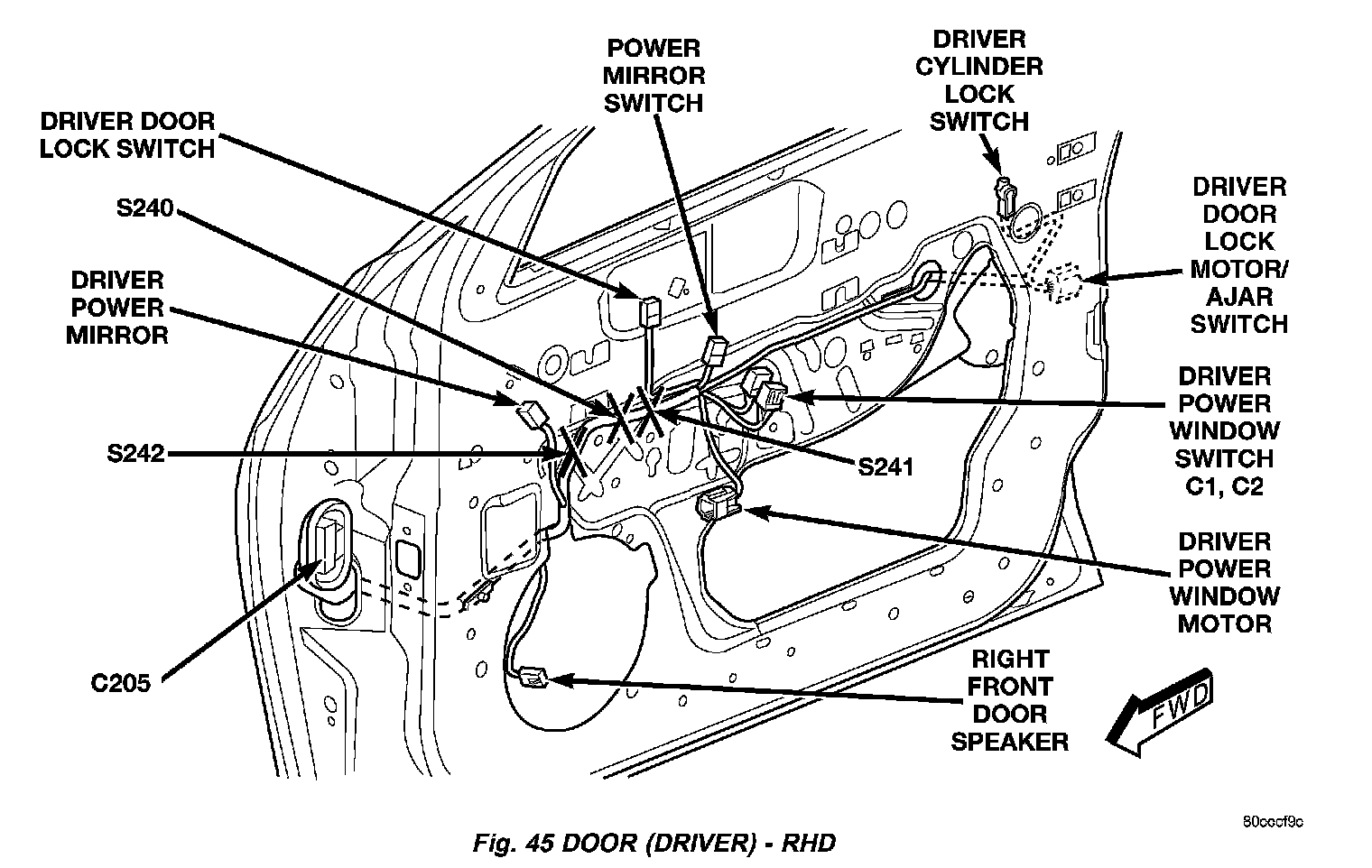

Fig.45 Door (Driver) - RHD:
