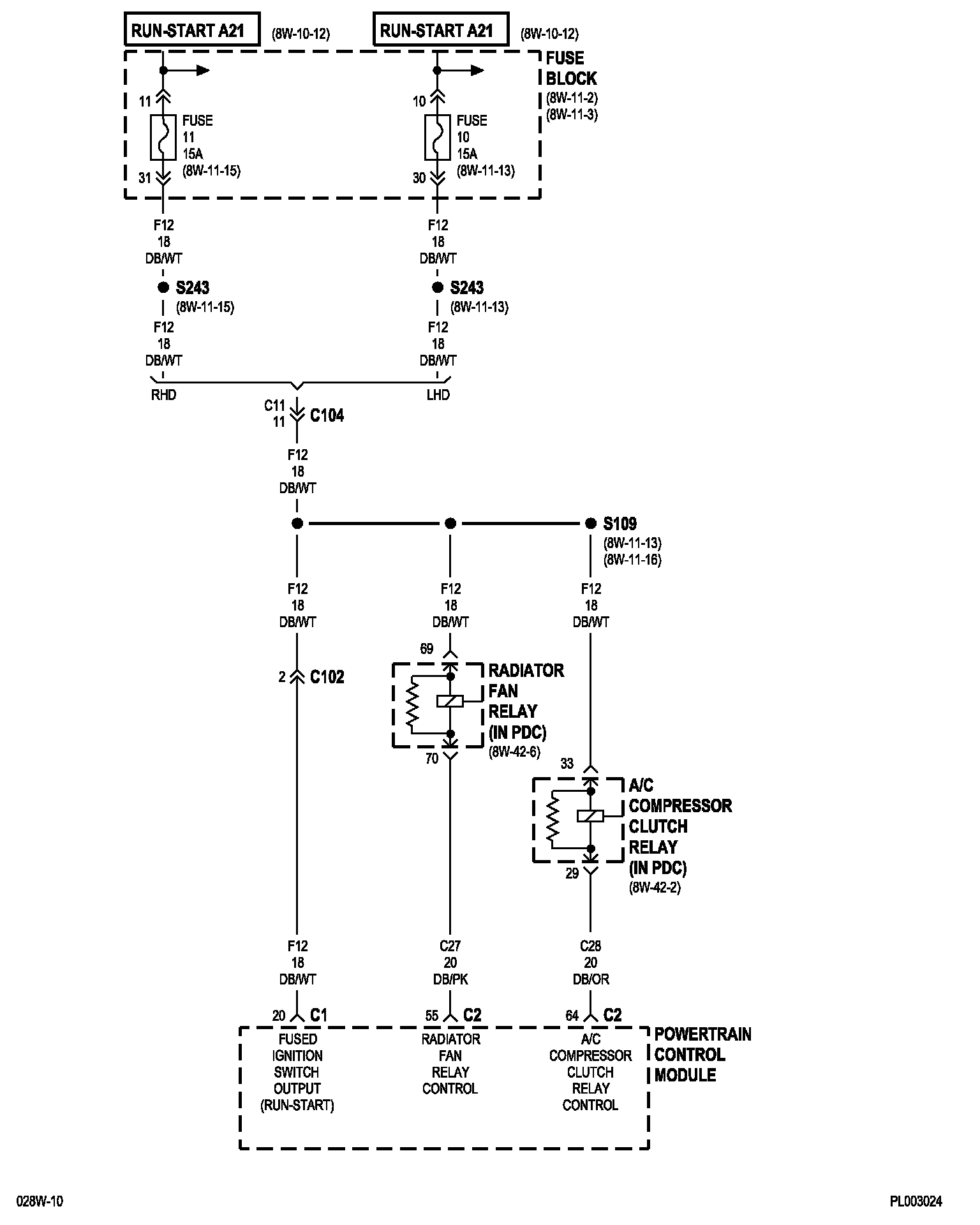

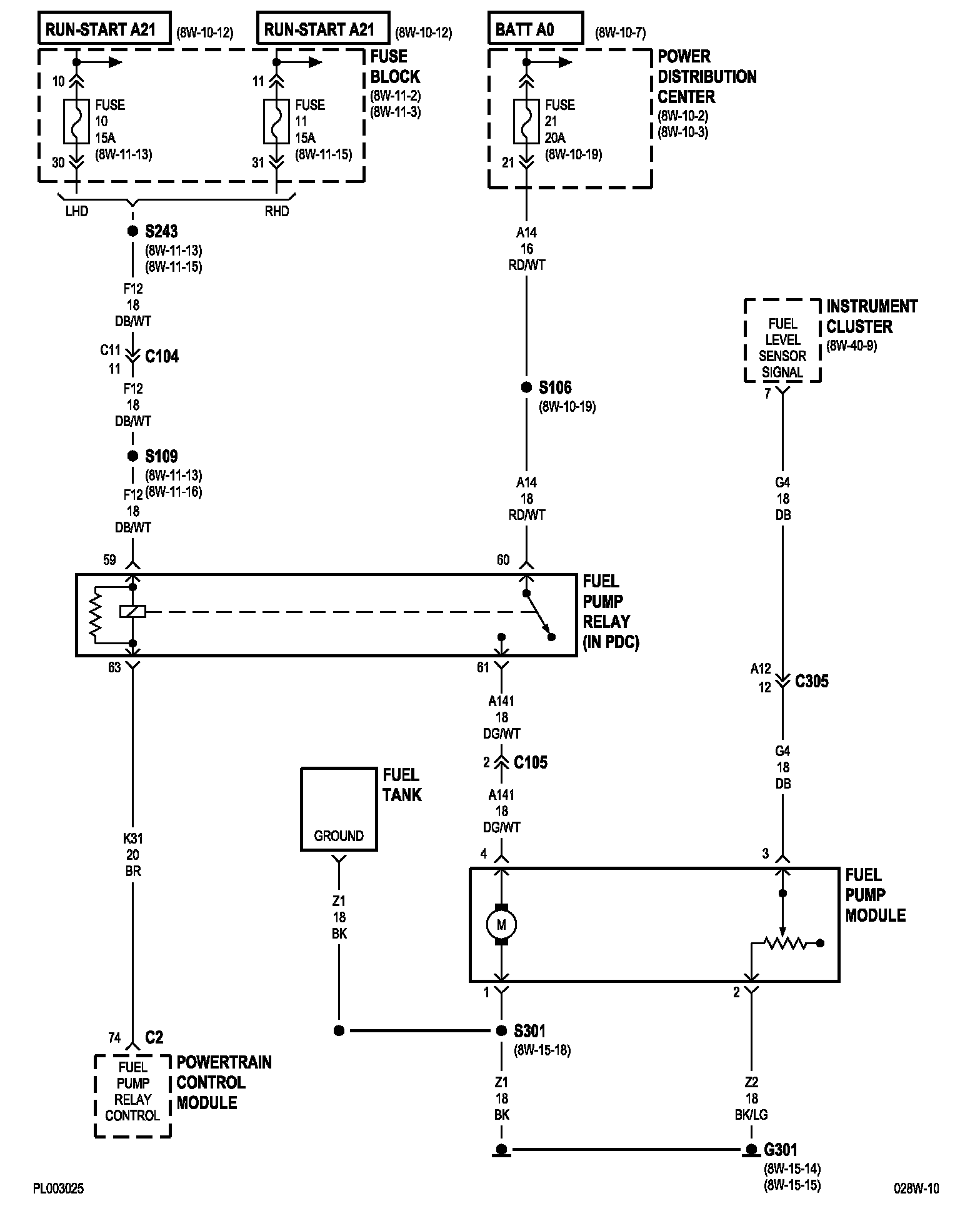

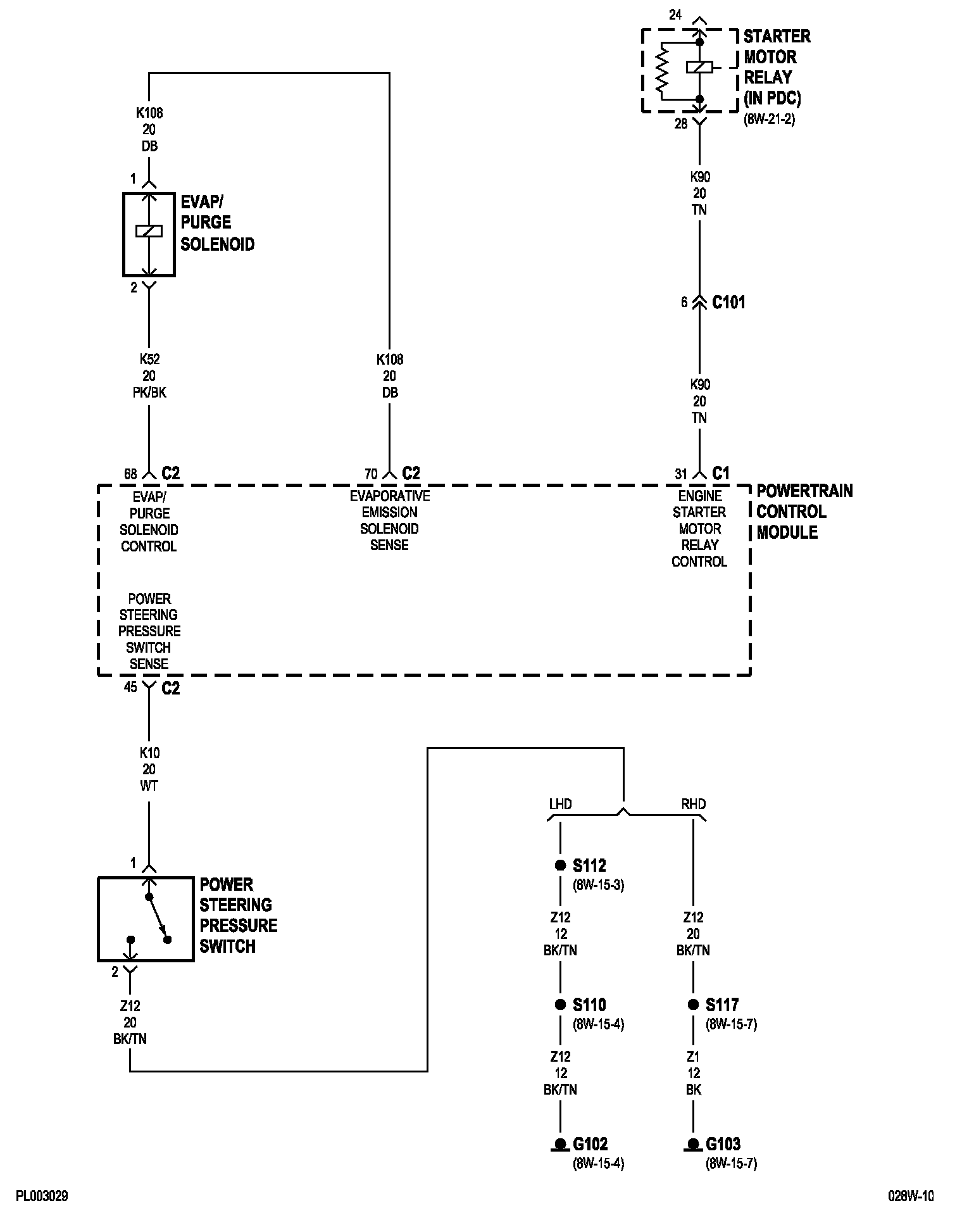

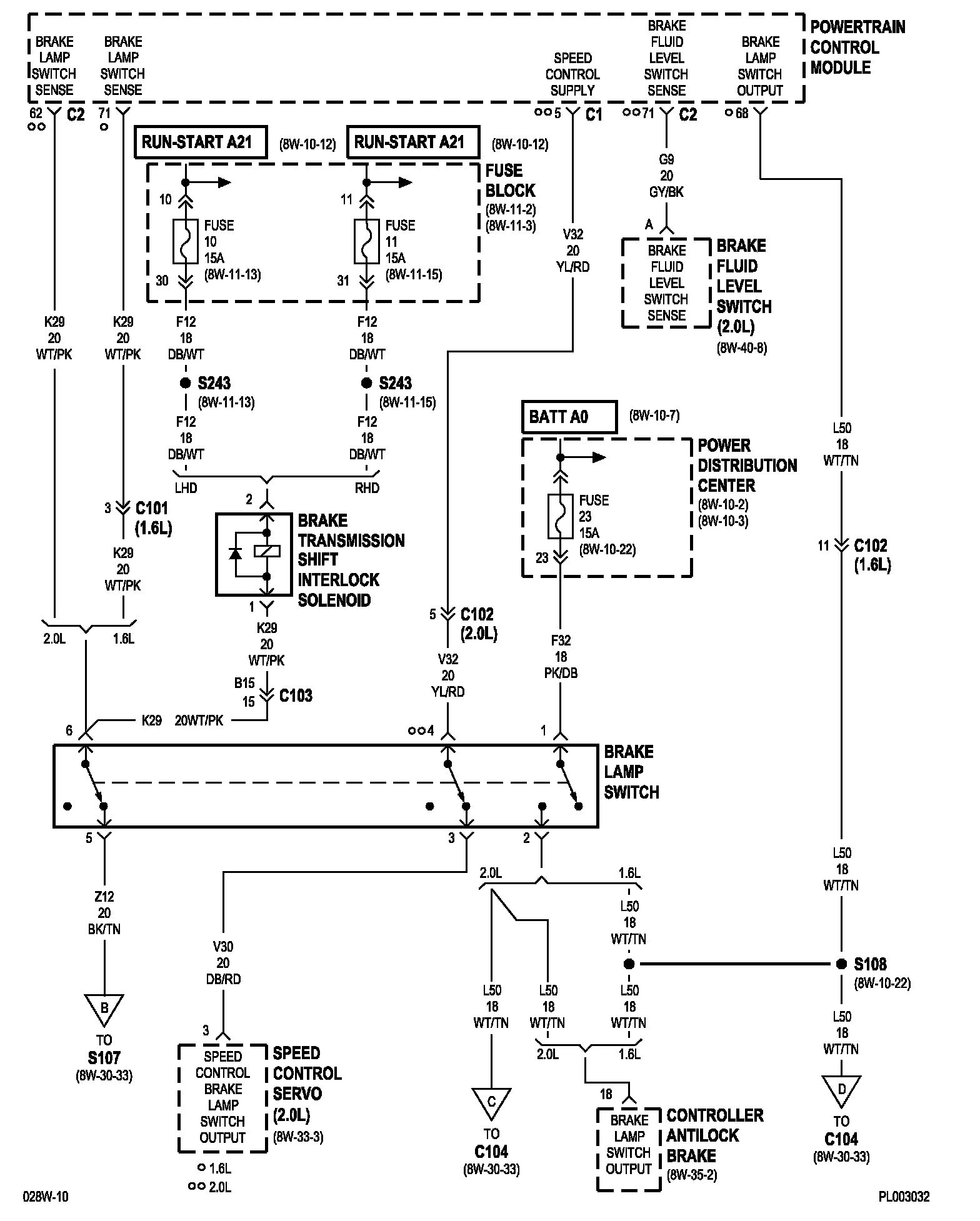

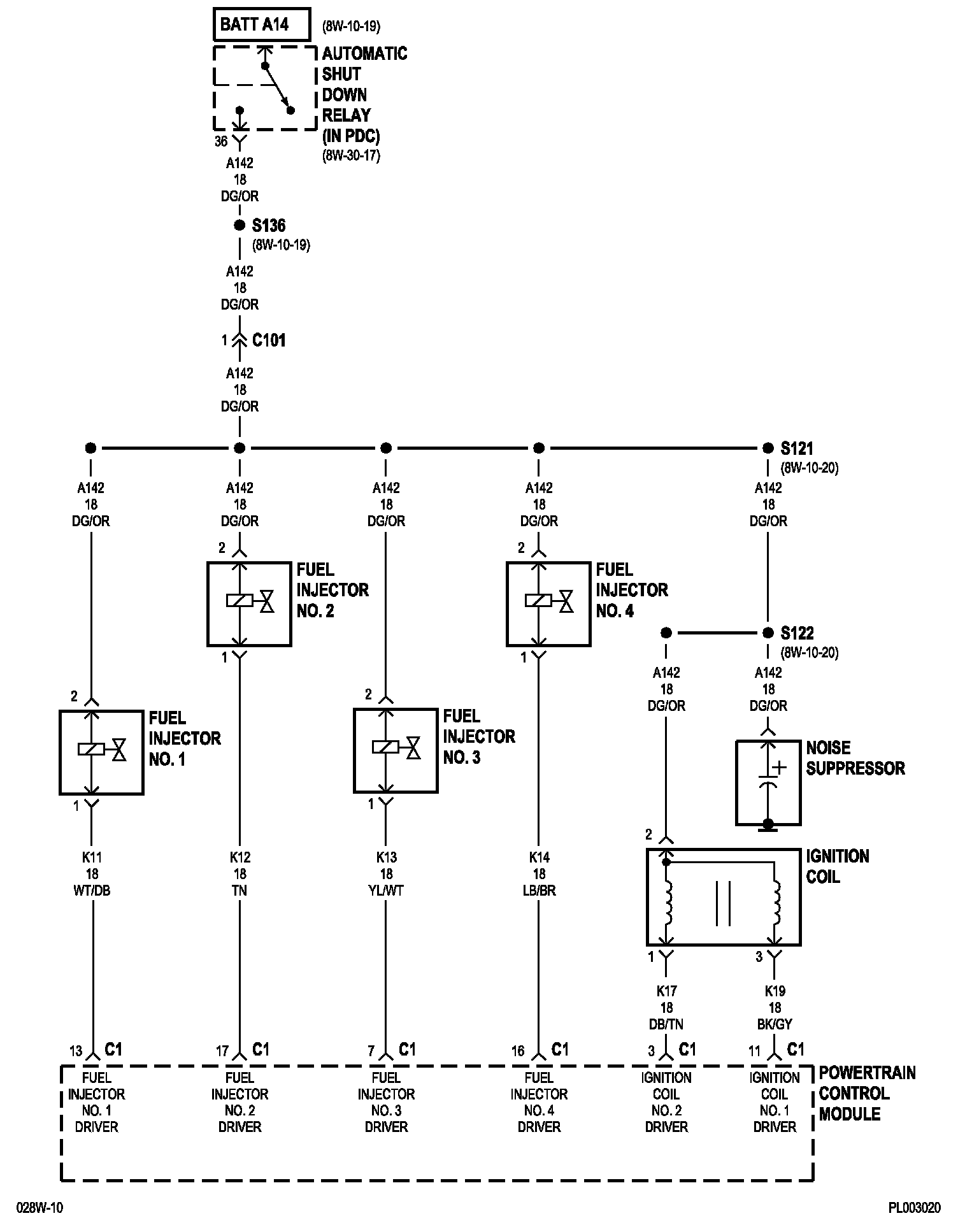

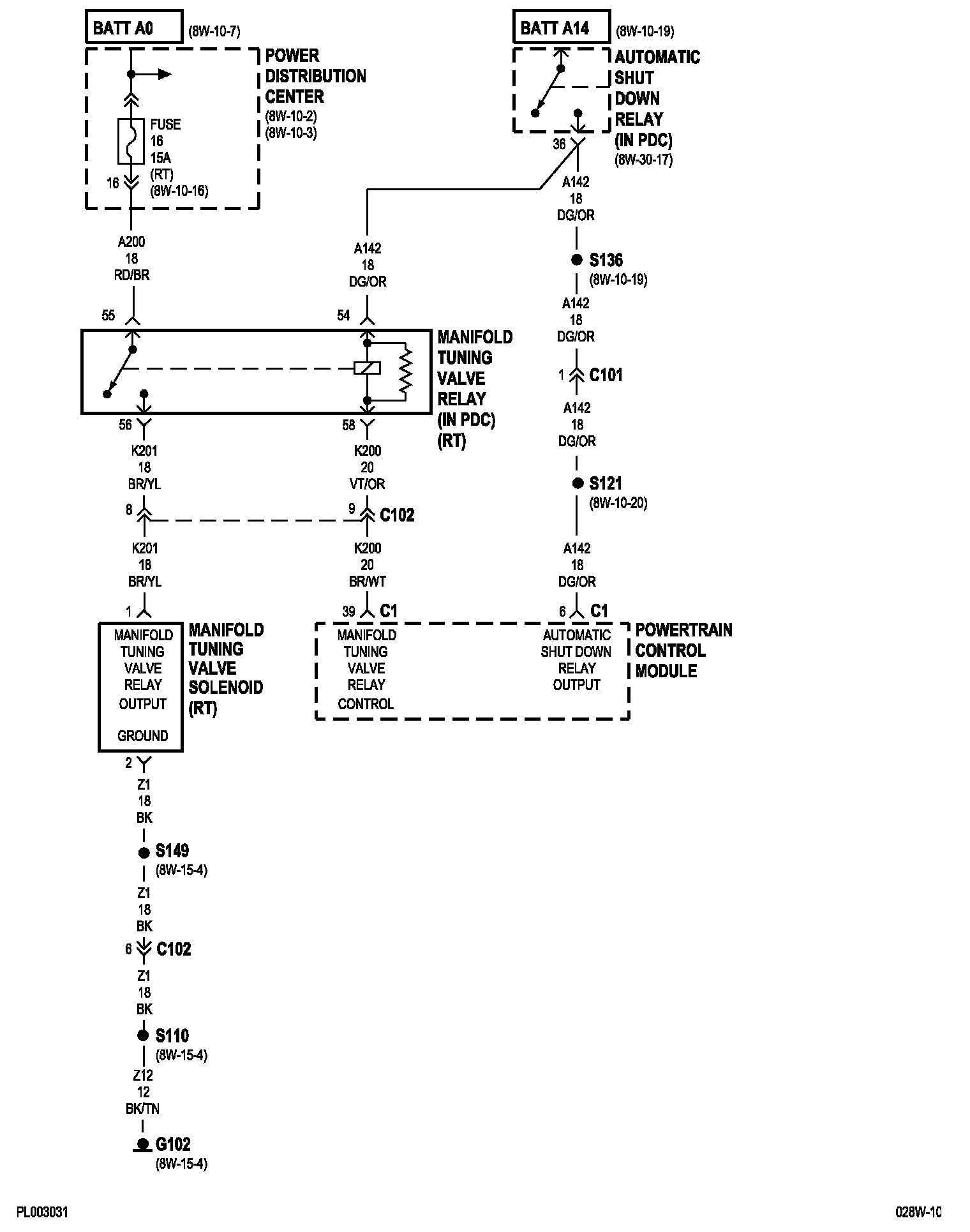

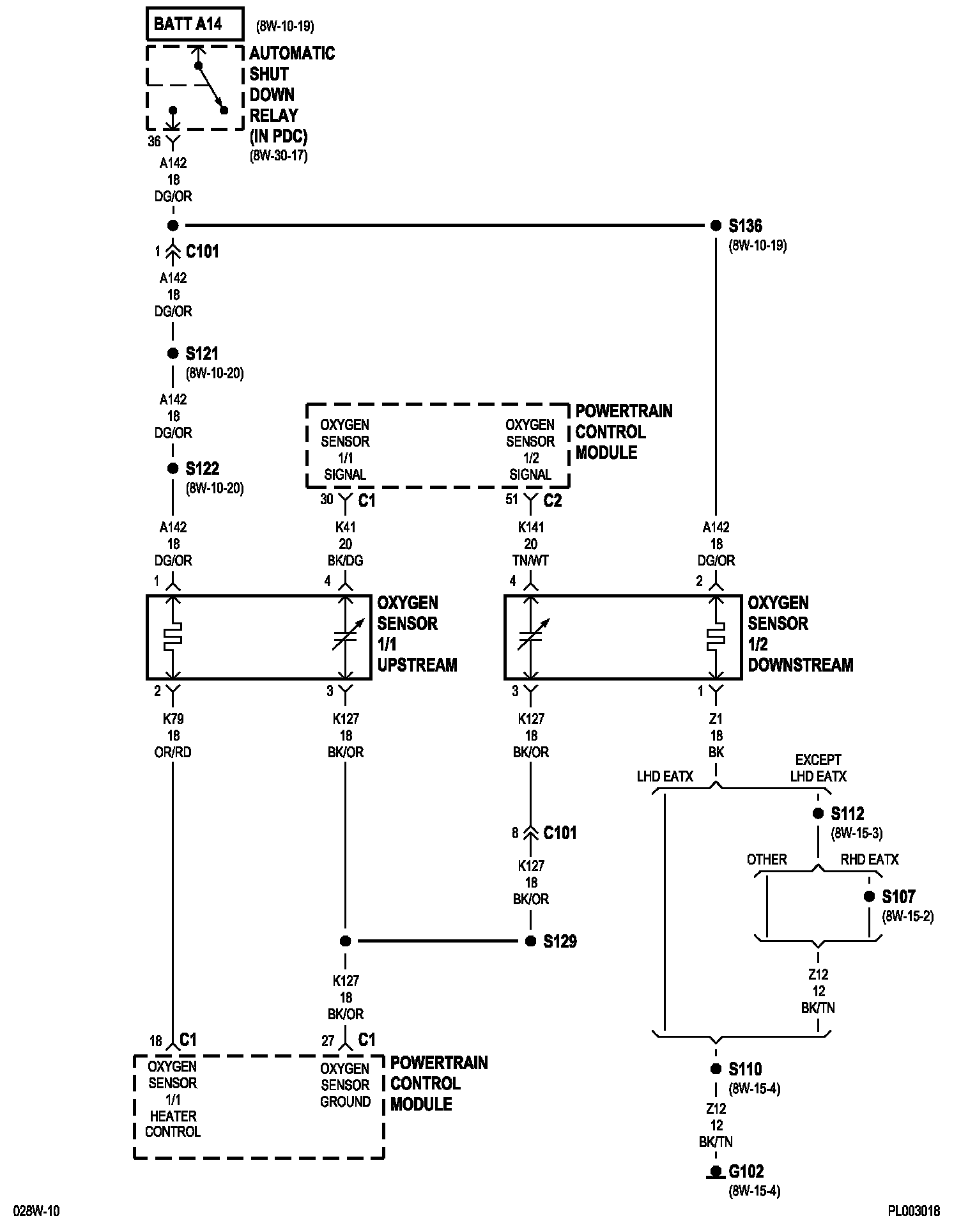

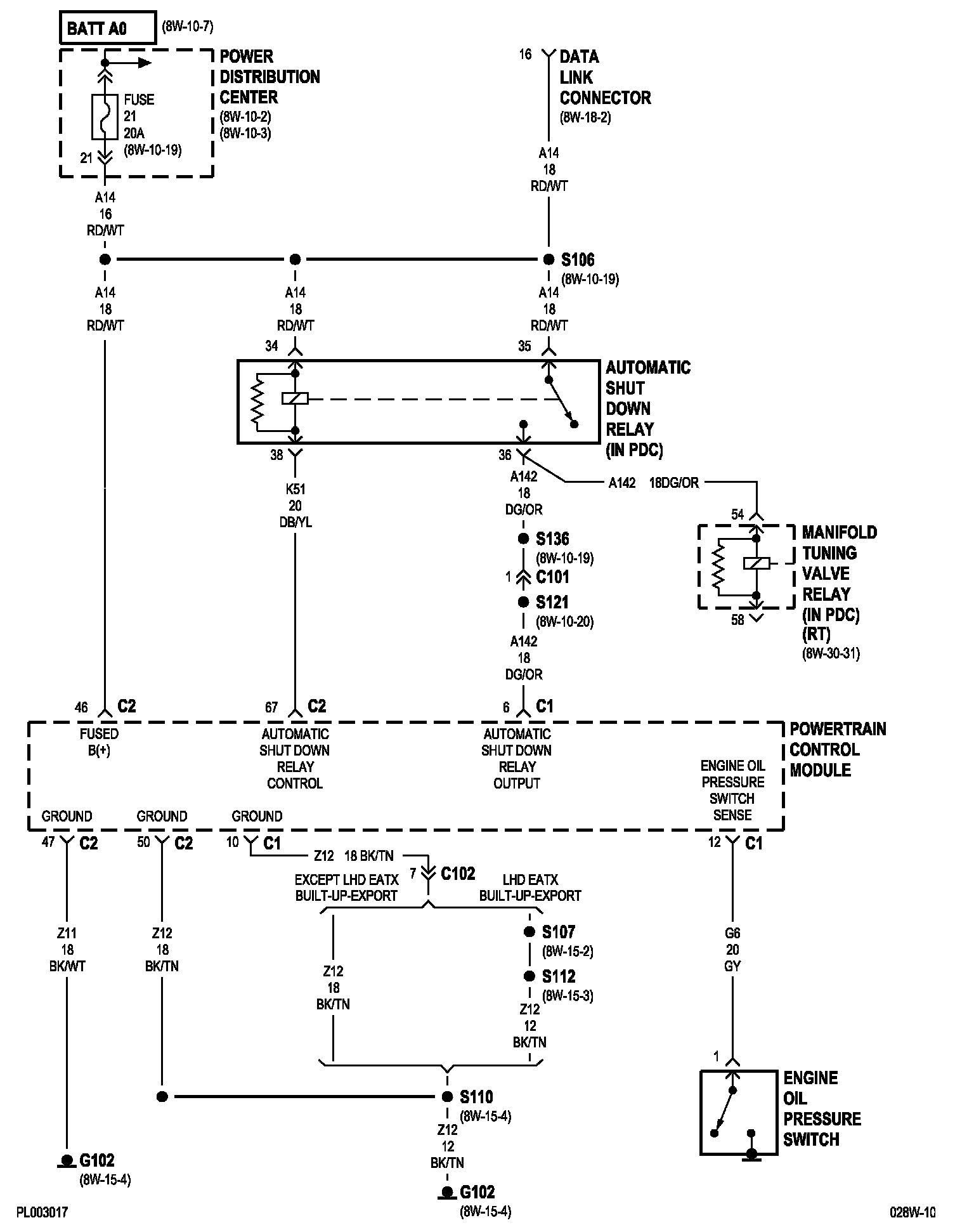

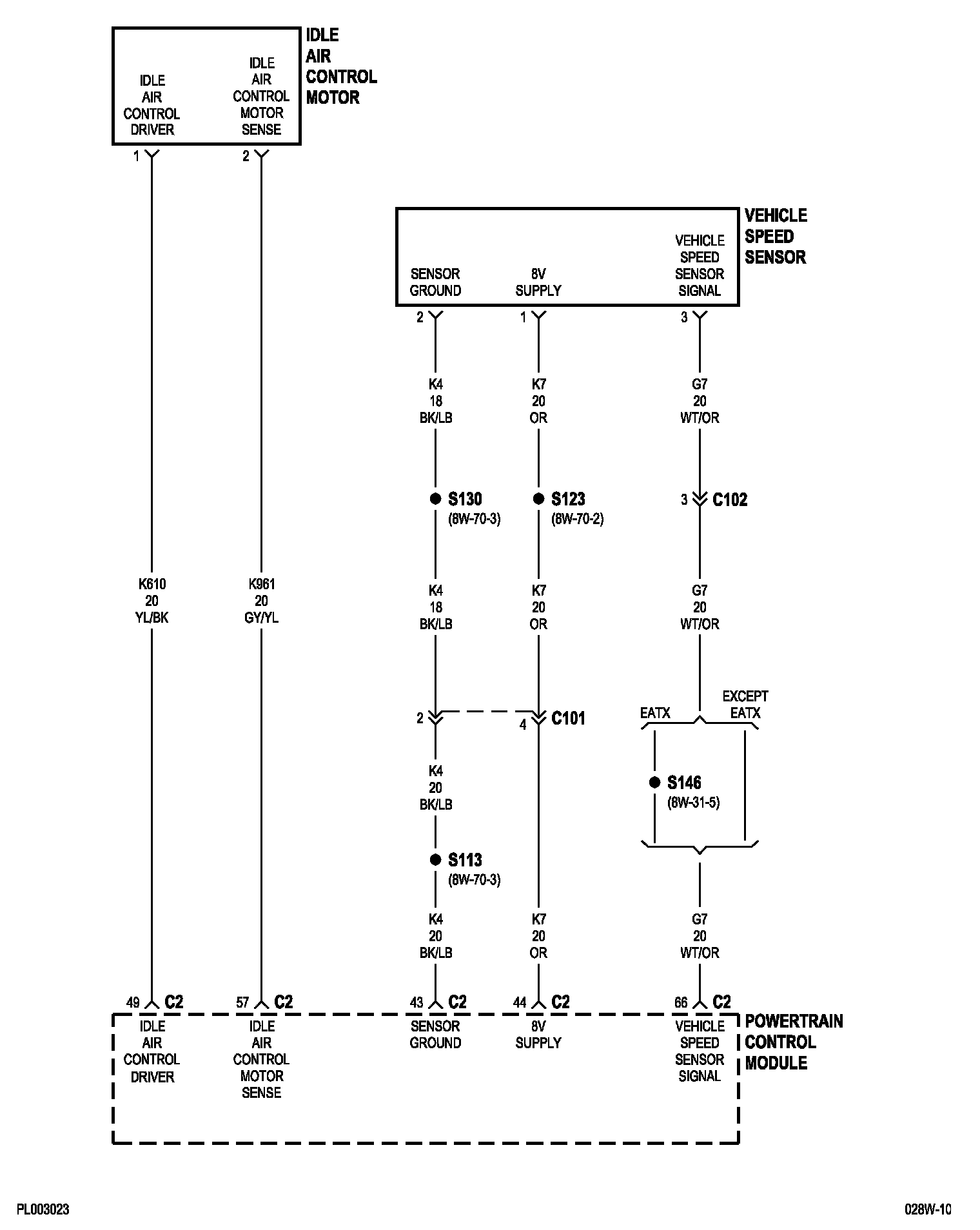

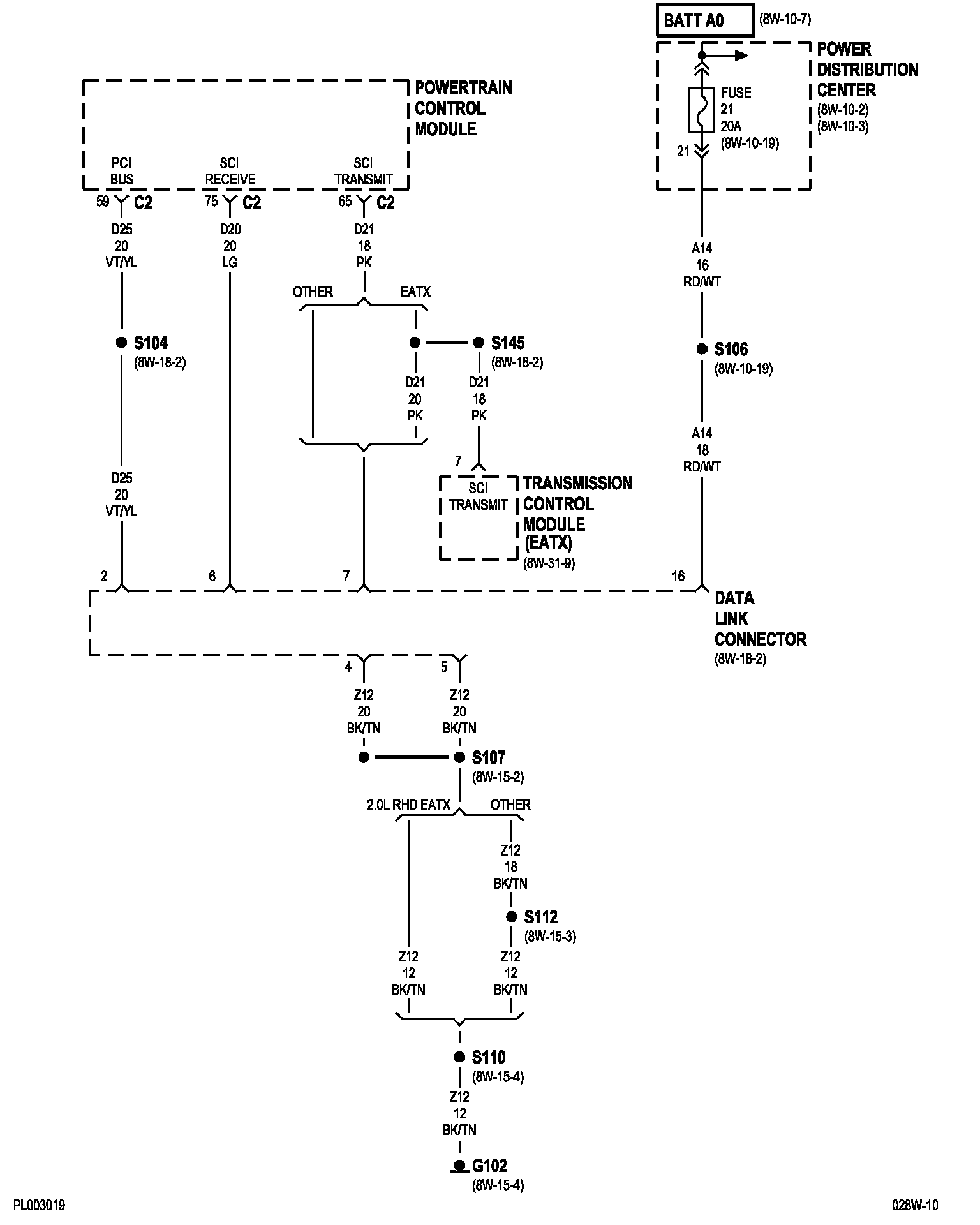

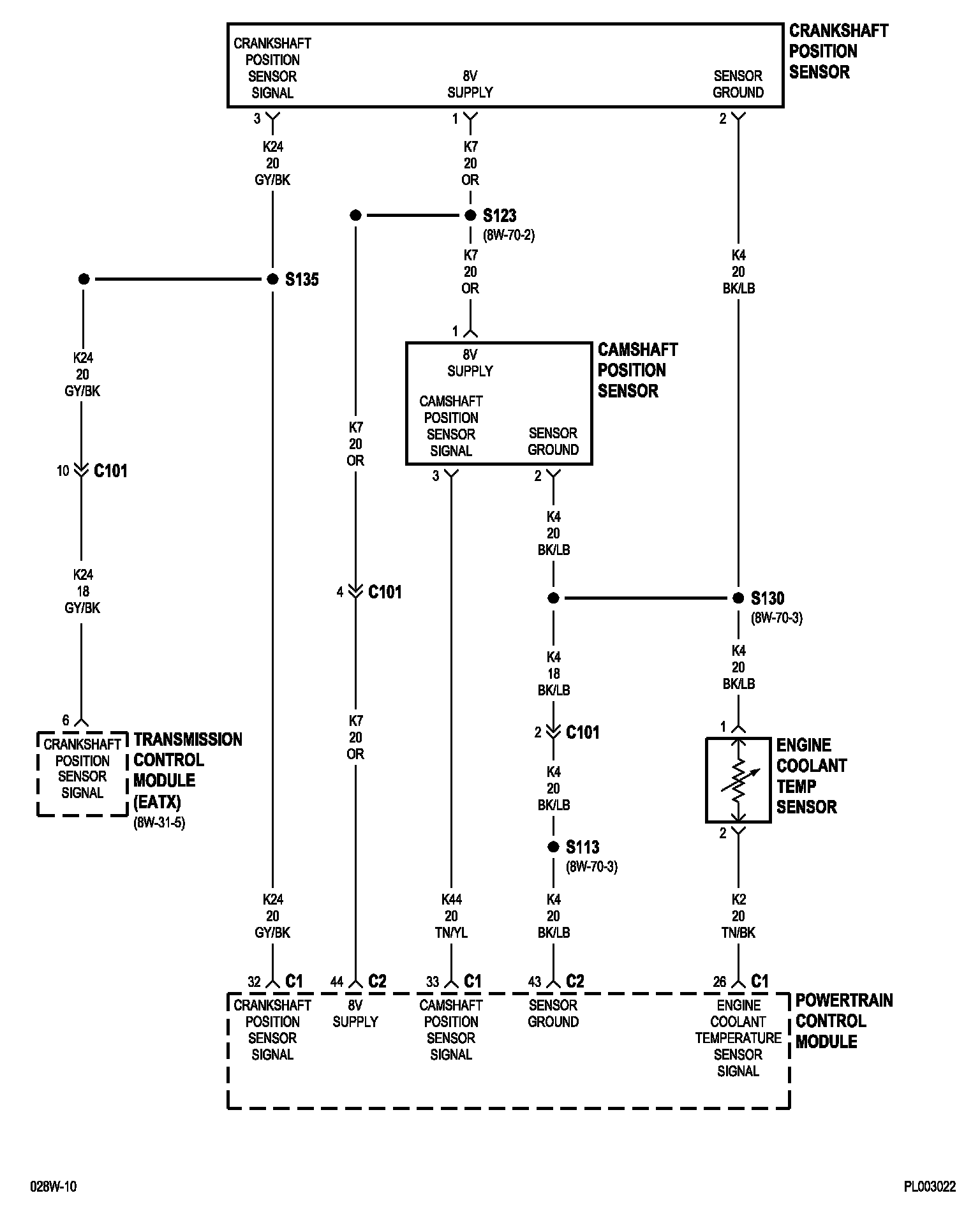

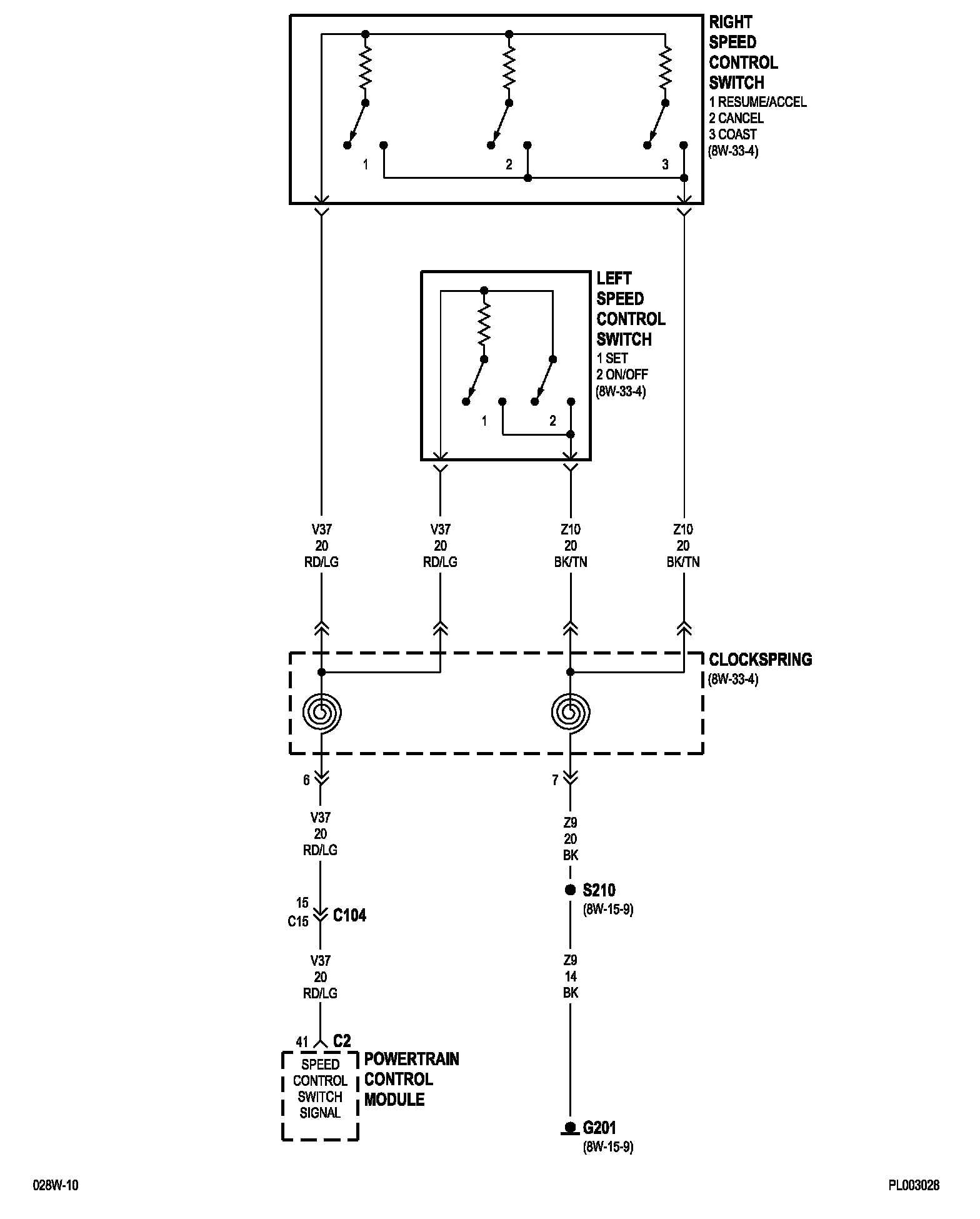

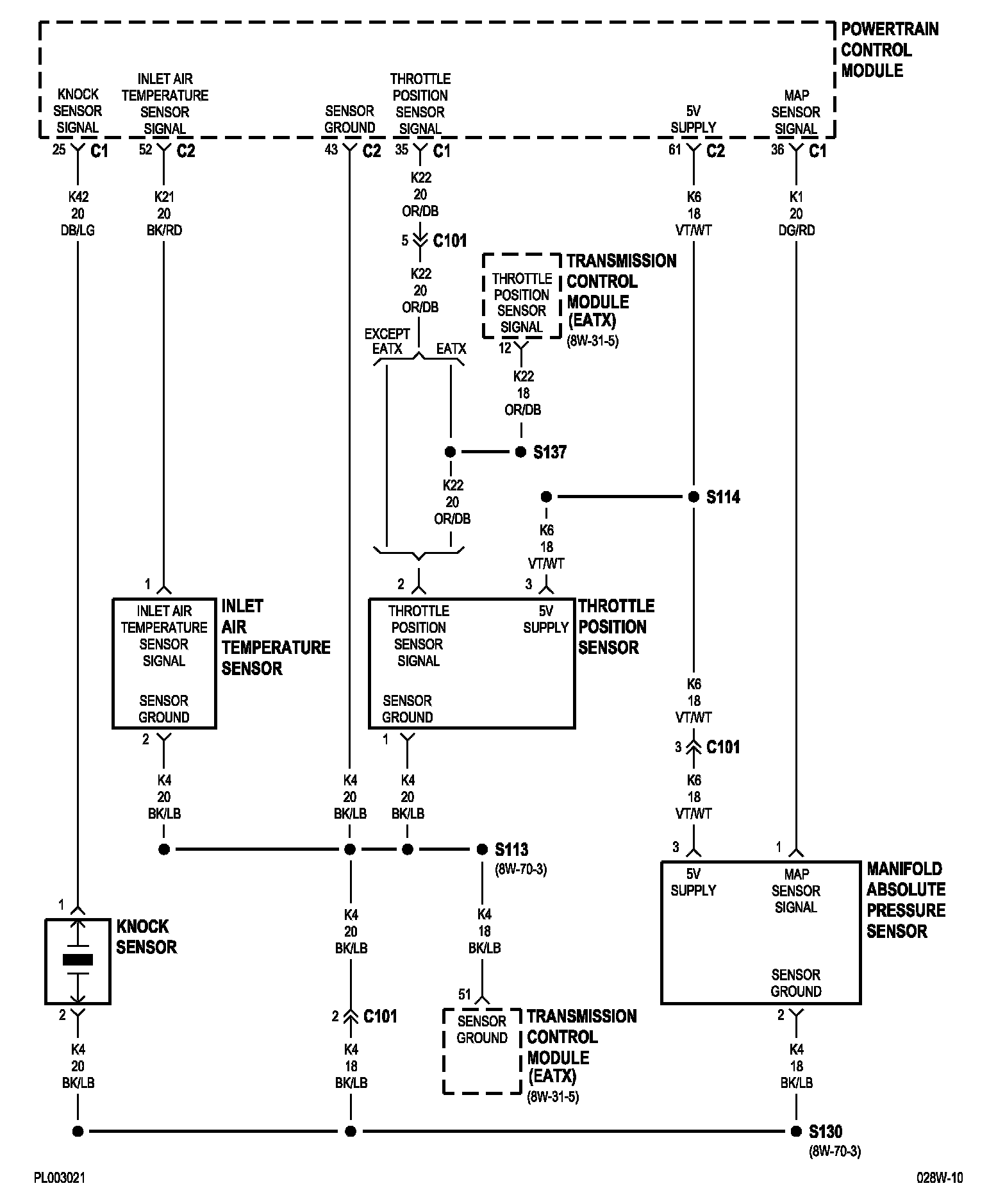

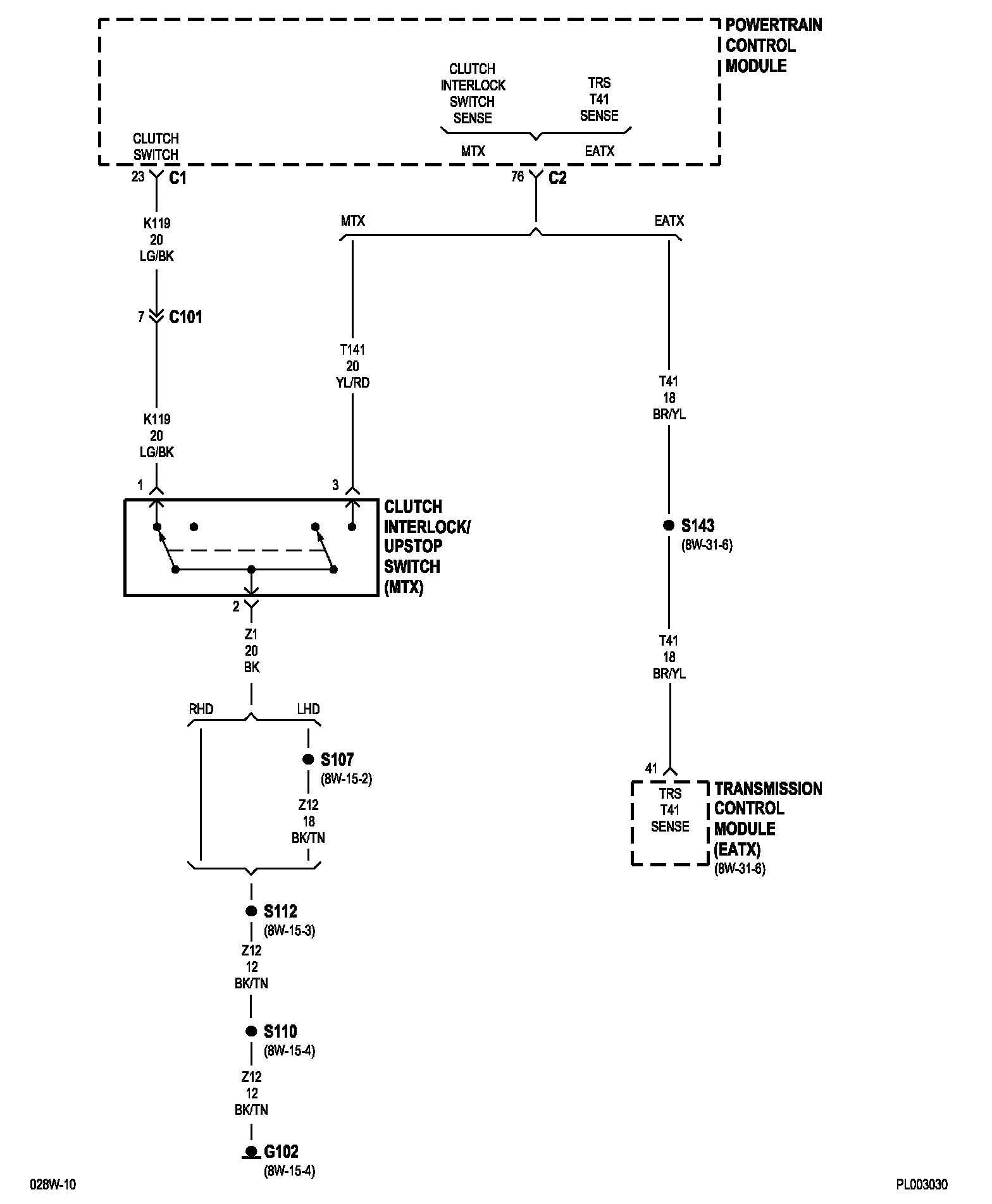

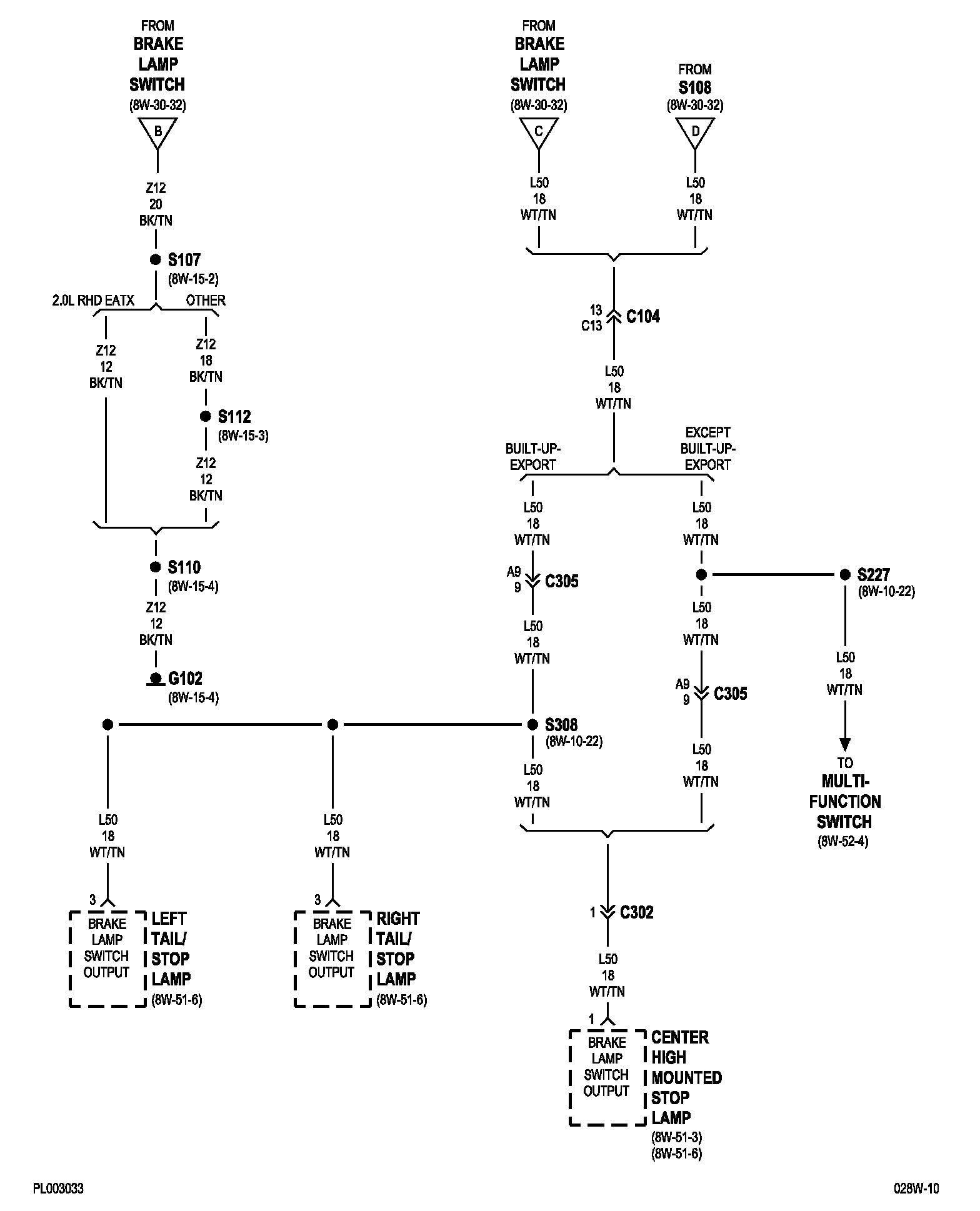

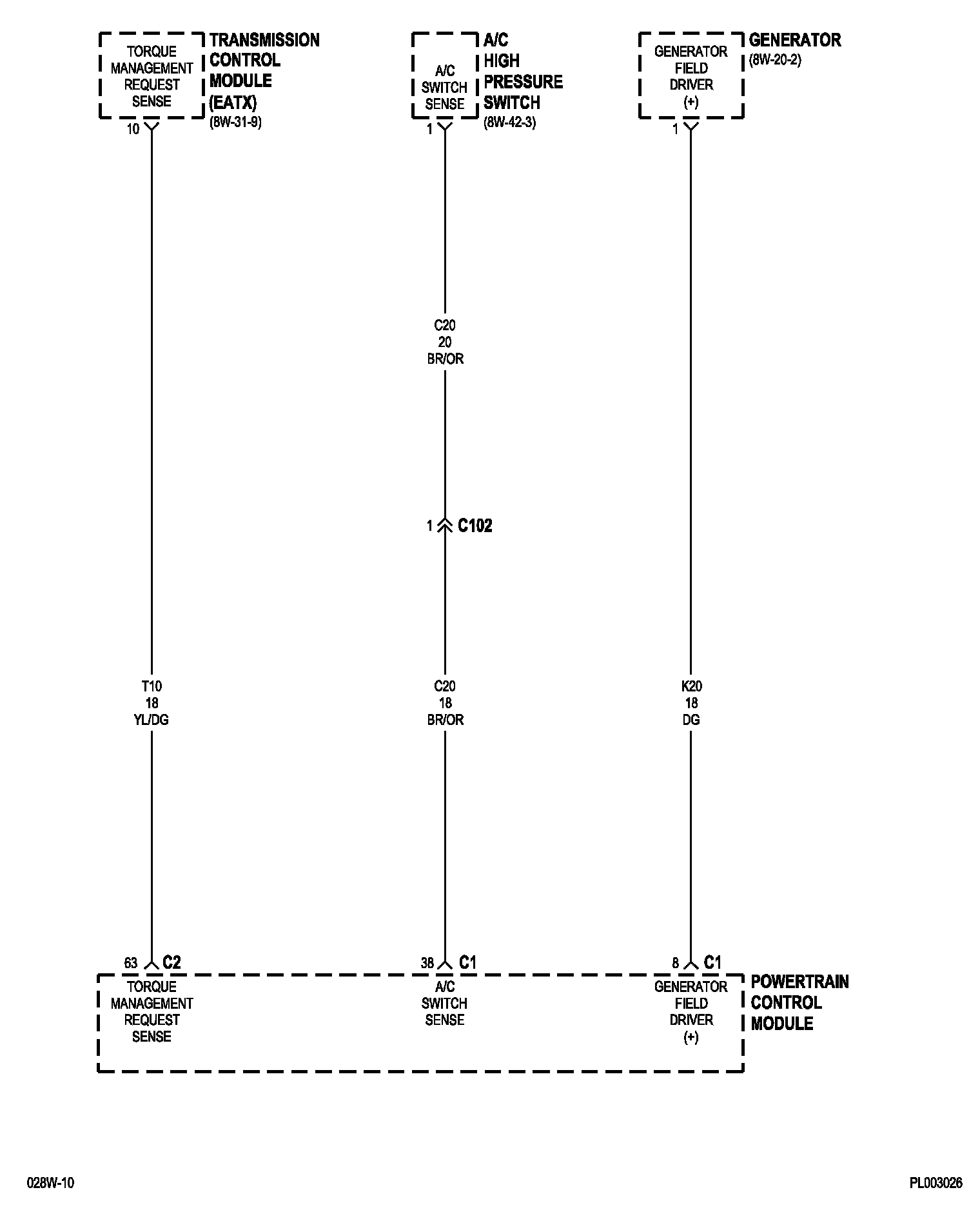

System Diagram

8w-30-17 (2.0L):

8w-30-18 (2.0L):

8w-30-19 (2.0L):

8w-30-20 (2.0L):

8w-30-21 (2.0L):

8w-30-22 (2.0L):

8w-30-23 (2.0L):

8w-30-24 (2.0L):

8w-30-25 (2.0L):

8w-30-26 (2.0L):

8w-30-27 (2.0L):

8w-30-28 (2.0L):

8w-30-29 (2.0L):

8w-30-30 (2.0L):

8w-30-31 (2.0L):

8w-30-32:

8w-30-33:

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
