Rear Lighting

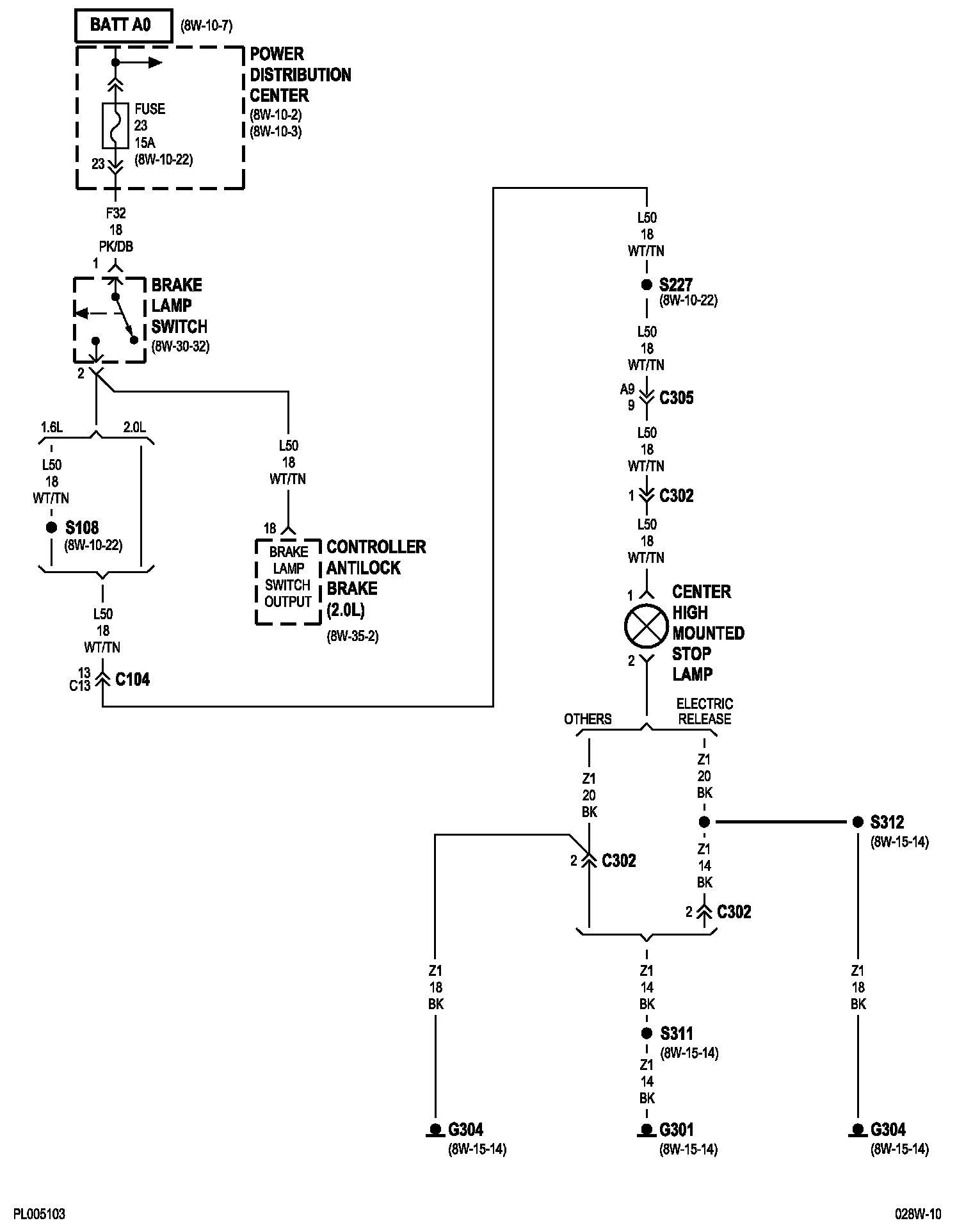

8w-51-2:

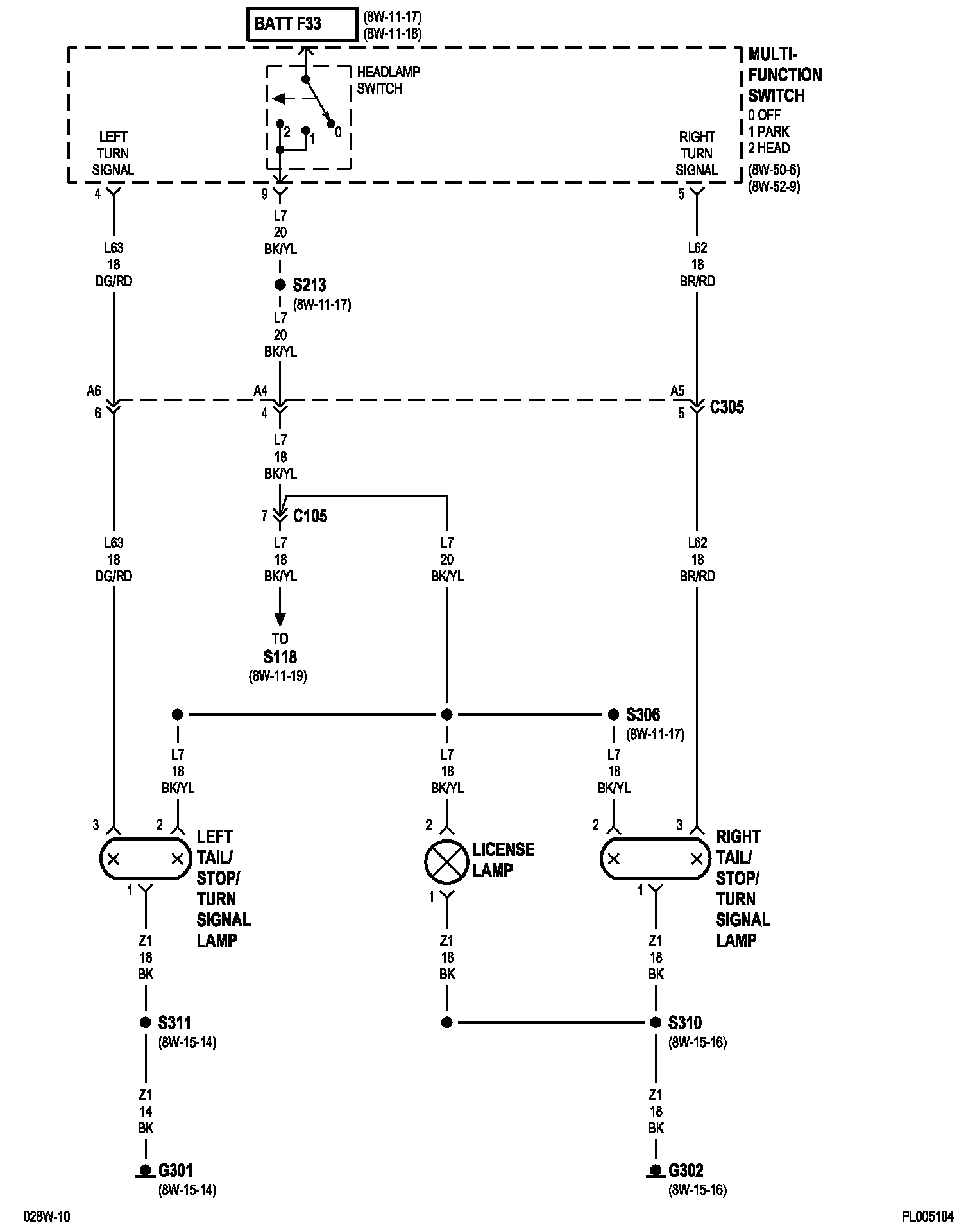

8w-51-3 (Except Built-Up-Export):

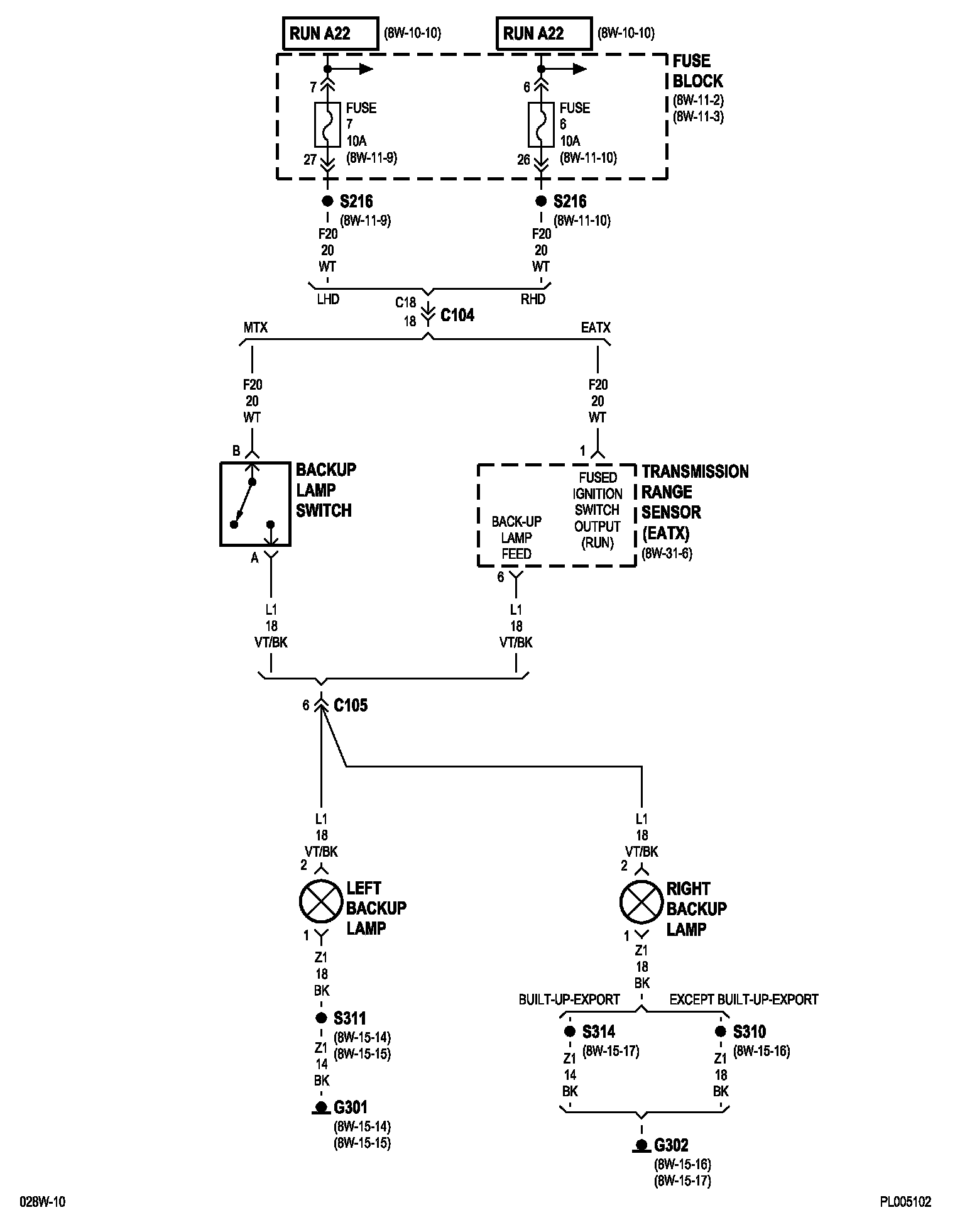

8w-51-4 (Except Built-Up-Export):

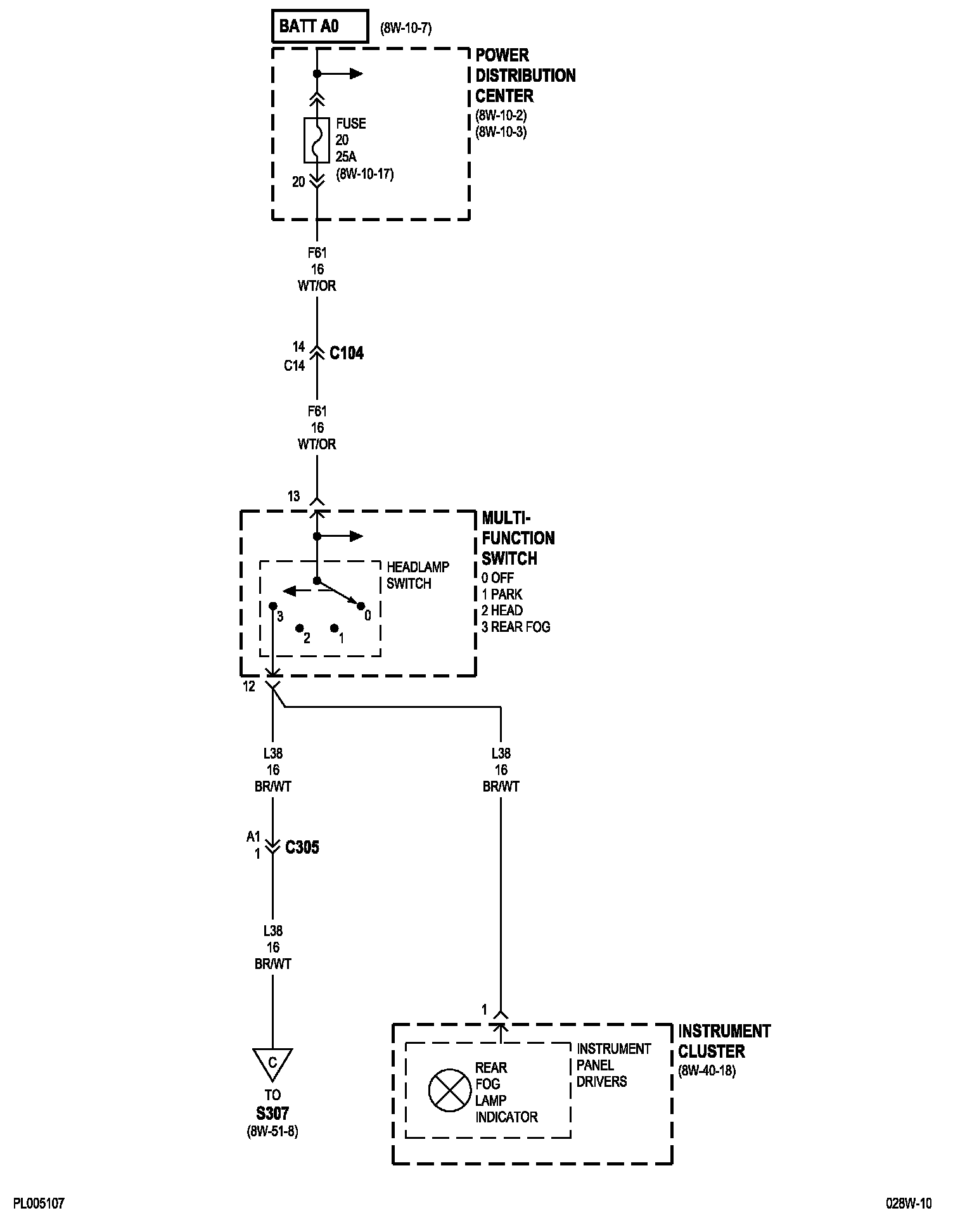

8w-51-5 (Built-Up-Export):

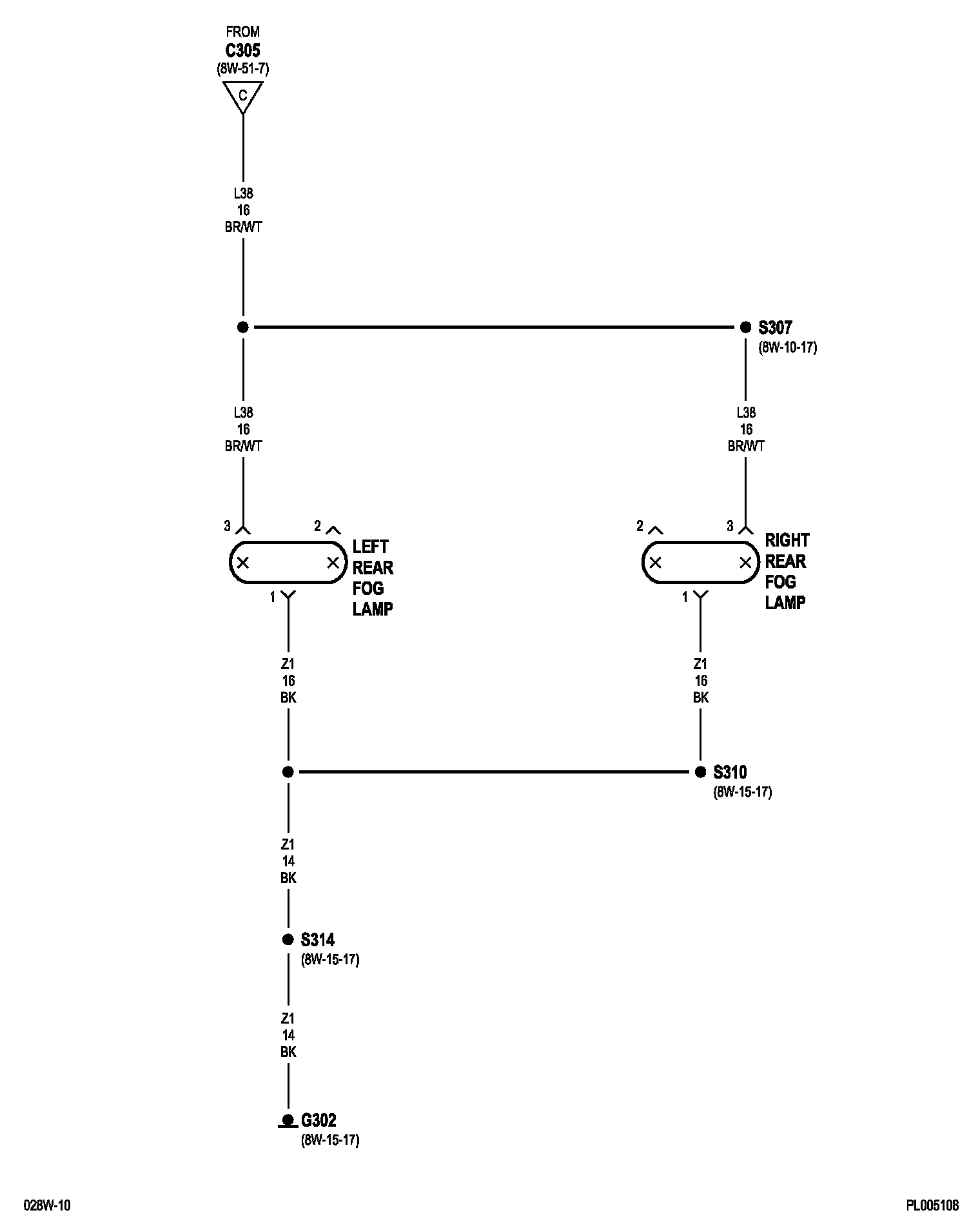

8w-51-6 (Built-up-Export):

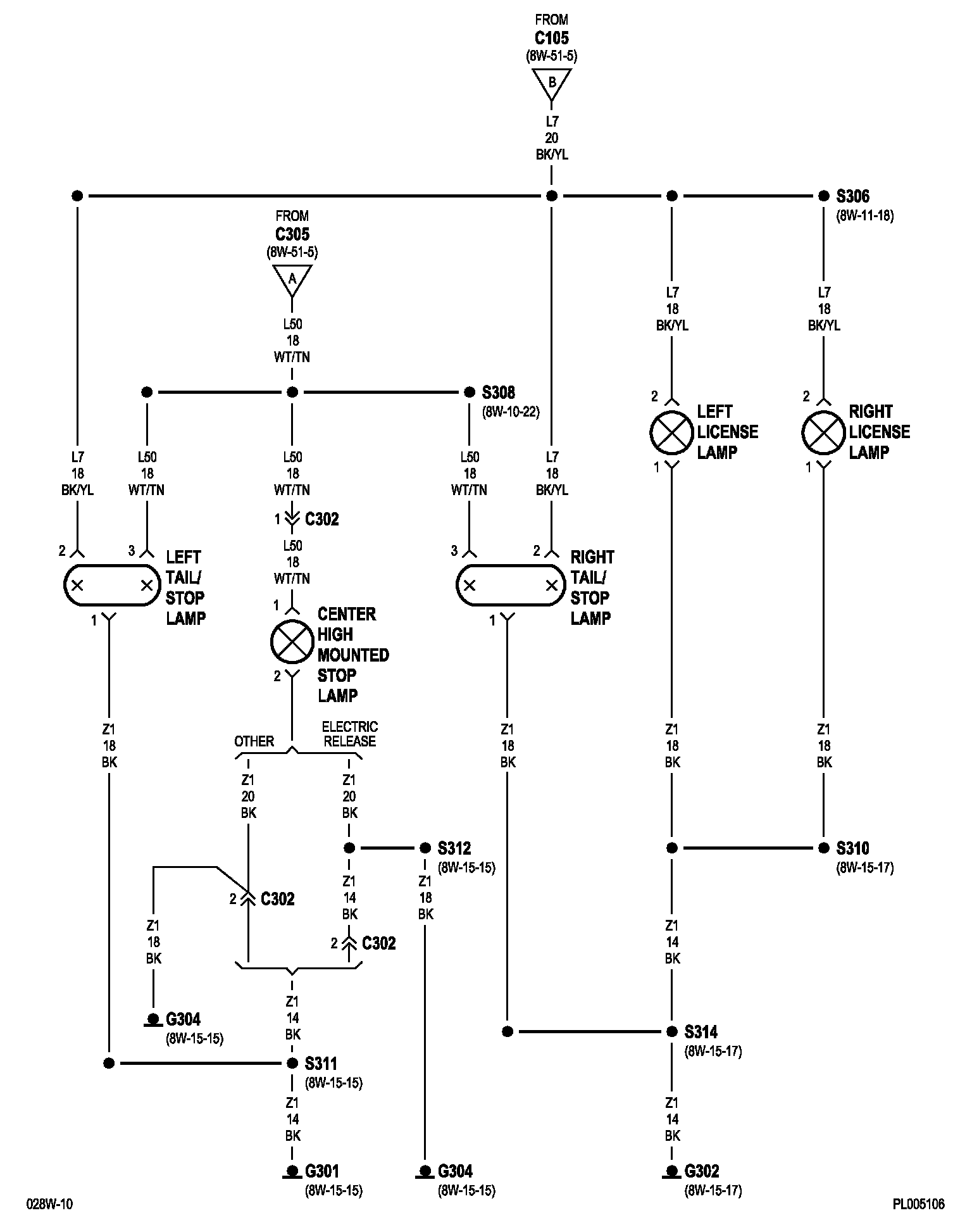

8w-51-7 (Built-Up-Export):

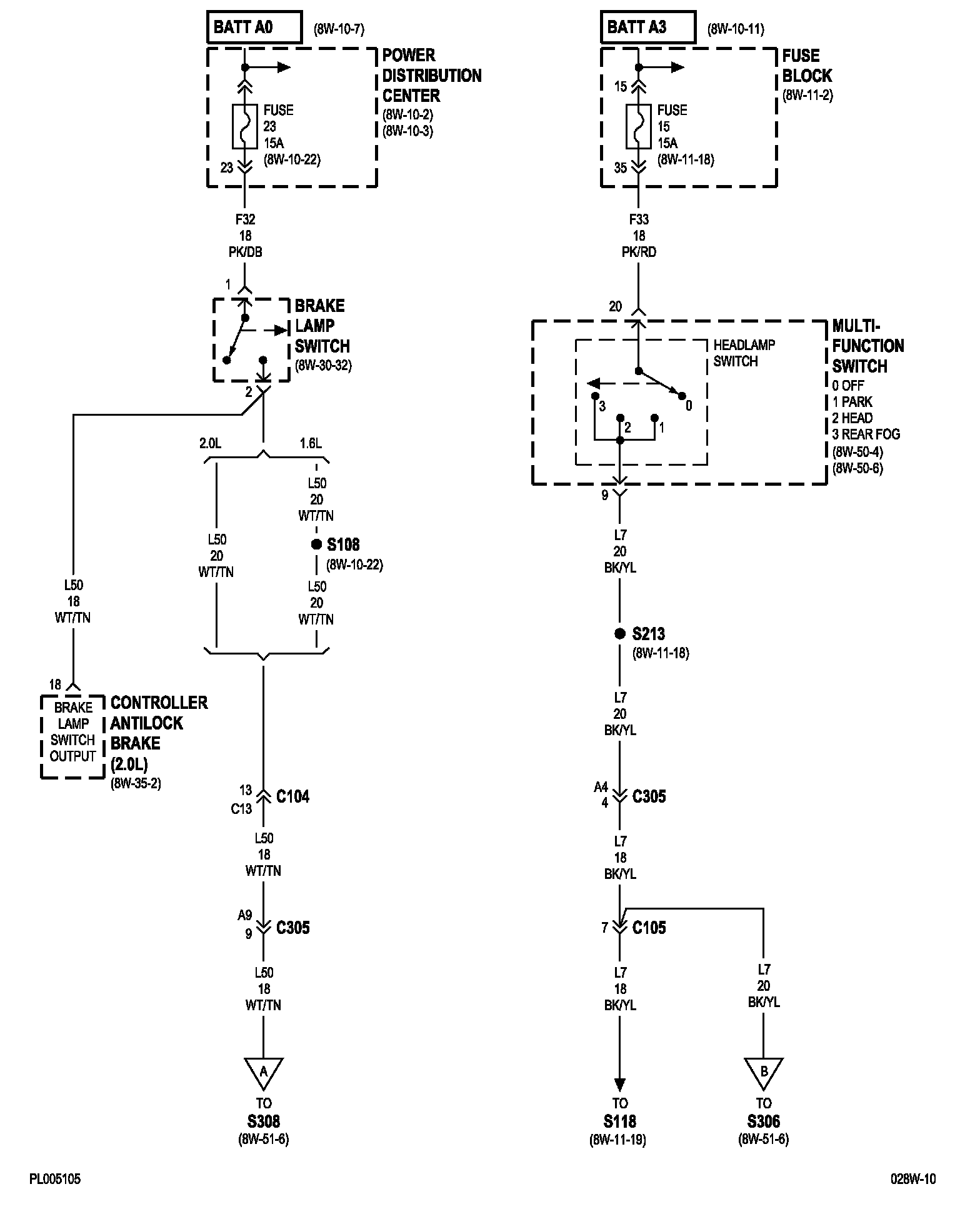

8w-51-8 (Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
