Front Lighting

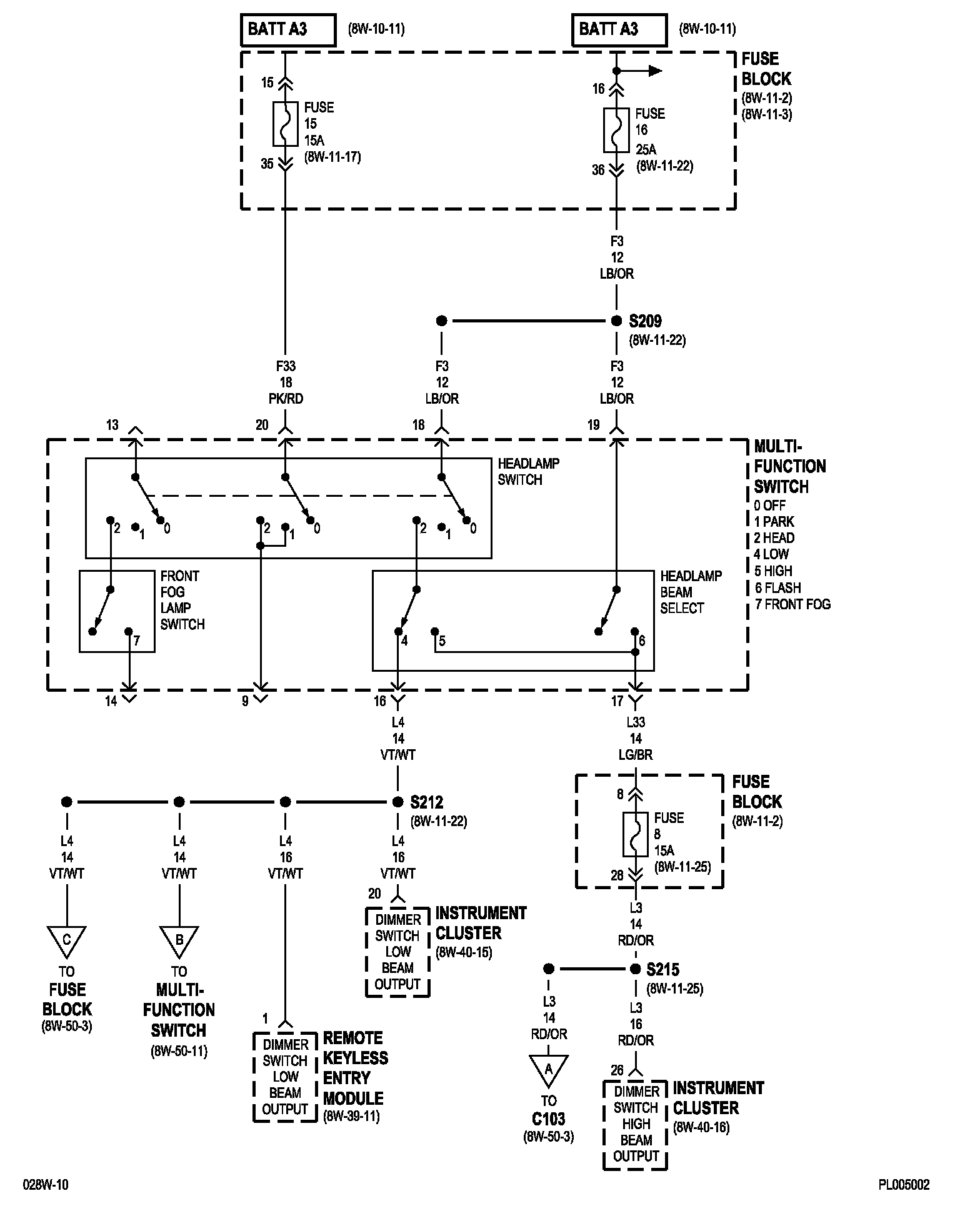

8w-50-2 (Except Built-Up-Export):

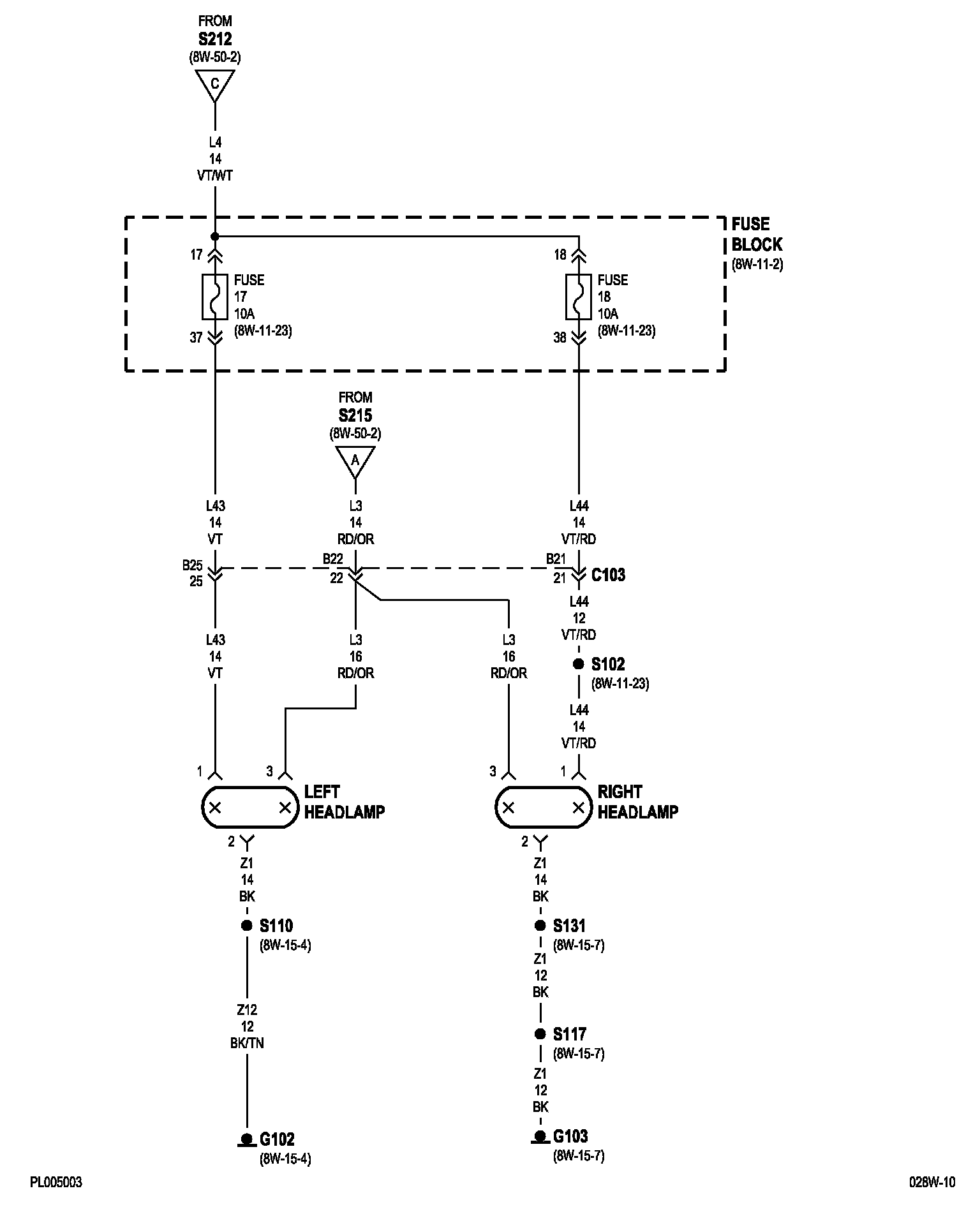

8w-50-3 (Except Built-Up-Export):

8w-50-4 (Built-Up-Export):

8w-50-5 (Built-Up-Export):

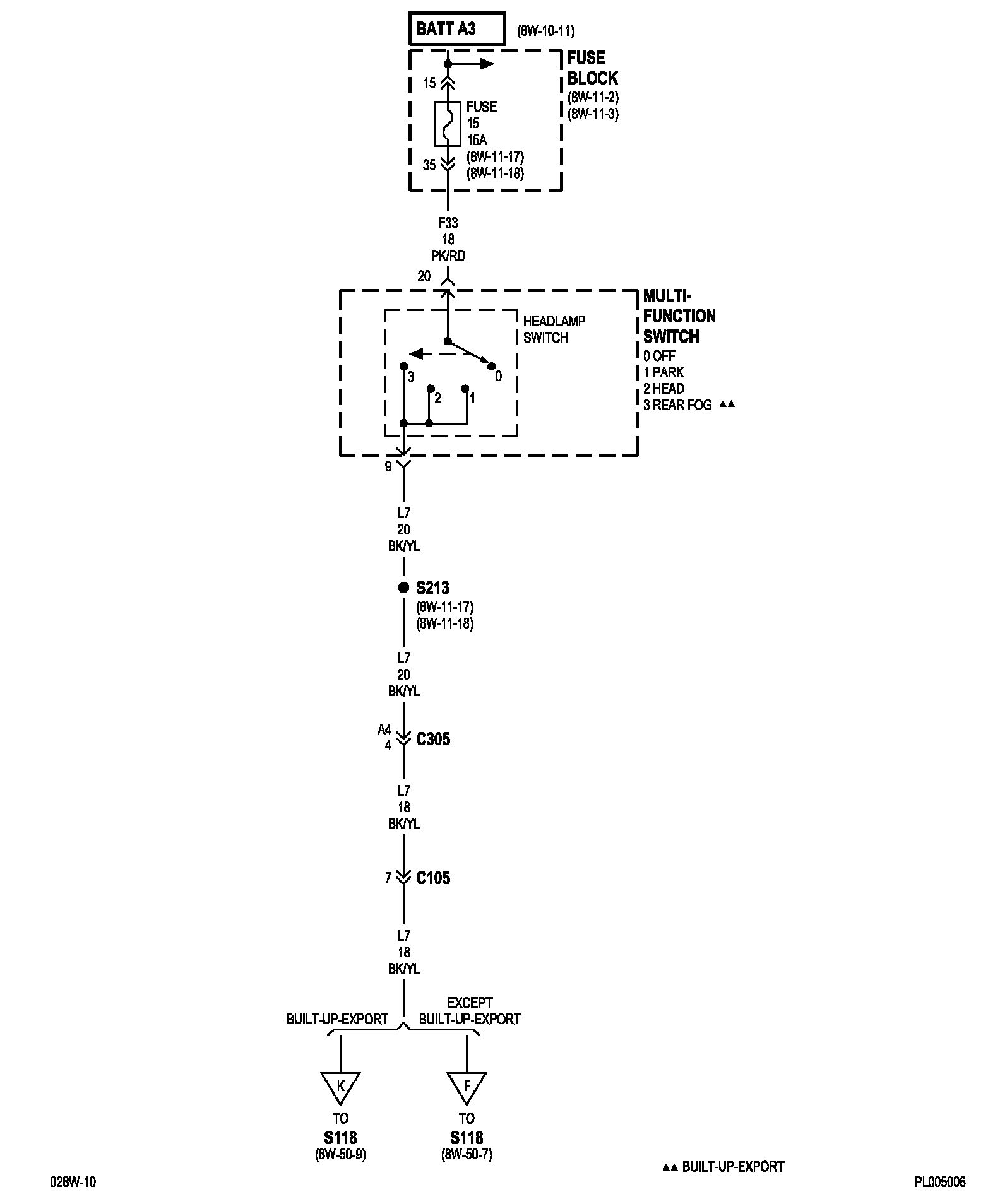

8w-50-6:

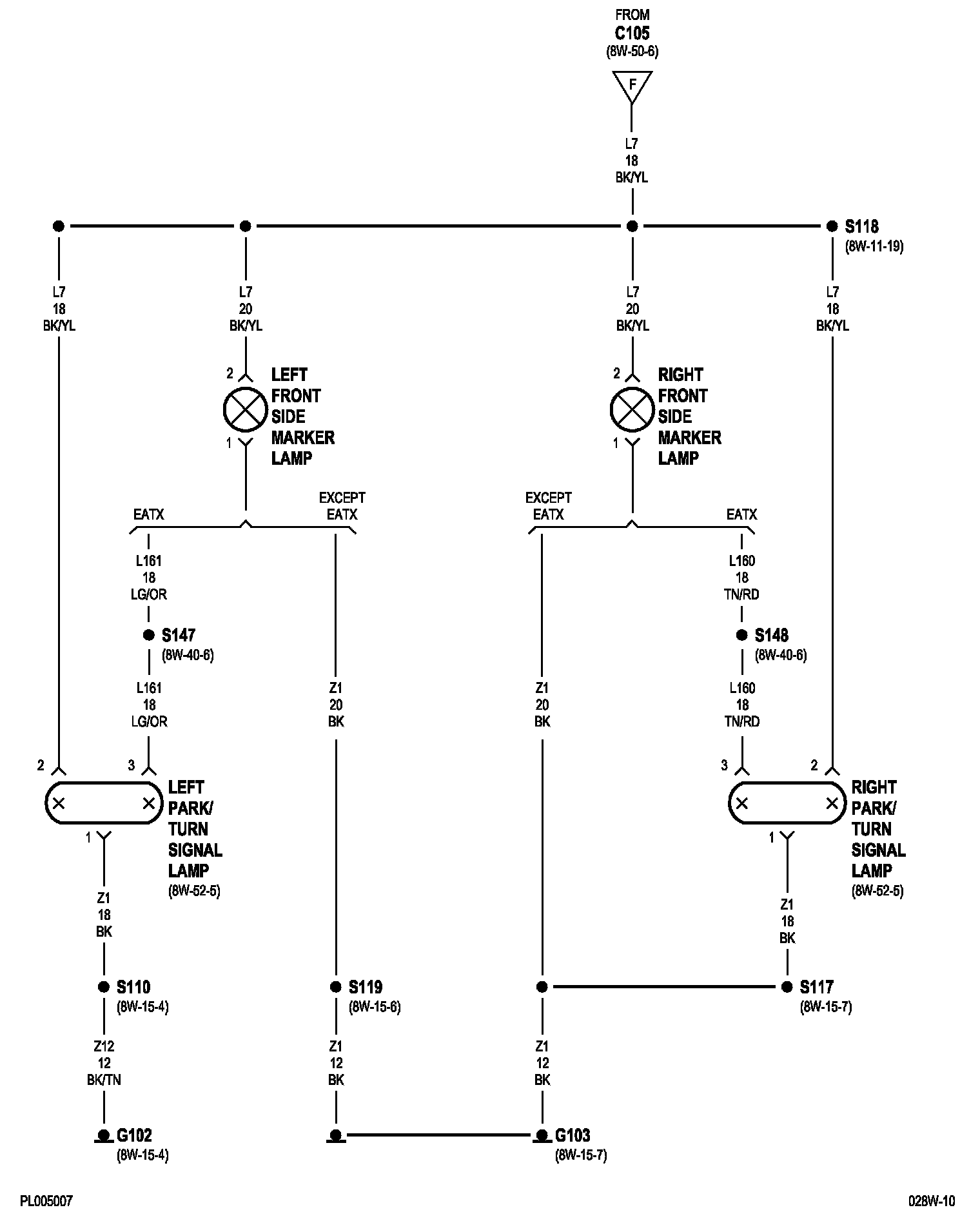

8w-50-7 (Except Built-Up-Export):

8w-50-8 (Built-Up-Export):

8w-50-9 (Built-Up-Export):

8w-50-10 (Except Built-Up-Export):

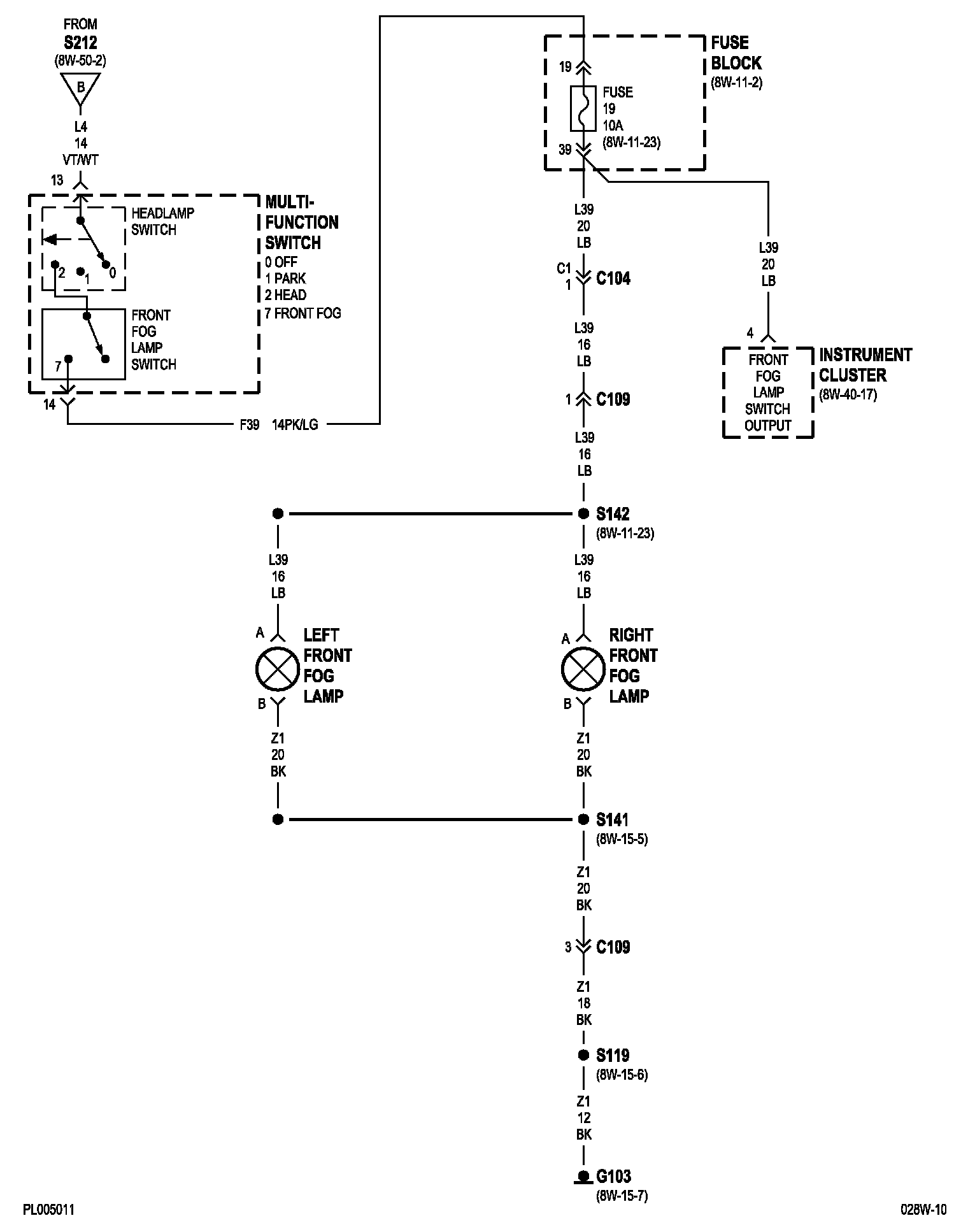

8w-50-11 (Except Built-Up-Export):

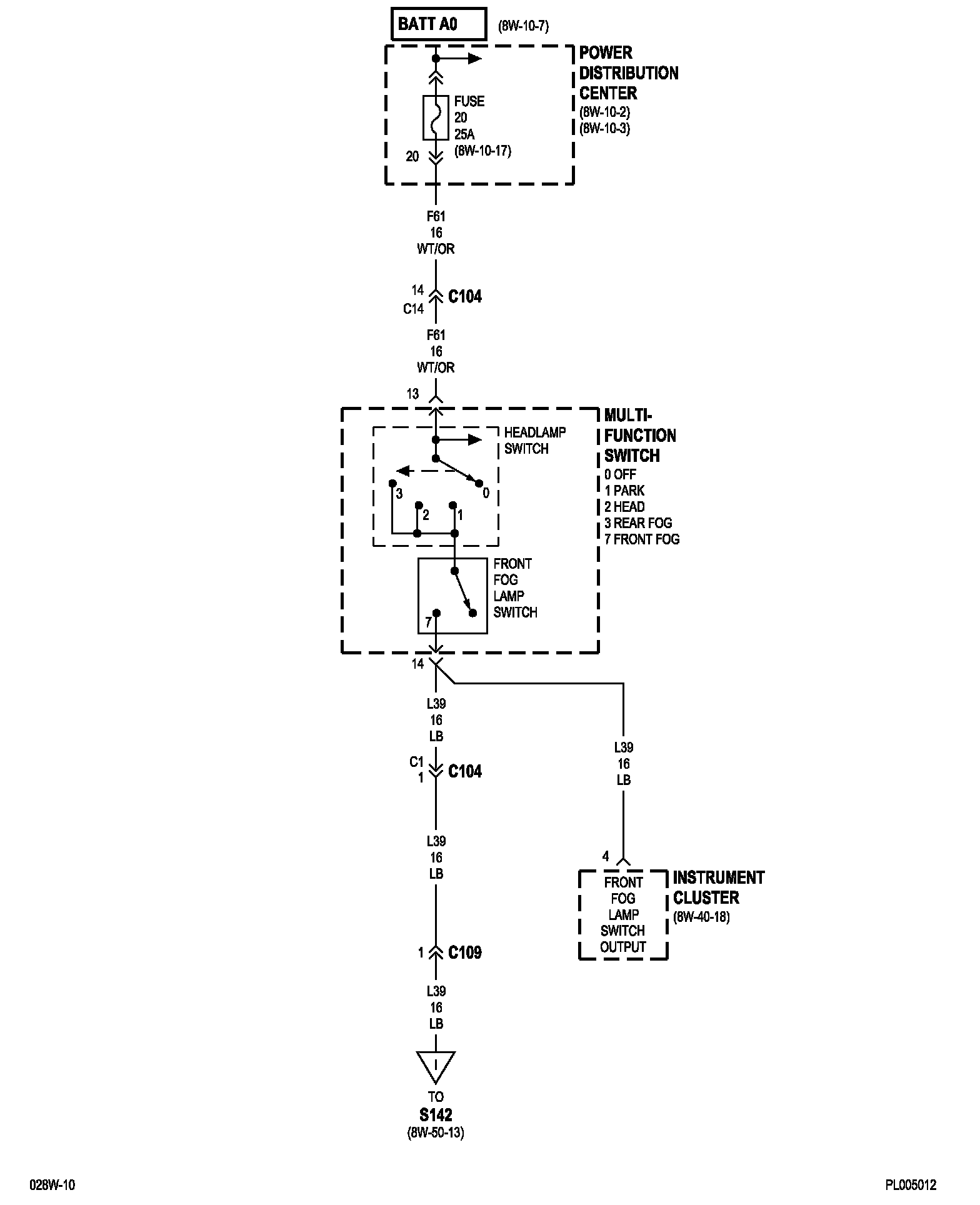

8w-50-12 (Built-Up-Export):

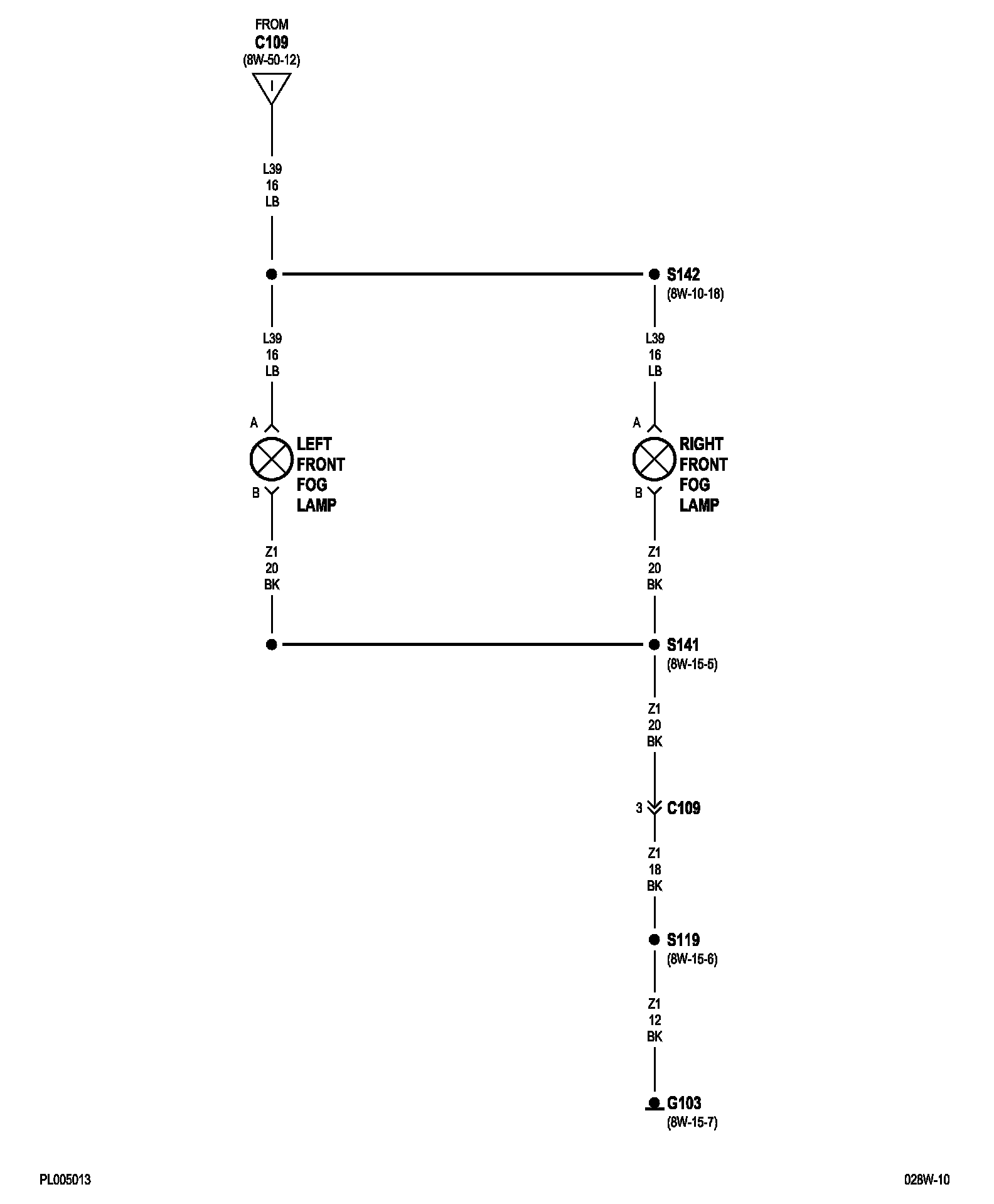

8w-50-13 (Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
