Group 8W-11 (Fuse Block)

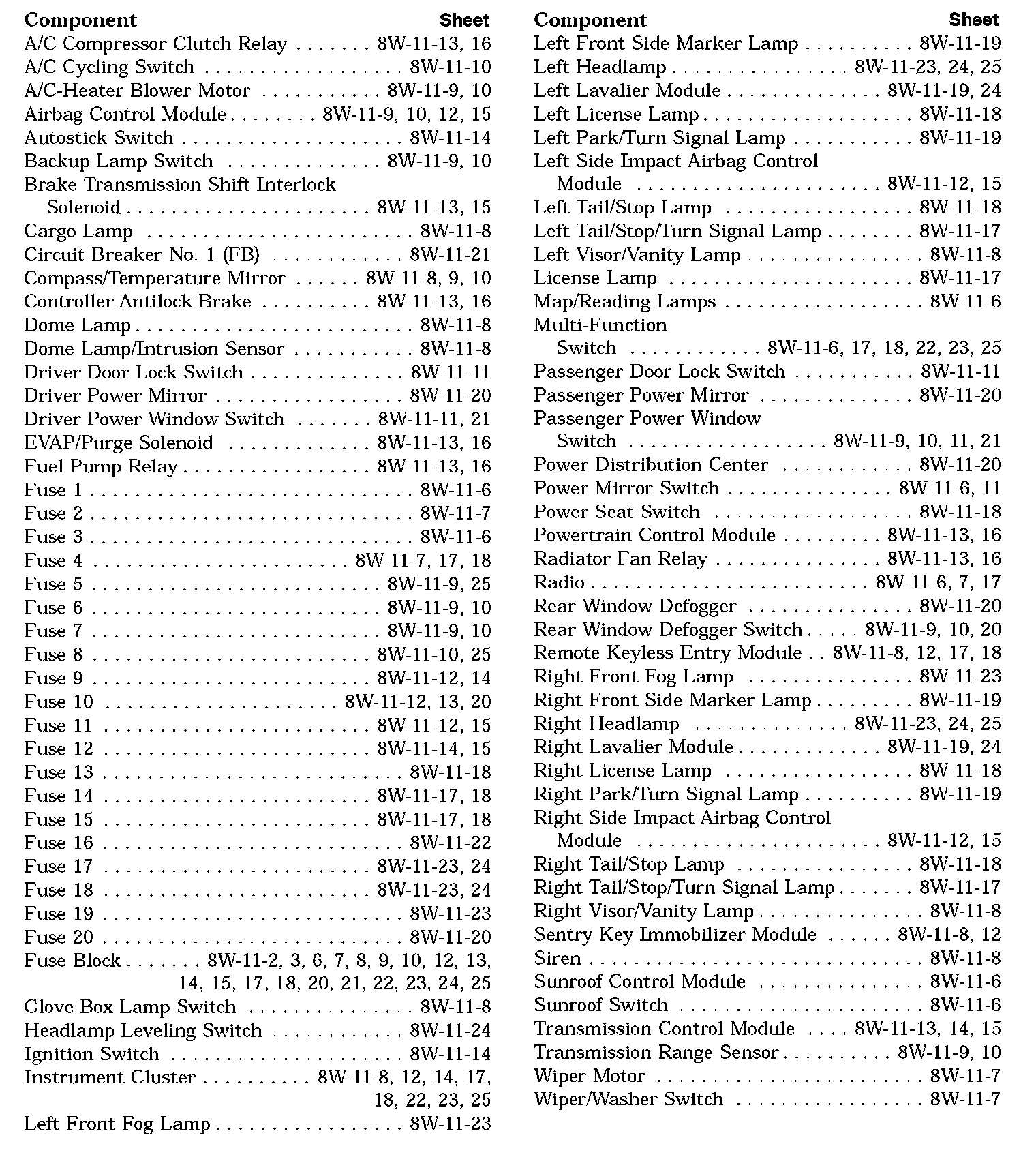

Fuse Block Component Index:

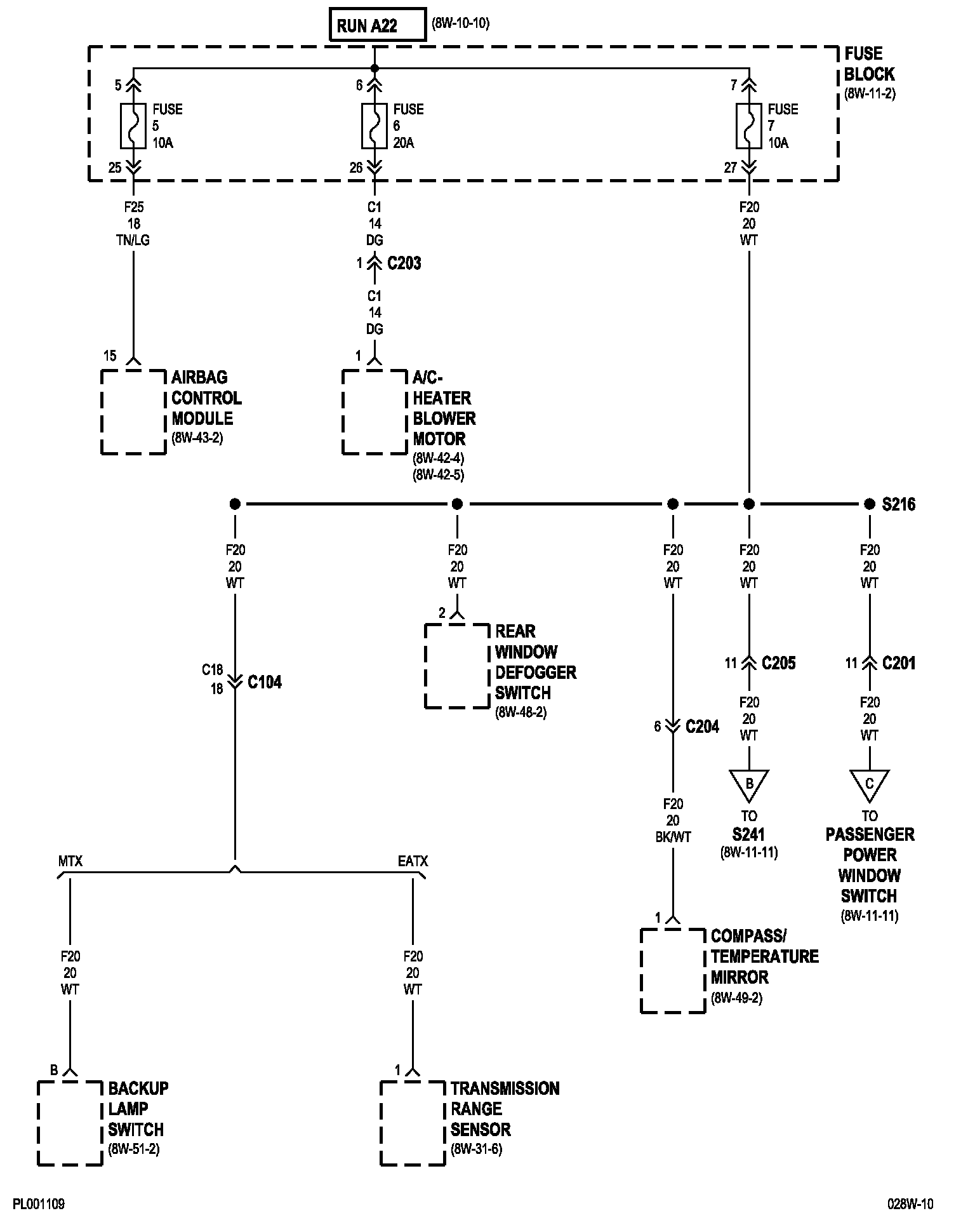

8w-11-2 (LHD):

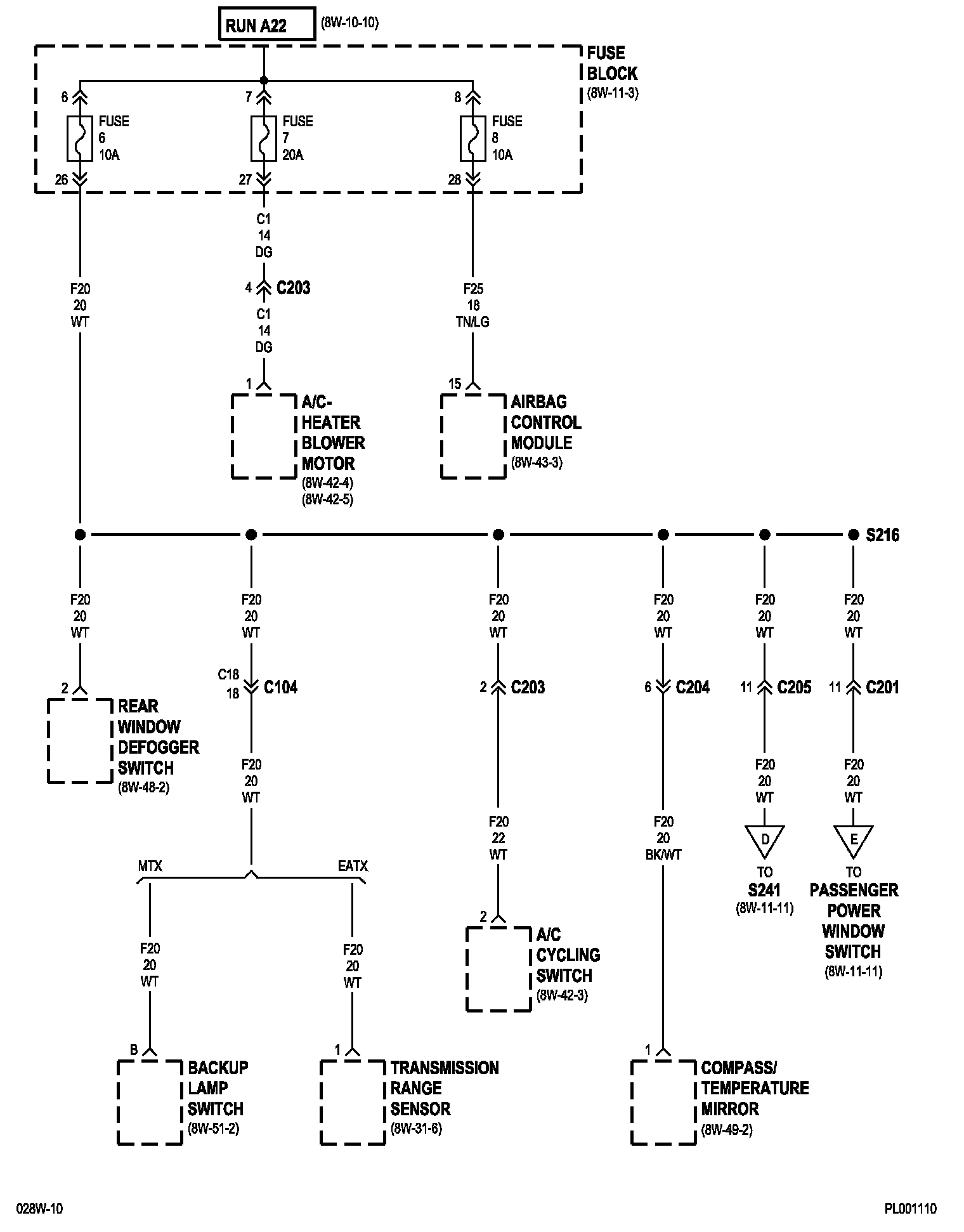

8w-11-3 (RHD):

8w-11-4 (LHD):

8w-11-5 (RHD):

8w-11-6:

8w-11-7:

8w-11-8:

8w-11-9 (LHD):

8w-11-10 (RHD):

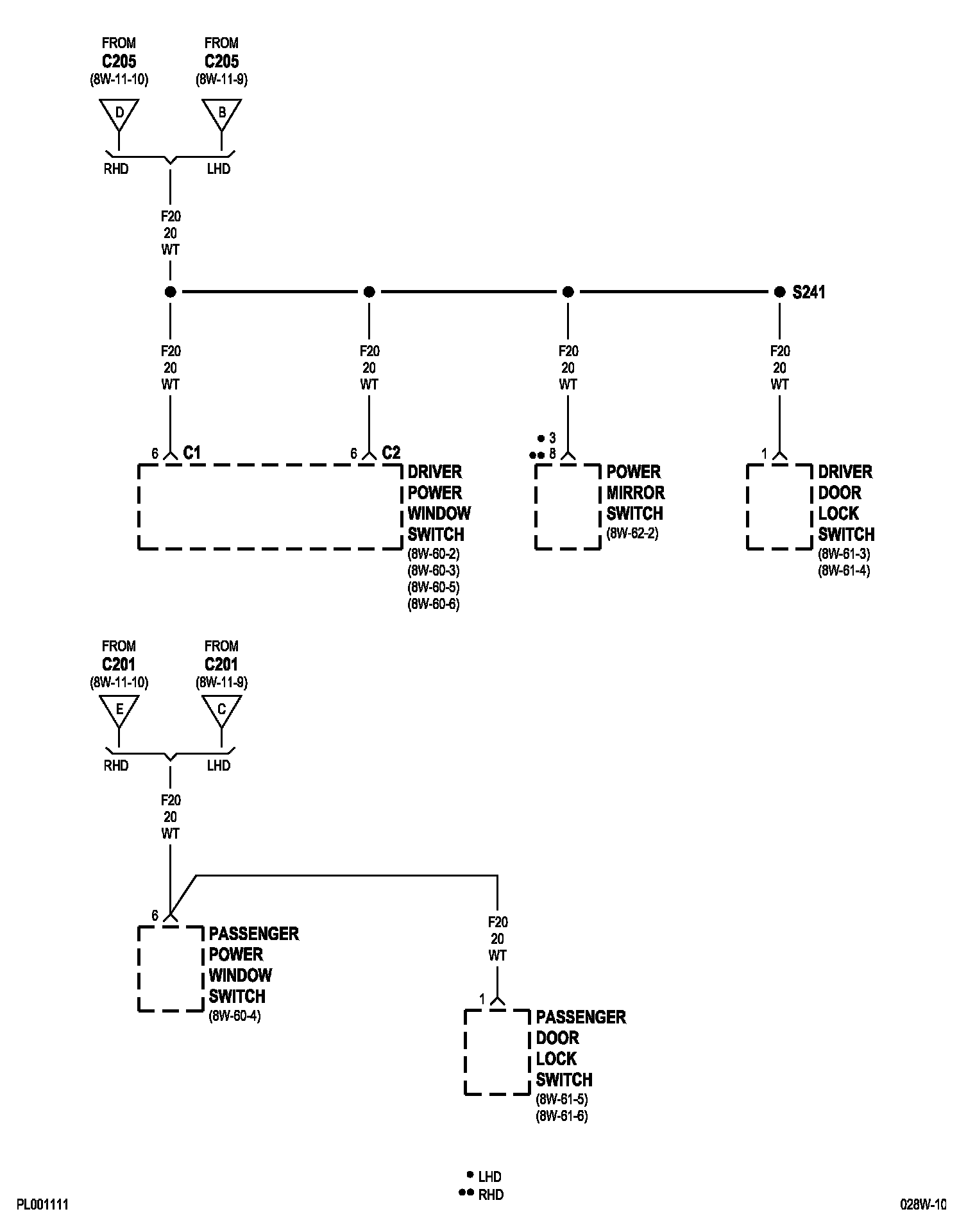

8w-11-11:

8w-11-12:

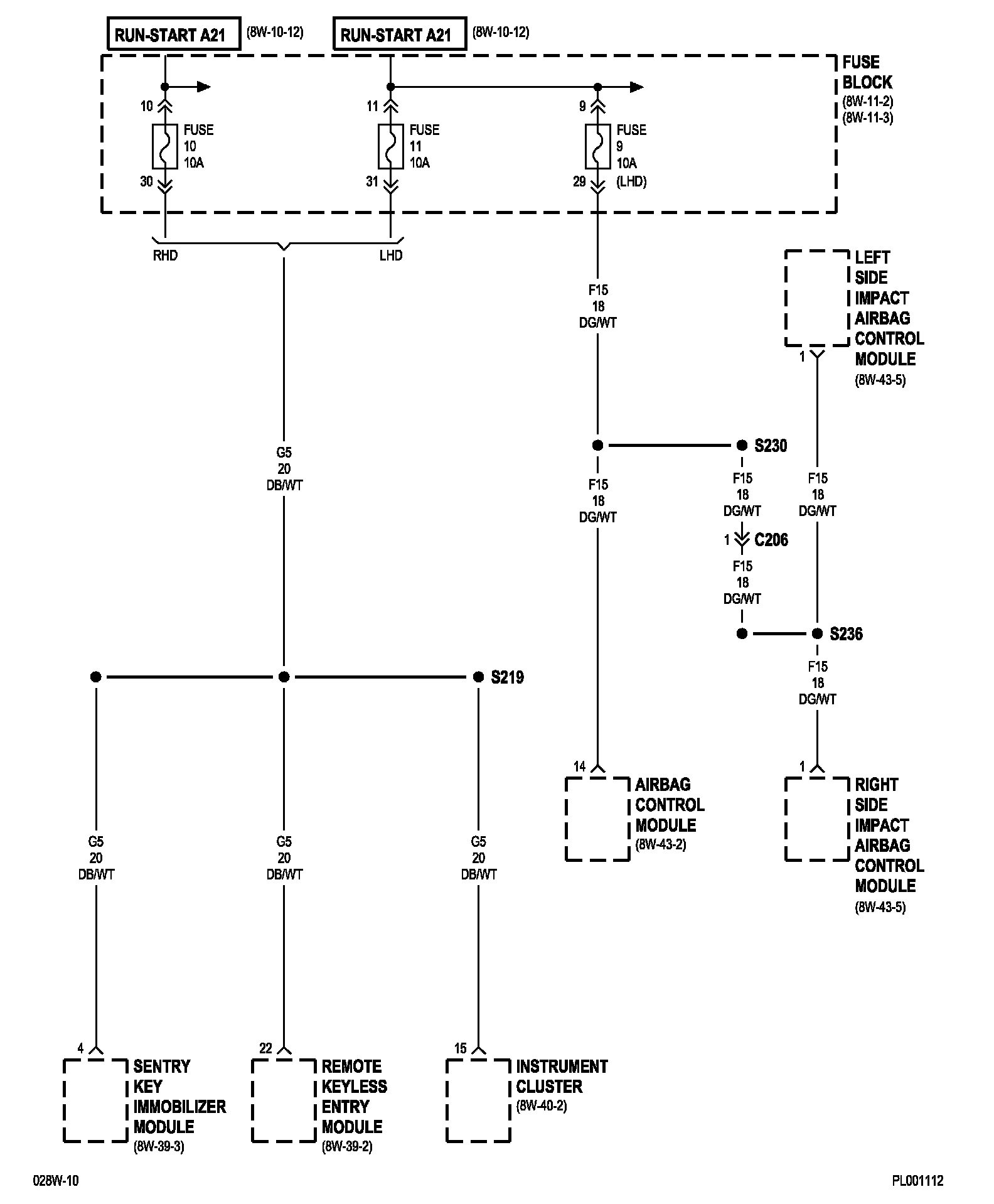

8w-11-13 (LHD):

8w-11-14 (Autostick):

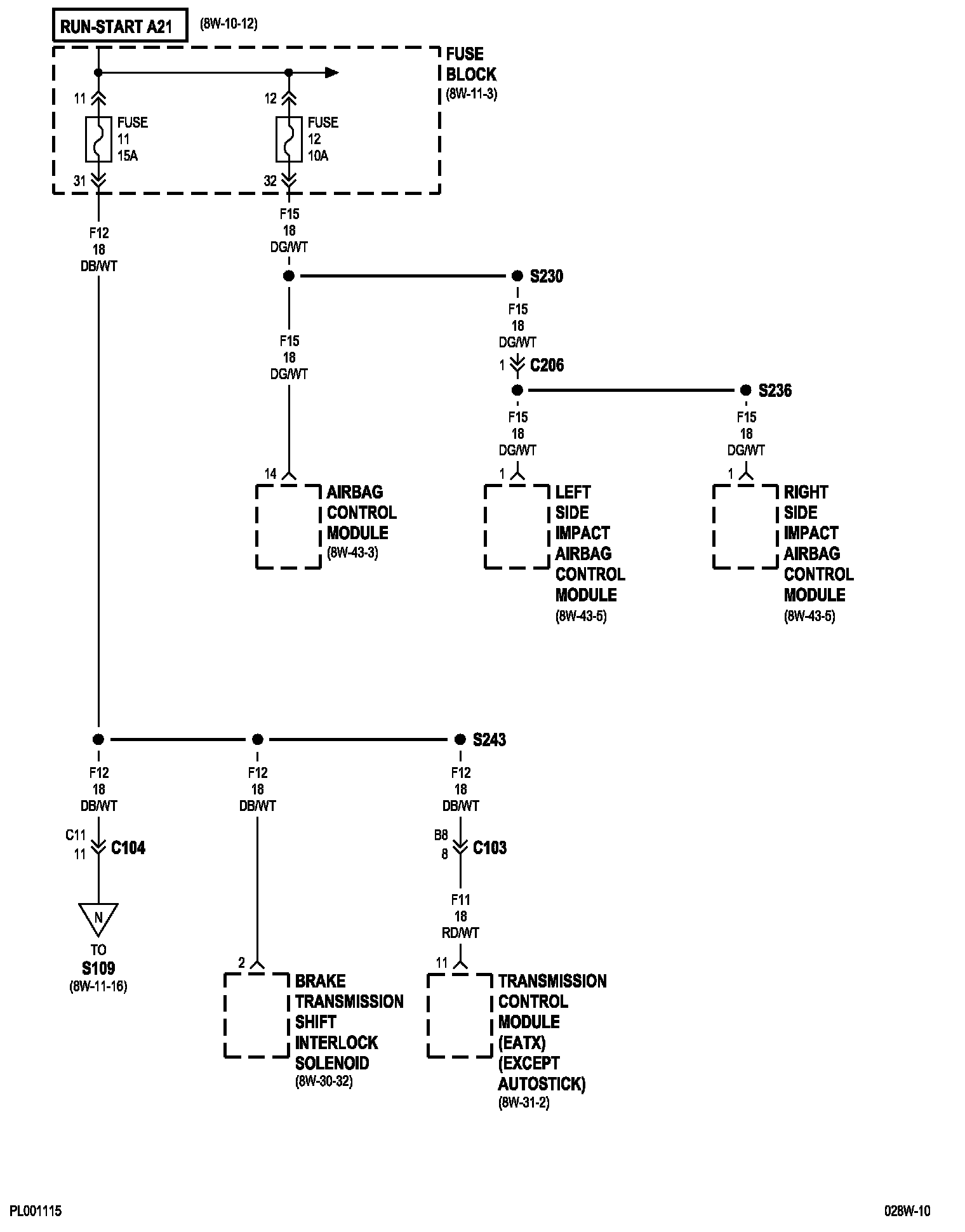

8w-11-15 (RHD):

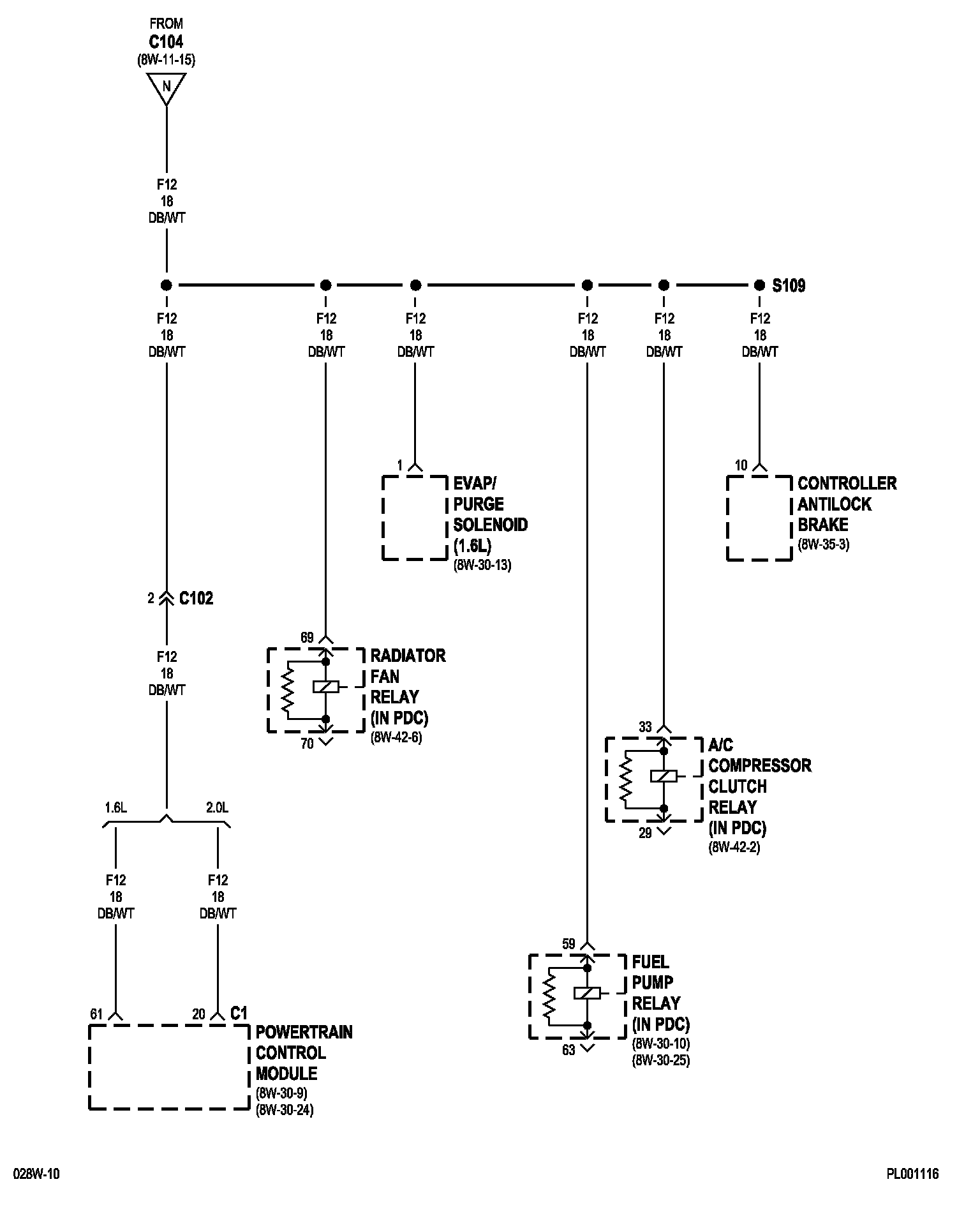

8w-11-16 (Except Built-Up-Export):

8w-11-17 (Except Built-Up-Export):

8w-11-18 (Built-Up-Export):

8w-11-19:

8w-11-20:

8w-11-21:

8w-11-22 (Except Built-Up-Export):

8w-11-23 (Except Built-Up-Export):

8w-11-24 (Built-Up-Export):

8w-11-25:
