Wiring Diagrams

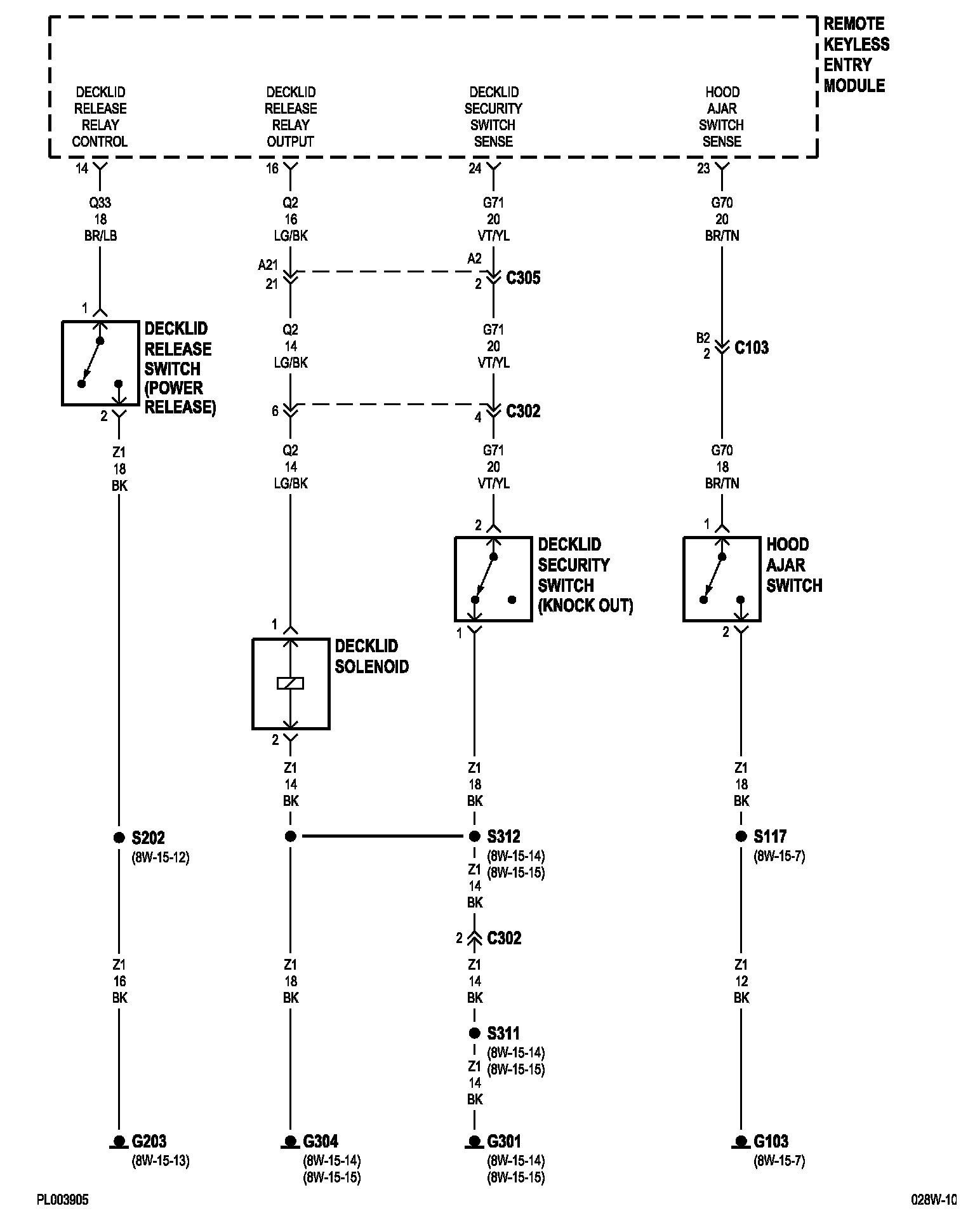

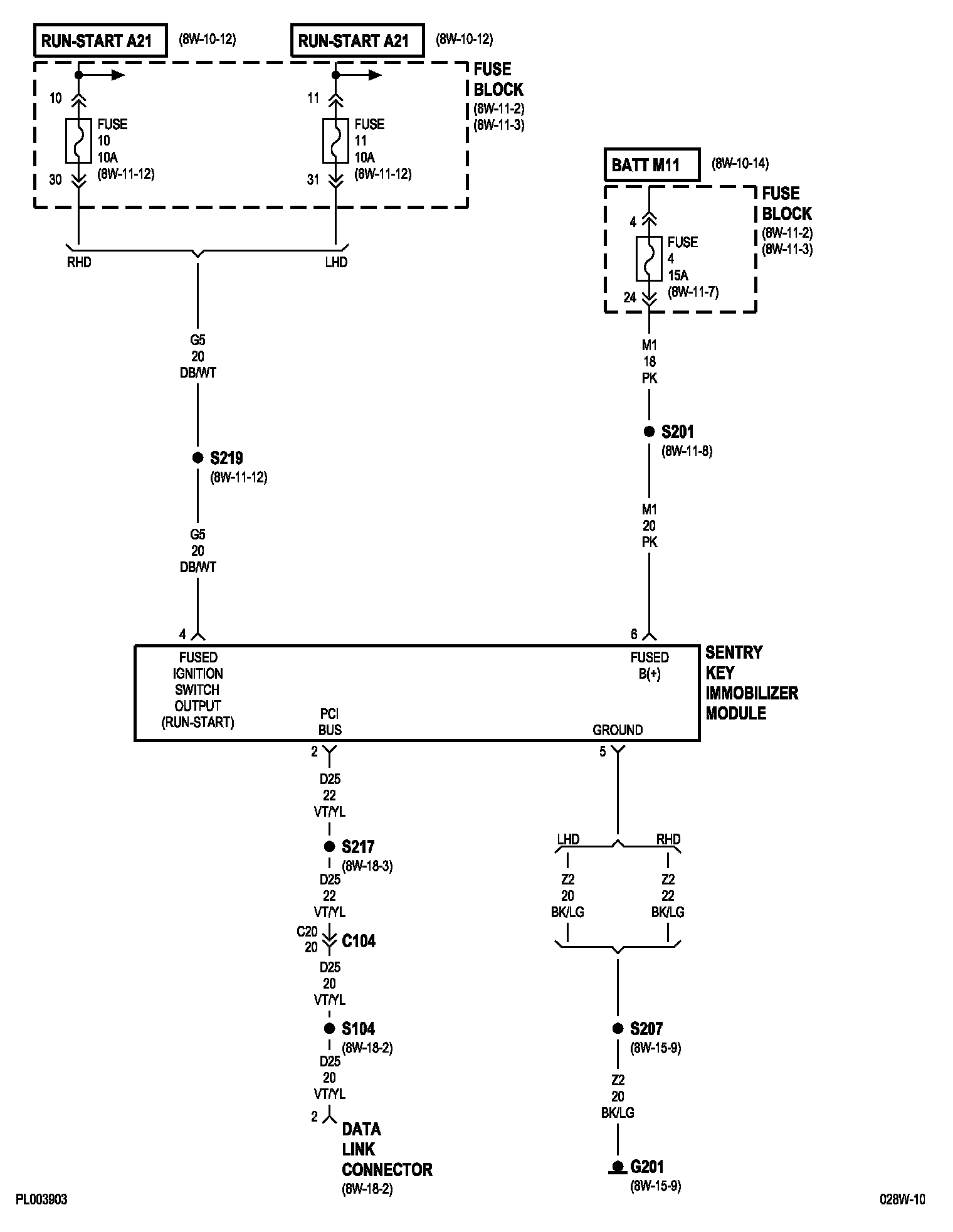

8w-39-2:

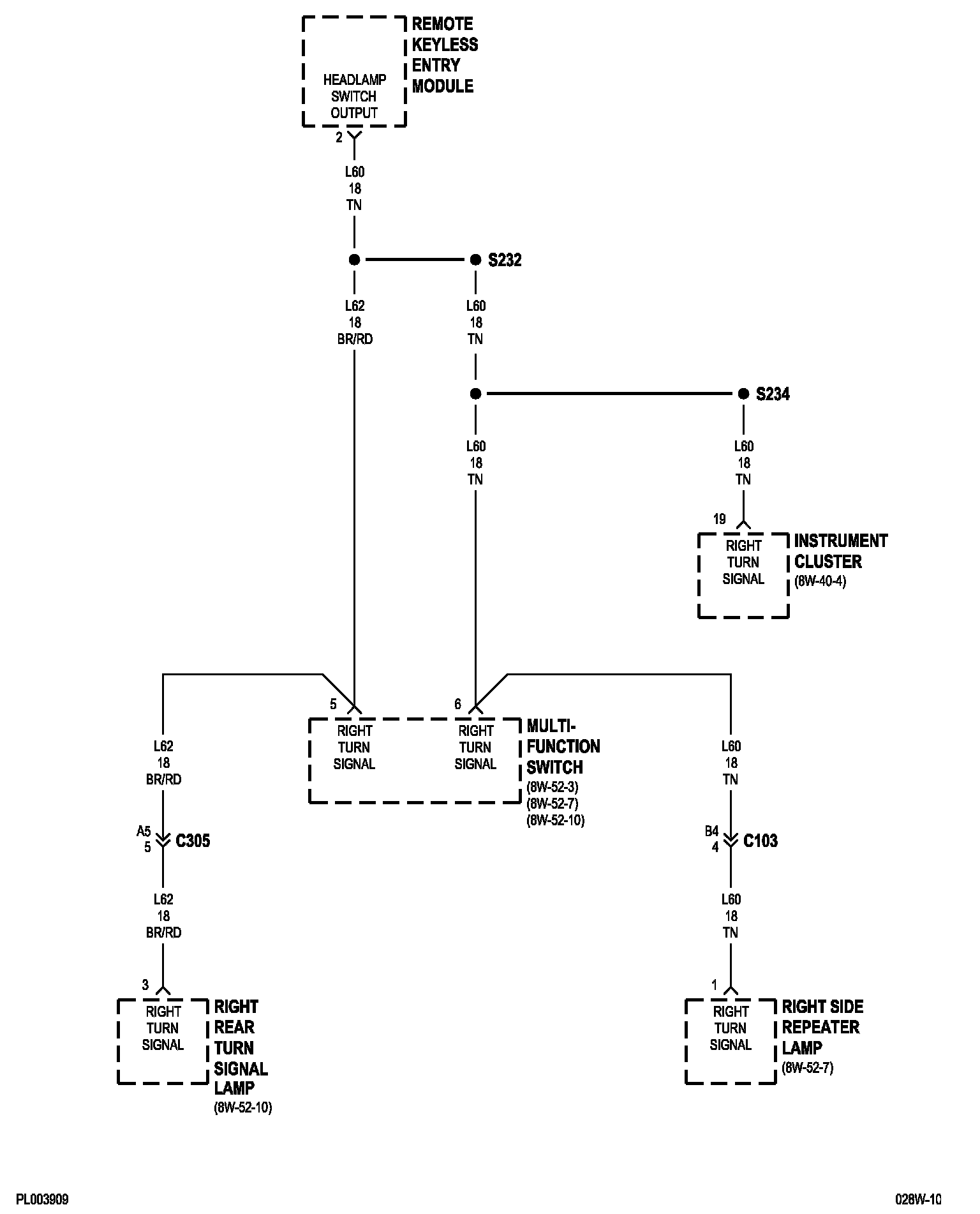

8w-39-3:

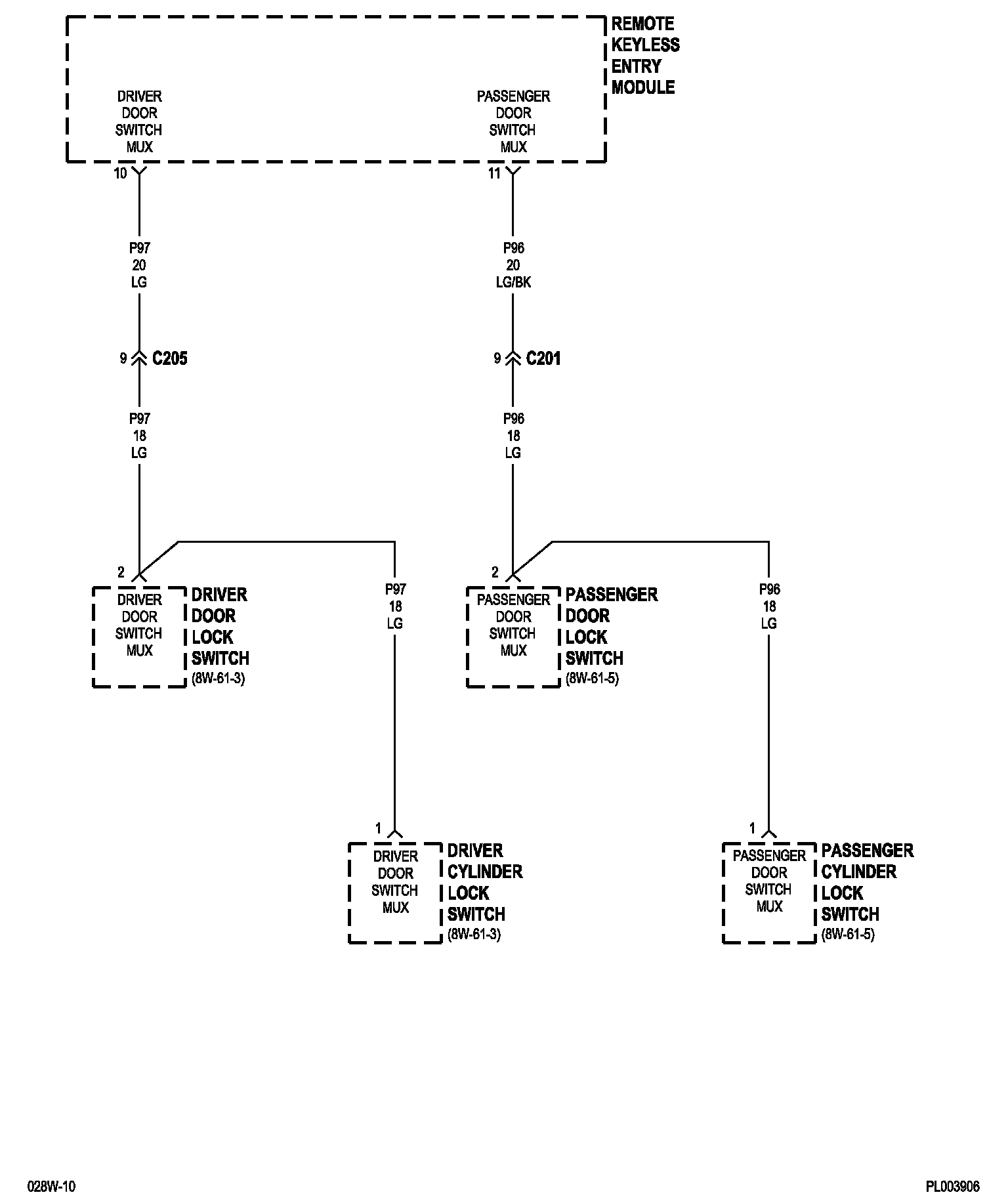

8w-39-4:

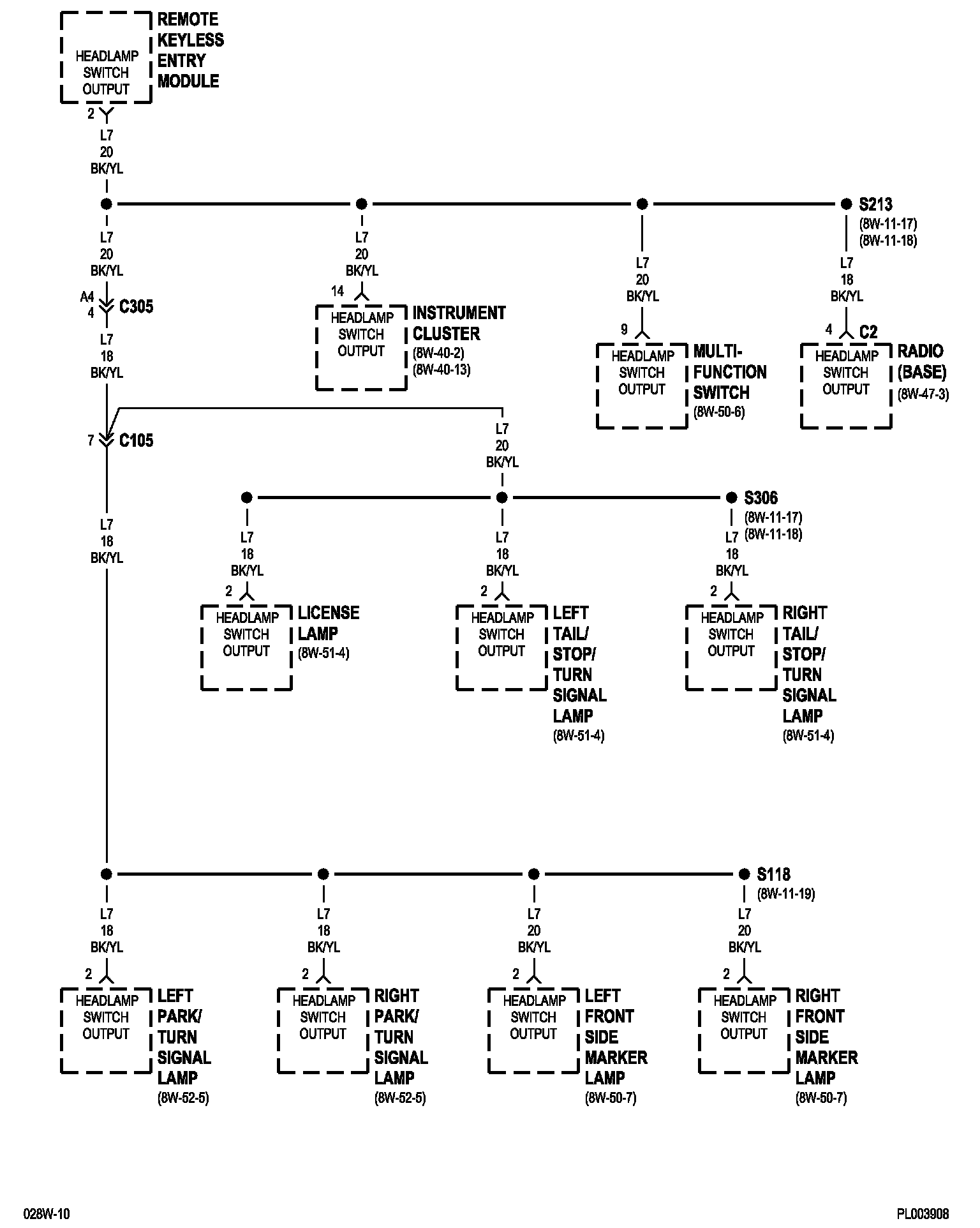

8w-39-5:

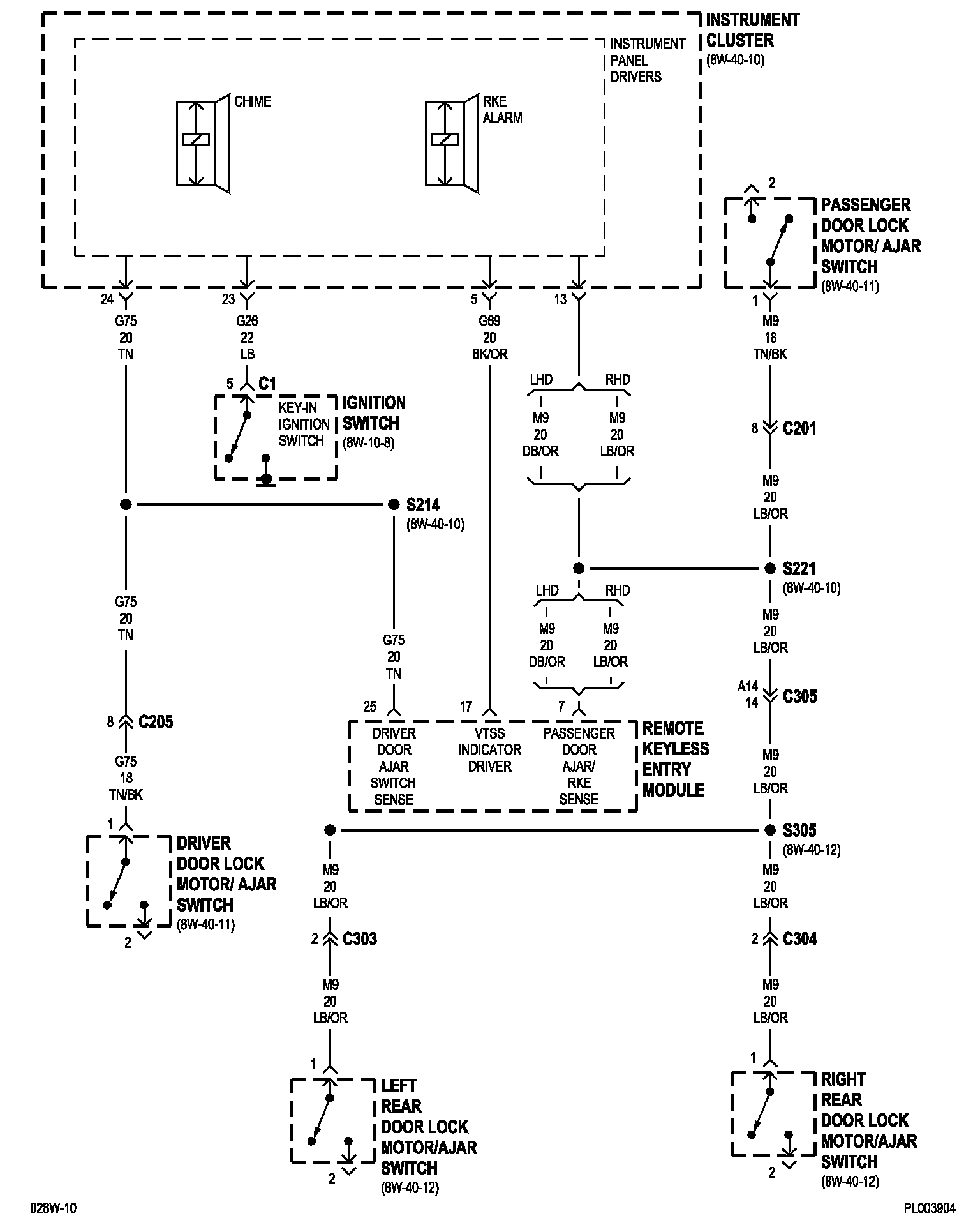

8w-39-6:

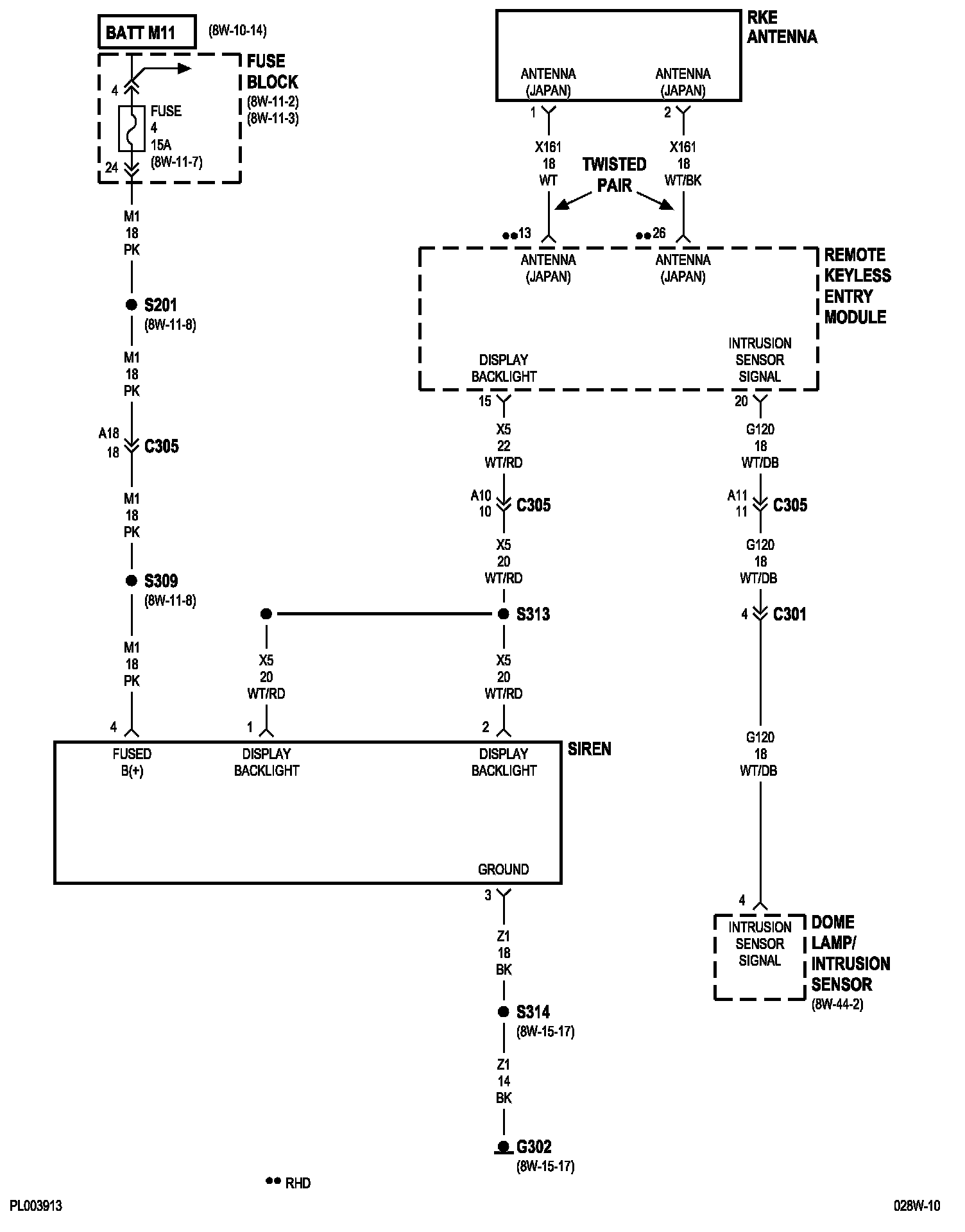

8w-39-7:

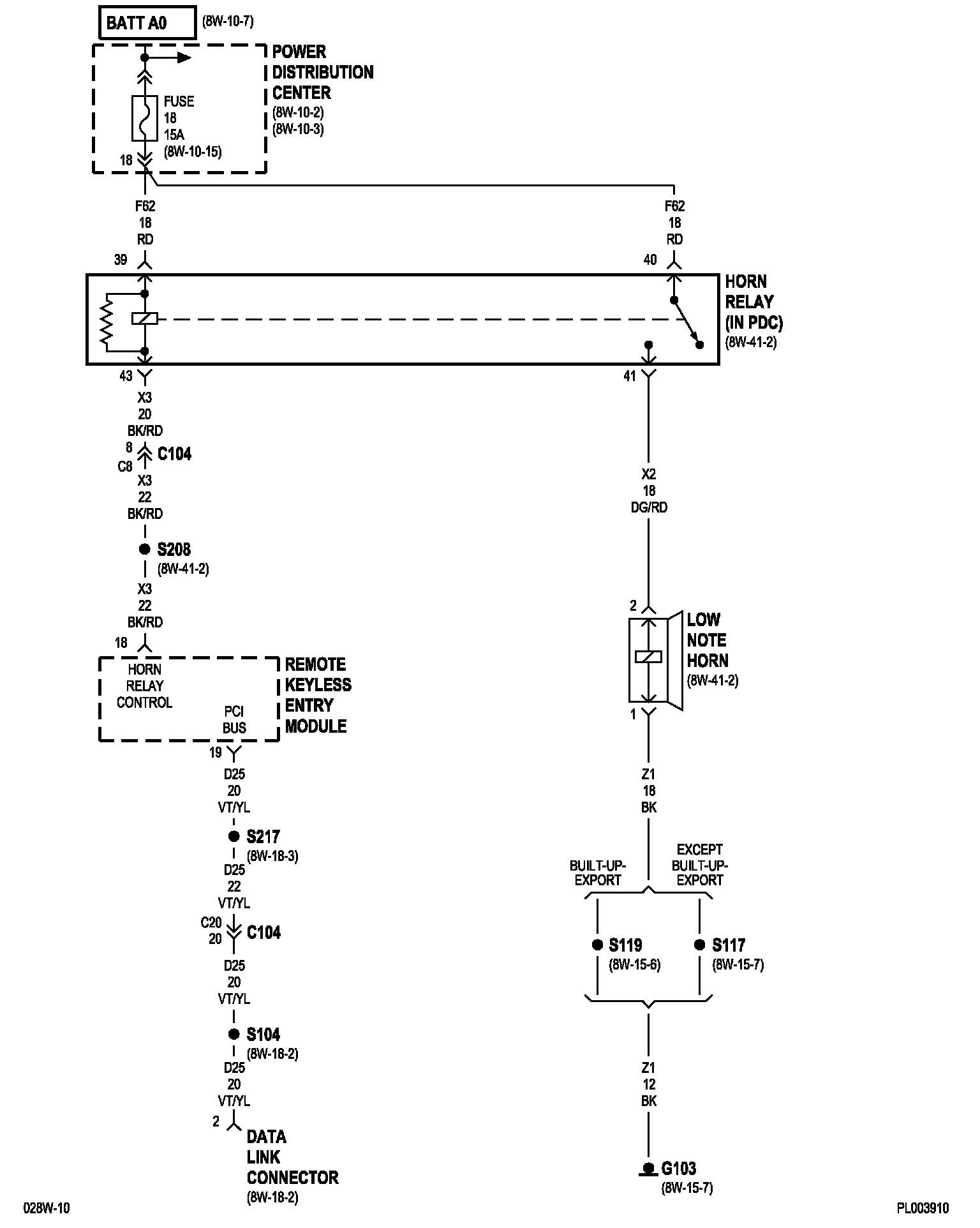

8w-39-8 (Except Built-Up-Export):

8w-39-9 (Built-Up-Export):

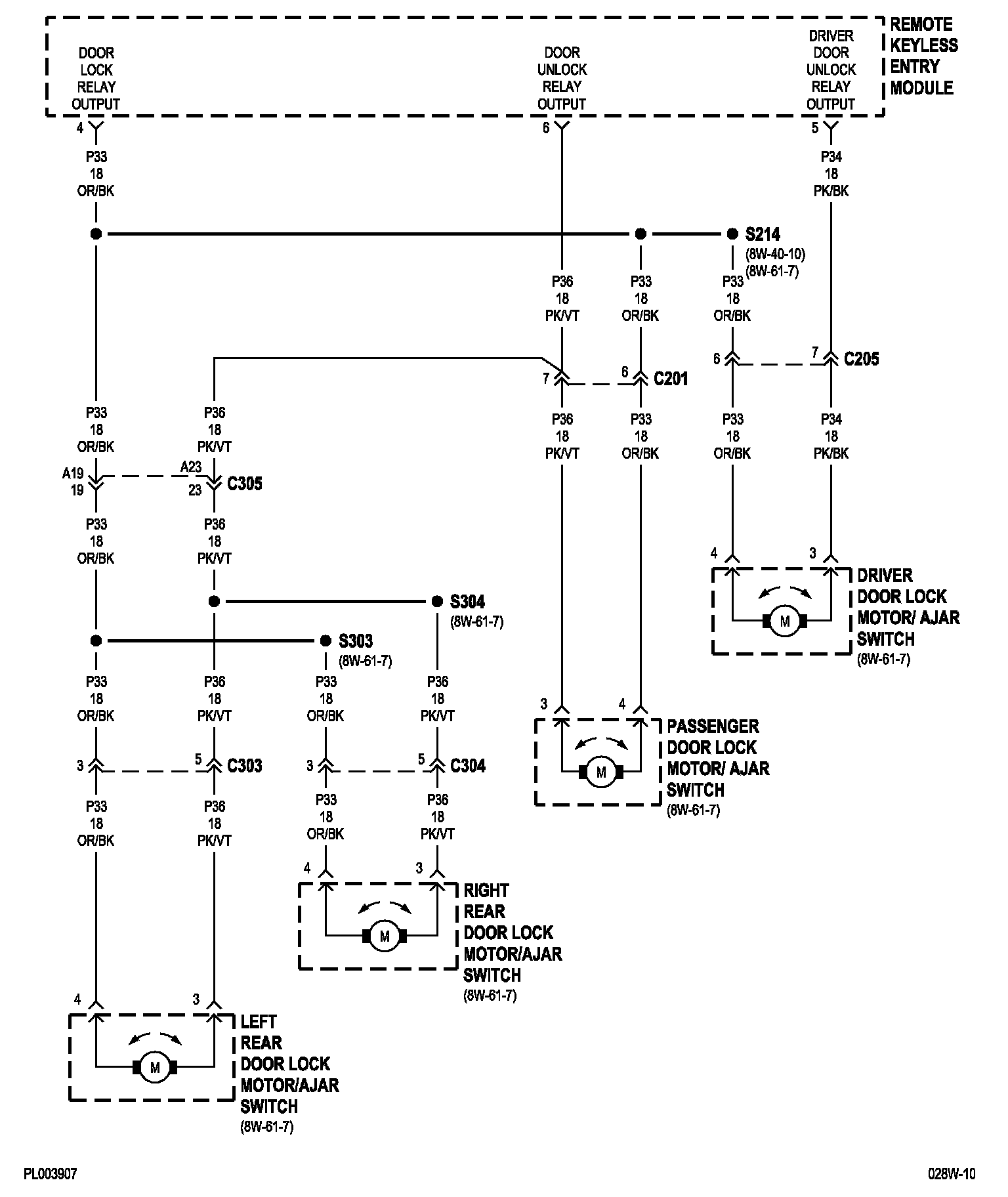

8w-39-10:

8w-39-11 (Except Built-Up-Export):

8w-39-12 (Built-Up-Export):

8w-39-13 (Built-Up-Export):

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams. Electrical Diagrams
