Refrigerant Pressure Sensor / Switch, HVAC

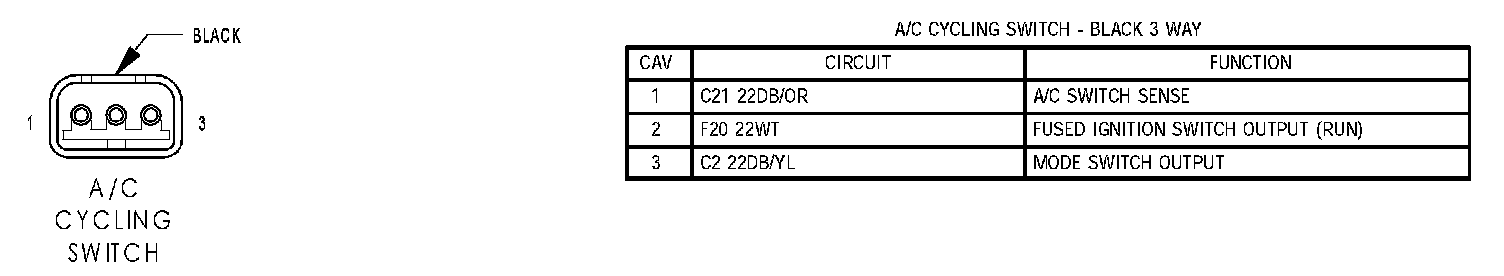

A/C Cycling Switch:

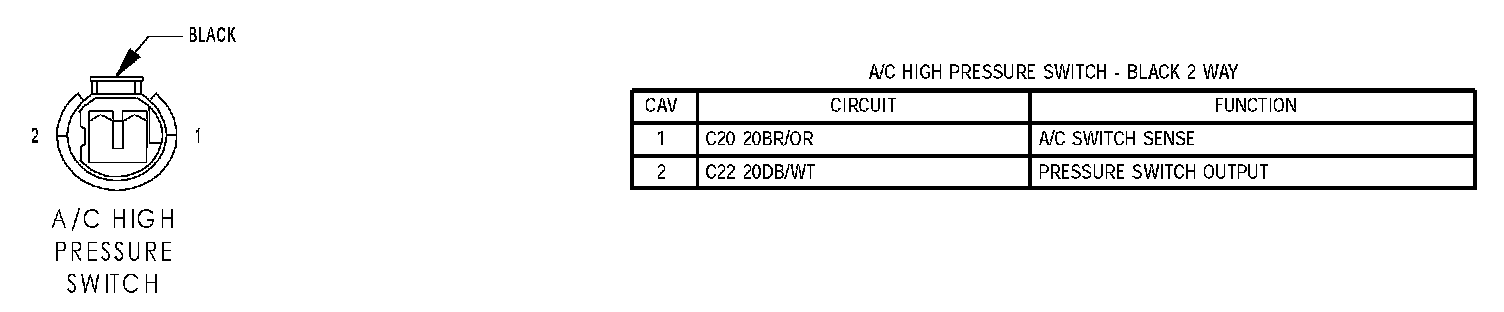

A/C High Pressure Switch:

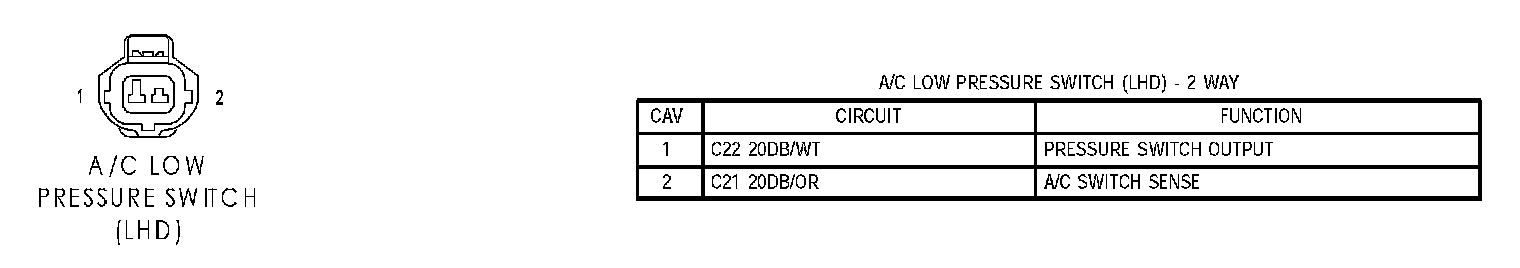

A/C Low Pressure Switch (LHD):

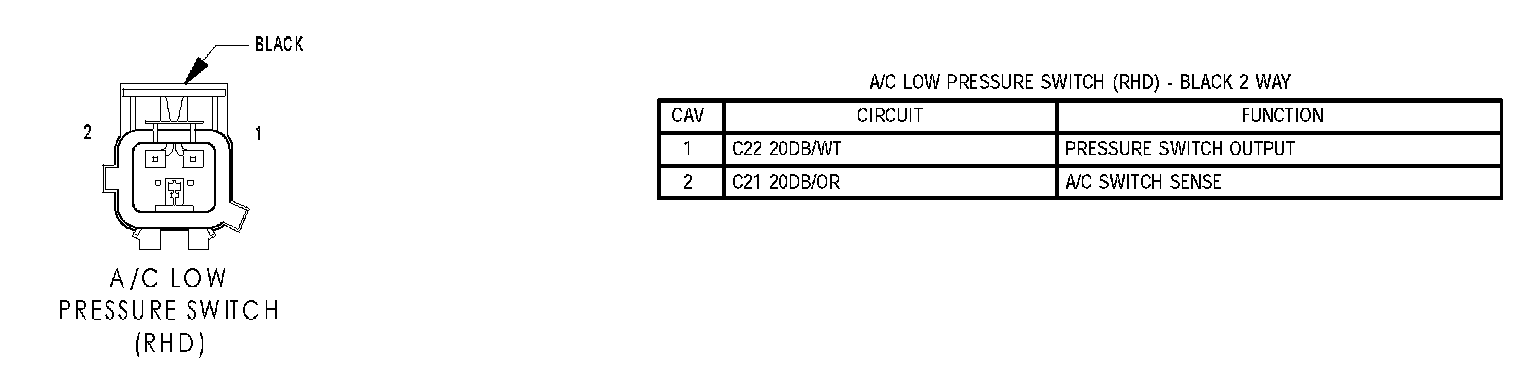

A/C Low Pressure Switch (RHD):
