Home >> Chrysler >> 2002 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

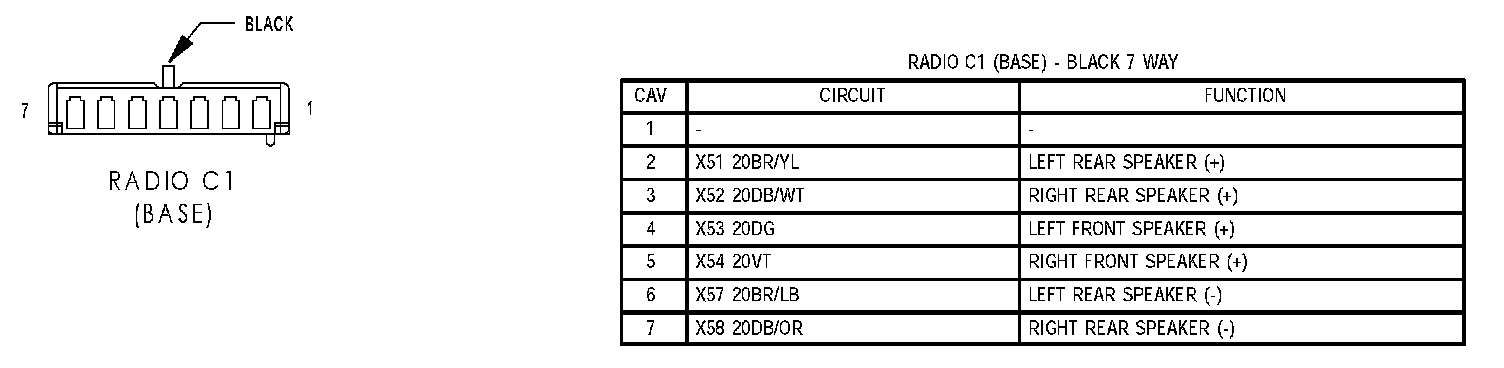

Radio C1 (Base):

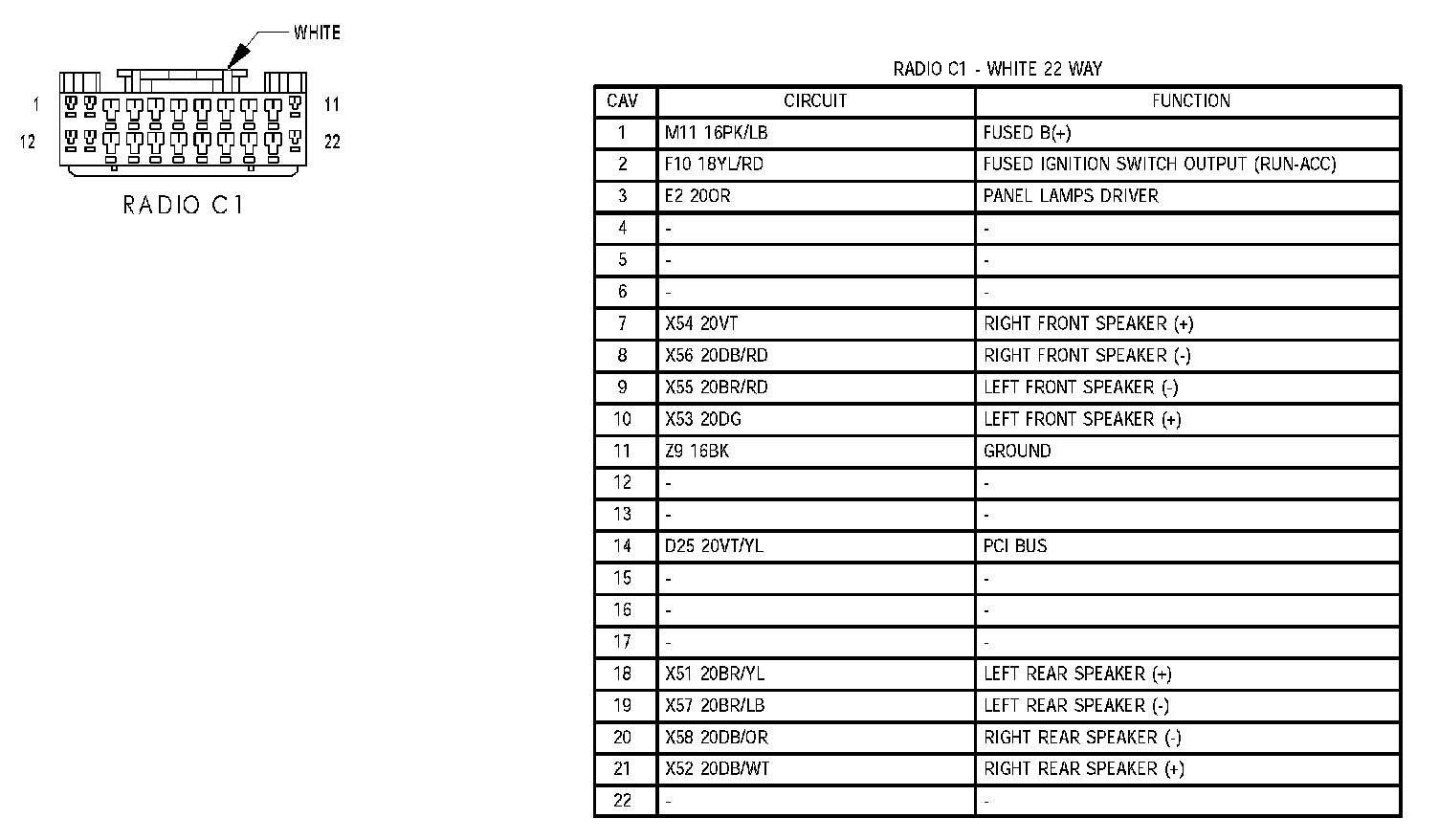

Radio C1:

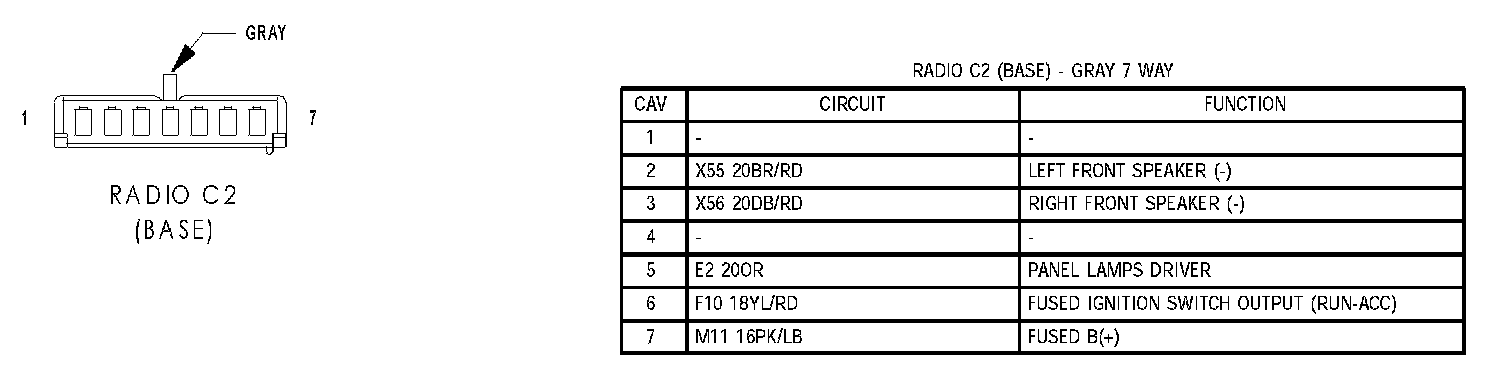

Radio C2 (Base):

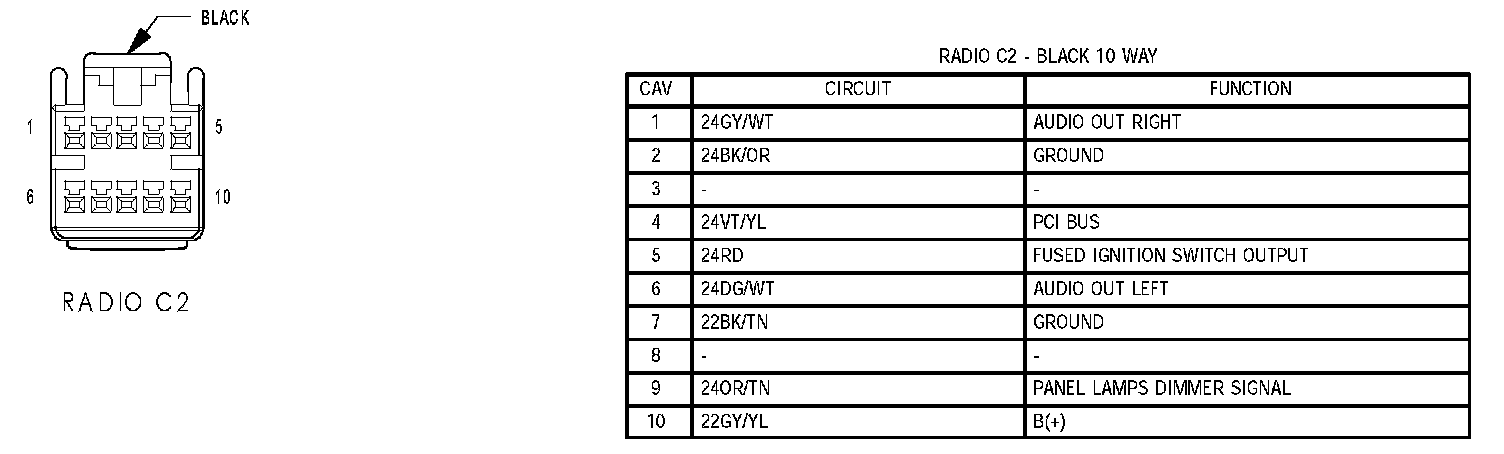

Radio C2:

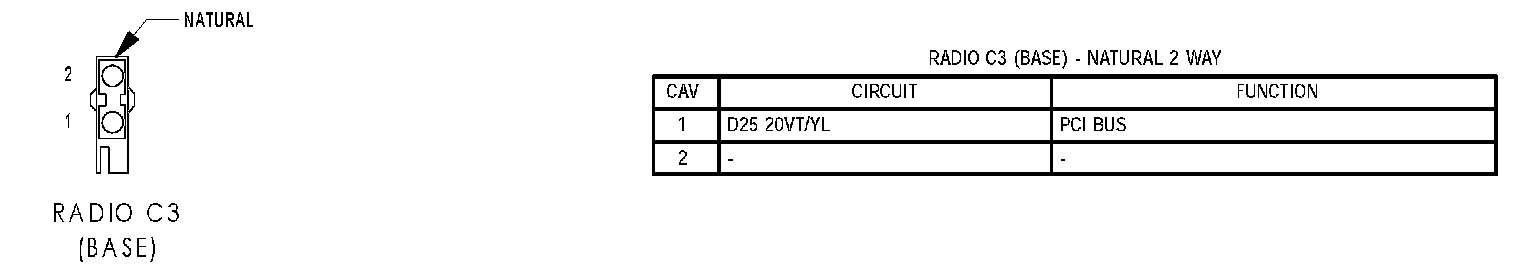

Radio C3 (Base):
