Power Window Switch

Driver Power Window Switch C1:

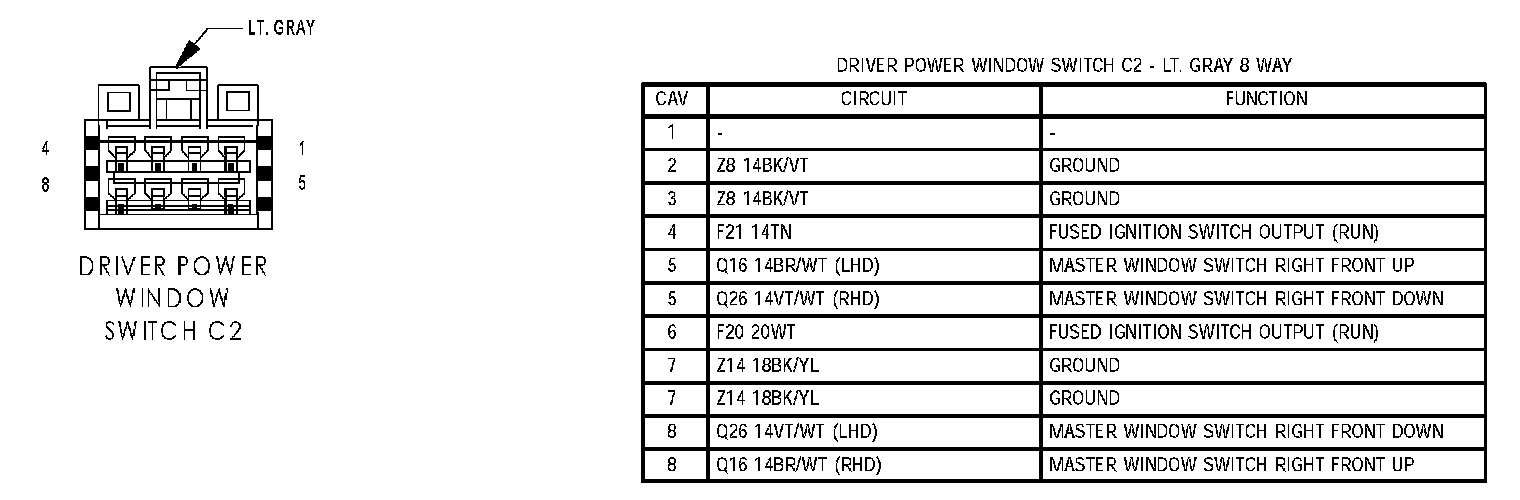

Driver Power Window Switch C2:

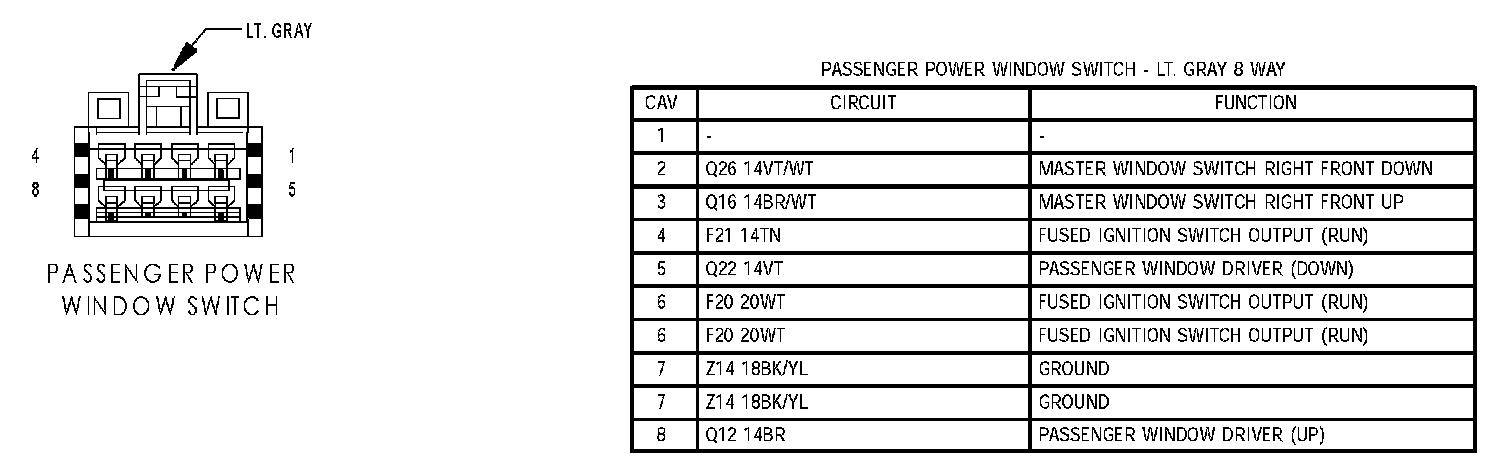

Passenger Power Window Switch:
