Home
>>
Chrysler
>>
2002
>>
Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
License Plate Lamp
License Plate Lamp

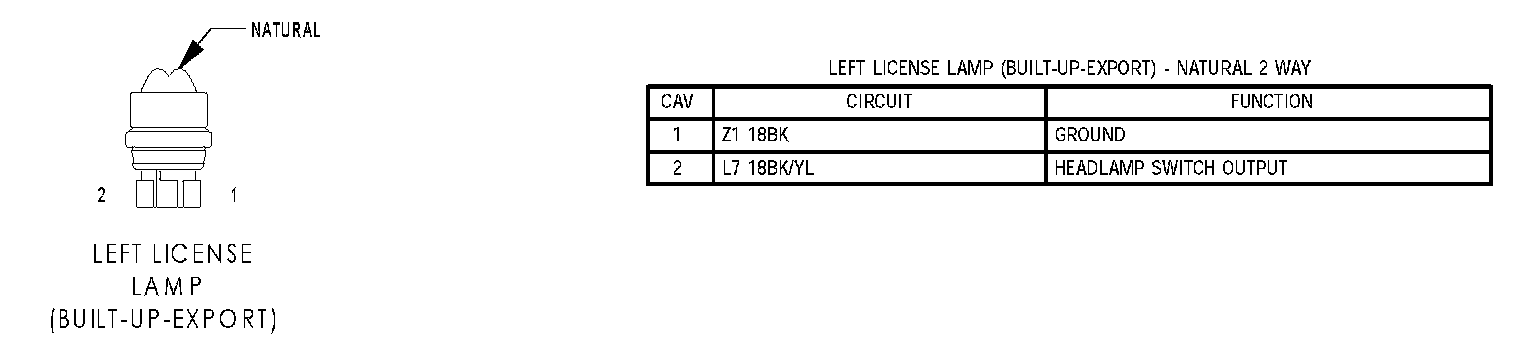

Left License Lamp (Built-Up-Export):

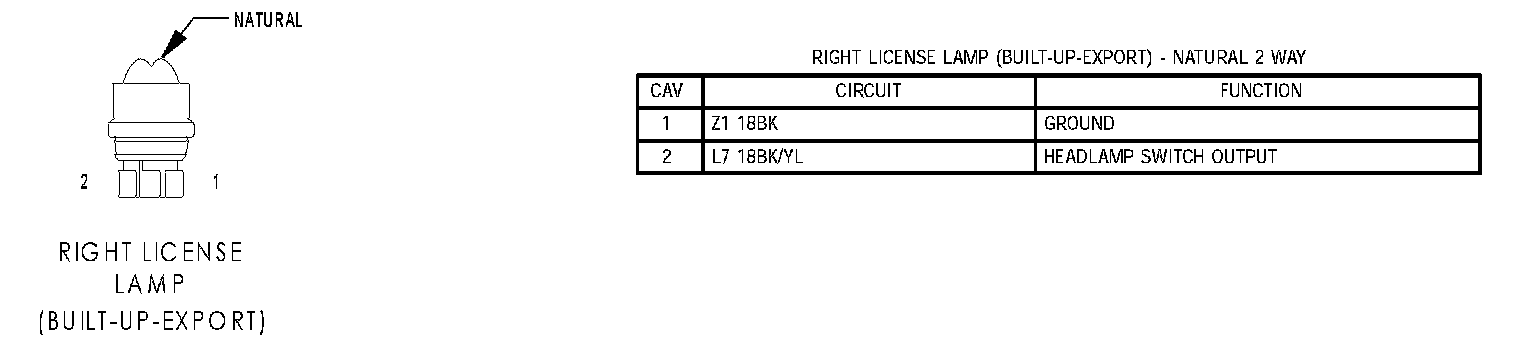

Right License Lamp (Built-Up-Export):

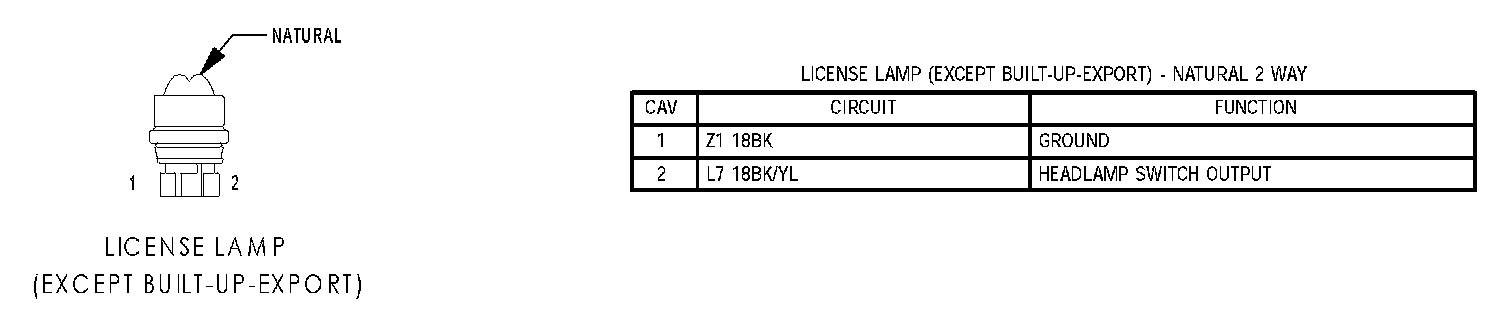

License Lamp (Except Built-Up-Export):
