Built-Up Export
Built-Up Export

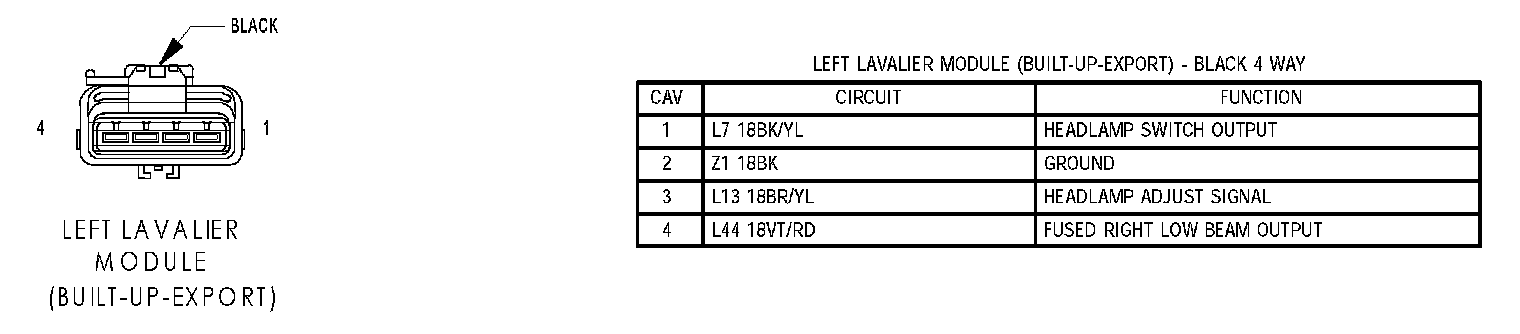

Left Lavalier Module (Built-Up-Export):

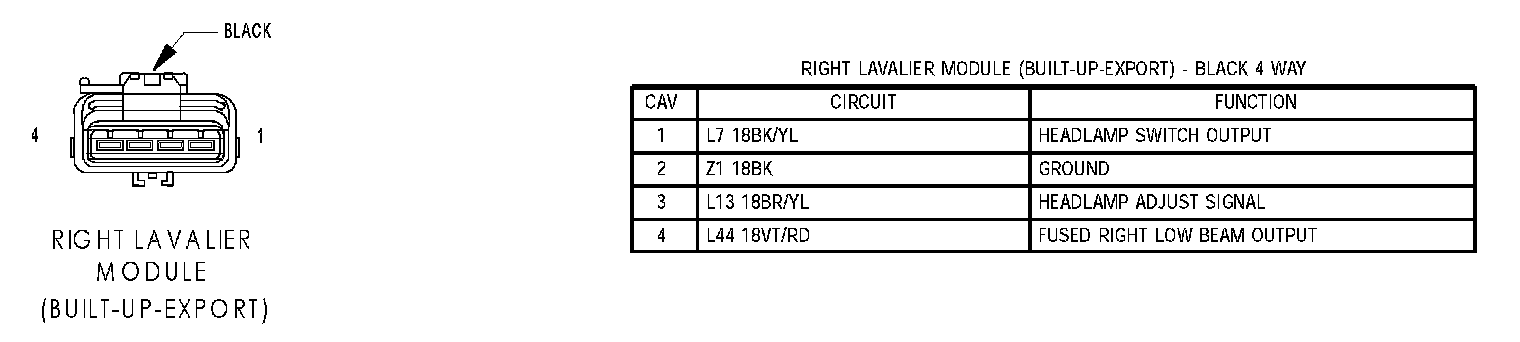

Right Lavalier Module (Built-Up-Export):

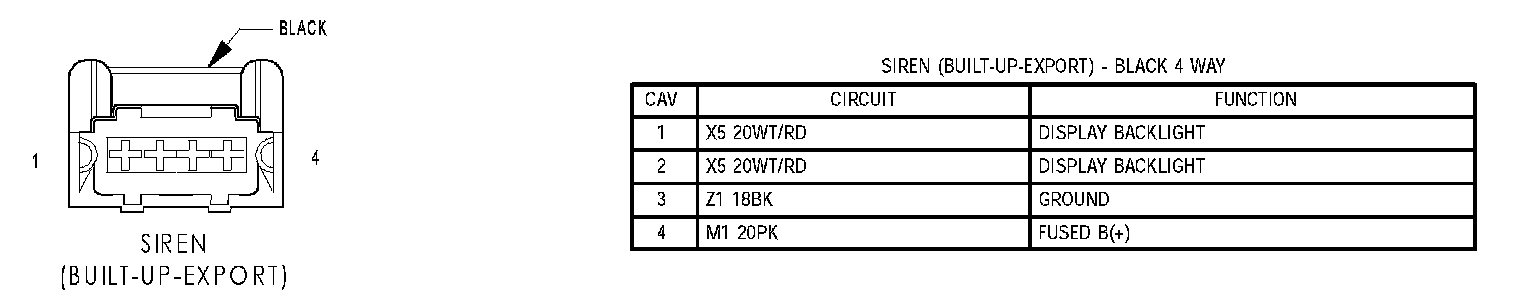

Siren (Built-Up-Export):
