Neon (CANADA) L4-2.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
Connector Views

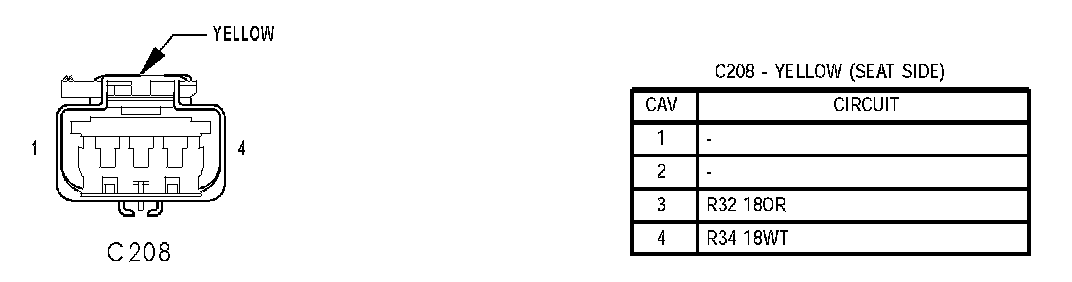

C208:
C209:

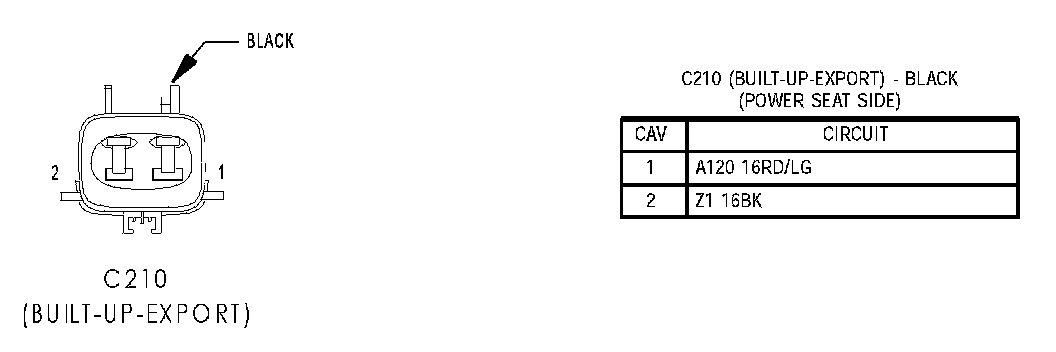

C210 (Built-Up-Export):
