Home >> Chrysler >> 2002 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Diagrams

Doors: Diagrams

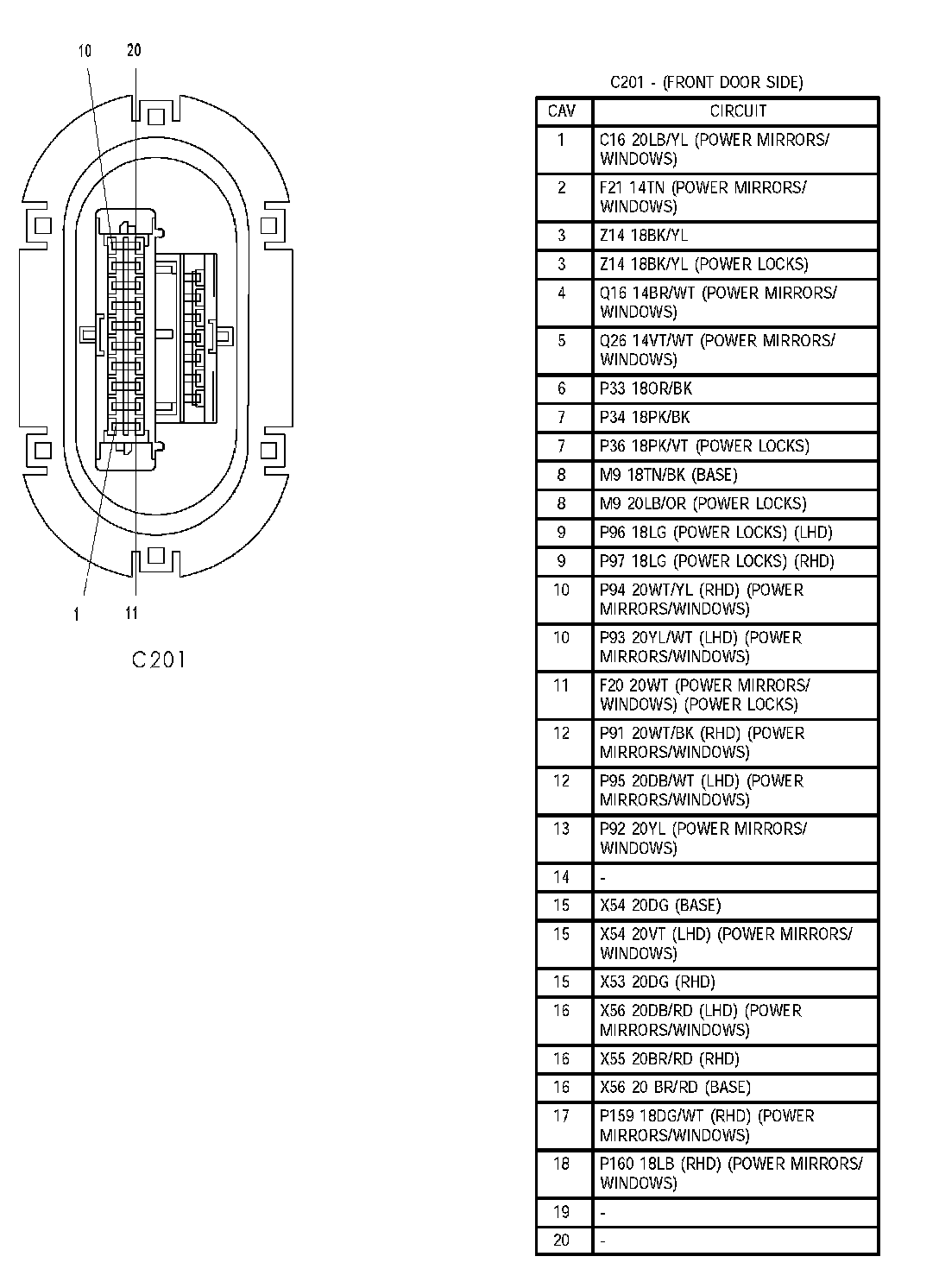

C201:

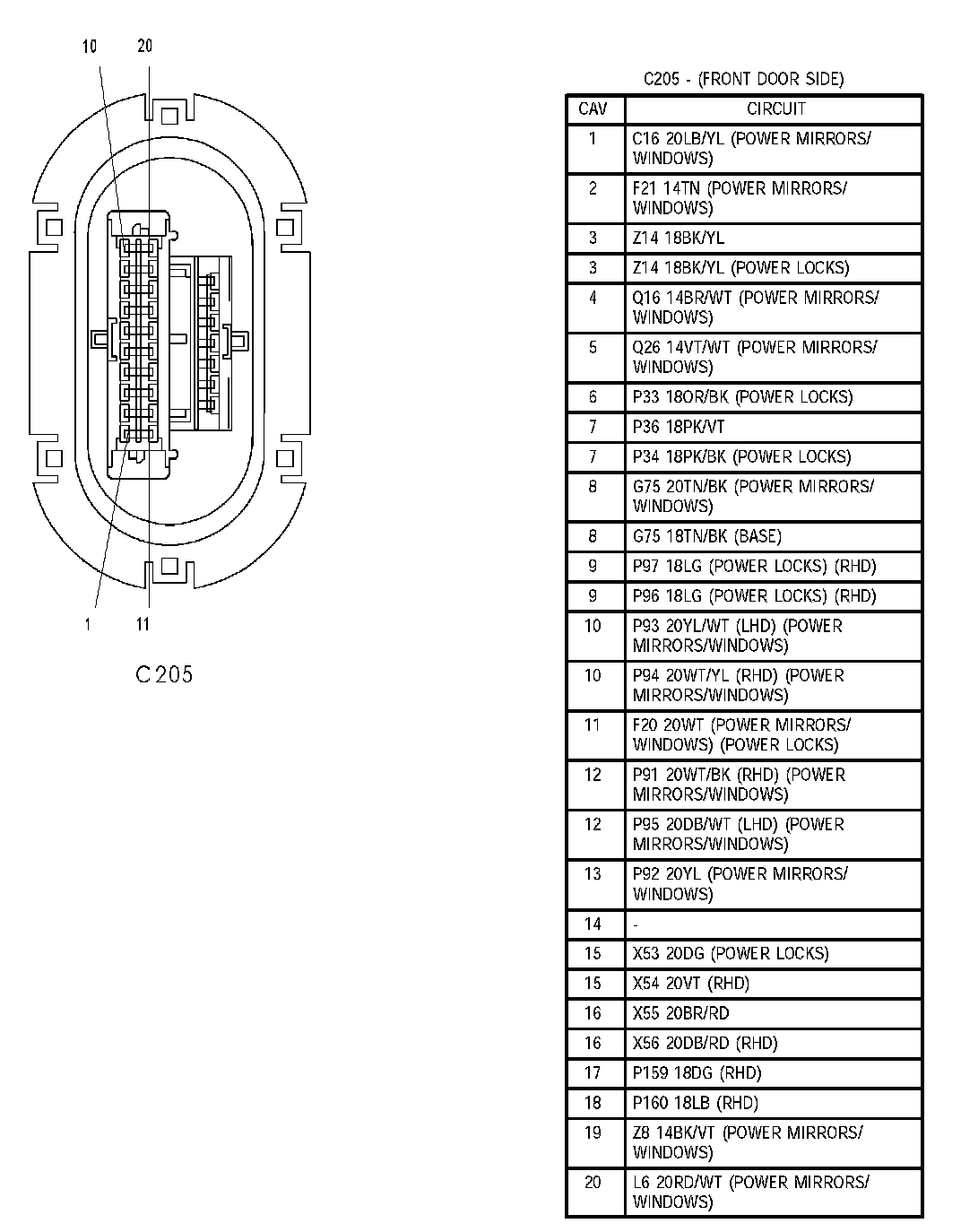

C205:

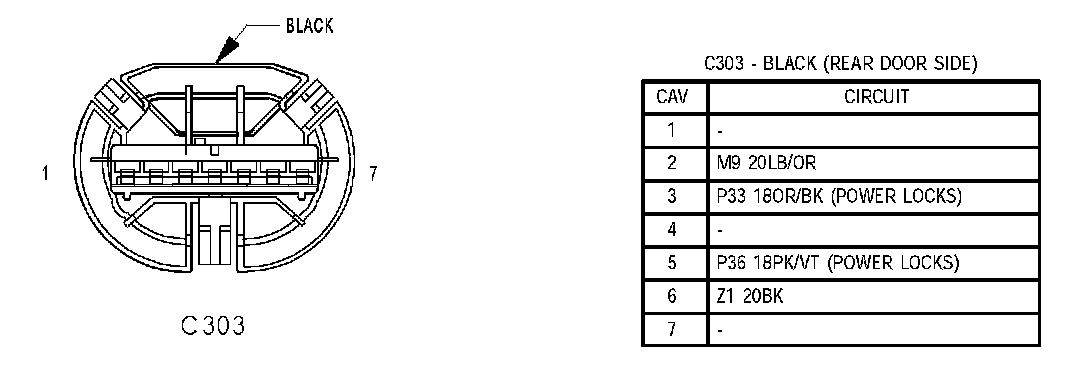

C303:

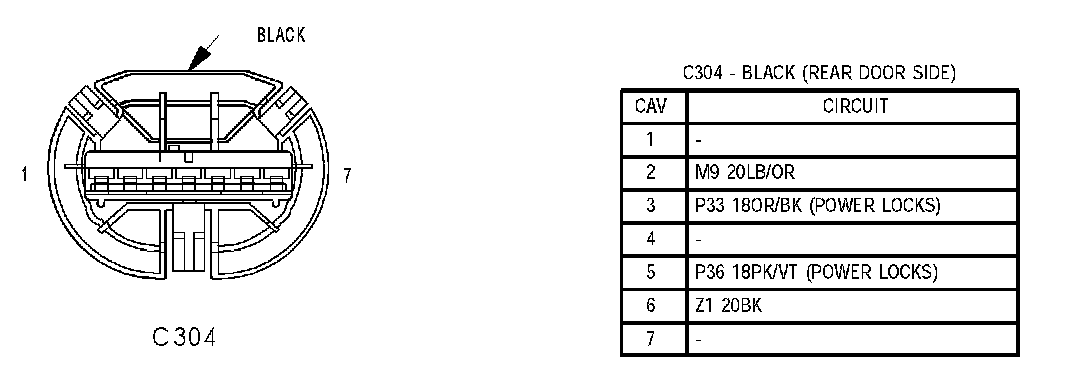

C304:
