Rear Bumper Cover / Fascia: Service and Repair

REAR FASCIA

REMOVAL

1. Release decklid lock and open decklid.

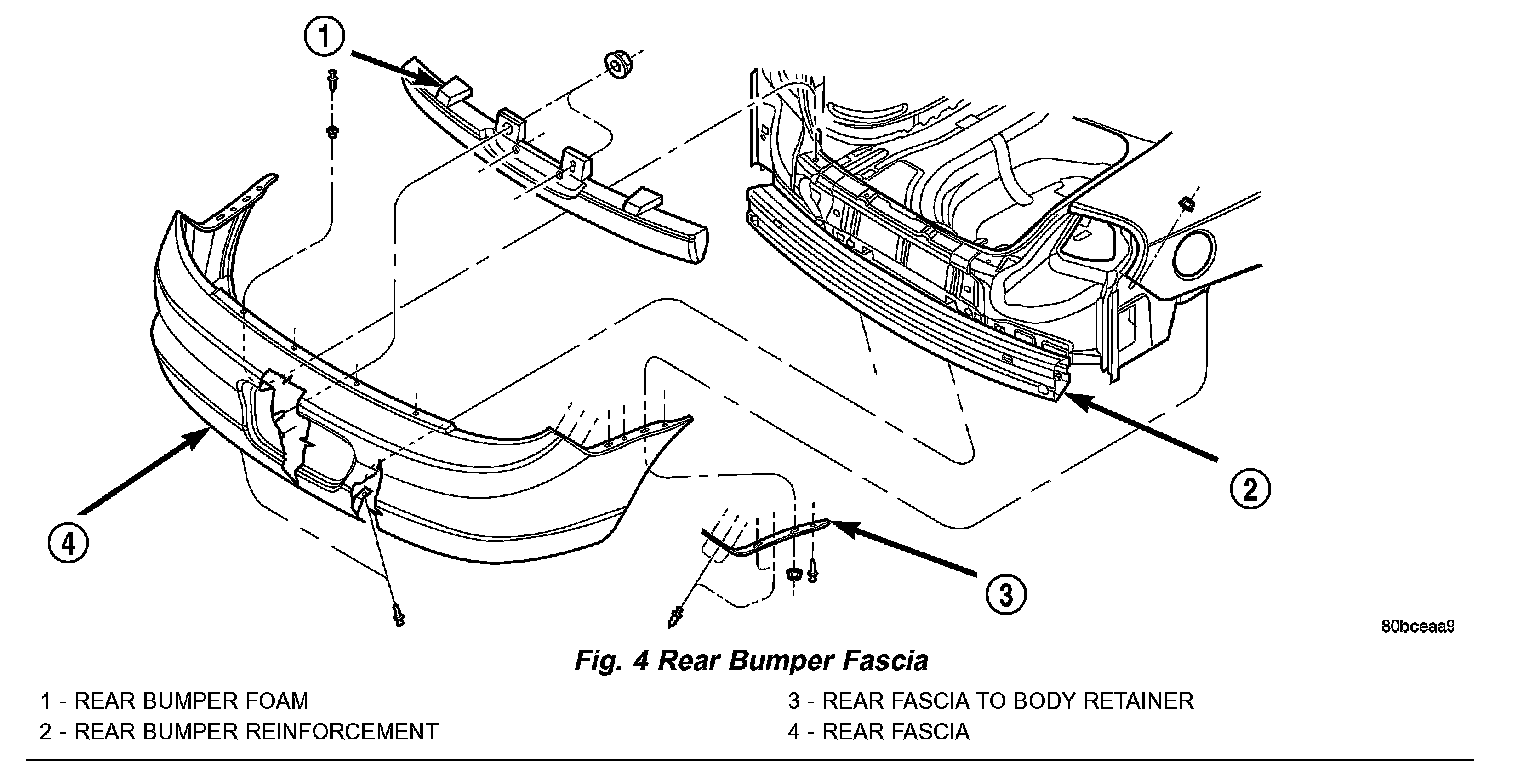

Fig. 4:

2. Remove nuts attaching fascia in the trunk (Fig. 4).
3. Raise vehicle on hoist.
4. Disconnect license lamp.
5. Remove splash shield from fascia in the wheel opening area.
6. From under license plate area, remove fasteners attaching lower fascia.
7. Remove nuts attaching fascia to lower quarter panels.
8. Remove fascia from vehicle.

INSTALLATION

1. Position fascia on vehicle.
2. Install nuts attaching fascia to lower quarter panels (Fig. 4).
3. From under license plate area, install fasteners attaching lower fascia.
4. Install splash shield in the wheel opening area.
5. Connect license lamp.
6. Lower vehicle.
7. Install nuts attaching fascia in the trunk.
8. Close decklid.
