Speaker: Service and Repair

REMOVAL
Front Door
1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel.

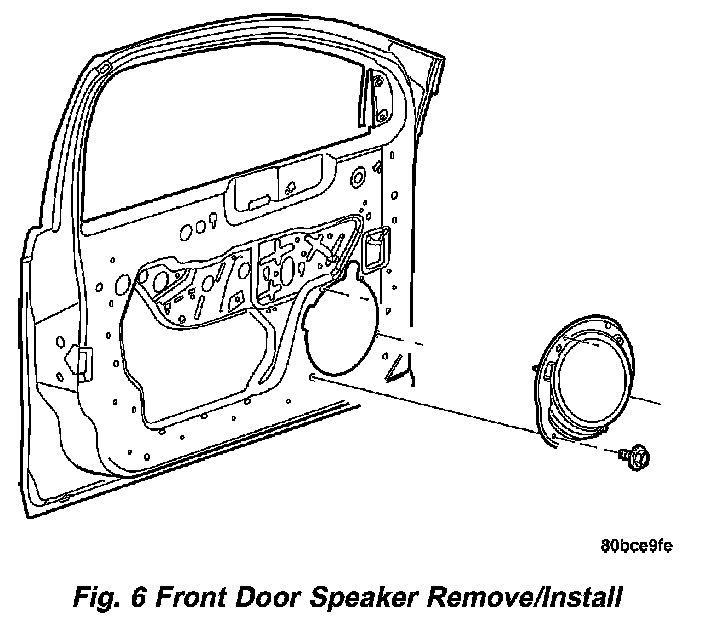

Fig.6 Front Door Speaker Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker assembly and disconnect wire connector from rear of speaker.

Instrument Panel
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel top cover.

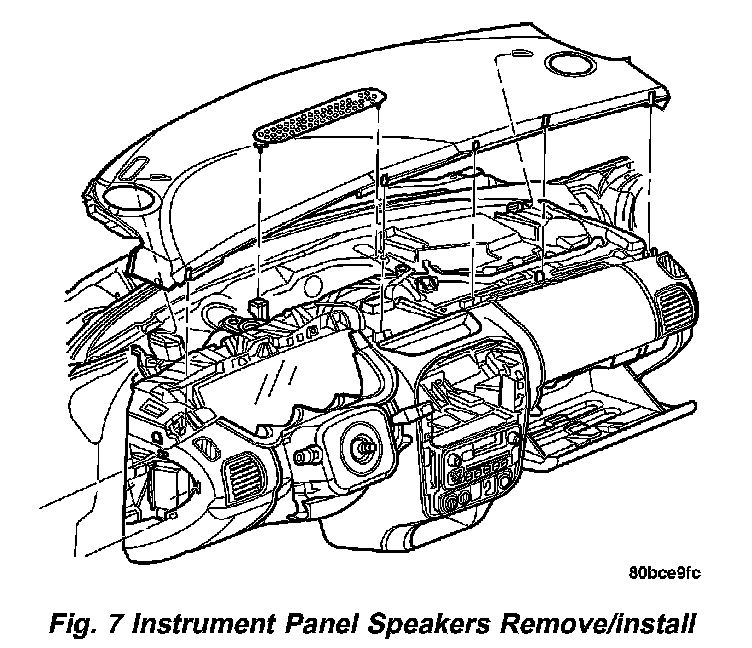

Fig.7 Instrument Panel Speakers Remove/Install:

3. Remove speaker retaining screws.
4. Remove speaker and disconnect wire connector.

Rear
1. Disconnect and isolate the battery negative cable.
2. Remove Rear Seat Cushion.
3. Remove rear seat back.
4. Remove rear shelf panel.

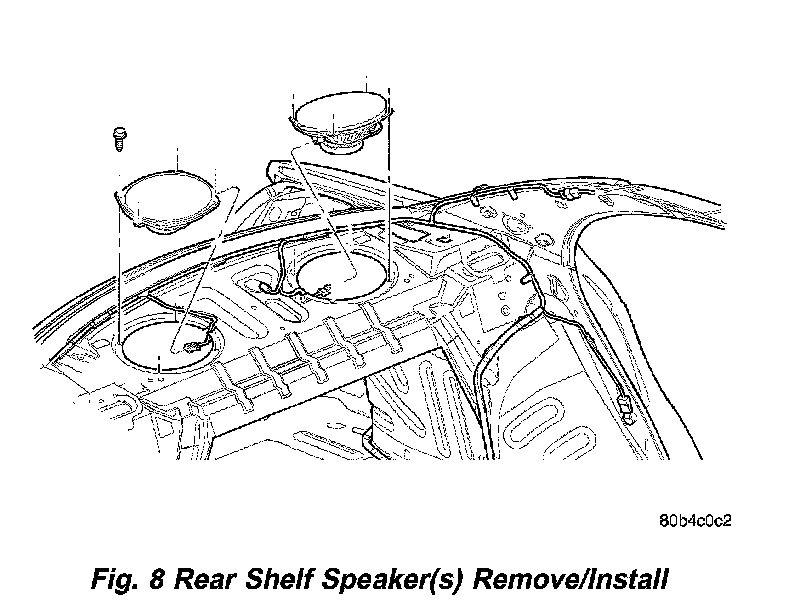

Fig.8 Rear Shelf Speaker(s) Remove/Install:

5. Remove four speaker retaining screws.
6. Remove speaker and disconnect wire connector.
7. Remove speaker(s) from vehicle.

INSTALLATION
Front Door
1. Connect wire connector to speaker and install speaker to vehicle.
2. Install speaker retaining screws.
3. Install front door trim panel.
4. Connect battery negative cable.

Instrument Panel
1. Connect wire harness to the speaker and install speaker to instrument panel.
2. Install speaker retaining screws.
3. Install instrument panel top cover.
4. Connect the battery negative cable.

Rear
1. Connect wire connector to the speaker.
2. Install speaker to the vehicle.
3. Install speaker retaining screws.
4. Install rear shelf panel.
5. Install seat back.
6. Install rear seat cushion.
7. Connect the battery negative cable.
