Engine Code

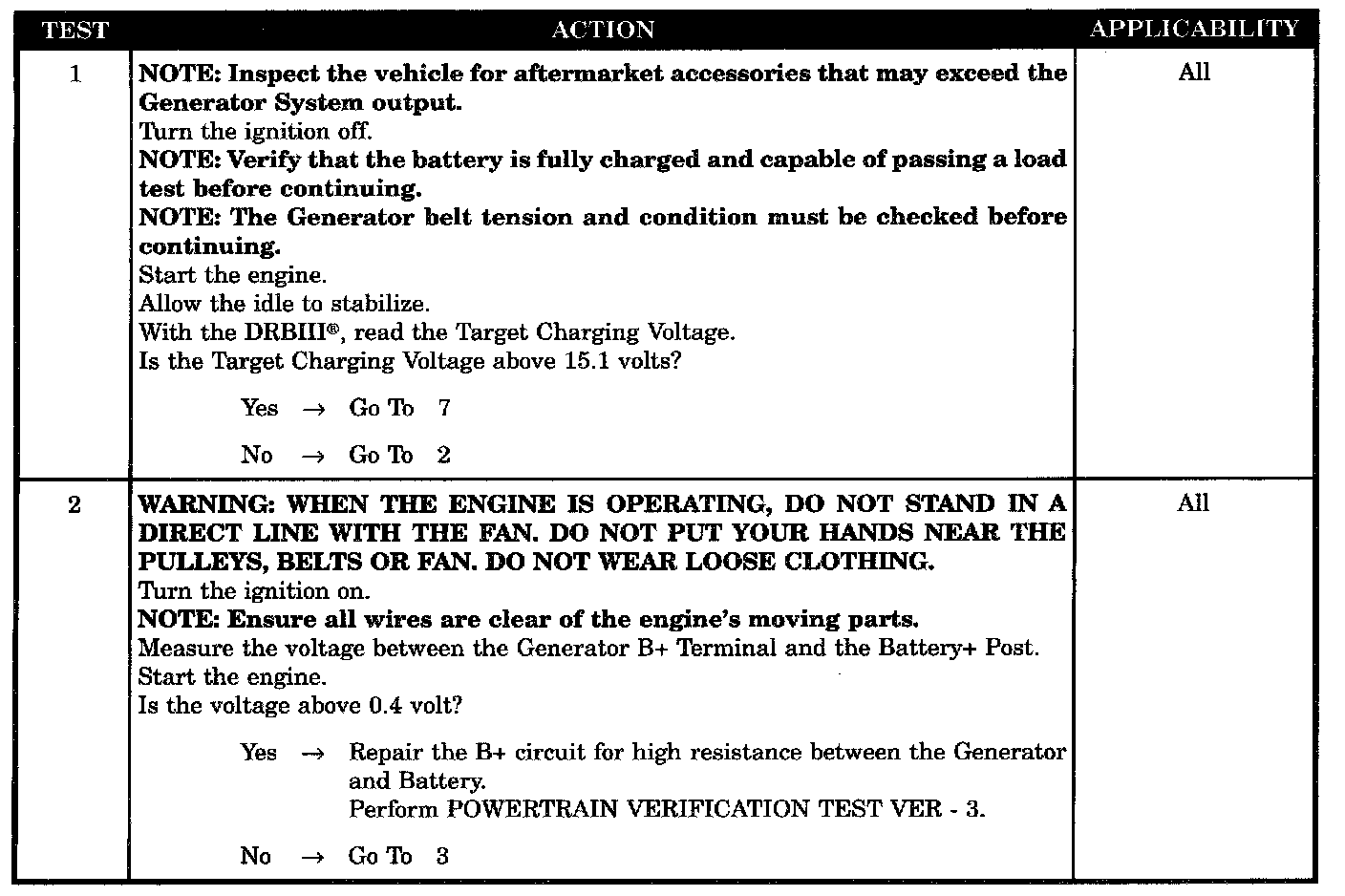

Tests 1 - 2:

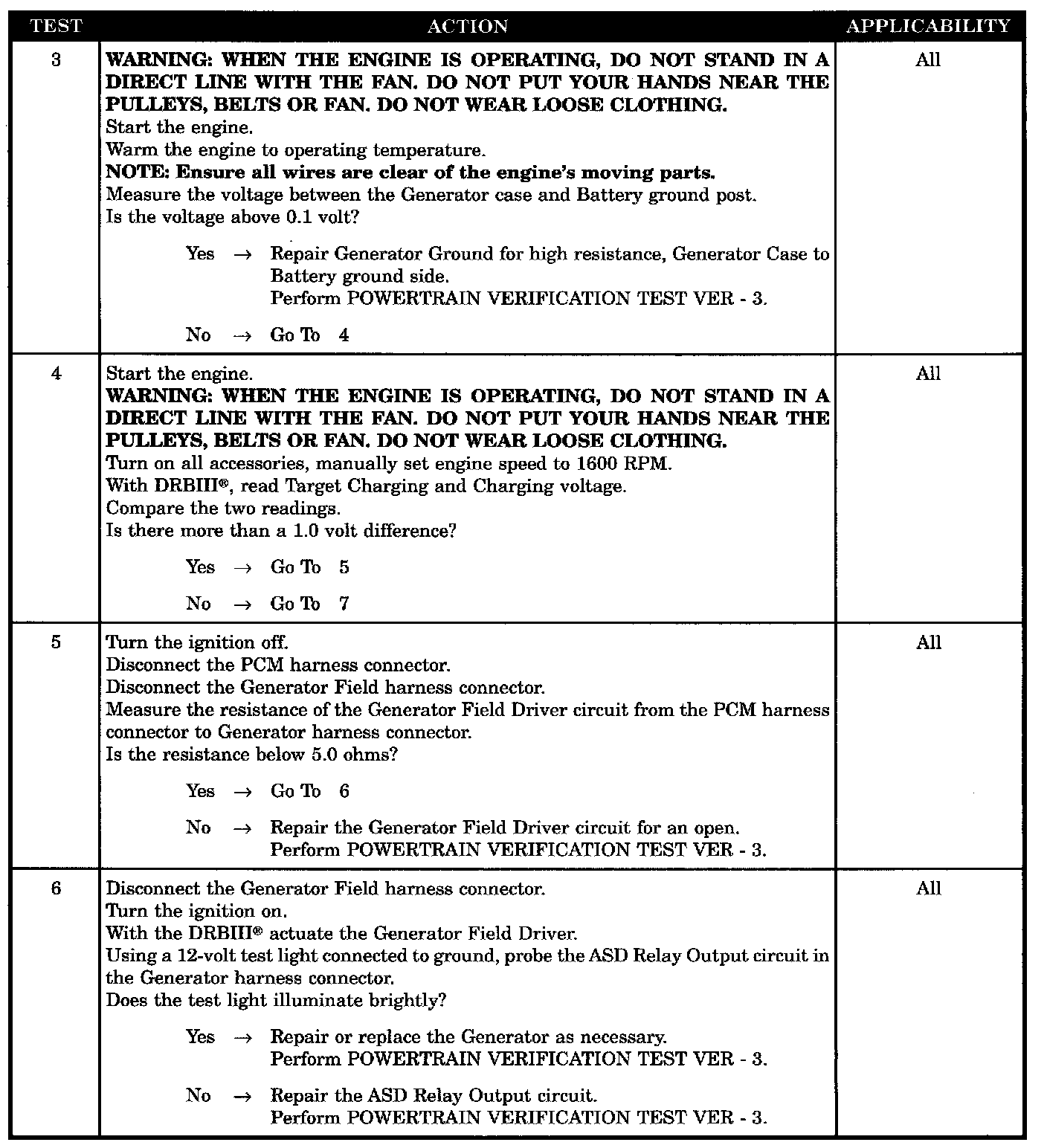

Tests 3 - 6:

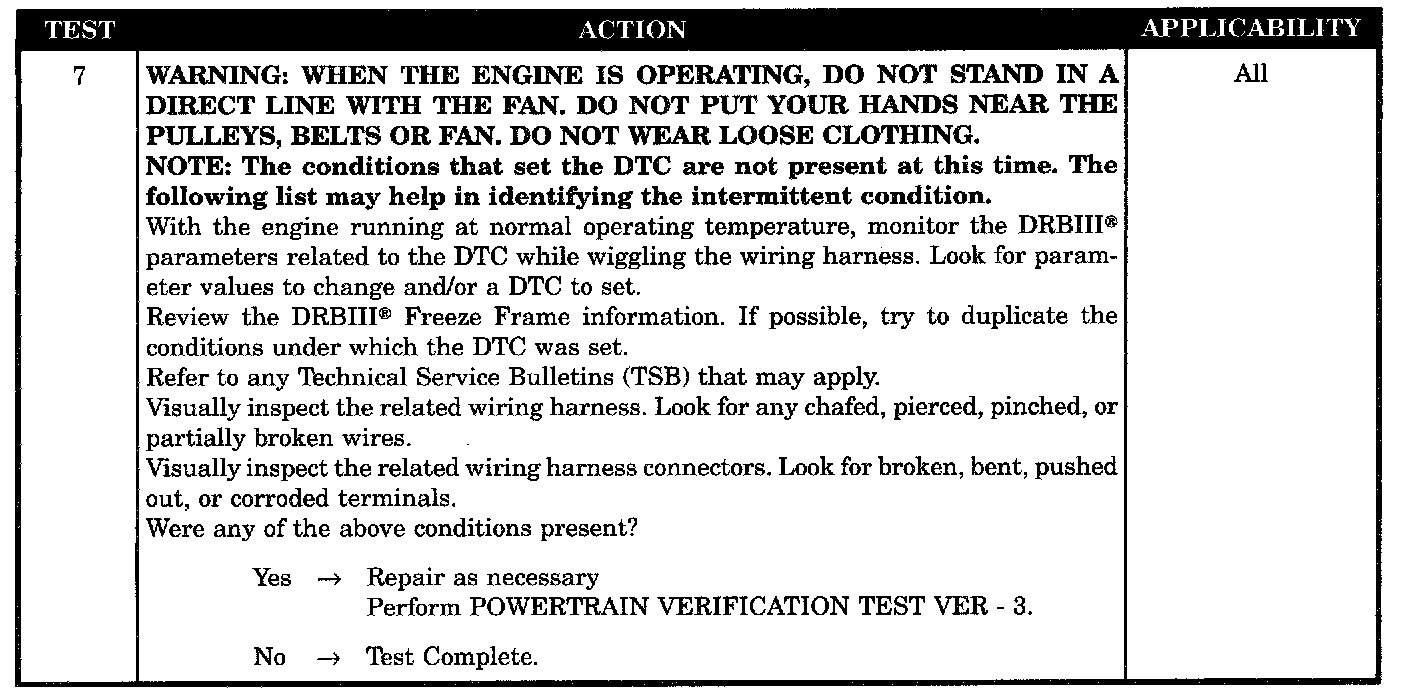

Test 7:

SYMPTOM
P0562-CHARGING SYSTEM VOLTAGE TOO LOW

WHEN MONITORED
With the engine running for more than 30 seconds.

SET CONDITION
When battery voltage is less than 11.5 volts for more than 5 seconds.

POSSIBLE CAUSES
- B+ circuit high resistance
- Generator ground high resistance
- Intermittent condition
- Generator field driver circuit open
- ASD relay output circuit open
- Generator
