P0513

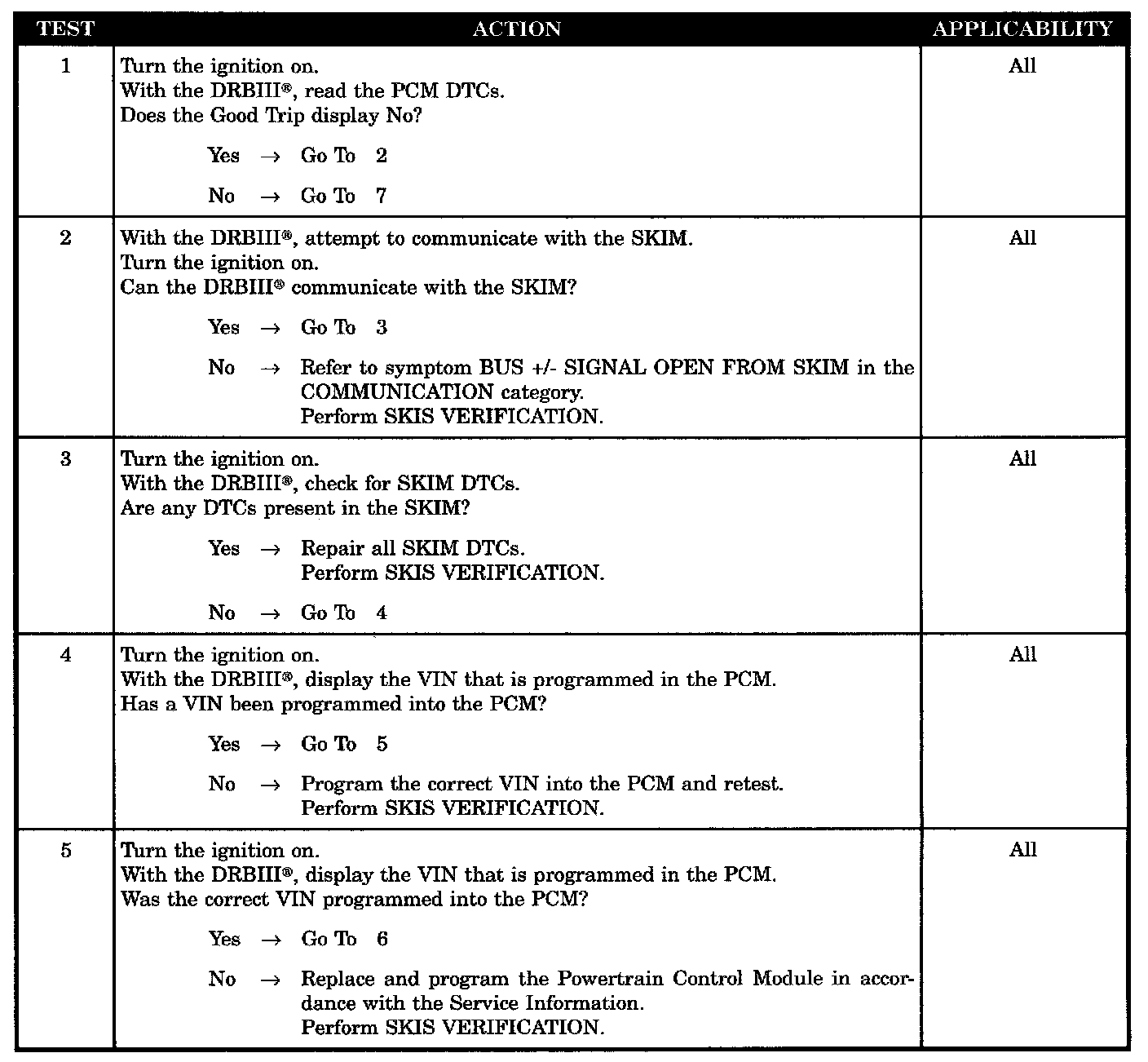

Tests 1 - 5:

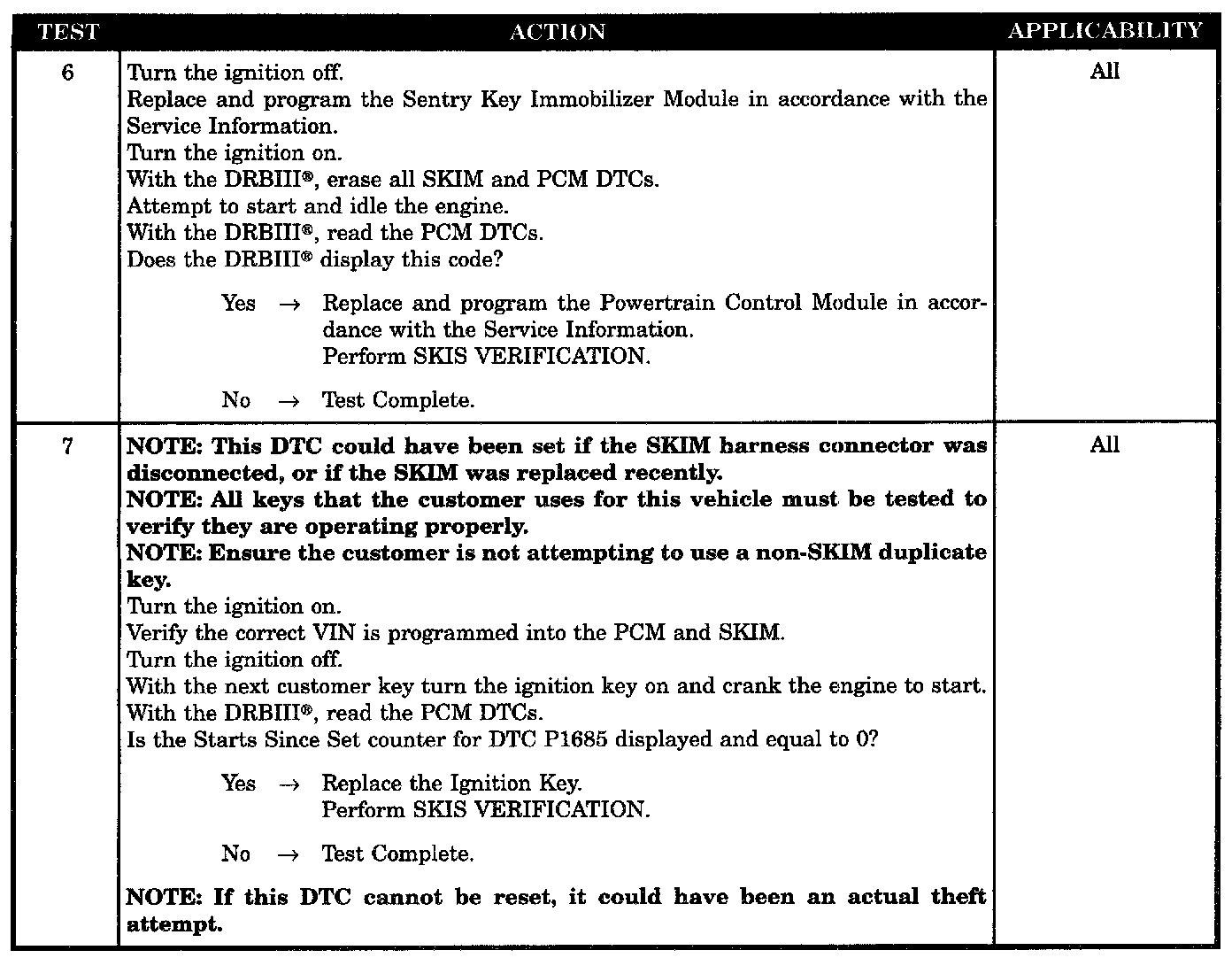

Tests 6 - 7:

SYMPTOM
P0513-INVALID SKIM KEY

POSSIBLE CAUSES
- Incorrect VIN in PCM
- Invalid SKIM key not present
- No communication with SKIM
- NO VIN programmed in THE PCM
- PCM
- SKIM trouble codes set
