Manual Transmission

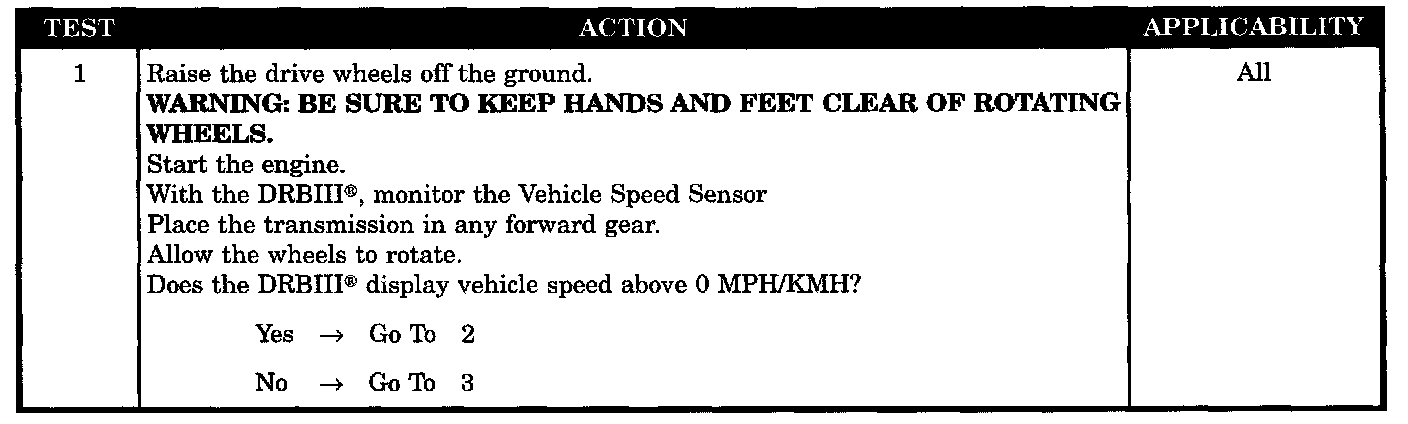

Test 1:

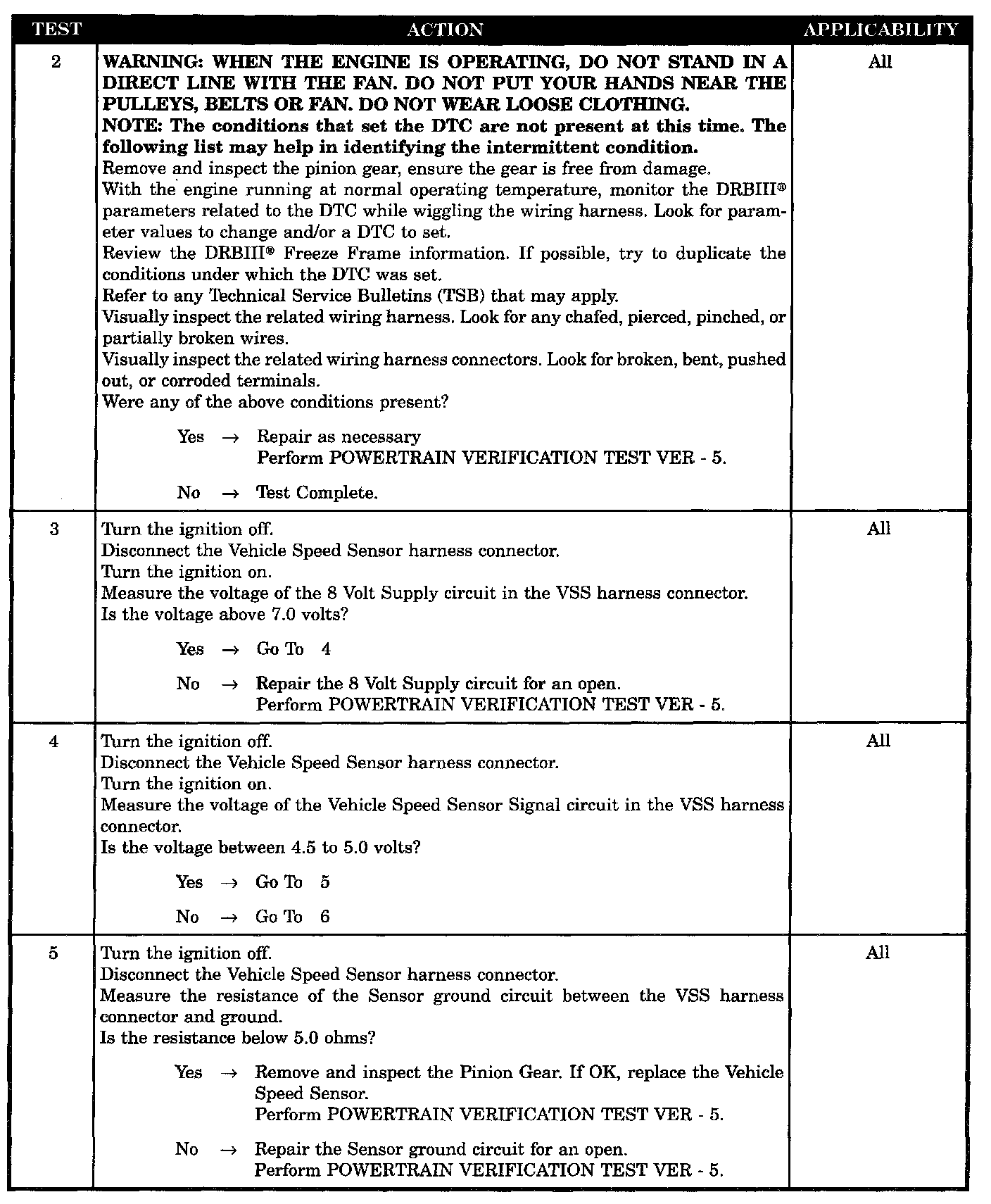

Tests 2 - 5:

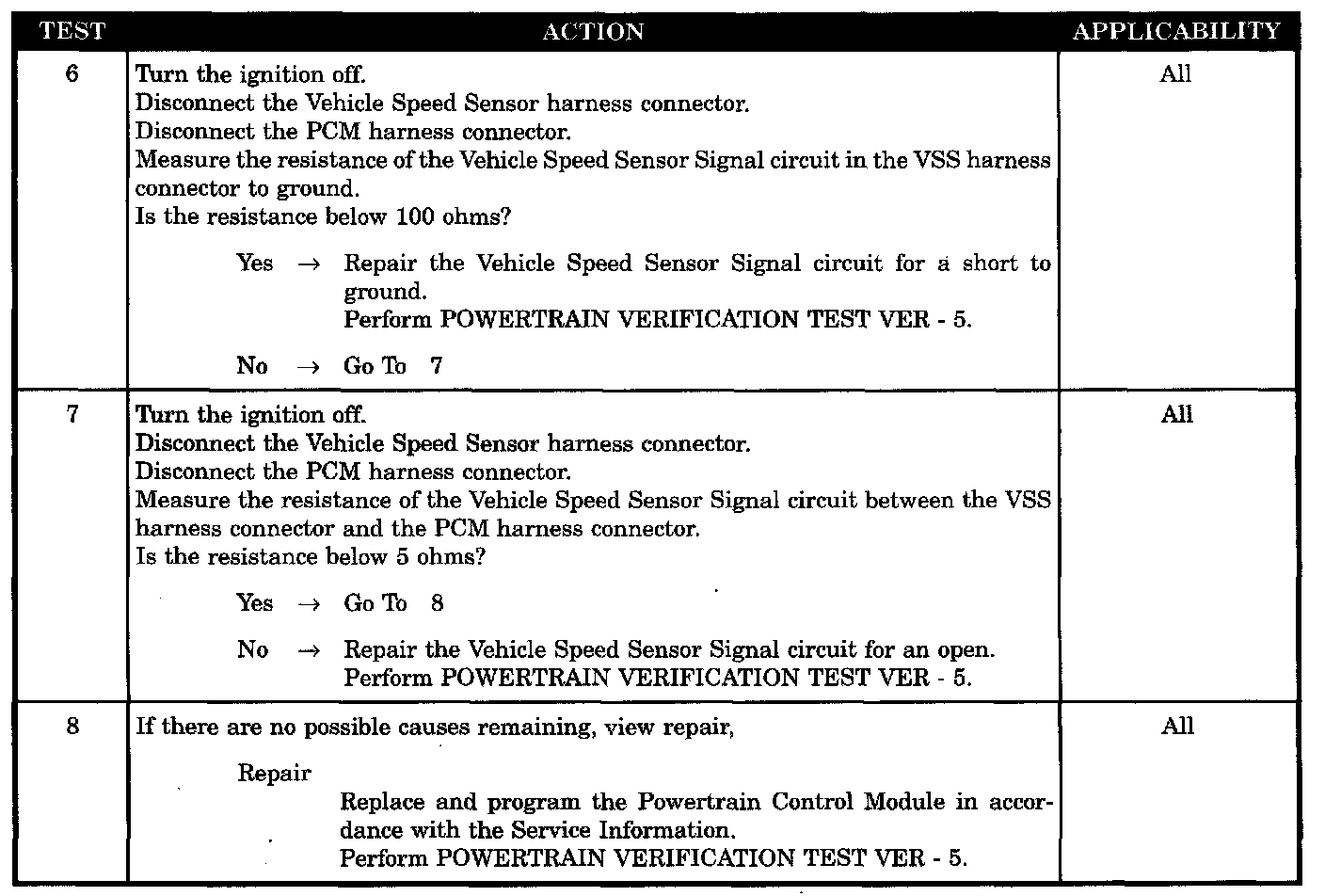

Tests 6 - 8:

SYMPTOM
P0500-NO VEHICLE SPEED SIGNAL (MANUAL TRANS)

WHEN MONITORED
With the engine running. Transmission not in park or neutral. Engine RPM greater than 1500.

SET CONDITION
The PCM does not receive a vehicle speed sensor signal for more than 11 seconds. 2 consecutive trips.

POSSIBLE CAUSES
- Intermittent condition
- 8 volt supply circuit open
- Vehicle speed sensor signal circuit shorted to ground
- Vehicle speed sensor signal circuit open
- PCM VSS signal
- Sensor ground circuit open
- Vehicle speed sensor
