P0171

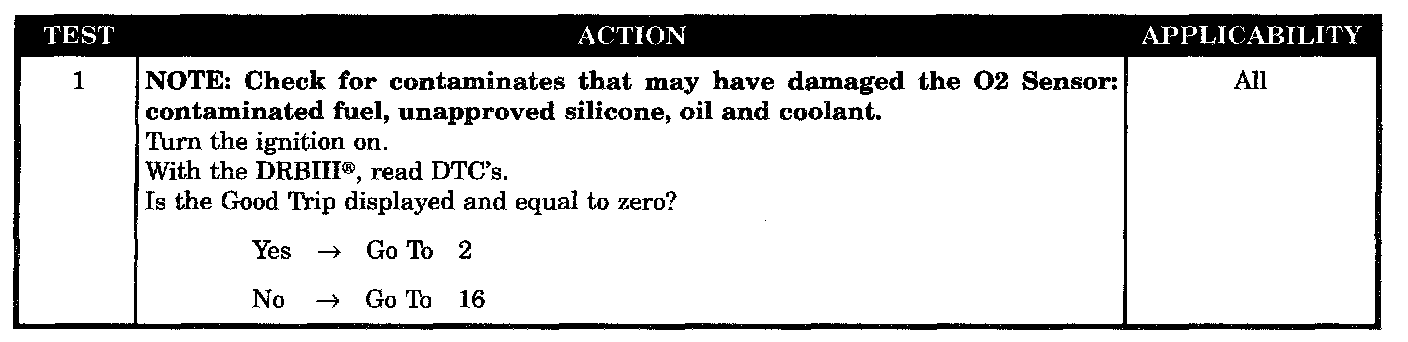

Test 1:

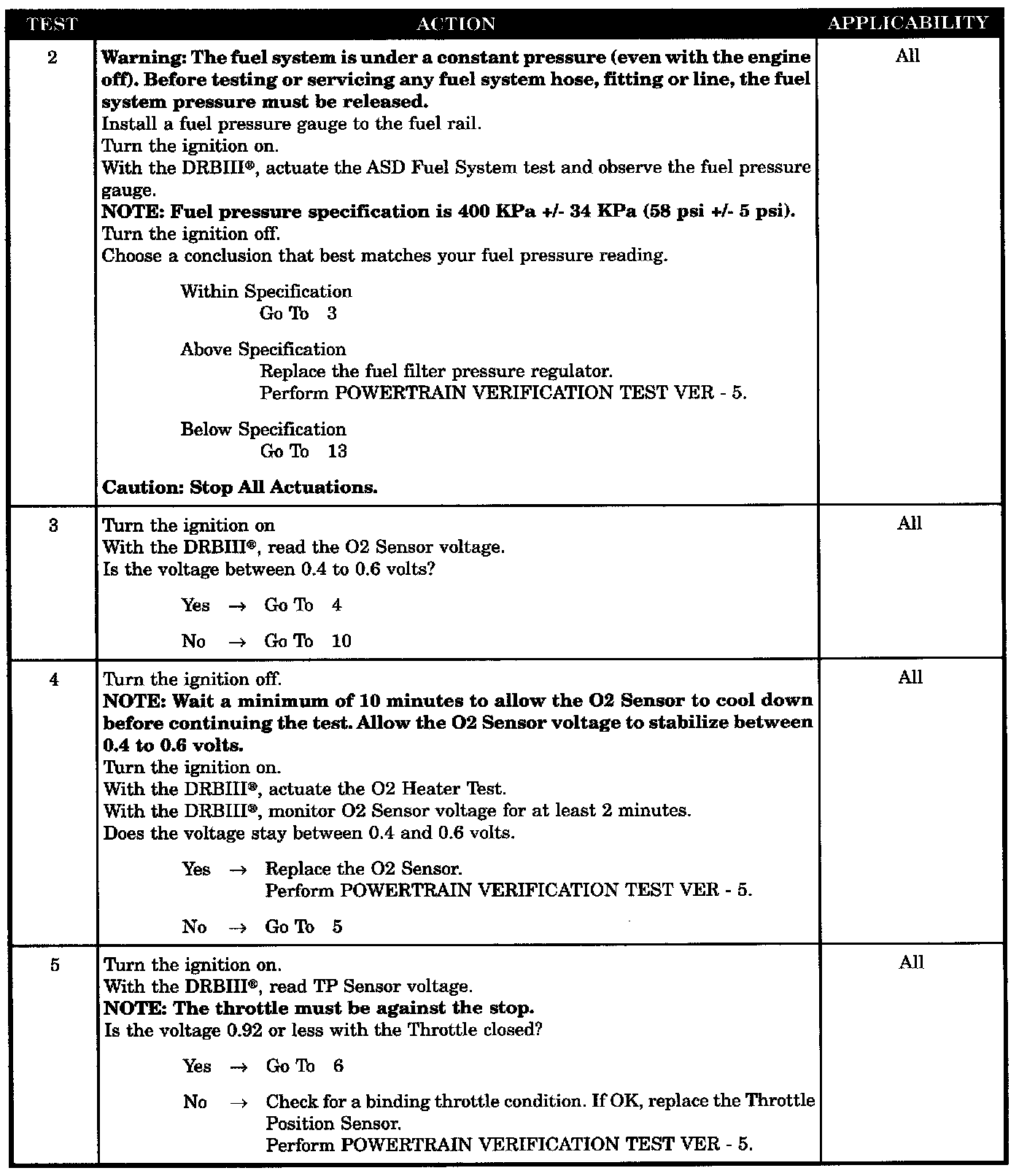

Tests 2 - 5:

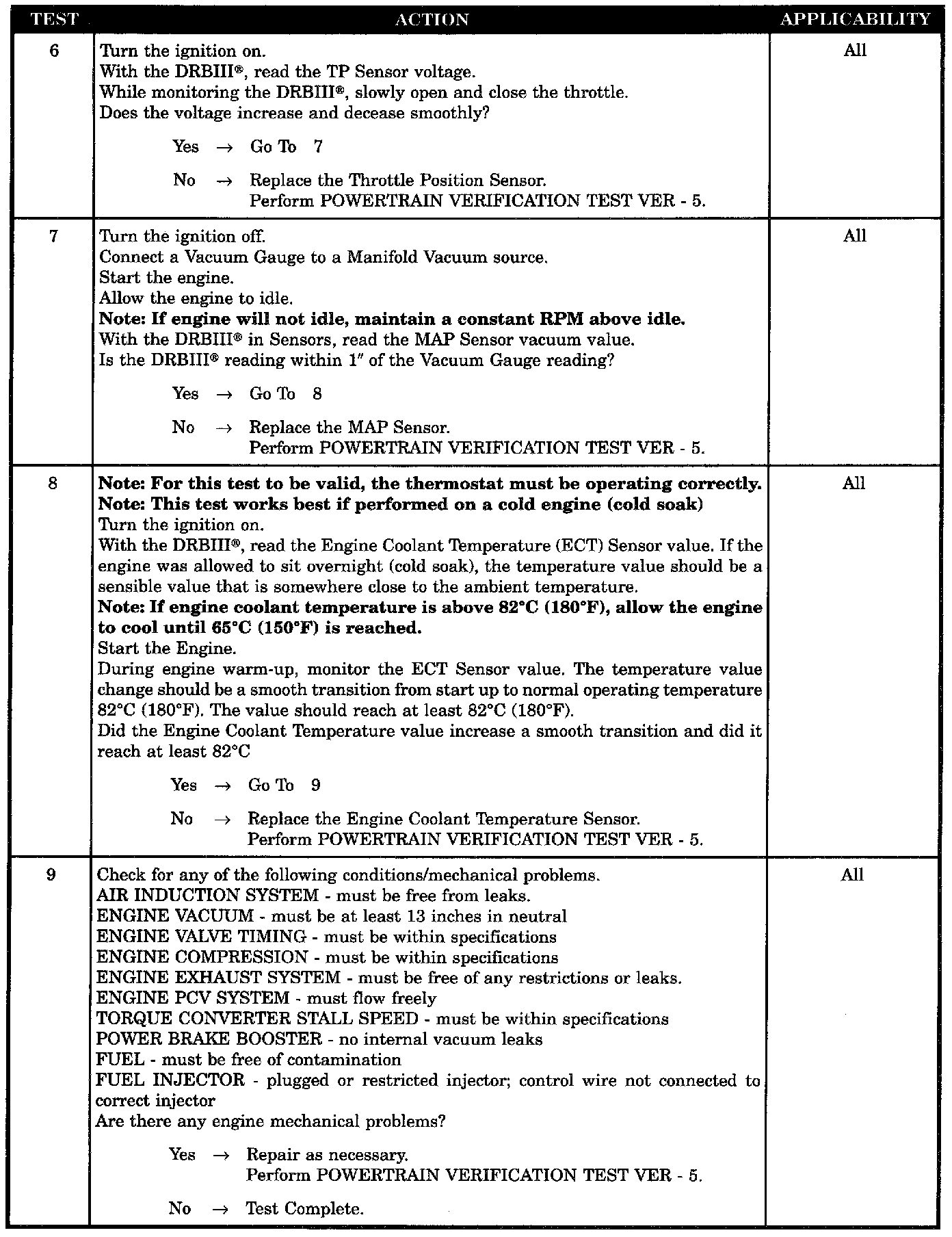

Tests 6 - 9:

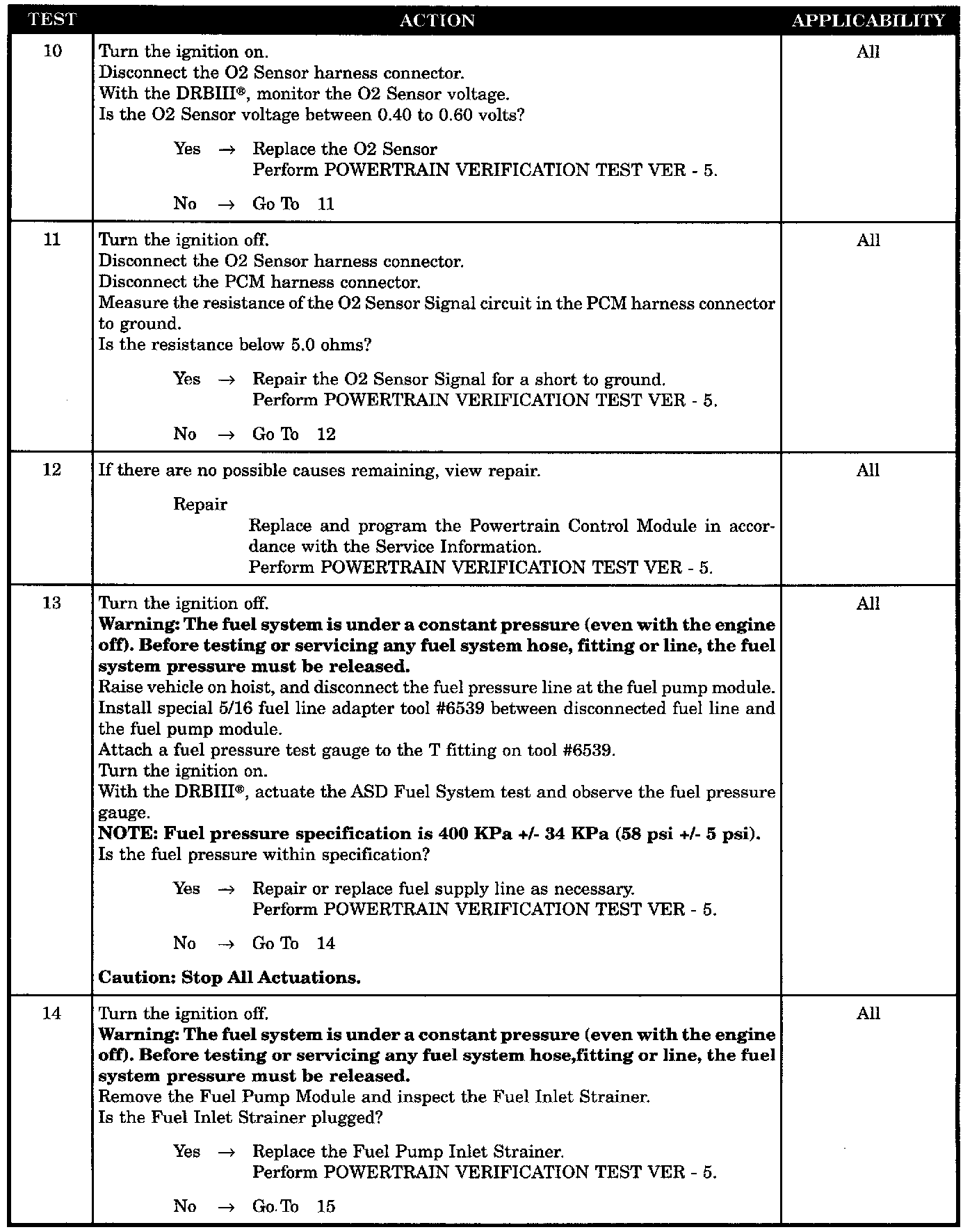

Tests 10 - 14:

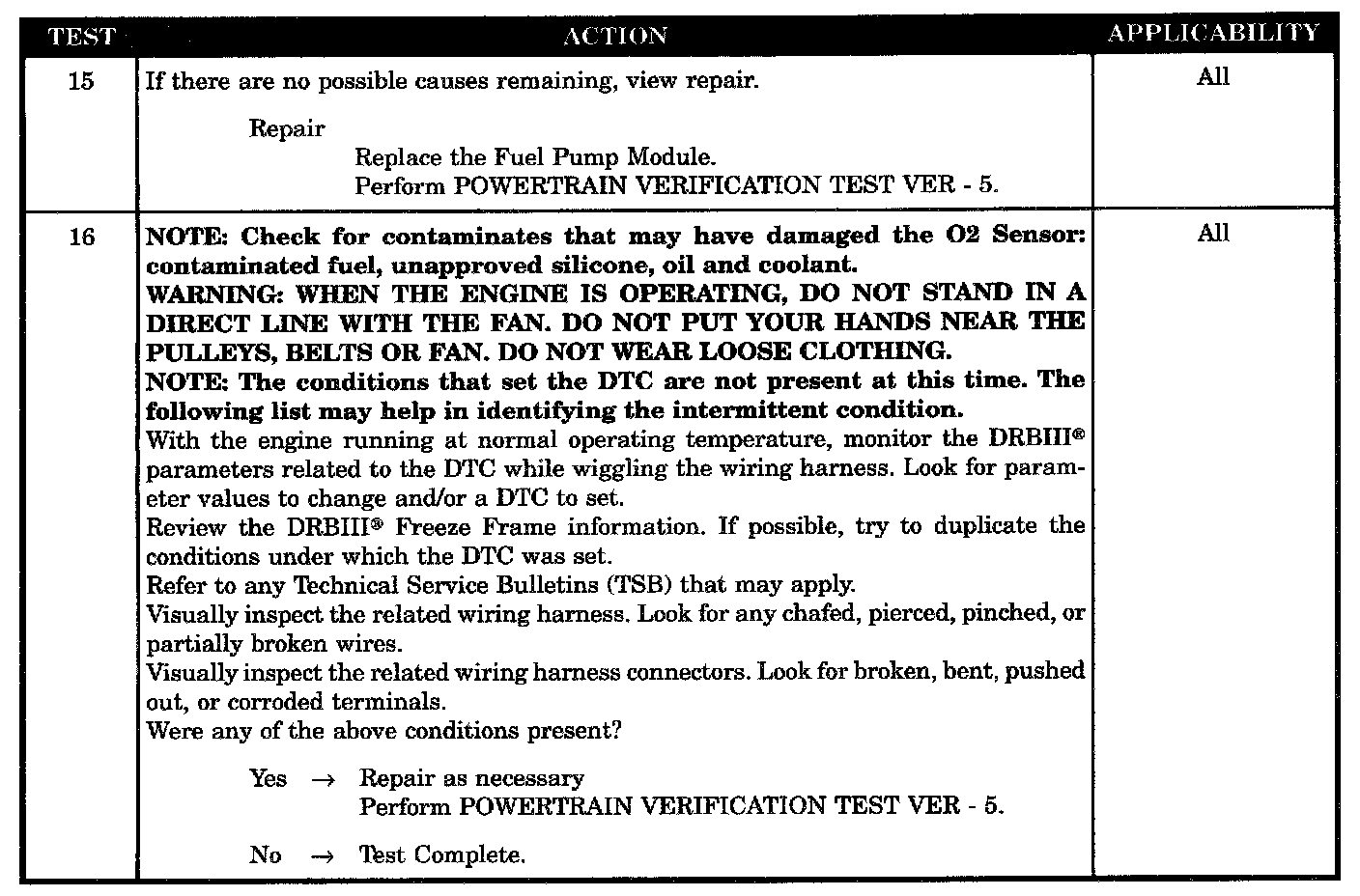

Tests 15 - 16:

SYMPTOM
P0171-1/1 FUEL SYSTEM LEAN

WHEN MONITORED
With the engine running in closed loop mode, the ambient/battery temperature above 20 deg. F and altitude below 8000 ft.

SET CONDITION
If the PCM multiplies short term compensation by long term adaptive and a certain percentage is exceeded for two trips, a freeze frame is stored, the MIL illuminates and a trouble code is stored.

POSSIBLE CAUSES
- Intermittent condition
- Restricted fuel supply line
- Fuel pump inlet strainer plugged
- Fuel pump module
- O2 sensor
- O2 sensor signal circuit shorted to ground
- O2 sensor heater operation
- Throttle position sensor voltage greater than 0.92 volts with throttle closed
- Throttle position sensor sweep
- MAP sensor operation
- ECT sensor operation
- Engine mechanical problem
- PCM
