VTSS Fails to Arm From Driver Door Cylinder Lock Switch (BUX)

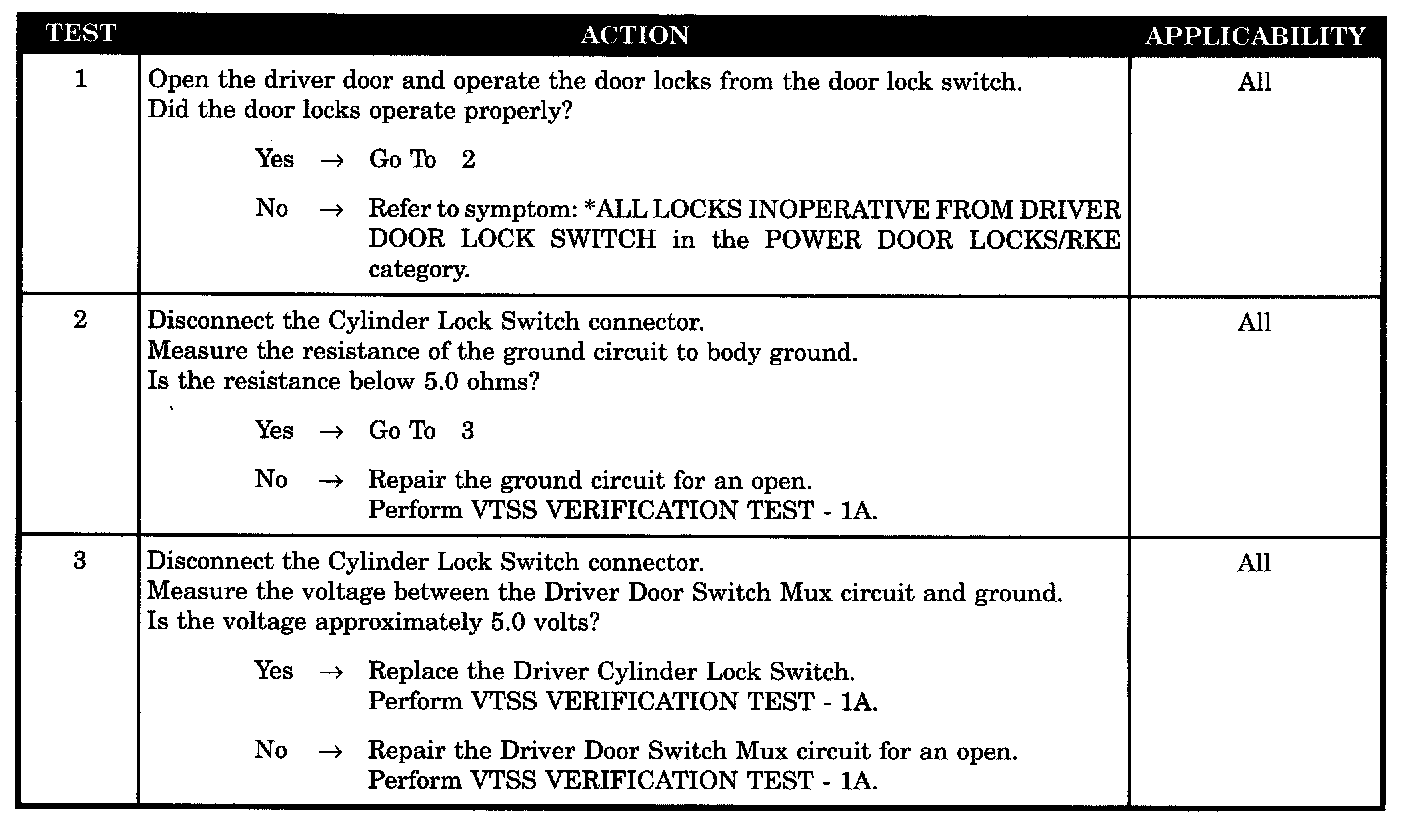

Tests 1 - 3:

SYMPTOM
VTSS FAILS TO ARM FROM DRIVER DOOR CYLINDER LOCK SWITCH (BUX ONLY)

POSSIBLE CAUSES
- Door lock operation test
- Ground circuit open
- Driver door switch MUX circuit open
- Driver cylinder lock switch faulty
