Seat Squib Shorted to Ground

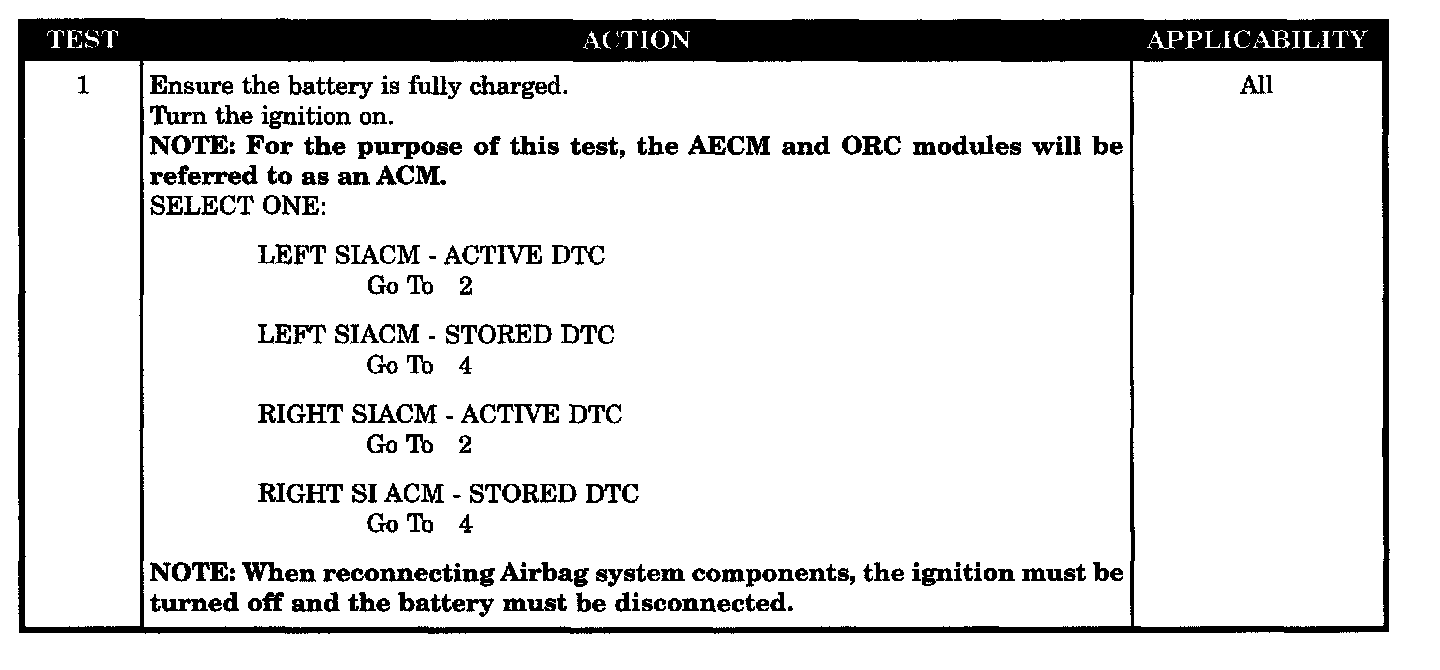

Test 1:

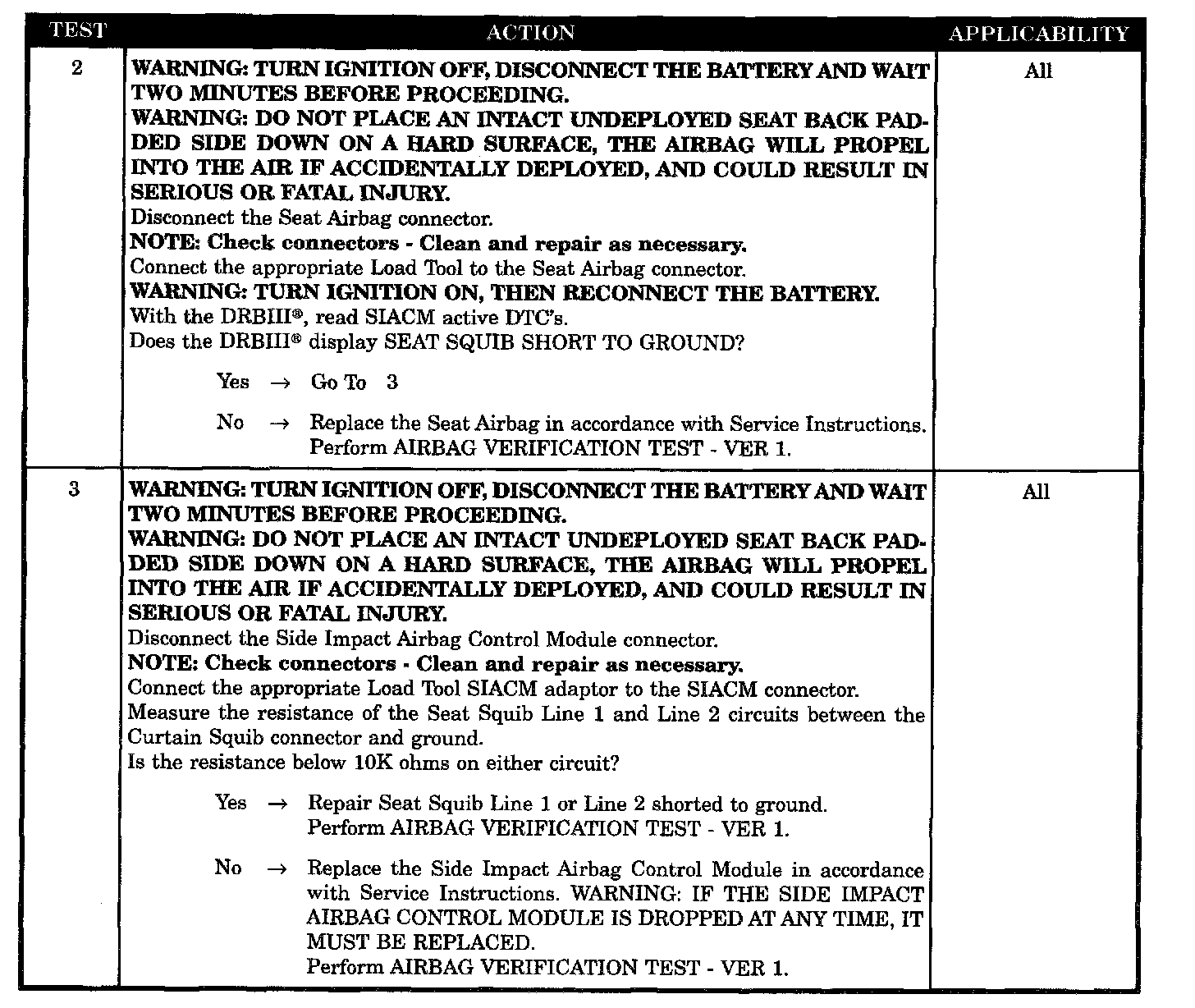

Tests 2 - 3:

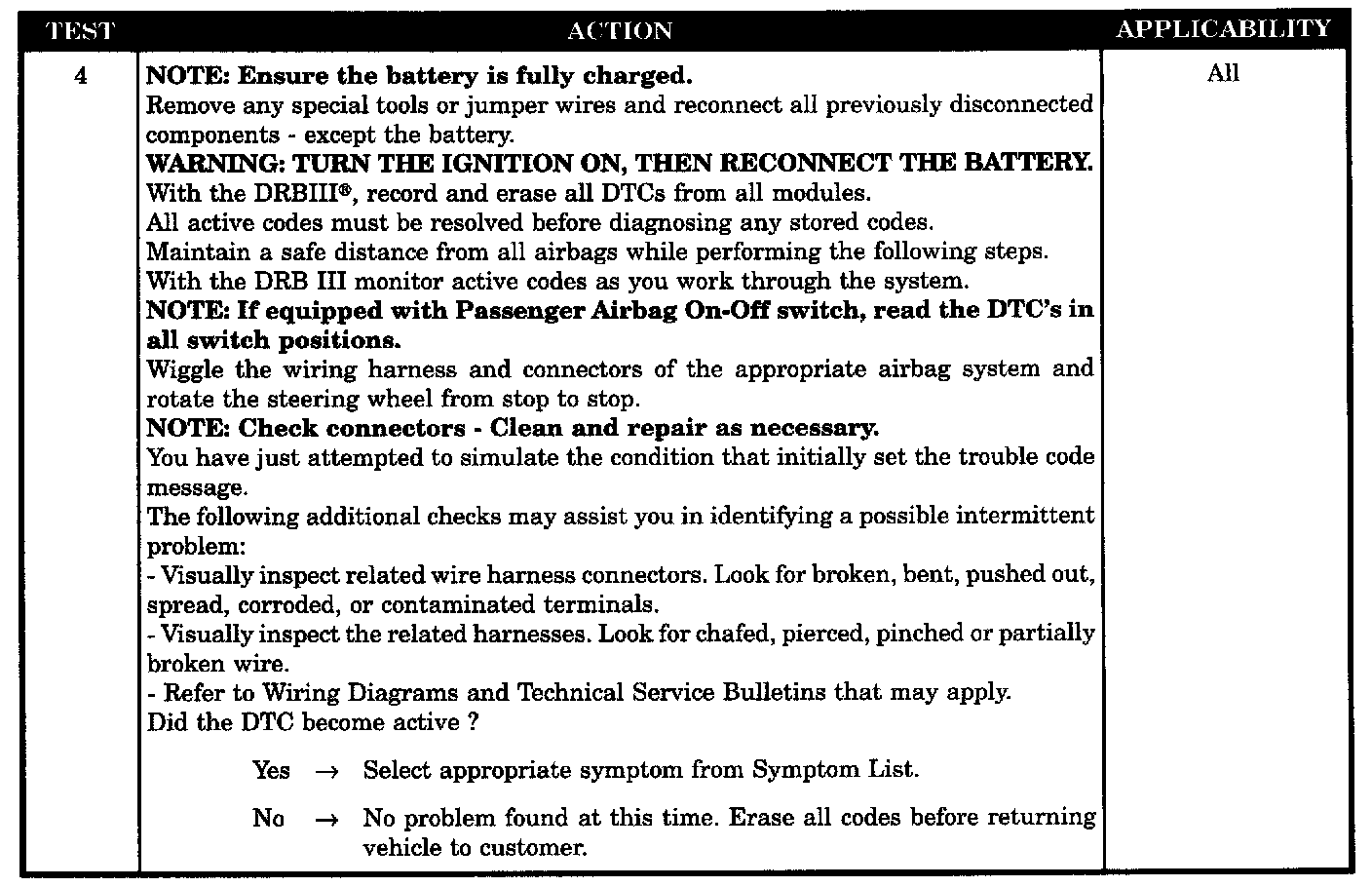

Test 4:

SYMPTOM
SEAT SQUIB SHORTED TO GROUND

WHEN MONITORED
When the ignition is ON, the SIACM monitors the resistance of the Seat Squib circuits.

SET CONDITION
When the SIACM detects a shorted to ground on the Seat Squib circuits.

POSSIBLE CAUSES
- Seat airbag shorted to ground
- Seat squib line 1 or line 2 shorted to ground
- SIACM, seat squib shorted to ground
- Stored code or intermittent condition
- Active code present
