Driver Squib 1 Circuit Shorted

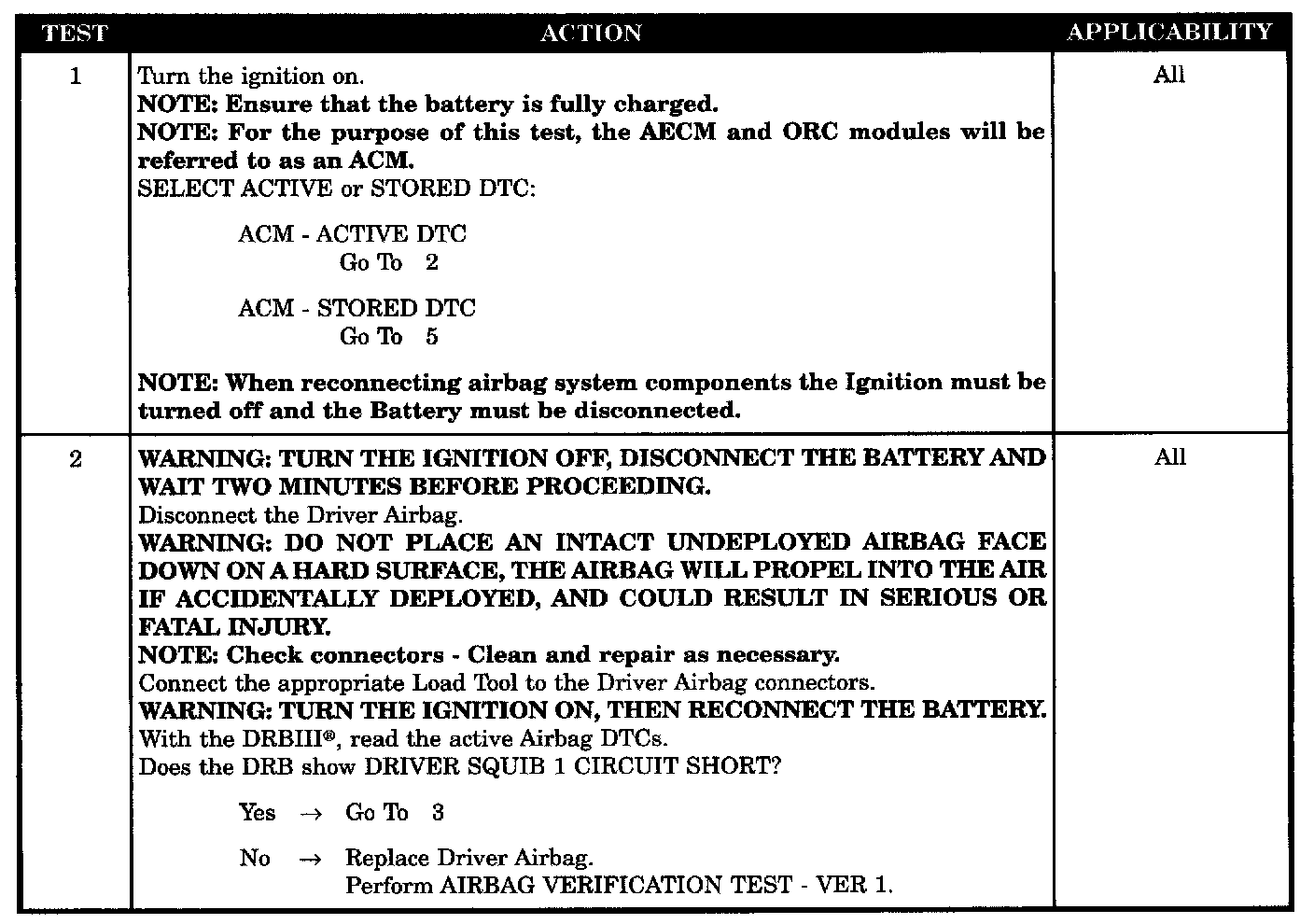

Tests 1 - 2:

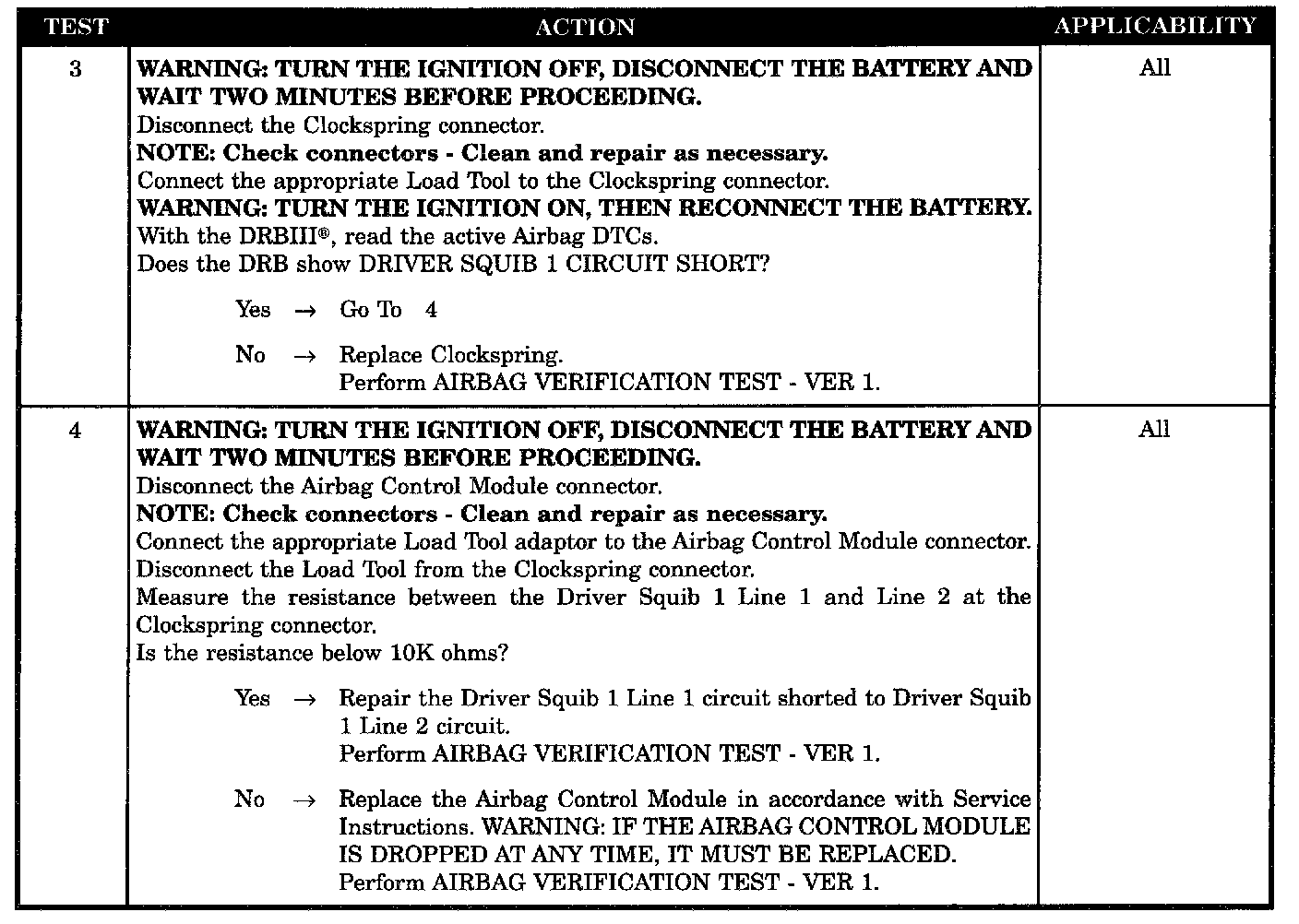

Tests 3 - 4:

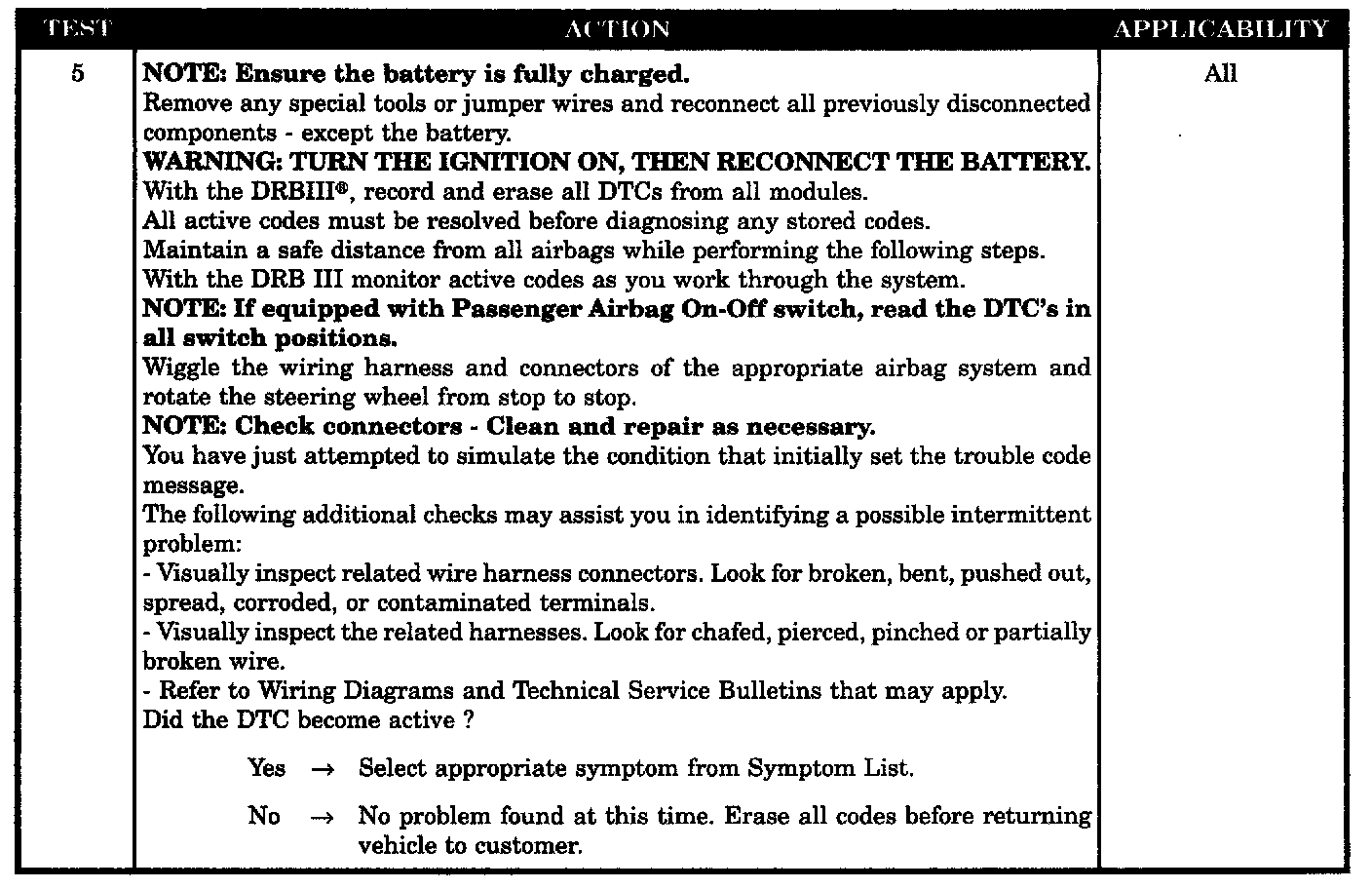

Test 5:

SYMPTOM
DRIVER SQUIB 1 CIRCUIT SHORT

WHEN MONITORED
With the ignition ON the ACM monitors the resistance of the Driver Squib 1 circuits.

SET CONDITION
The ACM has detected low resistance on the Driver Squib 1 circuits.

POSSIBLE CAUSES
- Driver airbag circuit short
- Clockspring, driver squib 1 circuit short
- Driver squib 1 line 1 shorted to line 2
- ACM, driver squib 1 circuit short
- Stored code or intermittent condition
- Active code present
