Passenger Door Switch Shorted or Stuck (BUX)

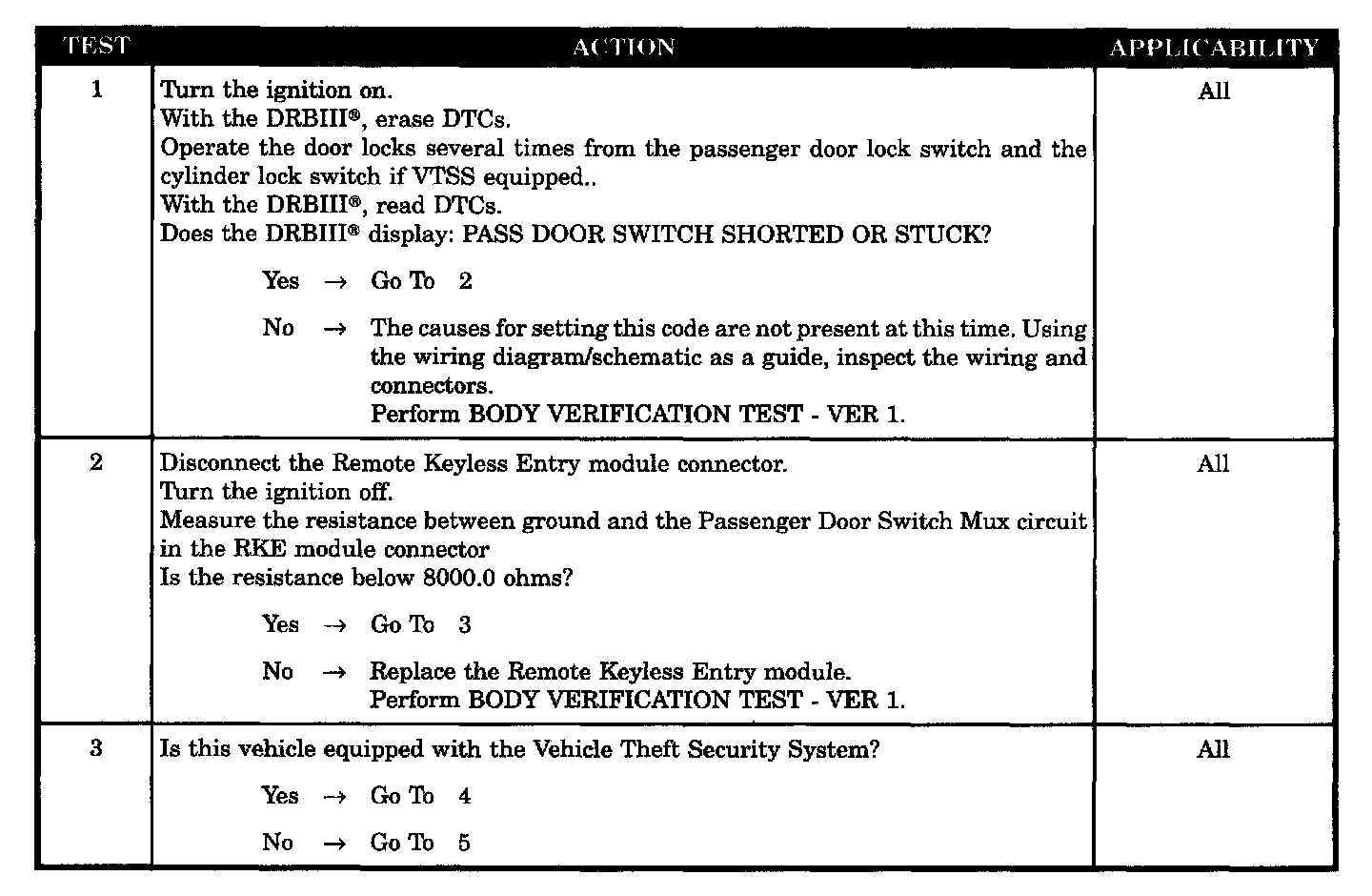

Tests 1 - 3:

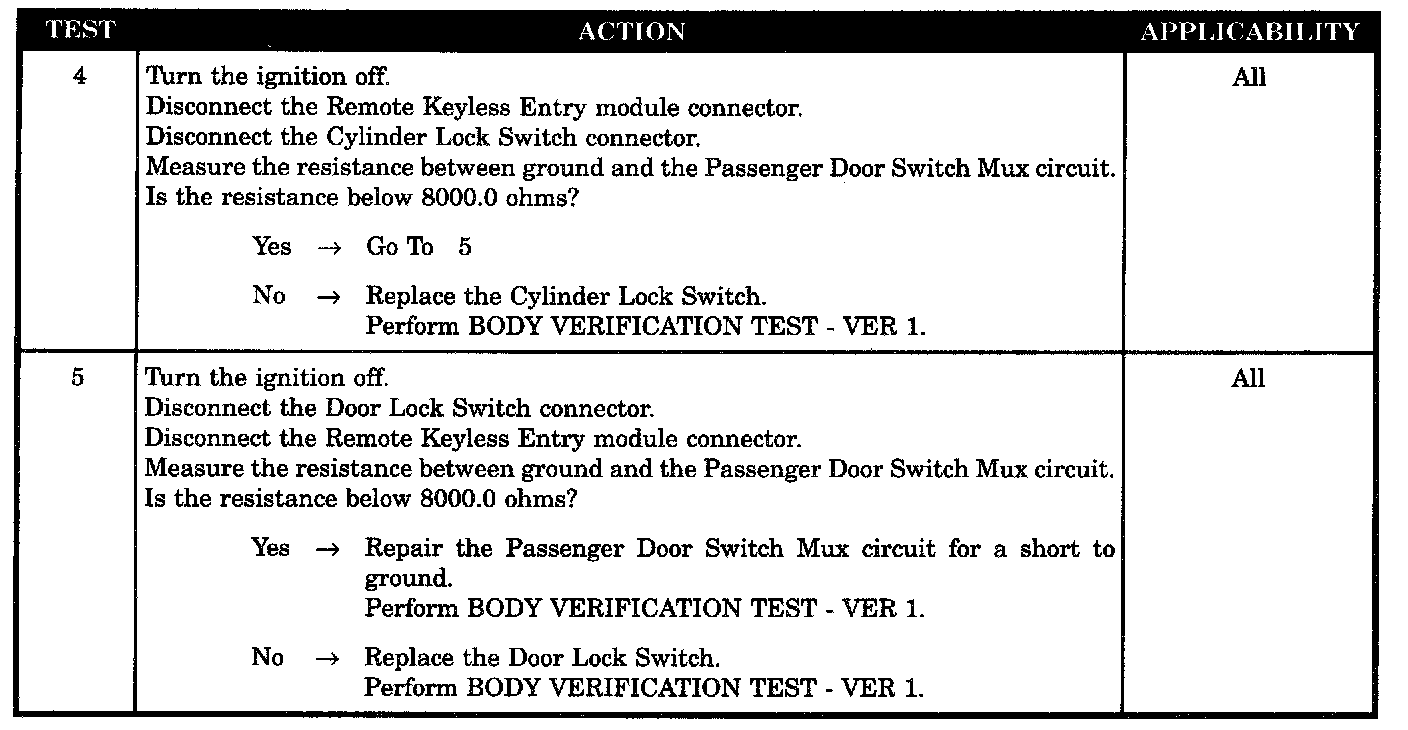

Tests 4 - 5:

SYMPTOM
PASSENGER DOOR SWITCH SHORTED OR STUCK (BUX)

WHEN MONITORED
Whenever the RKE module is connected and battery voltage is above 10.0 volts.

SET CONDITION
When a lock or unlock input from the passenger door switch to the RKE module is present for more than 8 seconds.

POSSIBLE CAUSES
- DTC present
- Remote keyless entry module - shorted
- Door lock switch shorted
- Cylinder lock switch shorted
- Passenger door switch MUX circuit shorted to ground.
