Power Door Locks/RKE
>>
Driver Door Fails to Unlock
Driver Door Fails to Unlock

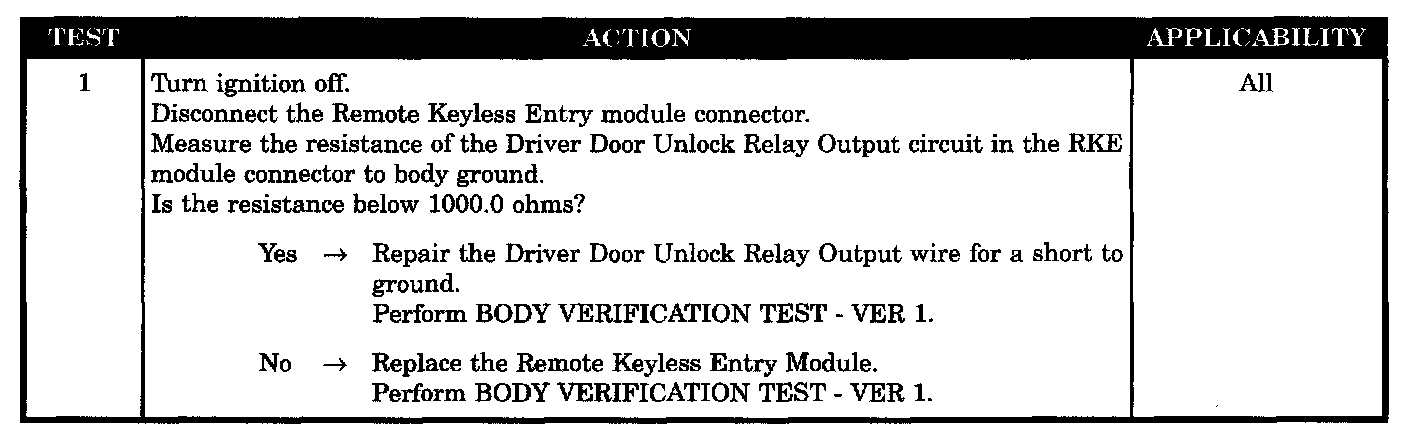

Test 1:
SYMPTOM
DRIVER DOOR FAILS TO UNLOCK
POSSIBLE CAUSES
-
Driver door unlock relay output wire shorted to ground
-
RKE module defective driver unlock open
