Body Style Mismatch

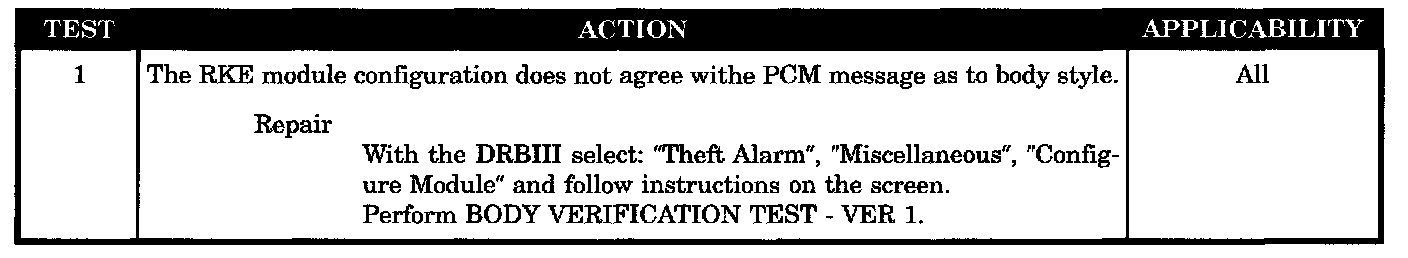

Test 1:

SYMPTOM
BODY STYLE MISMATCH

WHEN MONITORED
When the ignition is in the RUN position during Remote Keyless Entry Module configuration.

SET CONDITION
Once the body style configuration is complete, the RKE compares its configuration information with the PCI bus message transmitted by the Powertrain Control Module pertaining to body style. A miscomparison will result in setting the trouble code.

POSSIBLE CAUSES
- Body style mismatch
