All Doors Fail to Lock

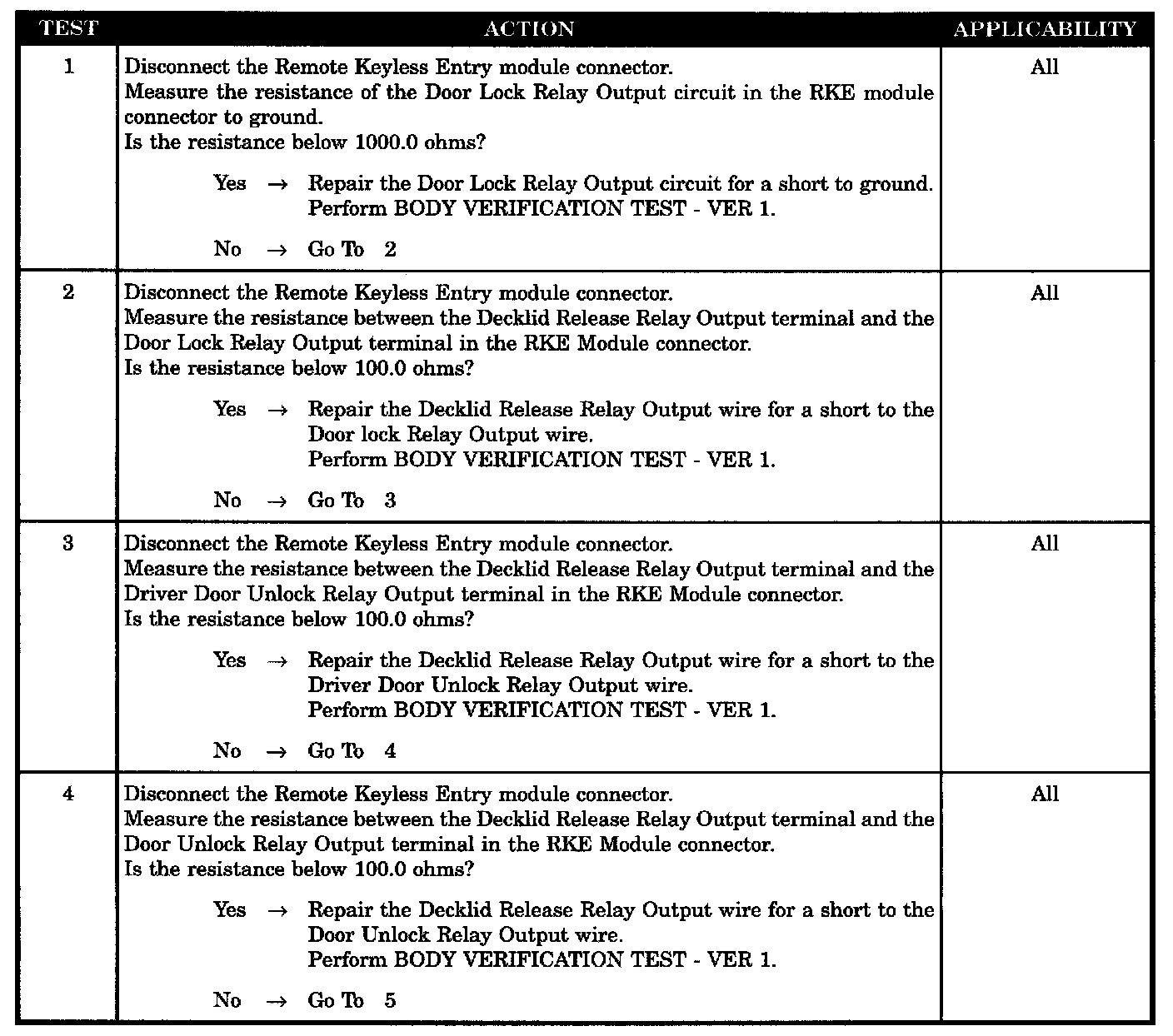

Tests 1 - 4:

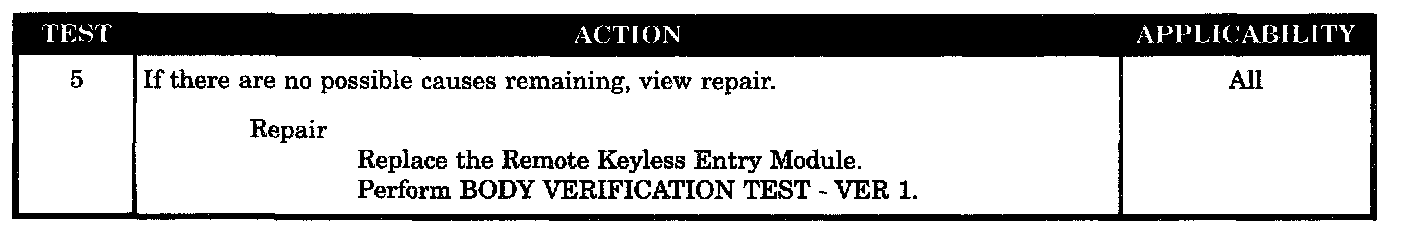

Test 5:

SYMPTOM
ALL DOORS FAIL TO LOCK

POSSIBLE CAUSES
- Door lock relay output circuit shorted to ground
- Decklid release relay output shorted to door lock relay output
- Decklid release relay output shorted to driver door unlock relay output
- Decklid release relay output shorted to door unlock relay output
- Remote keyless entry module - unlock ground open
