All Door Locks Inoperative

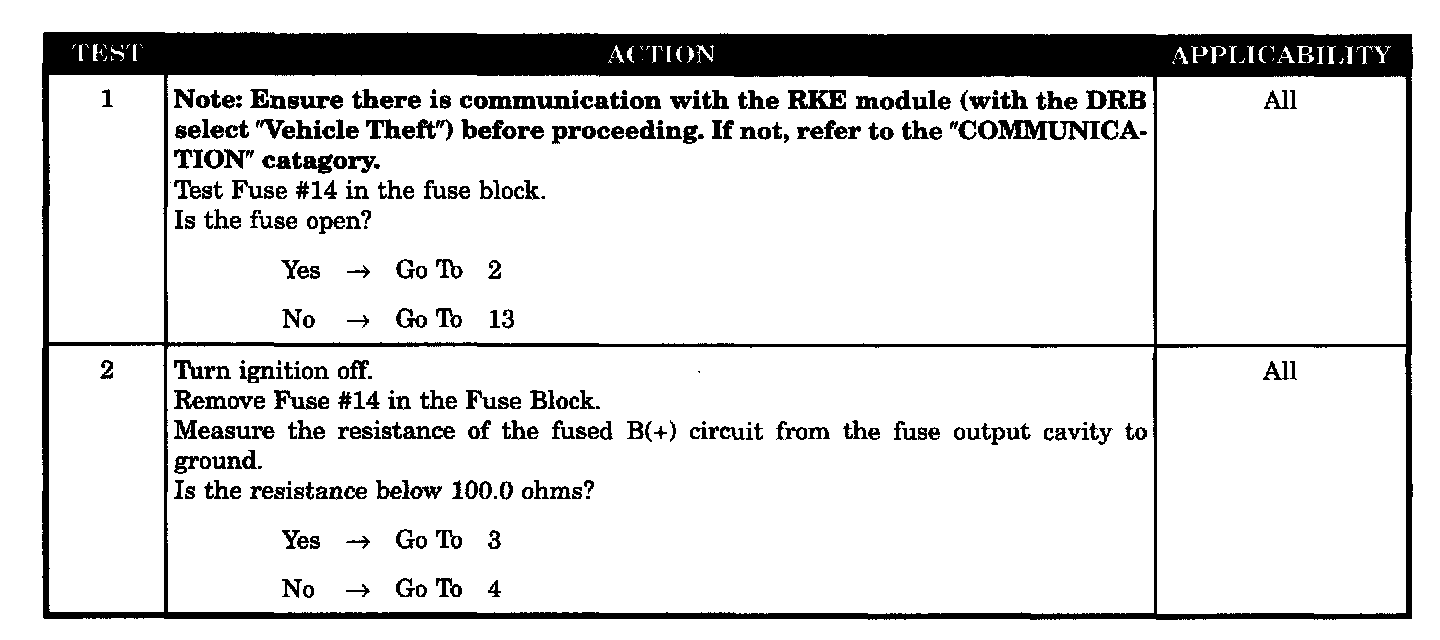

Tests 1 - 2:

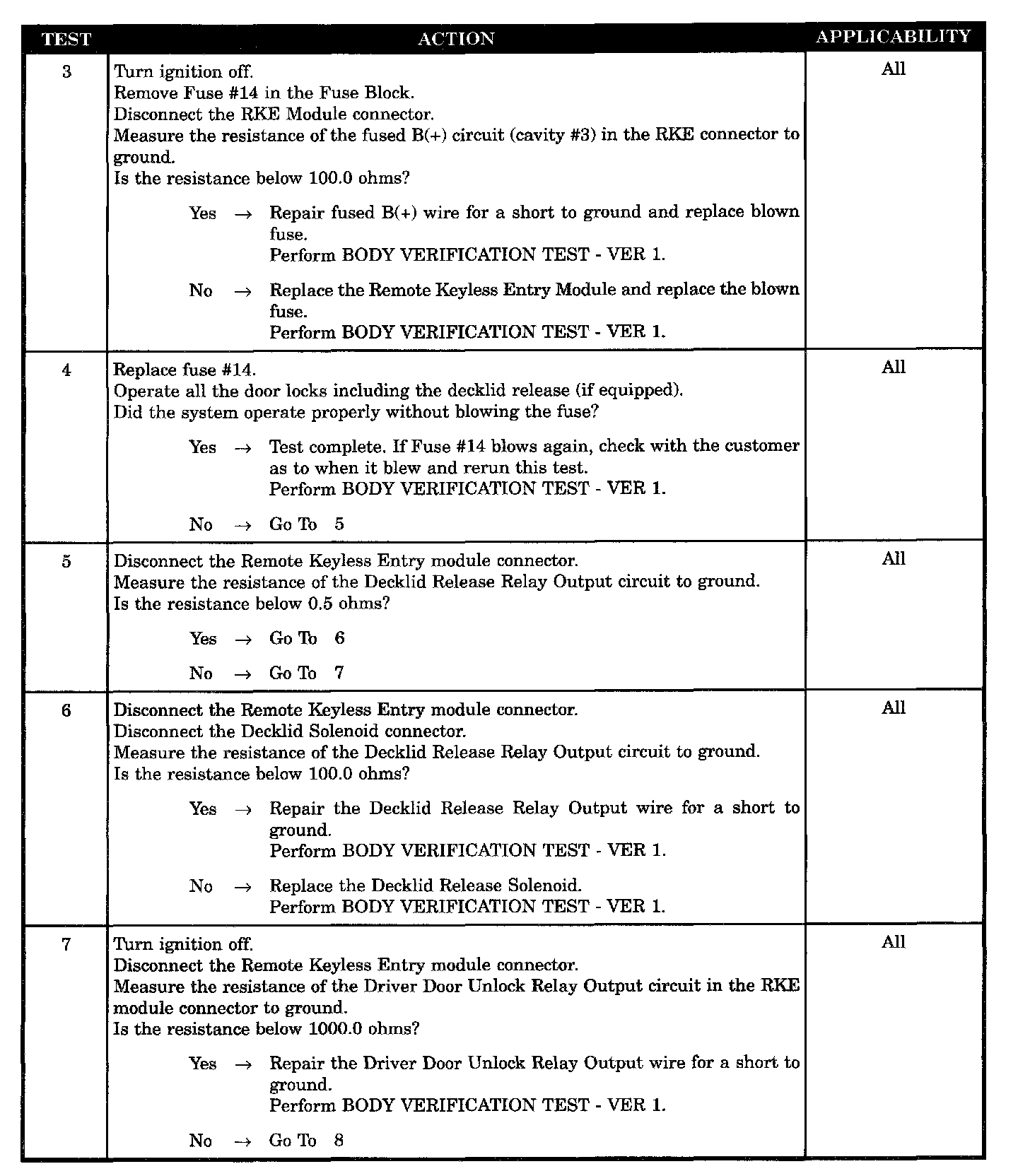

Tests 3 - 7:

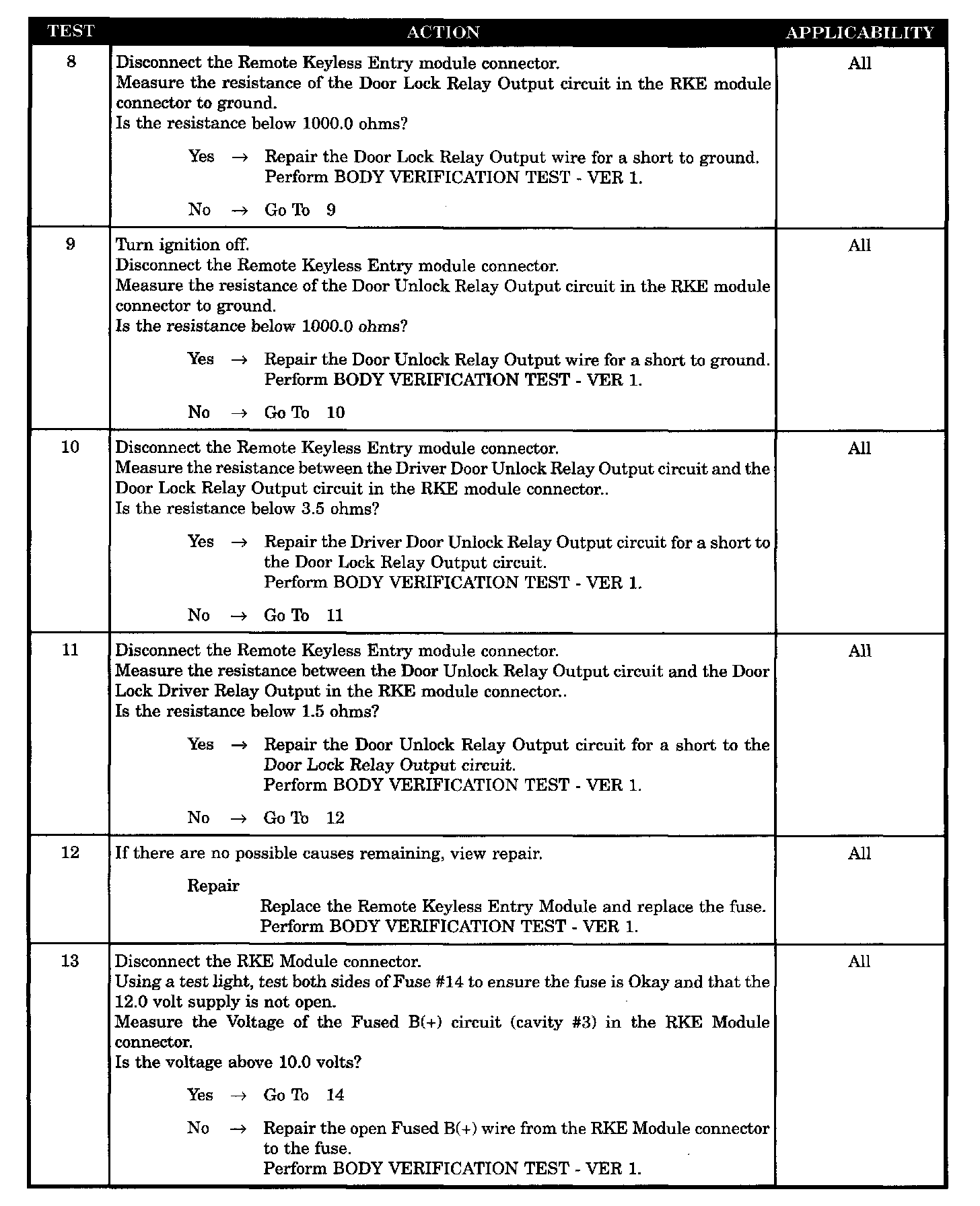

Tests 8 - 13:

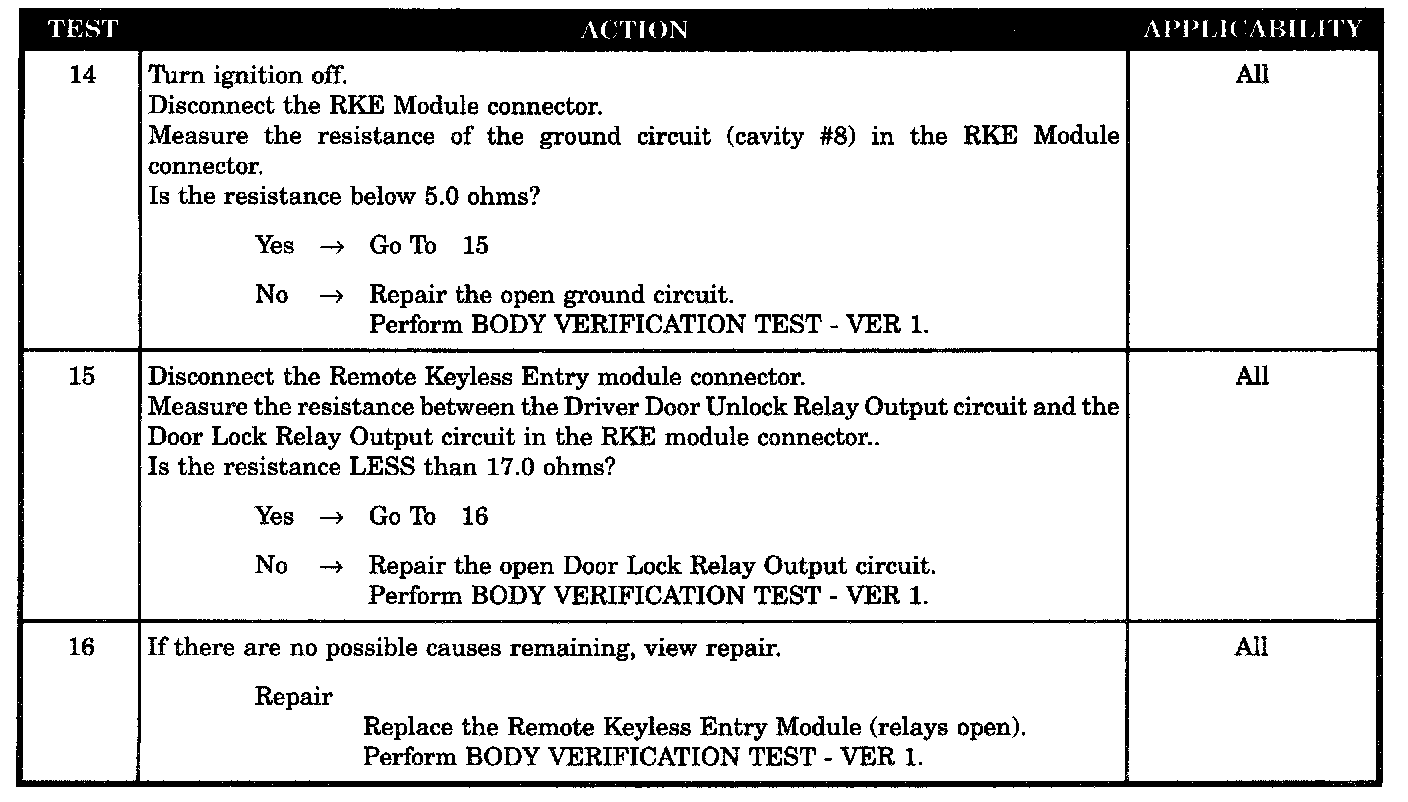

Tests 14 - 16:

SYMPTOM
ALL DOOR LOCKS INOPERATIVE

POSSIBLE CAUSES
- Decklid release relay output wire shorted to ground
- Fused B(+) circuit open
- Fused B(+) wire shorted to ground.
- Ground circuit open
- Door lock relay output circuit open
- Driver door unlock relay output shorted to door lock relay output
- Driver door unlock relay output wire shorted to ground
- Door lock relay output wire shorted to ground
- Door unlock relay output shorted to door lock relay output
- Decklid release solenoid-shorted
- Door unlock relay output wire shorted to ground
- Defective fuse # 14
- RKE module - B(+) shorted to ground
- RKE module - relays open
- RKE module - shorted
