Ambient Temperature Sensor Circuit Open

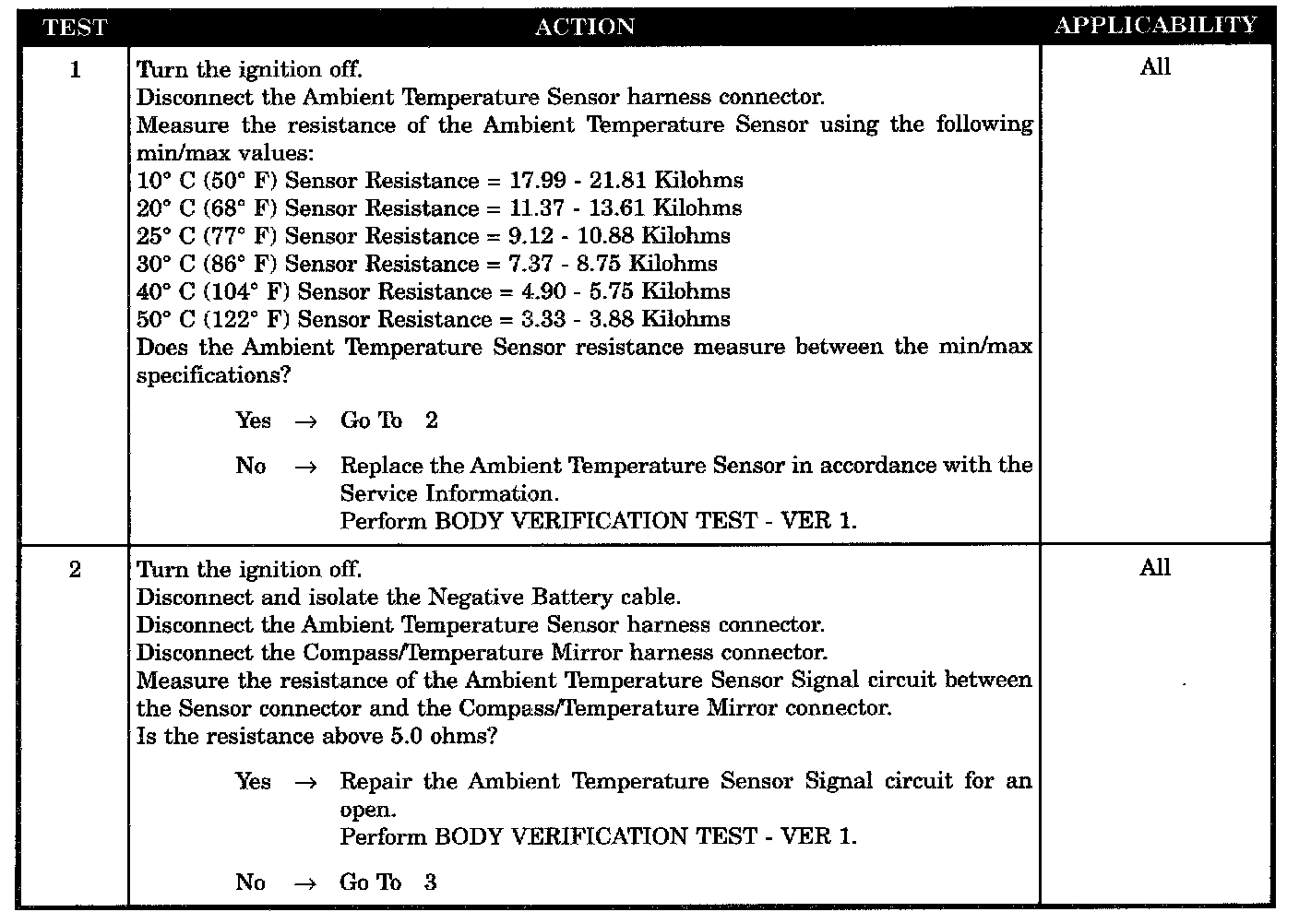

Tests 1 - 2:

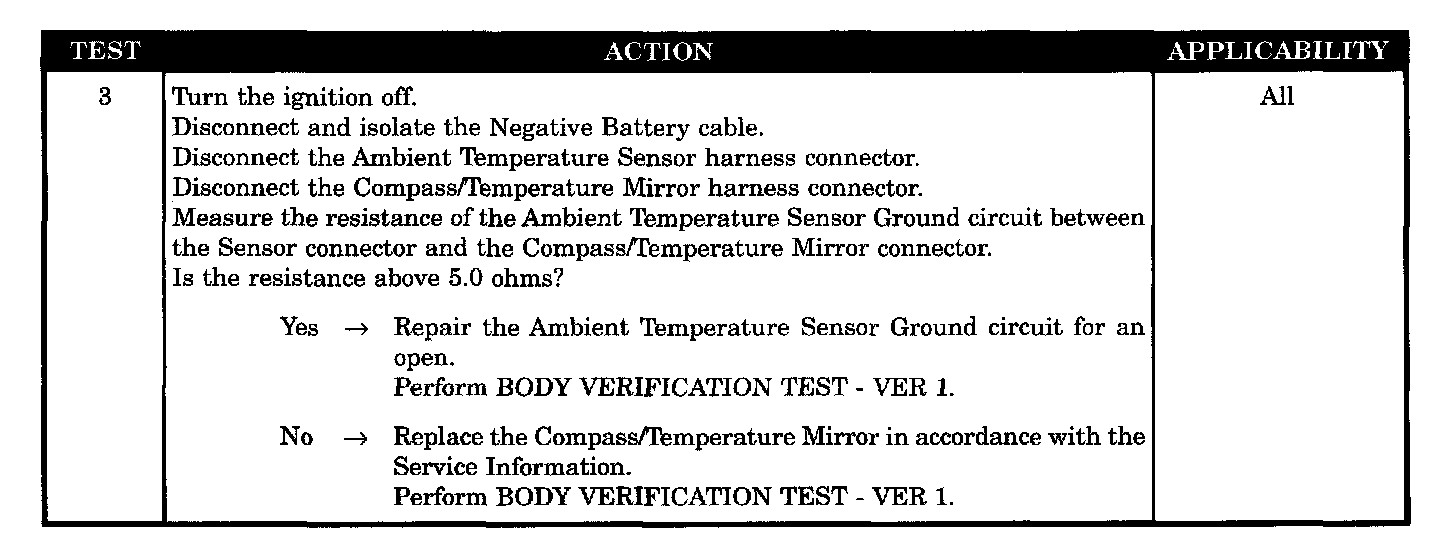

Test 3:

SYMPTOM
AMBIENT TEMPERATURE SENSOR CIRCUIT OPEN

POSSIBLE CAUSES
- Ambient temperature sensor
- Ambient temperature sensor signal circuit open
- Ambient temperature sensor ground circuit open
- Compass/temperature mirror
