Home >> Chrysler >> 2002 >> Neon (CANADA) L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Instrument Cluster >> Rear Fog Lamp Indicator Inoperative - BUX Only

Rear Fog Lamp Indicator Inoperative - BUX Only

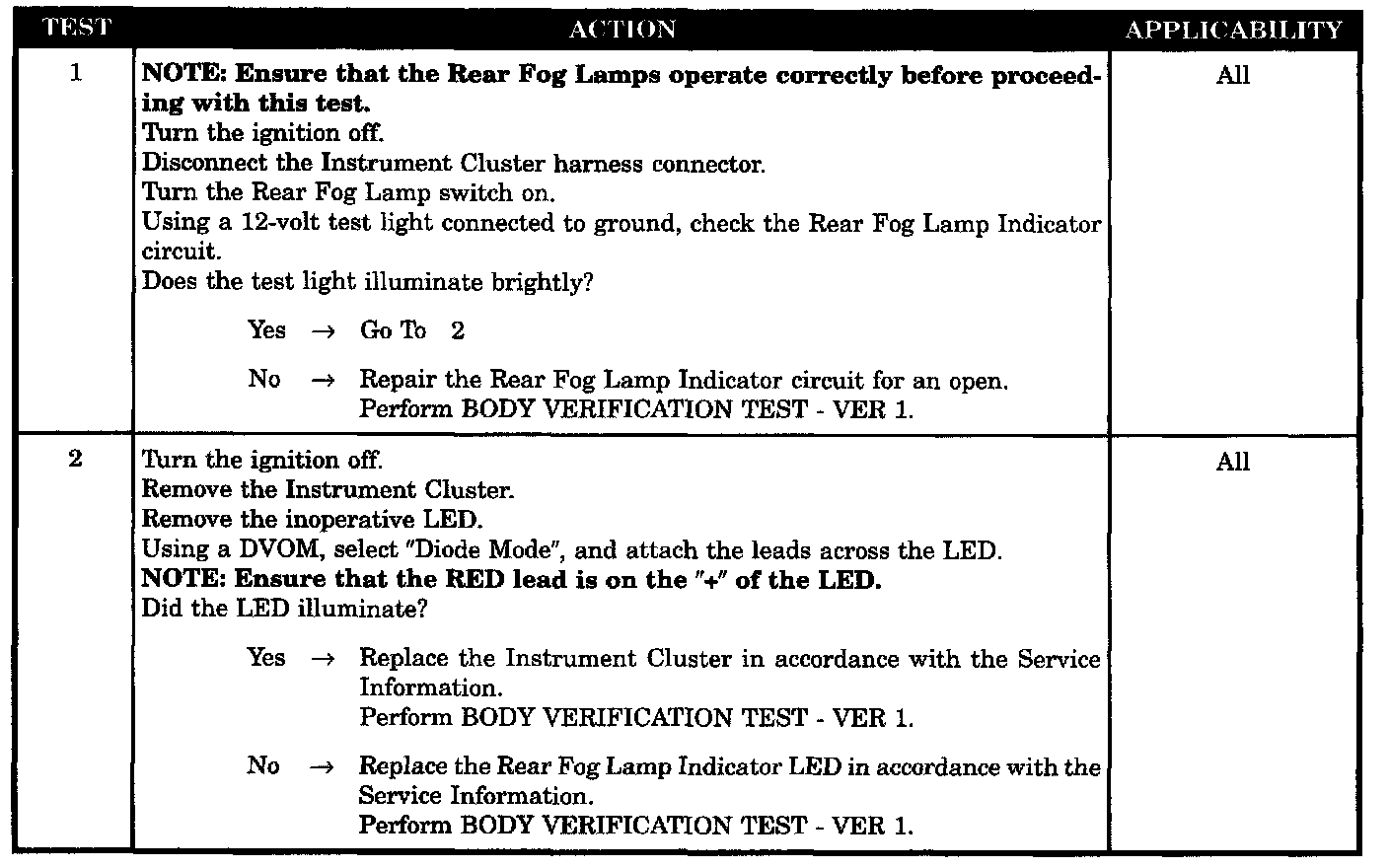

Tests 1 - 2:





SYMPTOM
REAR FOG LAMP INDICATOR INOPERATIVE (BUX ONLY)

POSSIBLE CAUSES
- Rear fog lamp indicator circuit open
- Indicator led
- Instrument cluster
