Low Oil Pressure Indicator Always On

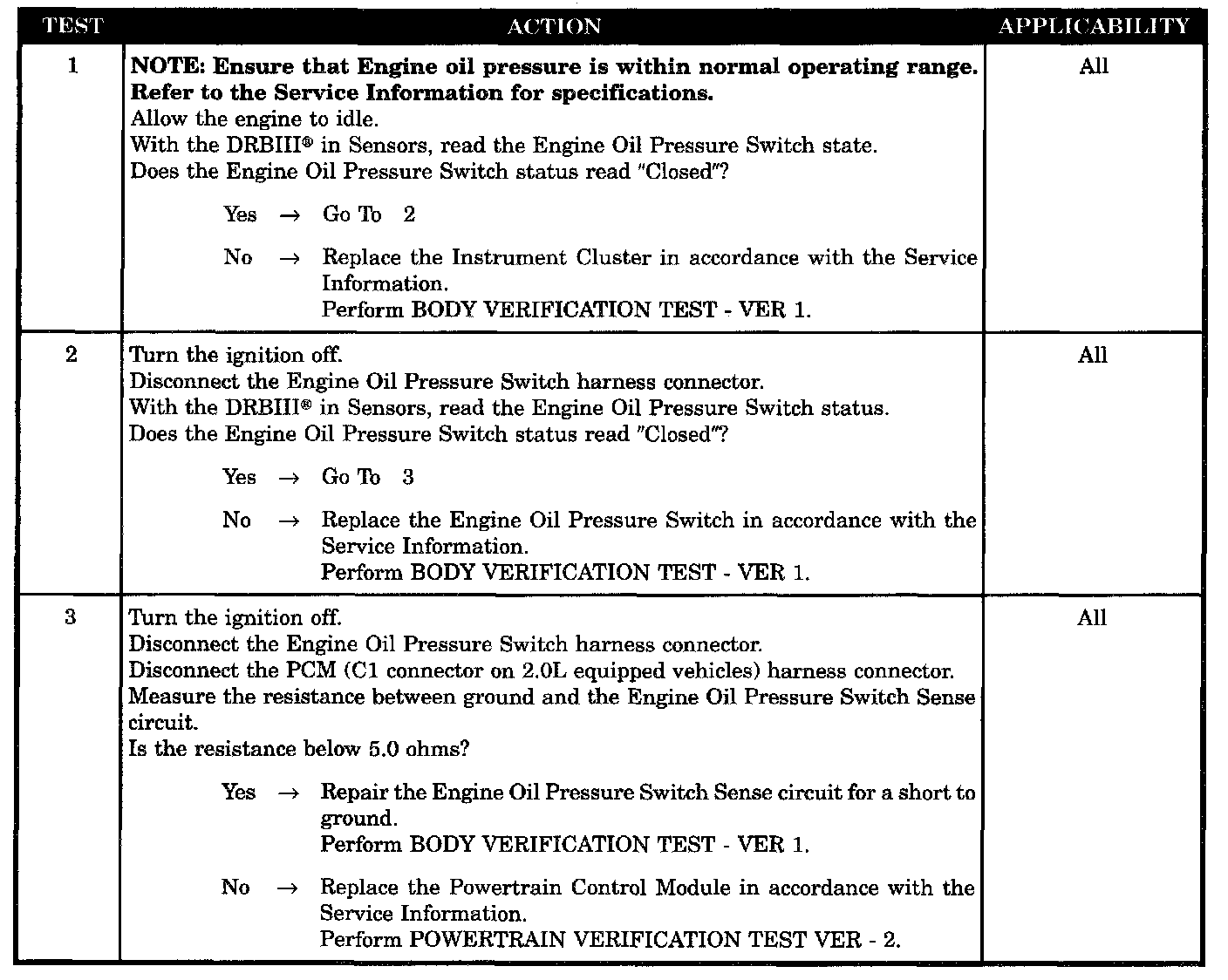

Tests 1 - 3:





SYMPTOM
LOW OIL PRESSURE INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Engine oil pressure switch
- Engine oil pressure switch sense circuit shorted to ground
- Powertrain control module
- Instrument cluster
