Brake Warning Indicator Always On

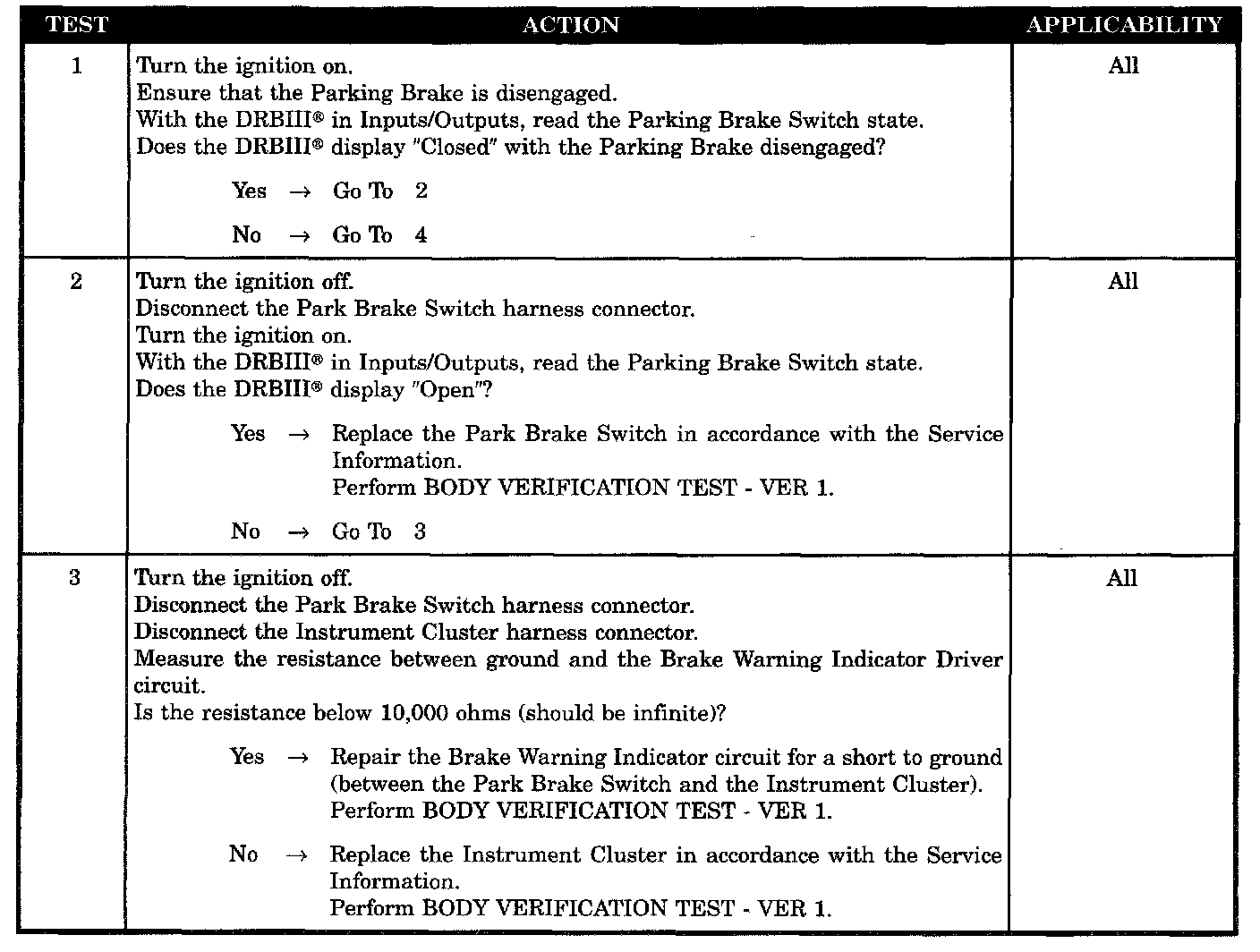

Tests 1 - 3:

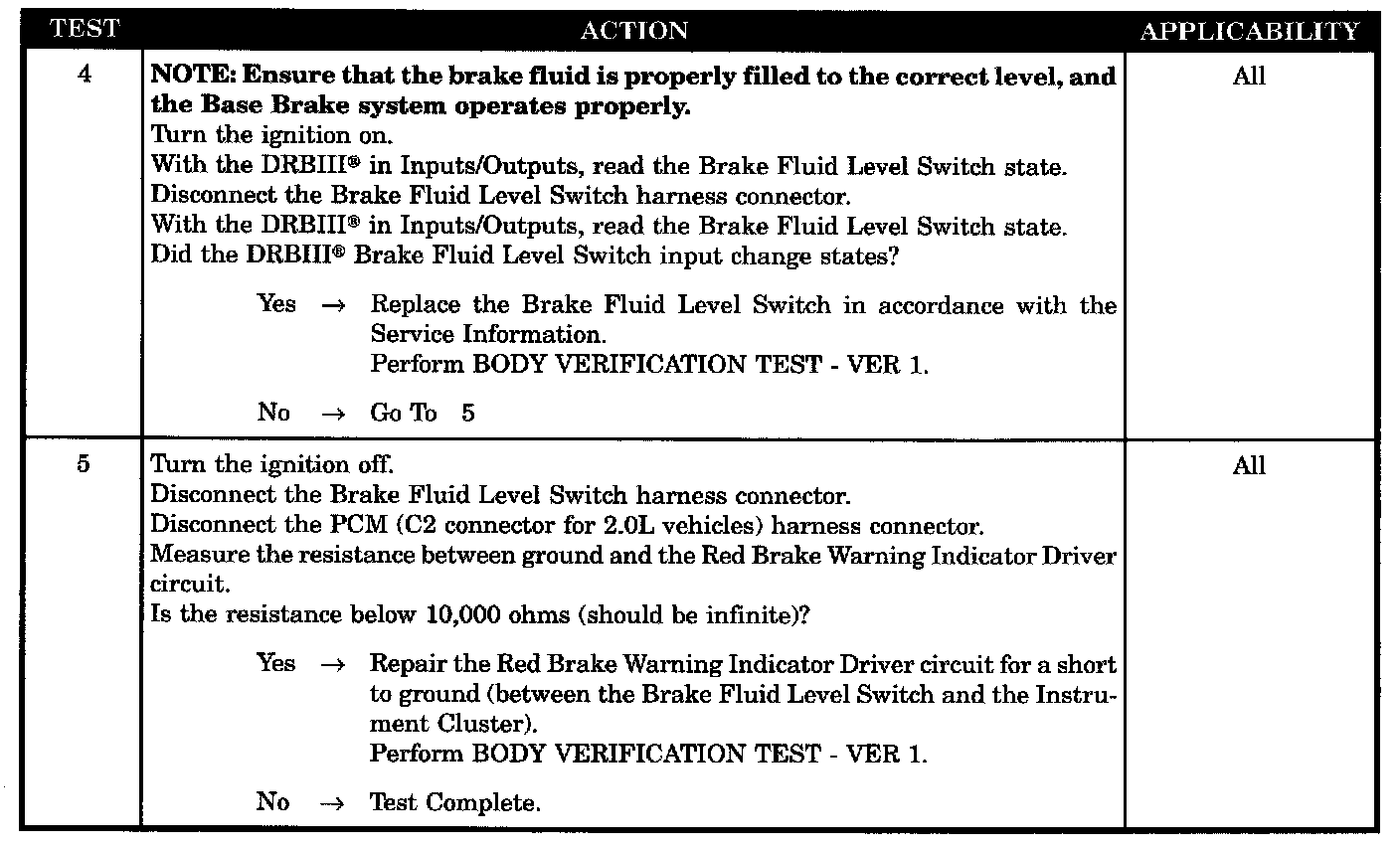

Tests 4 - 5:

SYMPTOM
BRAKE WARNING INDICATOR ALWAYS ON

POSSIBLE CAUSES
- Brake warning indicator circuit shorted to ground
- Red brake warning indicator driver circuit shorted to ground
- Park brake switch
- Brake fluid level switch
- Instrument cluster
- Powertrain control module
