Battery Loss

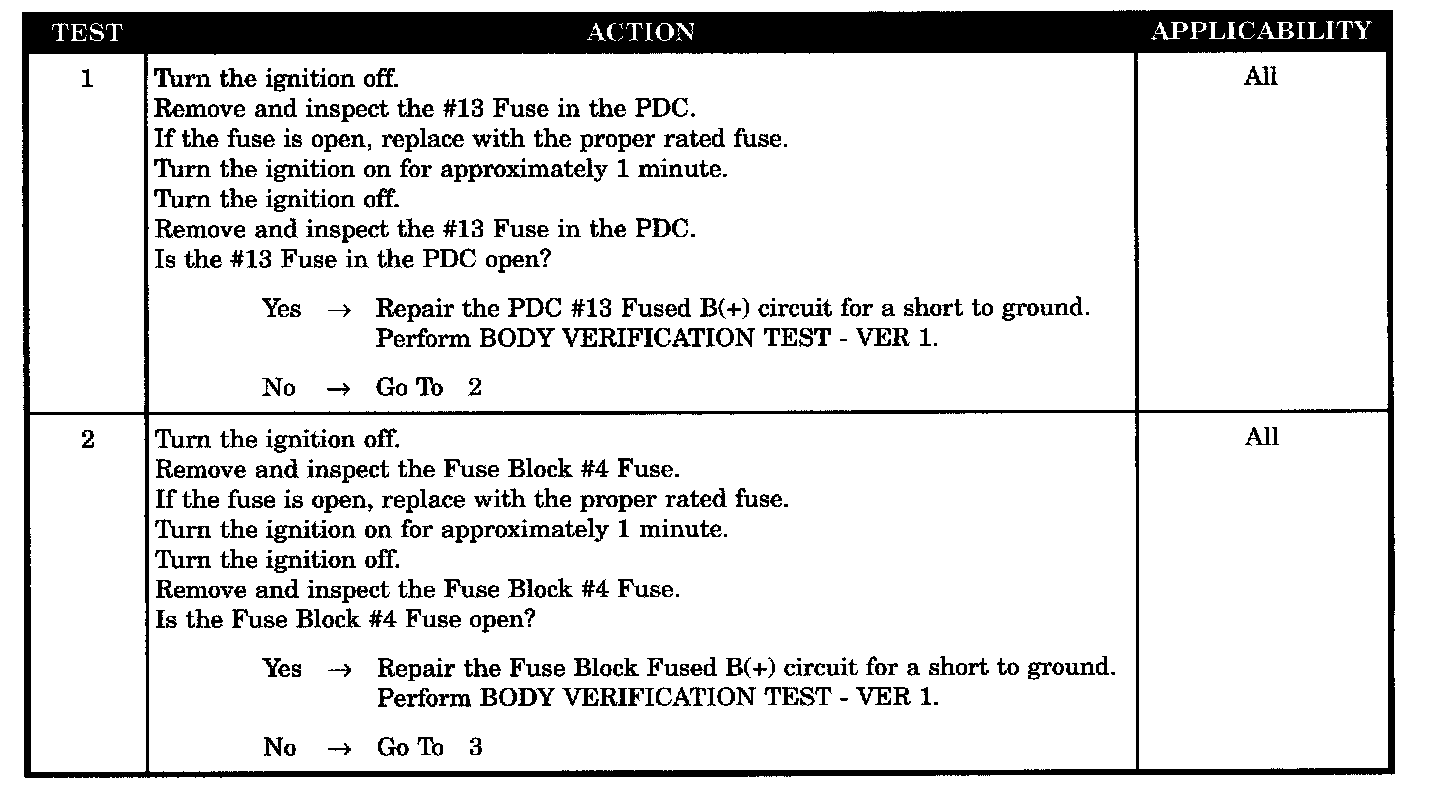

Tests 1 - 2:

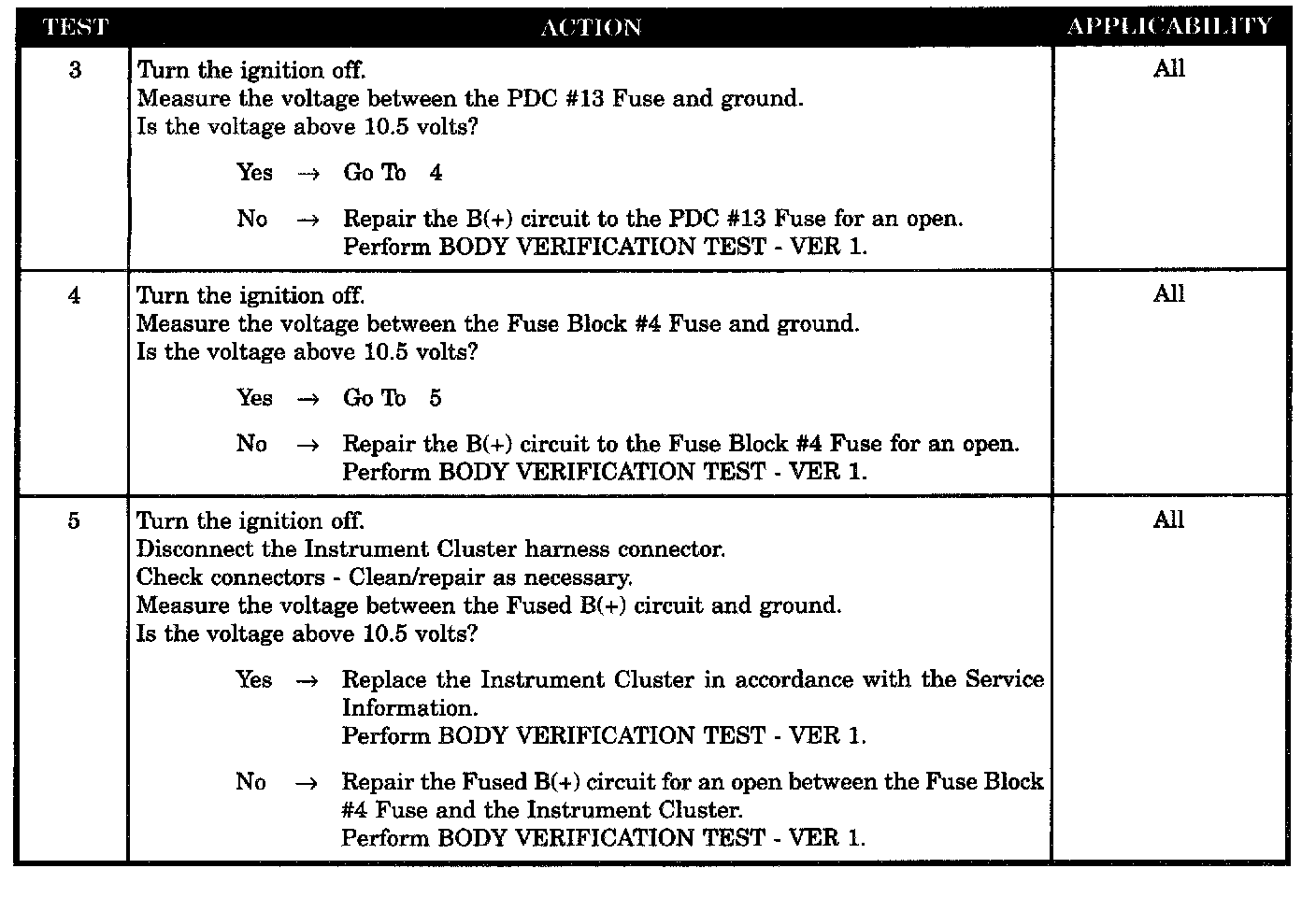

Tests 3 - 5:

SYMPTOM
BATTERY LOSS

WHEN MONITORED
With the ignition ON.

SET CONDITION
When the Instrument Cluster detects that the ignition has been turned ON but detects no Fused B(+) circuit.

POSSIBLE CAUSES
- PDC fuse # 13 defective
- PDC fused B(+) circuit shorted to ground
- Fuse block # 4 fuse defective
- Fuse block fused B(+) circuit shorted to ground
- B(+) to PDC # 13 fuse open
- B(+) to fuse block # 4 fuse open
- Fused B(+) circuit to instrument cluster open
- Instrument cluster
