All Gauges Inoperative

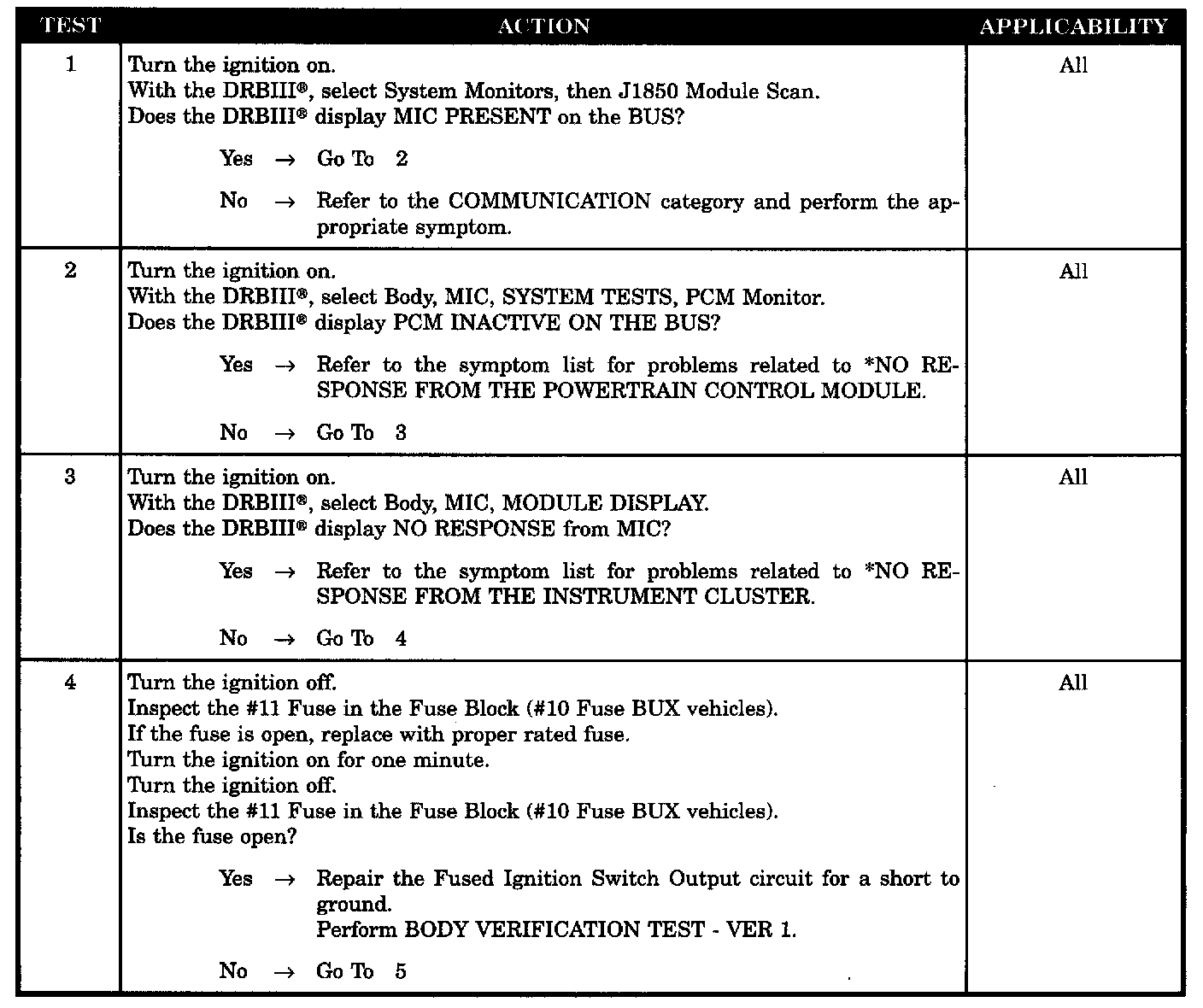

Tests 1 - 4:

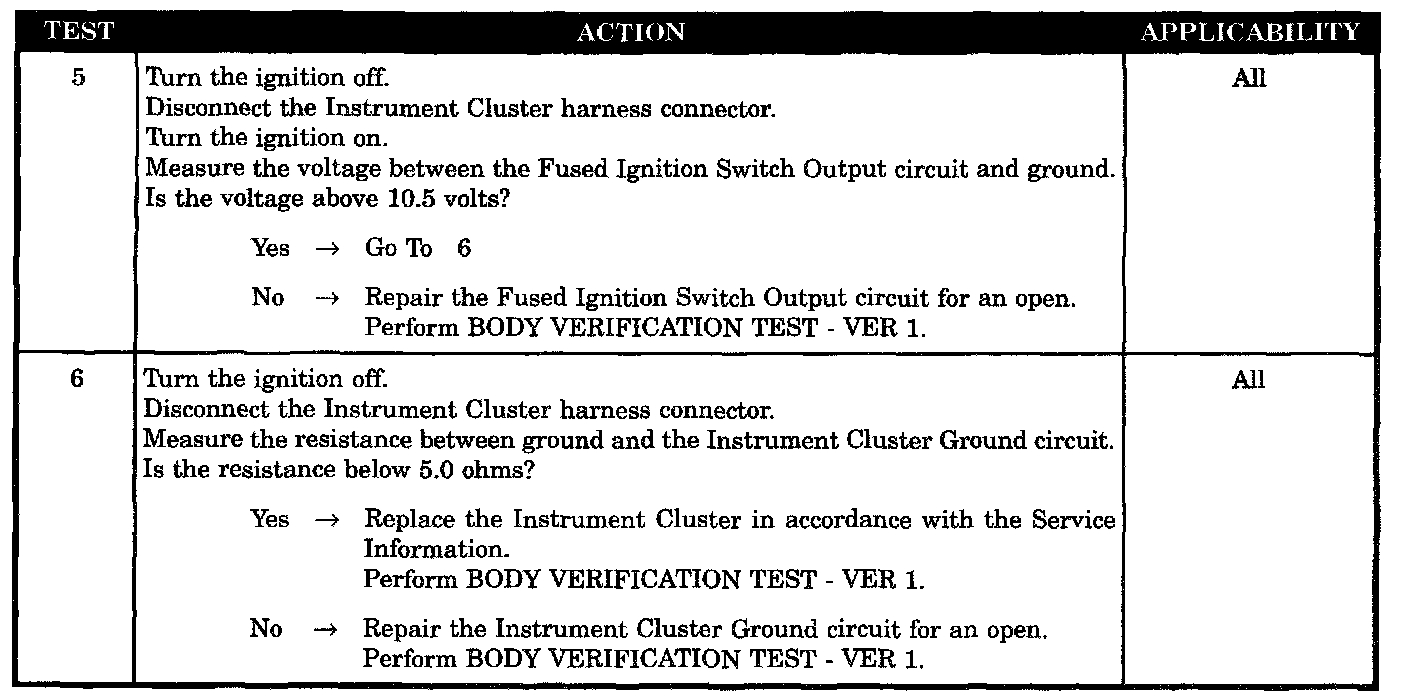

Tests 5 - 6:

SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES
- No response - PCI bus
- No response - PCI bus - Powertrain Control Module
- No response - PCI bus - Instrument Cluster
- Fused ignition switch output circuit shorted to ground
- Fused ignition switch output circuit open
- Instrument cluster ground circuit open
- Instrument cluster
