Bus (+/-) Signals Open/No Response From Instrument Cluster

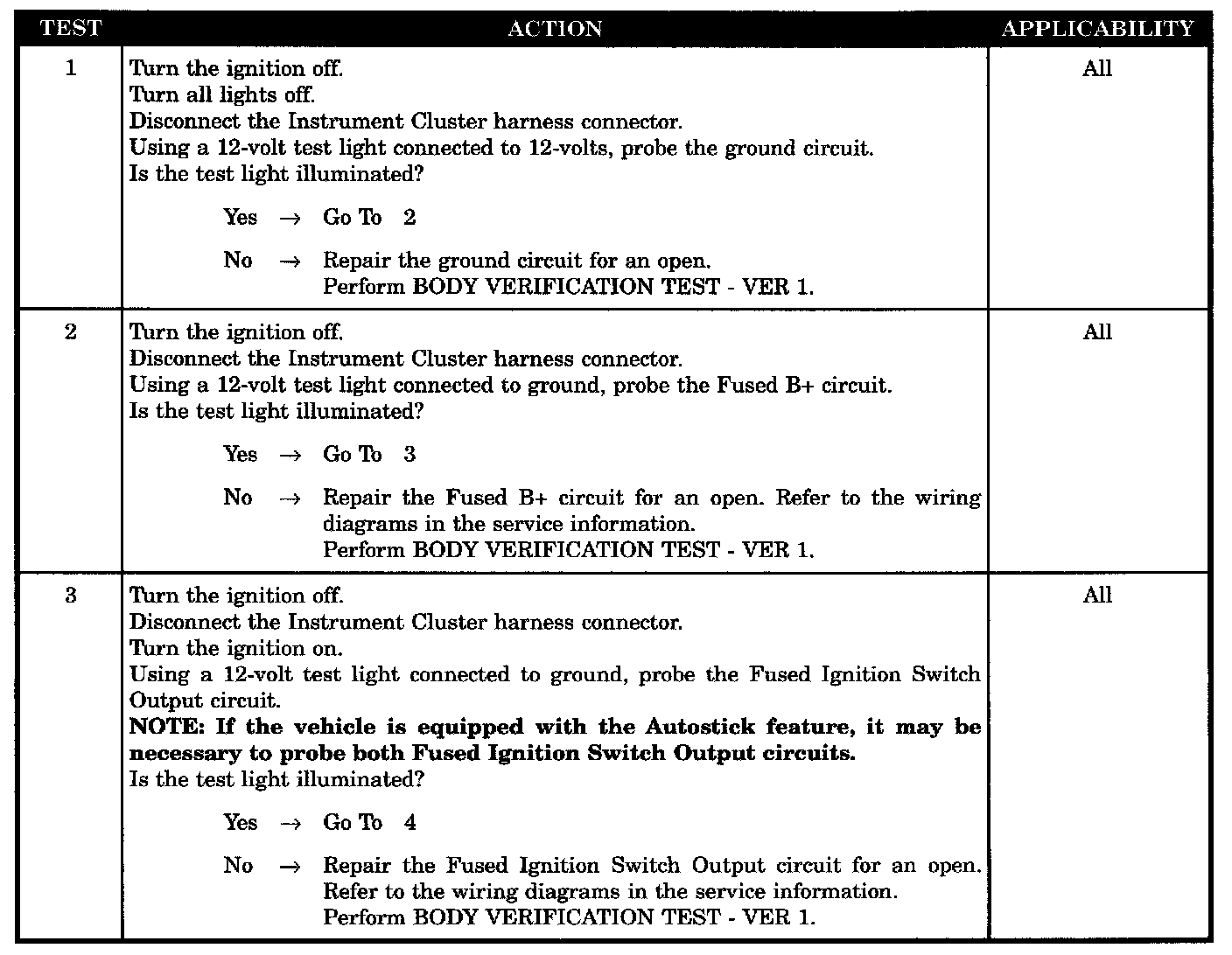

Tests 1 - 3:

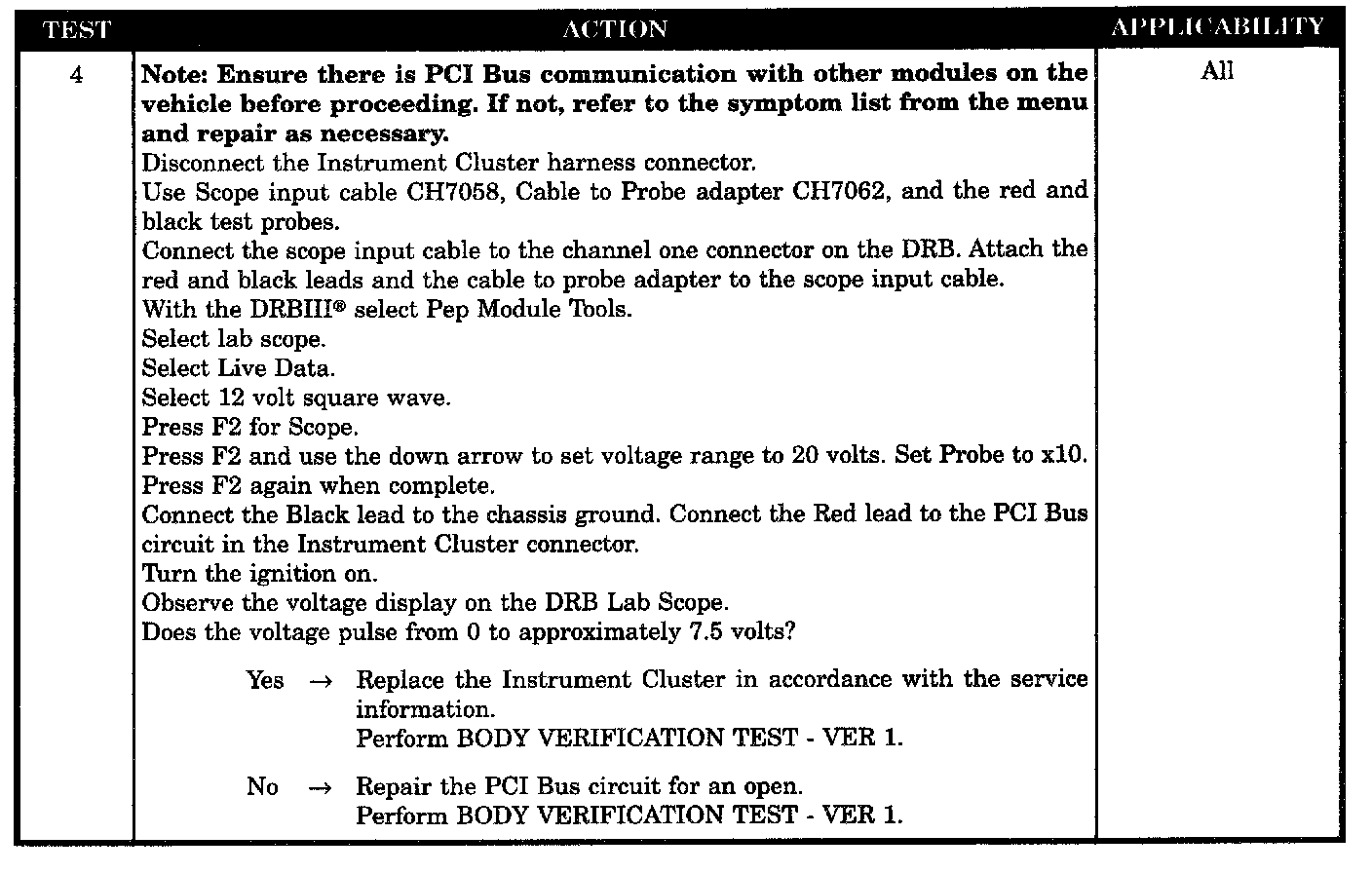

Test 4:

SYMPTOM
BUS ± SIGNALS OPEN OR NO RESPONSE FROM INSTRUMENT CLUSTER

POSSIBLE CAUSES
- Open ground circuit
- open fused B+ circuit
- Open fused ignition switch output circuit
- Open PCI bus circuit
- Instrument cluster
