Bus (+/-) Signals Open From Compass/Temperature Mirror

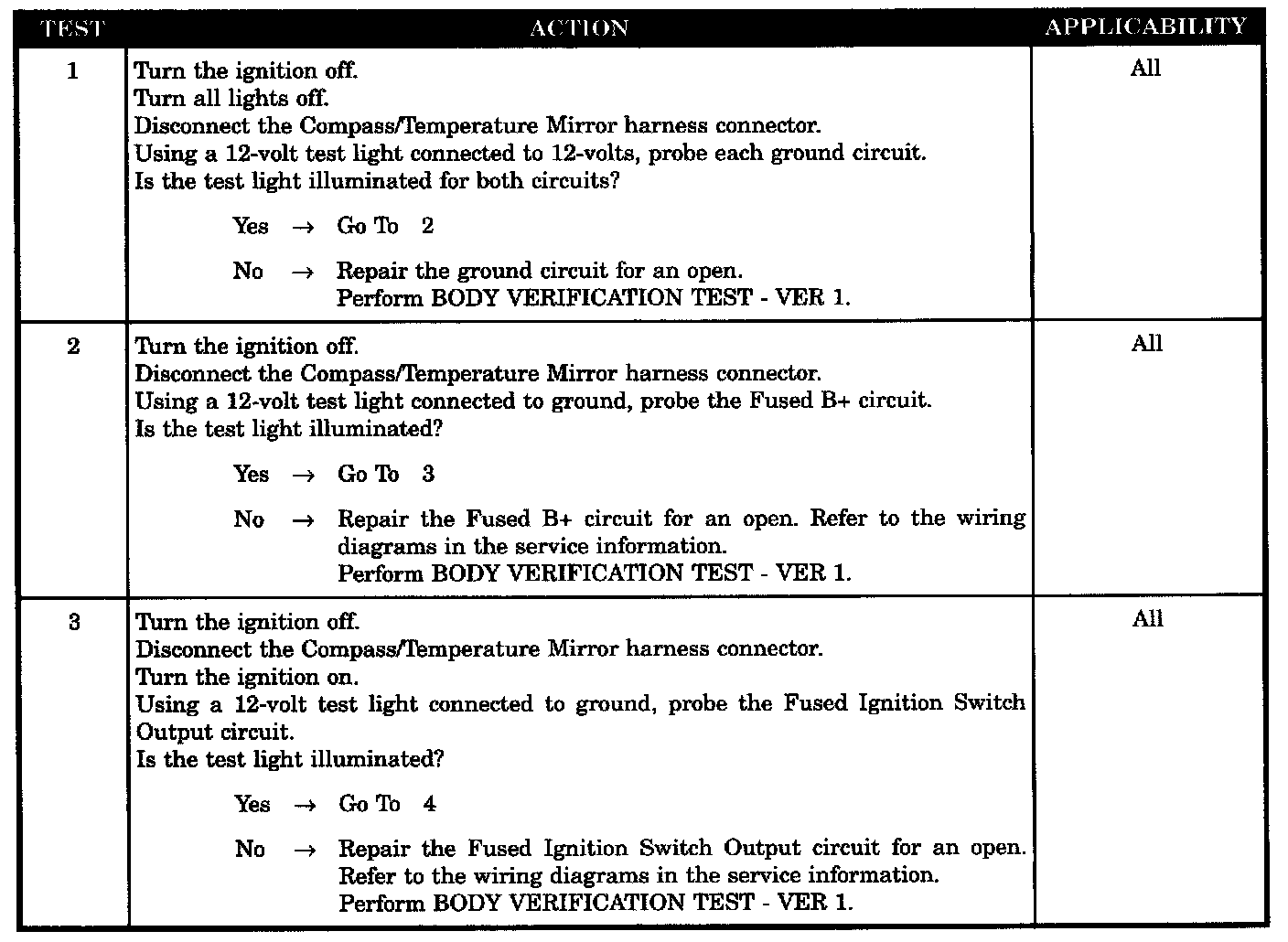

Tests 1 - 3:

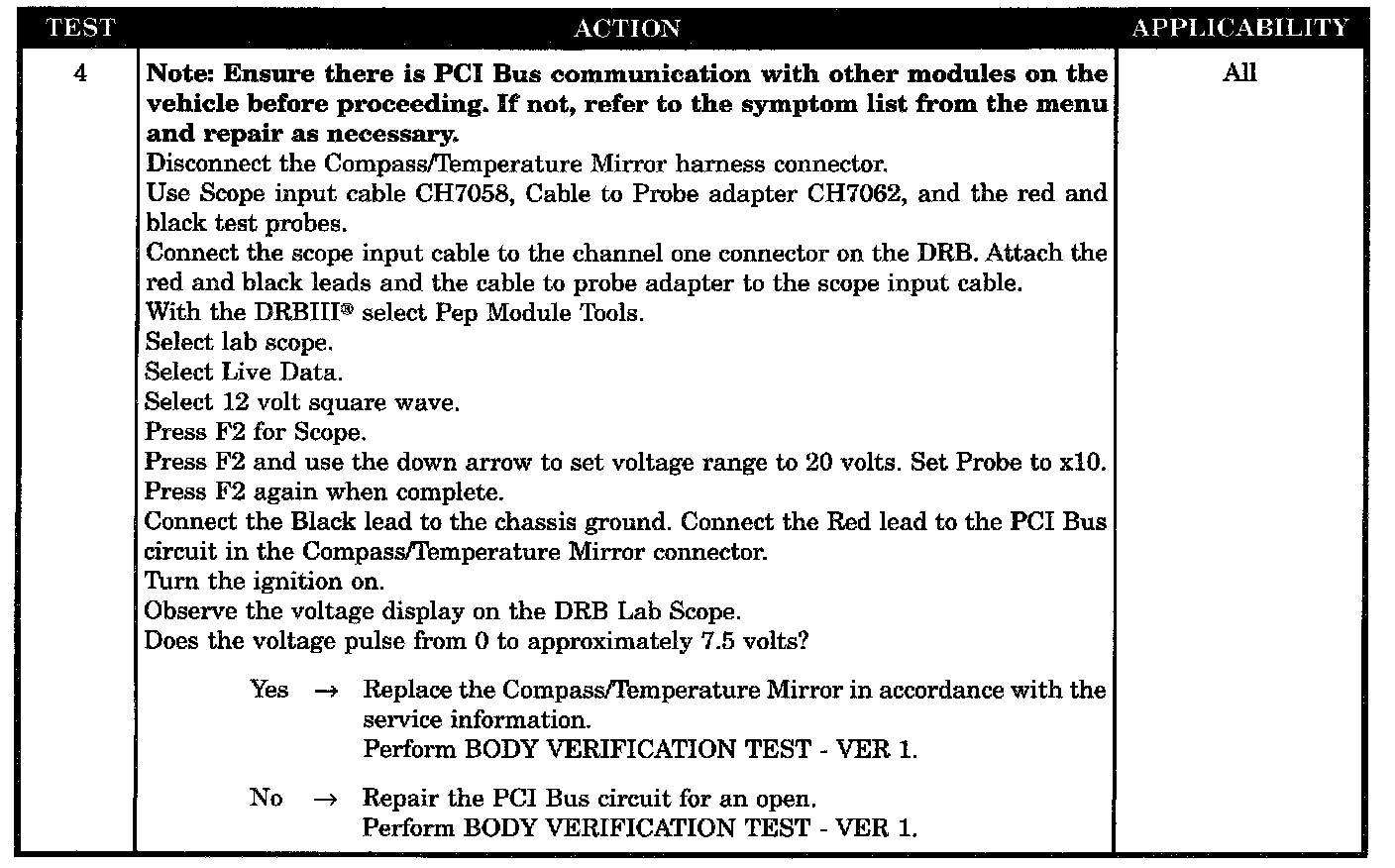

Test 4:

SYMPTOM
BUS ± SIGNALS OPEN FROM COMPASS/TEMPERATURE MIRROR

POSSIBLE CAUSES
- Open ground circuit
- Open fused B+ circuit
- Open fused ignition switch output circuit
- Open PCI bus circuit
- Compass/temperature mirror
