PCI Bus Communication

Test 1 - 2

Symptom:
PCI BUS COMMUNICATION

When Monitored and Set Condition:
PCI BUS COMMUNICATION

When Monitored: Ignition ON, every 7 ms.

Set Condition: When the CAB does not receive a message from the instrument cluster for 10 seconds.

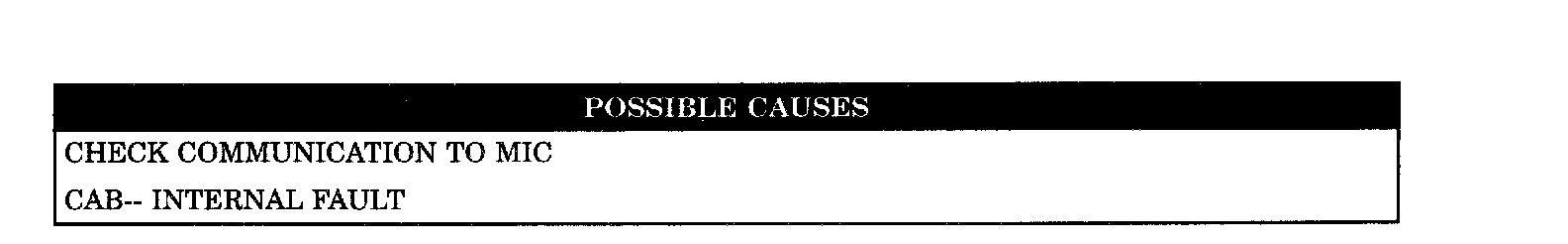

Possible Causes
