CAB Power Feed Circuit

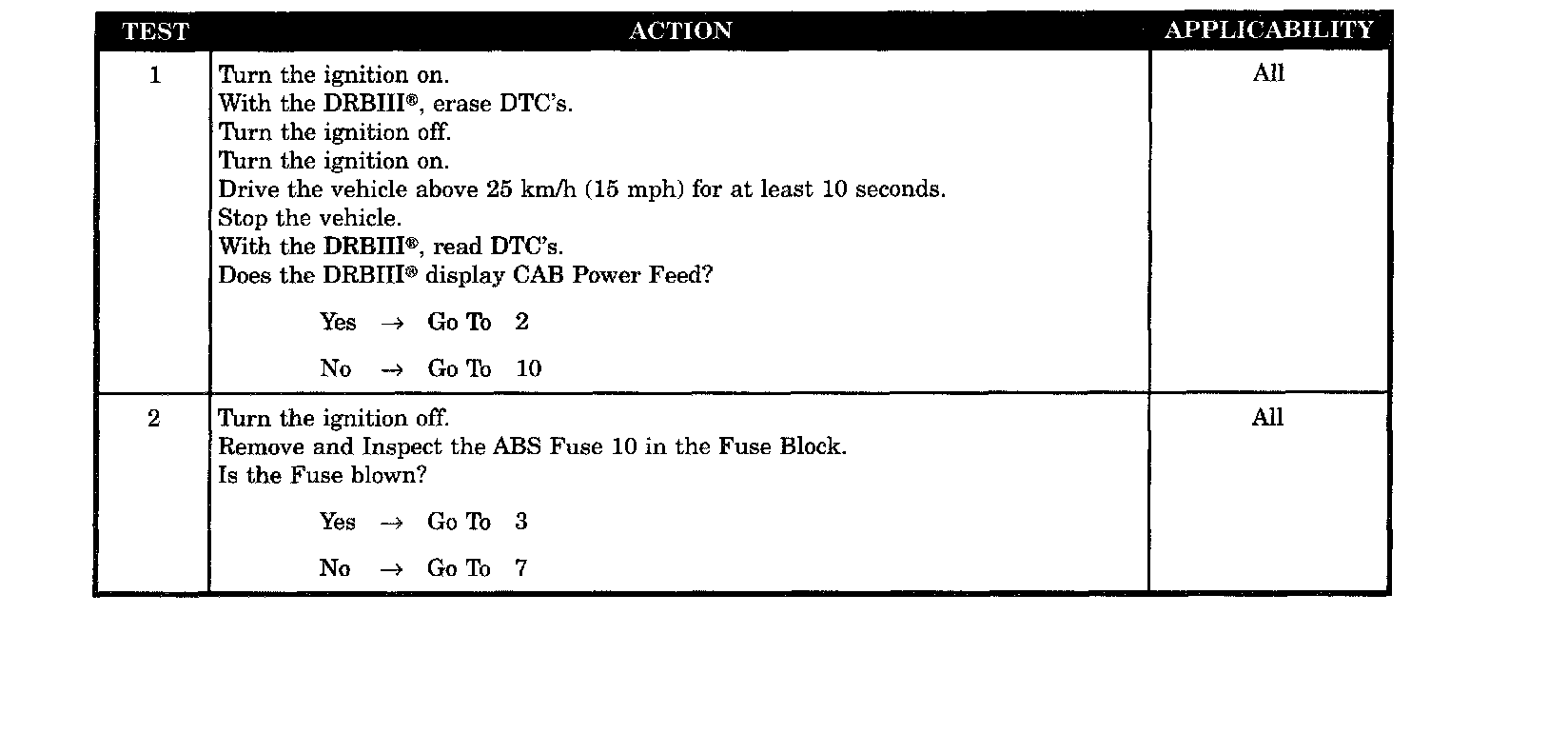

Test 1 - 2





Test 1 - 2





Test 1 - 2

Symptom:
CAB POWER FEED

When Monitored and Set Condition:
CAB POWER FEED

When Monitored: Ignition on. The CAB monitors the Fused B(+) circuit at all times for proper system voltage.

Set Condition: If the Fused B(+) voltage is missing when the CAB detects that an internal main driver is not "on", the Diagnostic Trouble Code (DTC) is set.

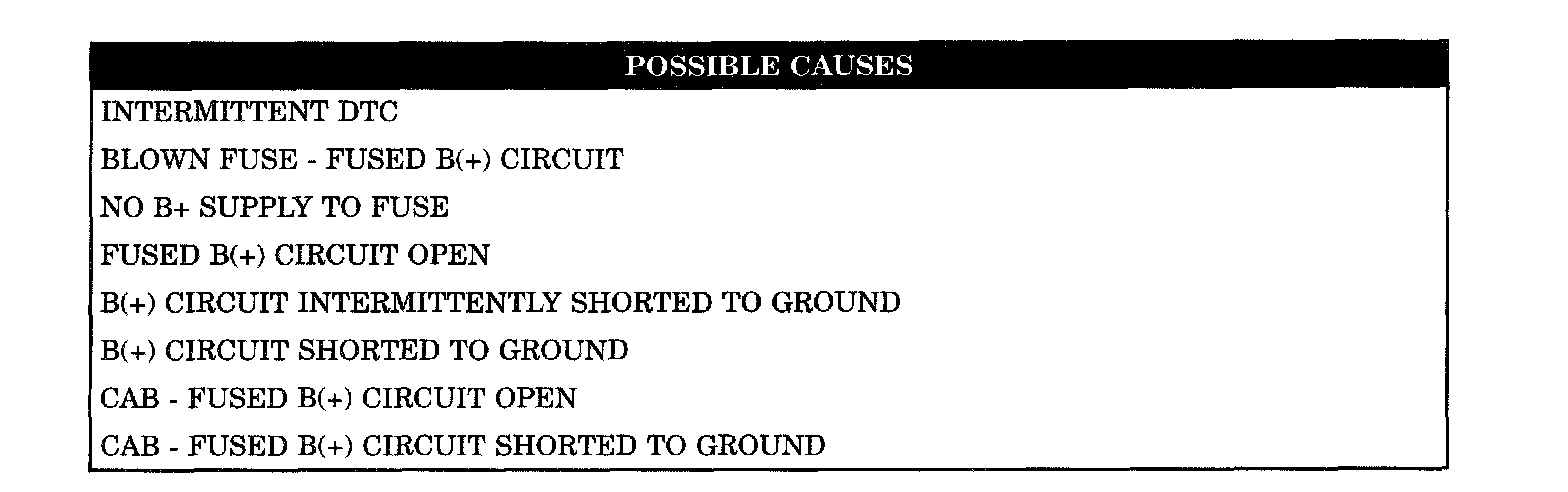

Possible Causes
